Southbend (Middleby) P24N-PP Platinum Gas Ranges
Description

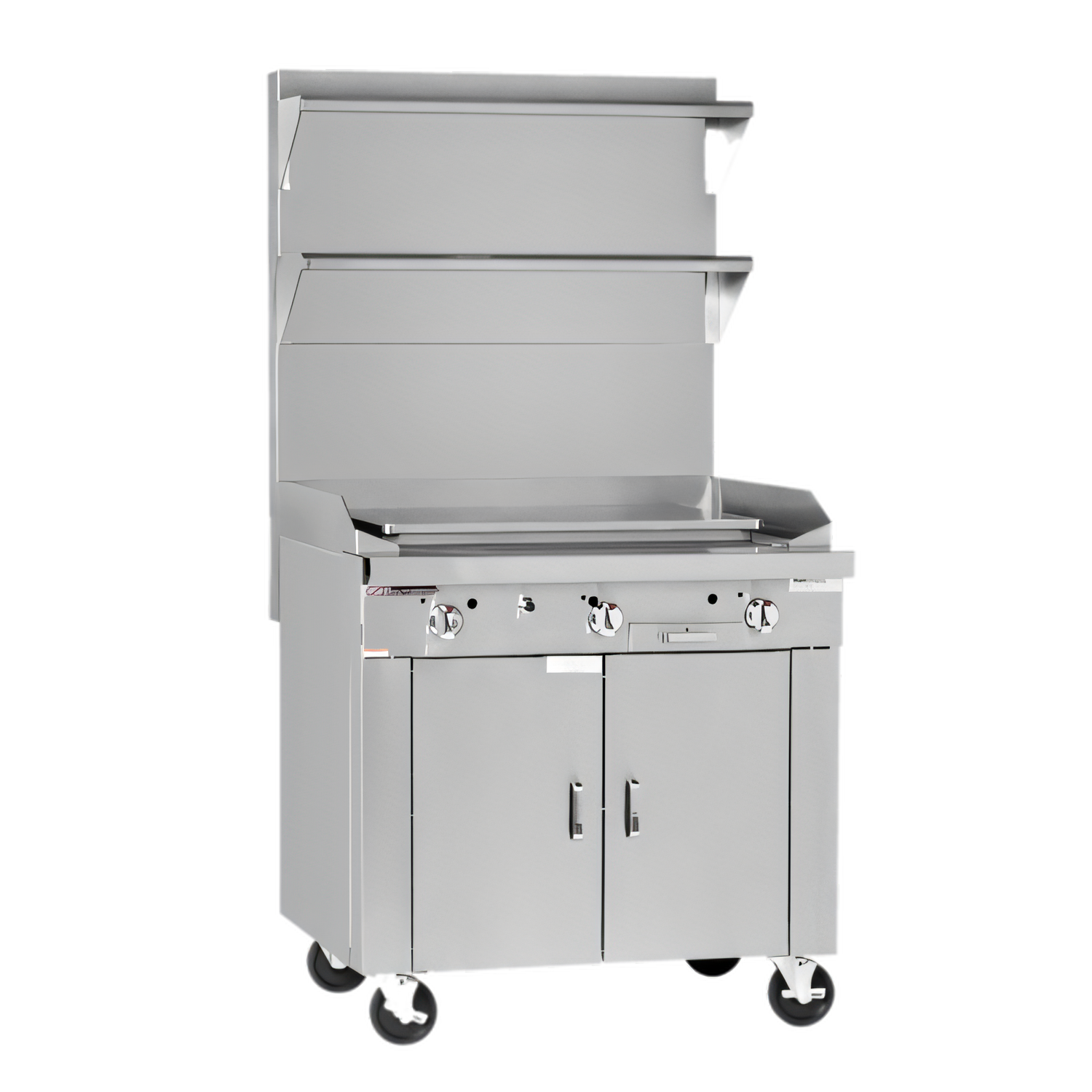

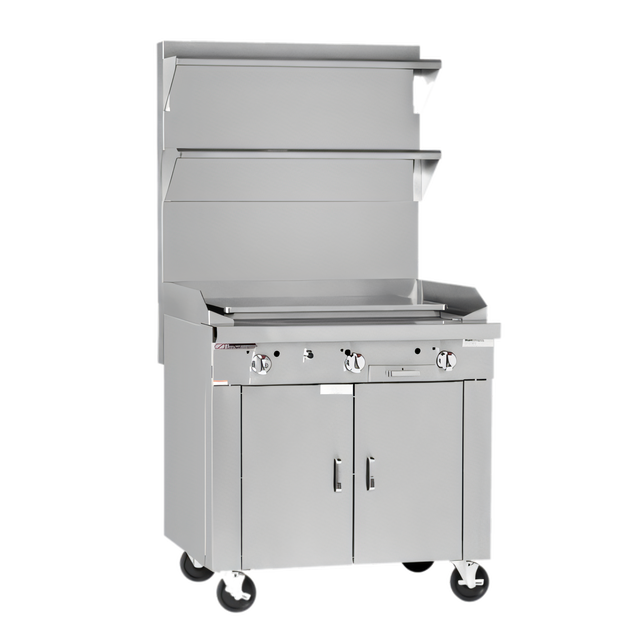

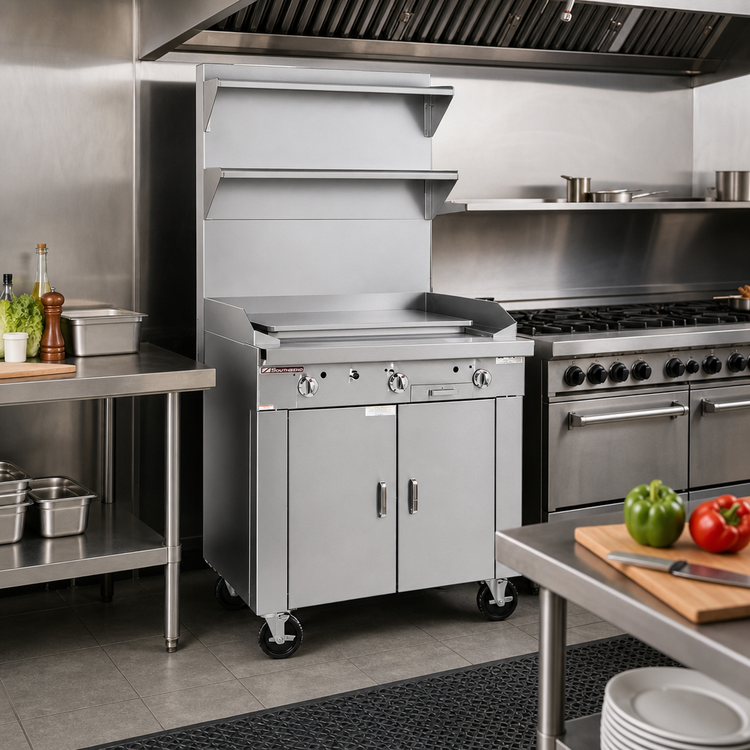

Southbend Platinum Series 24" Modular Plancha Range
Model P24N-PP | Gas | 32,000 BTU | CSA & NSF CertifiedBuilt for the busiest commercial kitchens, the Southbend Platinum P24N-PP combines the brute strength of a heavy-duty range with the finesse of a traditional plancha. A raised, ½" thick reinforced steel plate delivers blazing-hot searing temperatures up to 800 °F on the front two-thirds while providing a cooler finishing zone toward the rear. Two high-performance cast-iron burners, manual controls, and battery-spark ignition give you instant, reliable fire power—no electrical hookup required.
Key Features

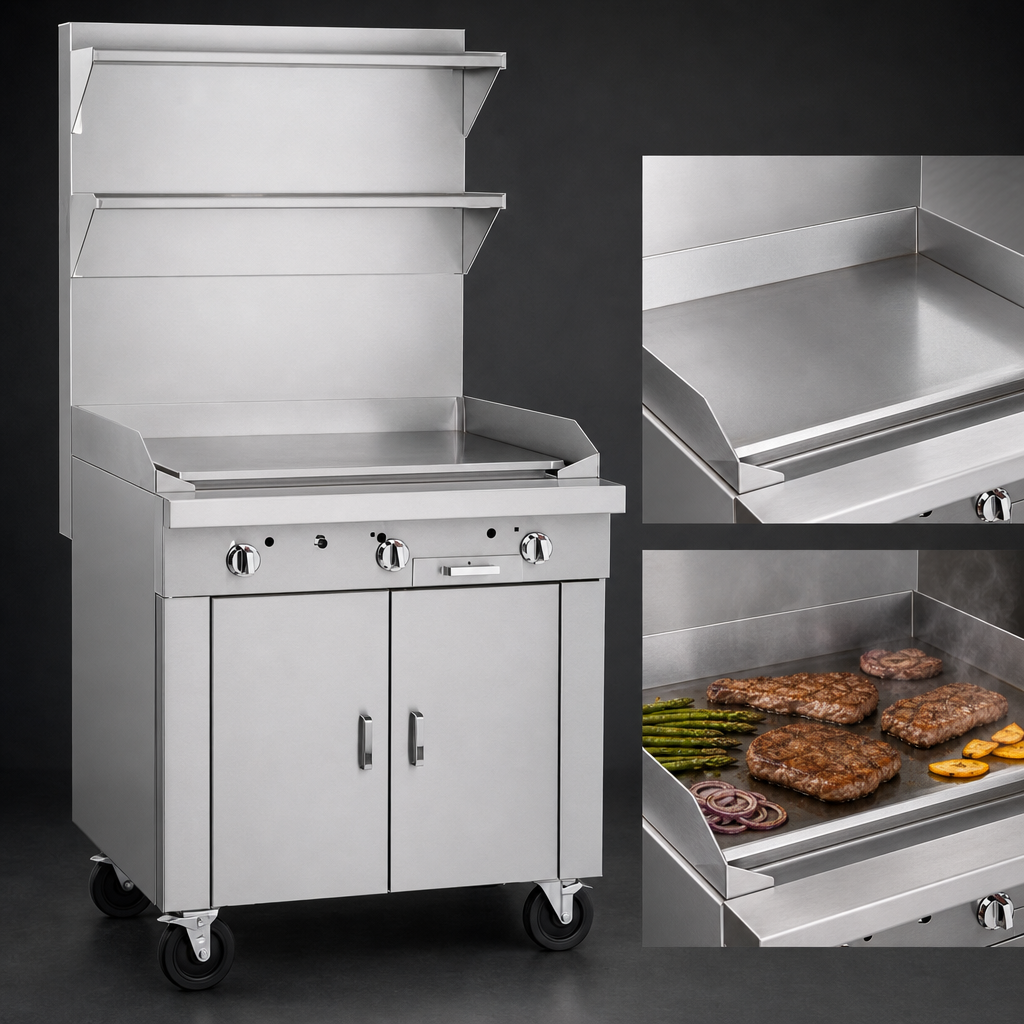

- 17 ¾" wide raised plancha plate with 3" perimeter trough for easy grease management.
- ½" thick, reinforced steel cooking surface heats fast and recovers quickly.
- Dual 16,000 BTU NAT (15,500 BTU LP) cast-iron burners – 32,000 BTU total output.
- High-heat searing zone (front ⅔) up to 800 °F; finishing zone (rear ⅓) for hold & finish.
- Battery-spark ignition and smooth-turn manual control knobs—no pilot light adjustment hassles.
- 5" deep stainless front rail and extra-capacity removable grease drawer.
- Stainless steel front, sides, rear & exterior bottom; fully insulated lining and burner box.
- 5" stainless flue riser; side & rear splashguards keep surrounding equipment clean.
- 1 ¼" front gas manifold couples into a sectional battery; 1" rear NPT gas connection.

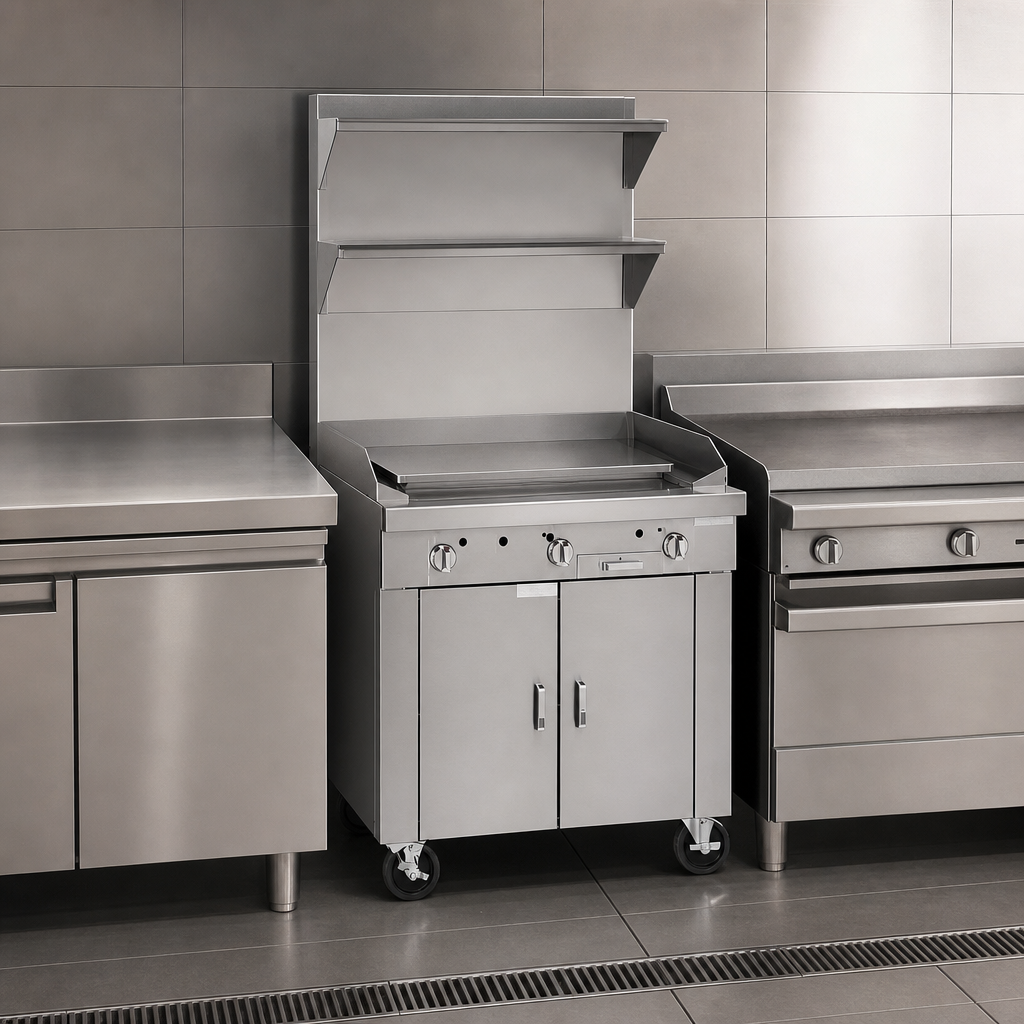

- Ships ready for countertop mounting or integration into a Platinum battery lineup.
Specifications
| Overall Width | 24" (610 mm) |
|---|---|
| Overall Depth | 37 ½" (953 mm) |
| Cooking Surface | 17 ¾" W × 22 ⅝" D raised plancha |
| Plate Thickness | ½" reinforced steel |
| Heat Output | 32,000 BTU/hr (Natural) | 31,000 BTU/hr (LP) |
| Burners | (2) cast-iron, 16,000 BTU each |
| Ignition | Battery-spark |
| Gas Connection | 1 ¼" front manifold (sectional) | 1" rear male NPT |
| Flue Riser Height | 5" stainless steel |
| Shipping Weight | 250 lb (113 kg) |
| Certifications | CSA Gas, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular Options (sold separately)
- External gas pressure regulator
- Front locking casters or open-frame caster base
- 7 ¼" deep or cut-out front rails (sauce-pan wells)
- 24" or 36" flue risers with optional 10" deep shelves
- Cable restraint kit for mobile installations
- Plancha units operate as a single heat zone and do not allow specific temperature selection.
- Minimum clearances: 0" (non-combustible), 10" side & 12" rear (combustible).
- Designed for commercial kitchens; installation under a vented hood and a regulated gas supply is required.
- Avoid cookware larger than 12" in diameter on the front rail to prevent overheating of components.
Upgrade your cooking battery with the uncompromising performance of a true heavy-duty plancha—order the Southbend Platinum P24N-PP today and start searing, finishing, and turning tickets faster than ever.
