Southbend (Middleby) P24N-HH Platinum Gas Ranges
Description
Southbend Platinum P24N-HH 24" Modular Heavy-Duty Uniform Hot Top Range
Gas • 64,000 BTU • Piezo battery spark ignitionBuilt for the most demanding commercial kitchens, the 24-inch Platinum P24N-HH delivers consistent, even heat across a full-width steel hot top while fitting seamlessly into any sectional battery line-up. All-stainless construction, manual high/low controls and a blistering 700 °F surface temperature give chefs the power and durability they expect from Southbend’s flagship heavy-duty range series.
Key benefits
- Uniform hot top heated by four concealed 16,000 BTU burners (64,000 BTU total)

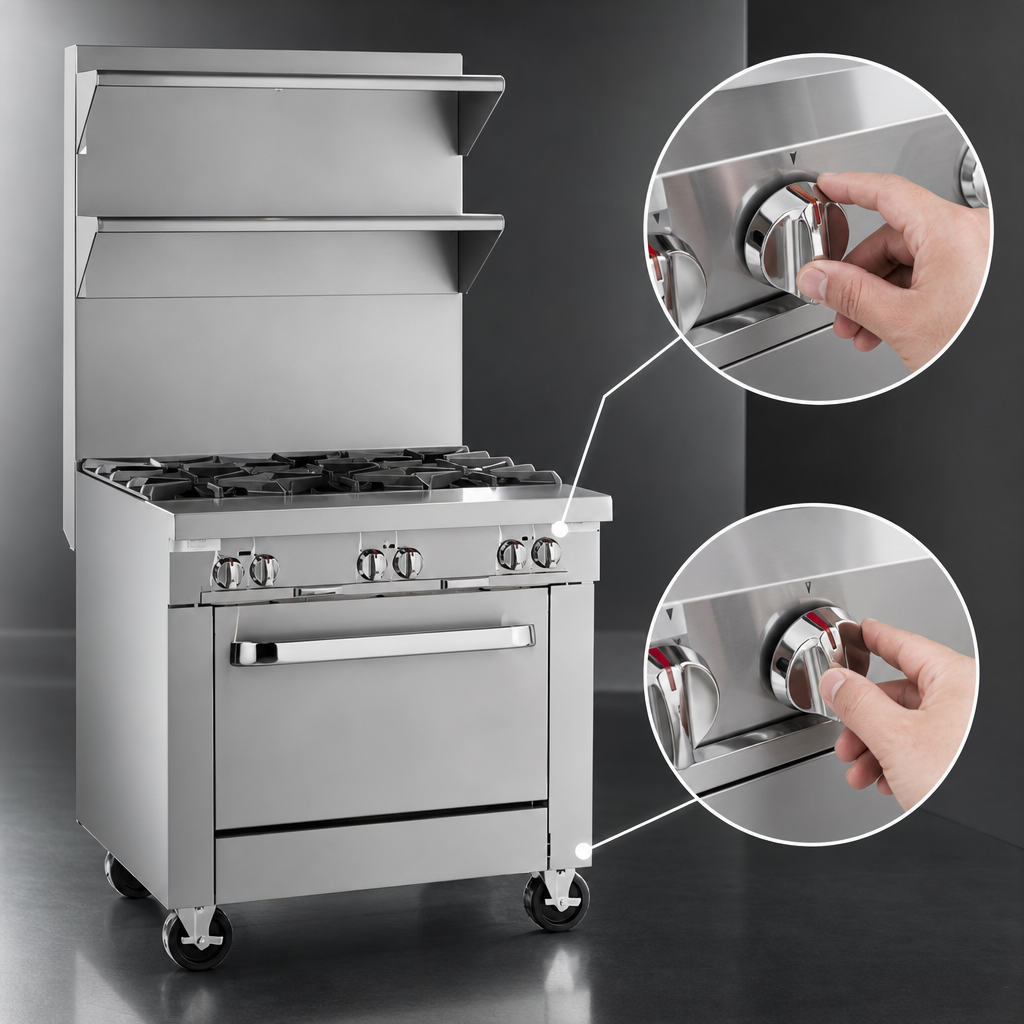

- Two manual high/low control knobs for precise zone cooking
- Battery-powered Piezo ignition eliminates standing pilots and saves energy
- Removable 3⁄4" thick steel plates reach up to 700 °F for searing, sautéing or holding
- Rugged #3-polished stainless steel front, sides, rear and exterior bottom
- 9-1⁄4" deep front rail provides a sturdy landing for pans and utensils
- 5" stainless steel flue riser protects the backsplash and directs heat to the hood
- Fully insulated lining and burner box improve efficiency and keep surfaces cooler
- 1-1⁄4" front manifold couples with adjacent Platinum sections for a clean battery line
- NSF listed, cCSAus, CSA Flame & CSA Star certified for gas safety
Specifications
| Model | P24N-HH (modular countertop/unit) |
|---|---|
| Cooking surface | Full-width uniform hot top – removable steel plates |
| Total input | 64,000 BTU/hr Natural gas (56,000 BTU/hr LP) |
| Burners | 4 × 16,000 BTU concealed tube burners |
| Controls | 2 manual high/low valves with battery spark ignition |
| Surface temperature | Up to 700 °F (371 °C) on high setting |
| Gas connections | 1-1⁄4" front manifold (coupling), 1" rear male NPT |
| Minimum gas pressure | 7" W.C. Natural, 11" W.C. Propane (regulator required) |
| Overall dimensions | 24"W × 37-1⁄2"D × 34"H (to hot top) |
| Shipping weight | Approx. 231 lb / 105 kg |
| Warranty | 1-year parts & labor, backed by Southbend Authorized Service network |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
Popular options & accessories (sold separately)
- External gas pressure regulator
- Front locking casters or open-frame base with casters
- 7-1⁄4" deep or cut-out front rail configurations
- 24" or 36" flue riser, with optional storage shelves
- Extra-deep rear-extending flue riser
- Cable restraint kit for mobile installations
Need a complete battery? Southbend offers free design assistance to help you configure a matched Platinum cookline.
