Southbend (Middleby) P24N-GG Platinum Gas Ranges
Description

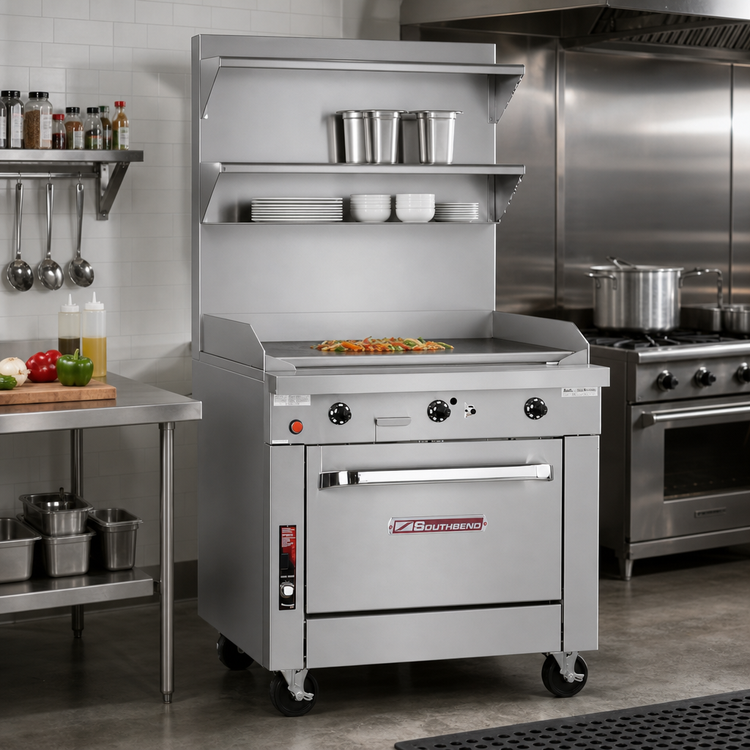

Southbend Platinum Series 24" Modular Heavy-Duty Gas Griddle Range
Model P24N-GG | 64,000 BTU | Manual ControlsBuilt for continuous, high-volume production, the Southbend Platinum 24" modular griddle drops seamlessly into any heavy-duty battery line-up or countertop base. A full-width 1" thick plate, four powerful burners and all-stainless construction make it the go-to choice for operators who demand rock-solid reliability shift after shift.
Performance & Construction Highlights
- Compact 24" (610 mm) sectional unit—ideal for tight cooklines or custom suites.

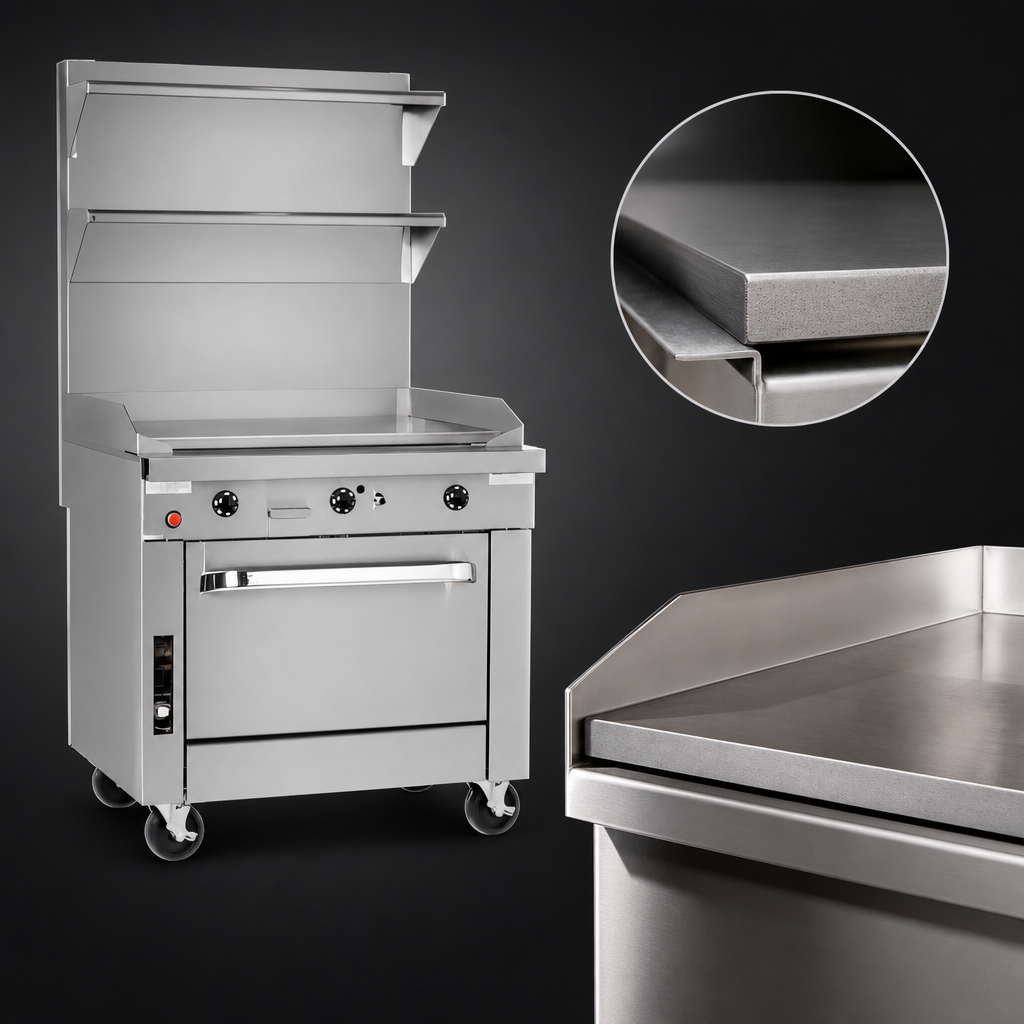

- 1" (25 mm) polished steel griddle plate with integral side & rear splashers.
- Total output 64,000 BTU/hr (Natural Gas) delivered by four 16,000 BTU burners.

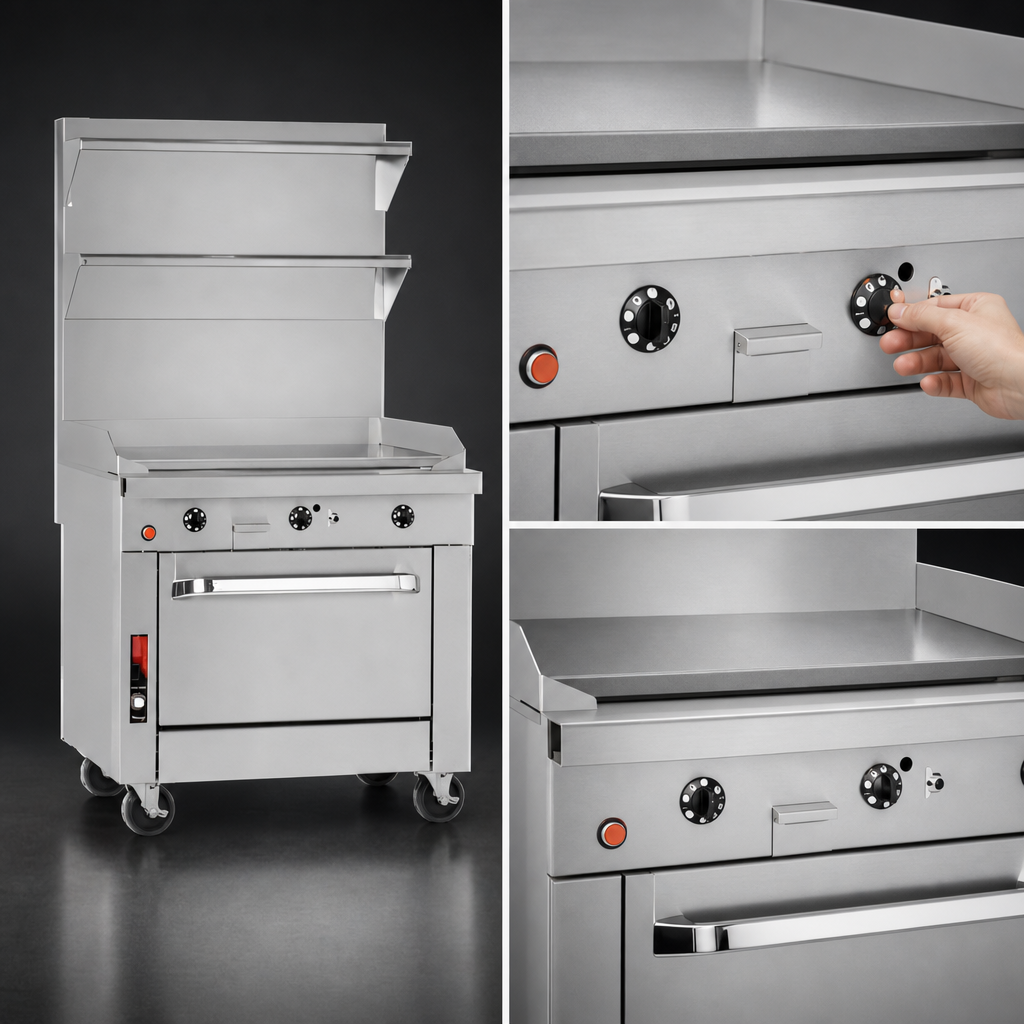

- Manual infinite-valve controls for instant heat adjustments.
- Battery-spark (Piezo) ignition eliminates standing pilots and saves energy.
- 9-1/4" deep front rail protects the operator and doubles as a plating surface.
- Removable stainless steel grease drawer for fast, mess-free clean-up.
- Stainless steel front, sides, rear & exterior bottom (#3 polish 430/304).
- 5" high stainless steel flue riser plus fully insulated burner box.
- Certified: cCSAus, CSA Flame & Star, NSF.
- Backed by Southbend’s 1-year parts & labor warranty.
Gas & Installation Data
| Gas Type | Natural (standard) or Propane (field convertible*) |
|---|---|
| Total Input | 64,000 BTU/hr NAT • 56,000 BTU/hr LP |
| Front Manifold | 1 ¼" NPT (links with adjacent sectional units) |
| Rear Connection | 1" NPT male |
| Min. Supply Pressure | 7" W.C. NAT • 11" W.C. LP |
| Recommended Venting | Install beneath a commercial exhaust hood |
| Clearances | 0" sides/rear (non-combustible) • 10" sides & 12" rear (combustible) |
*External gas pressure regulator and flexible-hose restraint are required and sold separately.
Dimensions & Shipping
| Overall Width | 24" / 610 mm |
|---|---|
| Overall Depth | 34" / 864 mm |
| Overall Height | 5" flue riser (mounting feet height varies by base) |
| Shipping Weight | ≈ 250 lb / 113 kg |
| Crate Size | 39" W × 21" H × 44" D (20.9 ft³) |
Popular Accessories (Sold Separately)
- External gas regulator
- 24" or 36" flue riser with condiment shelves
- Casters or open-frame mobile base
- Grooved or chrome-plated griddle surface
- Tubular or tray shelving kits
