Southbend (Middleby) P24N-CC Platinum Gas Ranges
Description

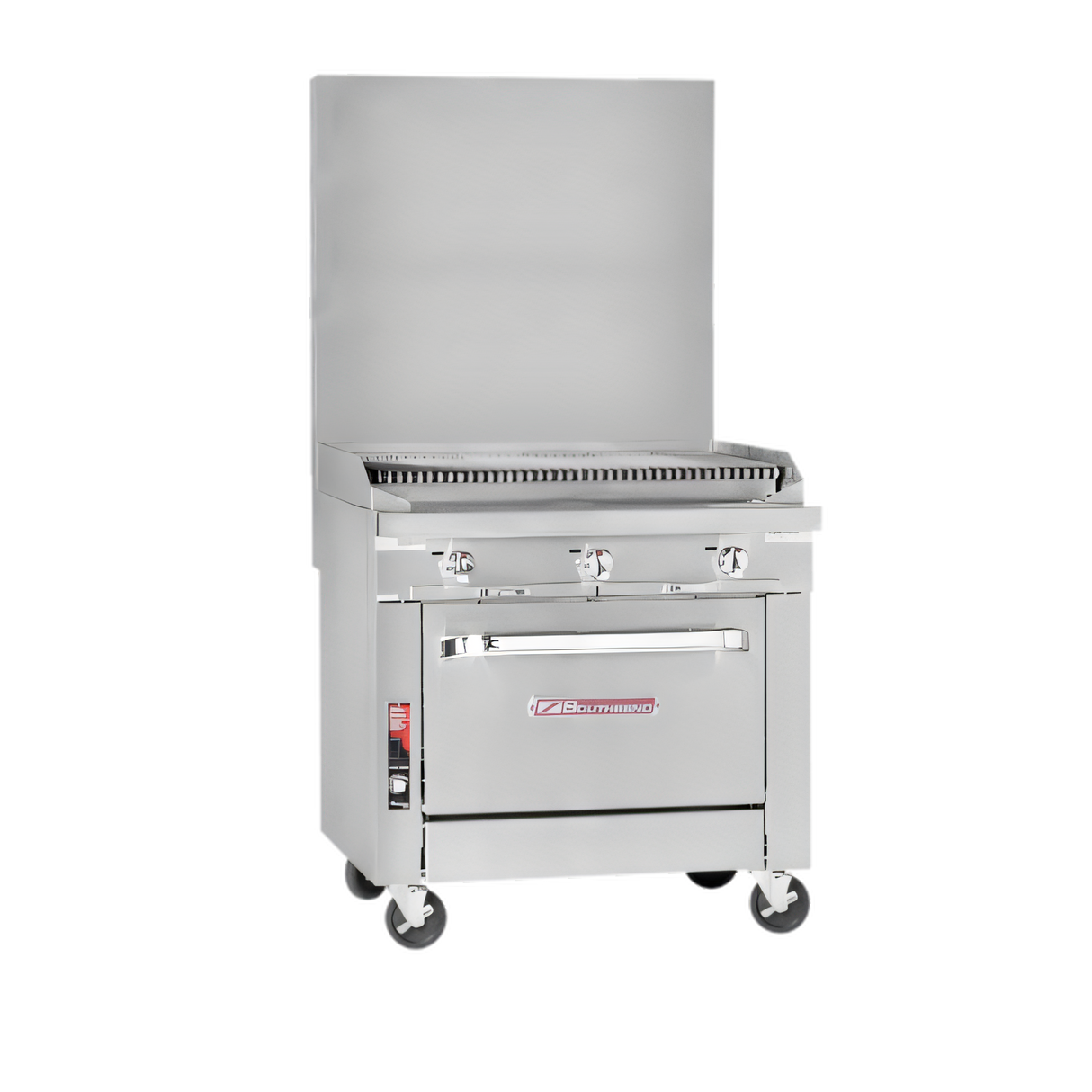

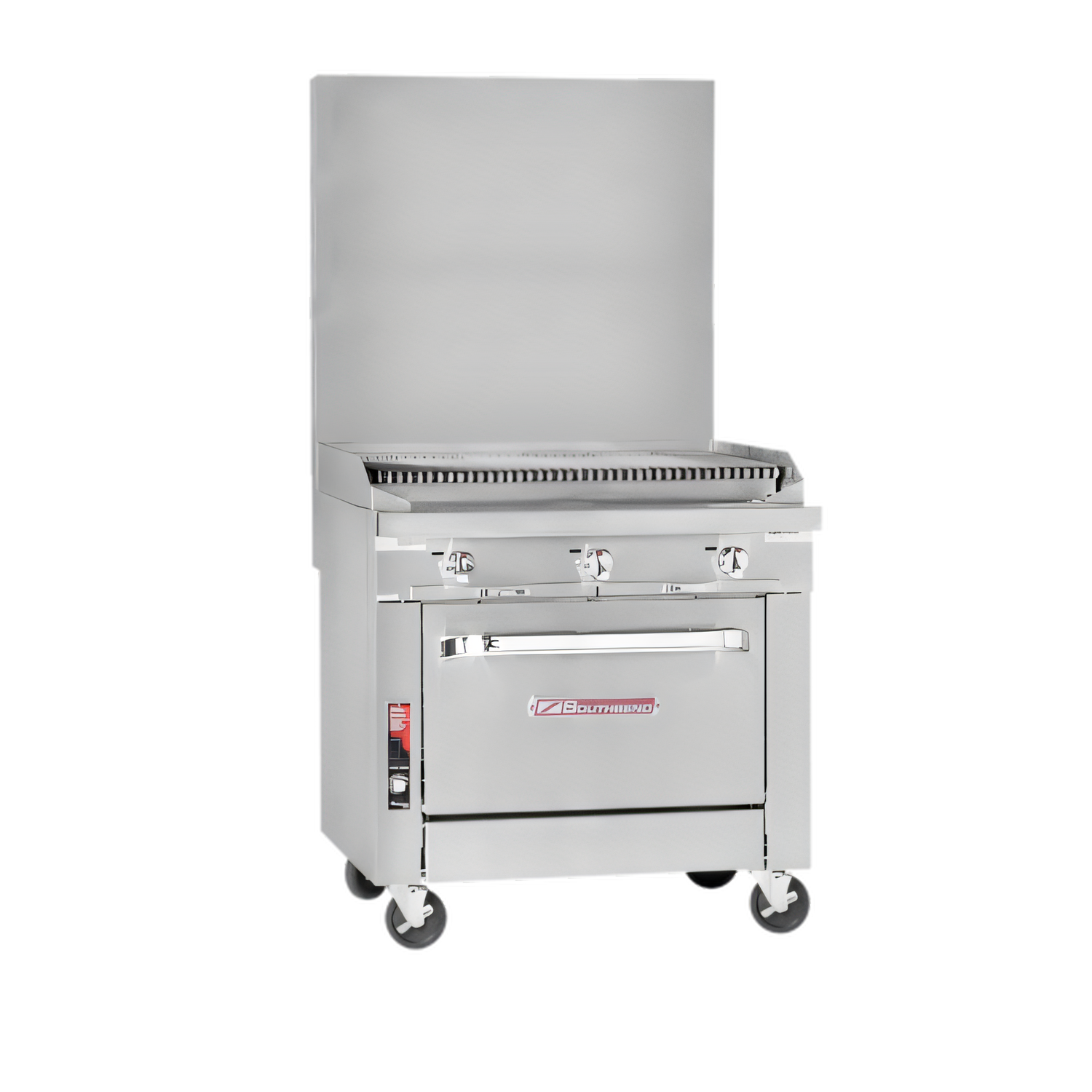

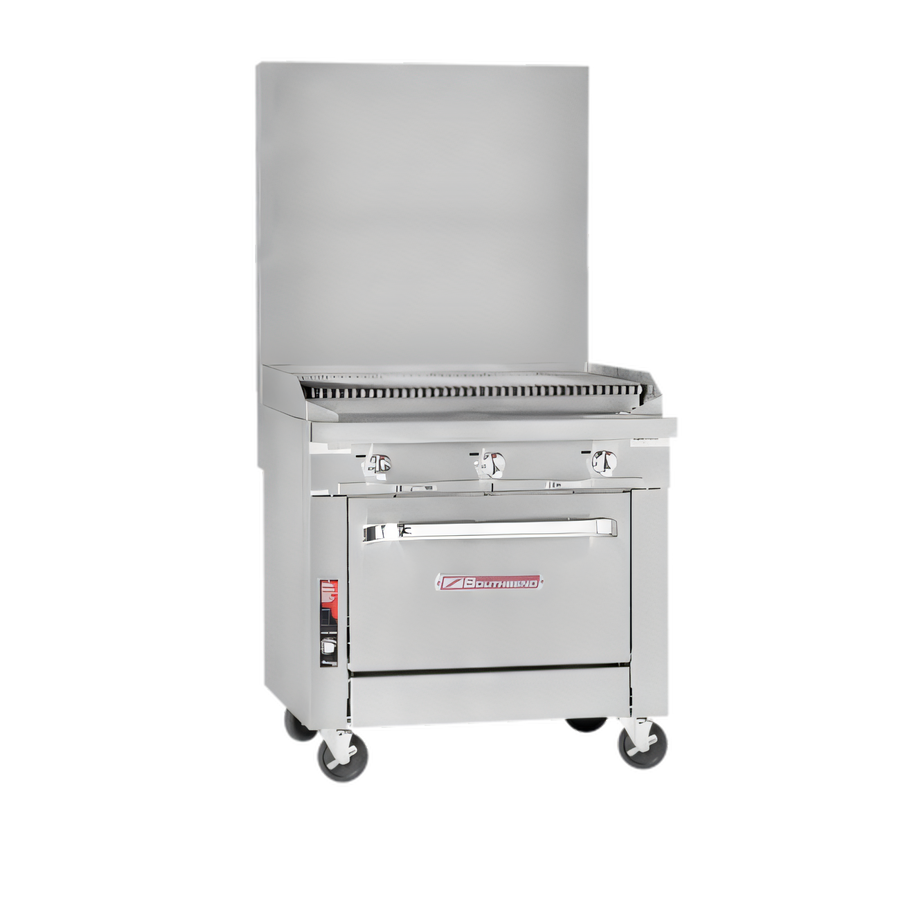

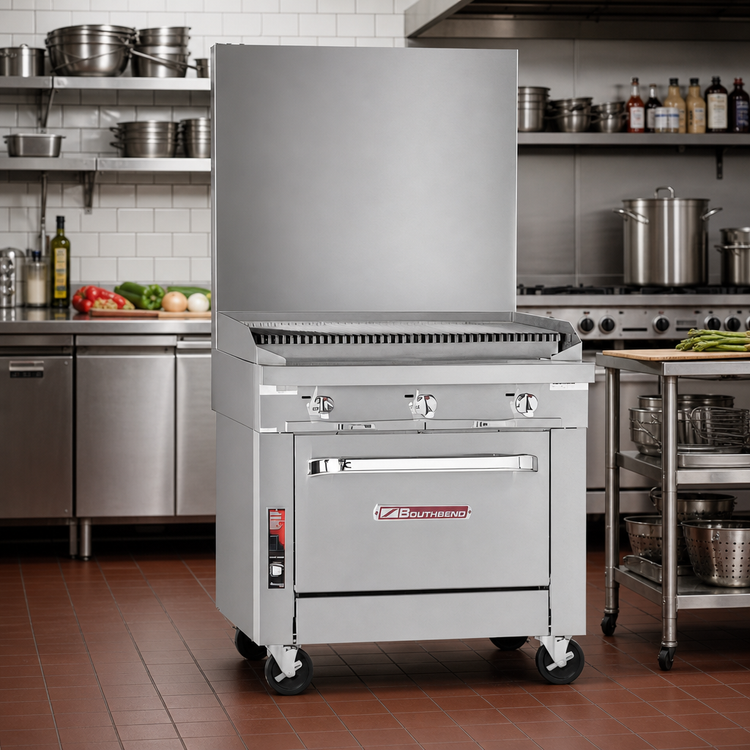

Southbend Platinum Series 24" Modular Charbroiler Range
Model P24N-CC | 64,000 BTU Gas | CSA & NSF ListedEngineered for the busiest commercial kitchens, the Southbend Platinum Series 24" modular charbroiler range delivers relentless power and rock-solid construction in a compact footprint. Four 16,000 BTU burners, heavy cast-iron grates, and stainless-steel radiants combine to create an even 600 °F cooking surface that turns out perfect grill marks shift after shift. Drop it onto a countertop, refrigerated base, or battery with other Platinum heavy-duty sections and watch your line move faster than ever.
Highlights Chefs Love

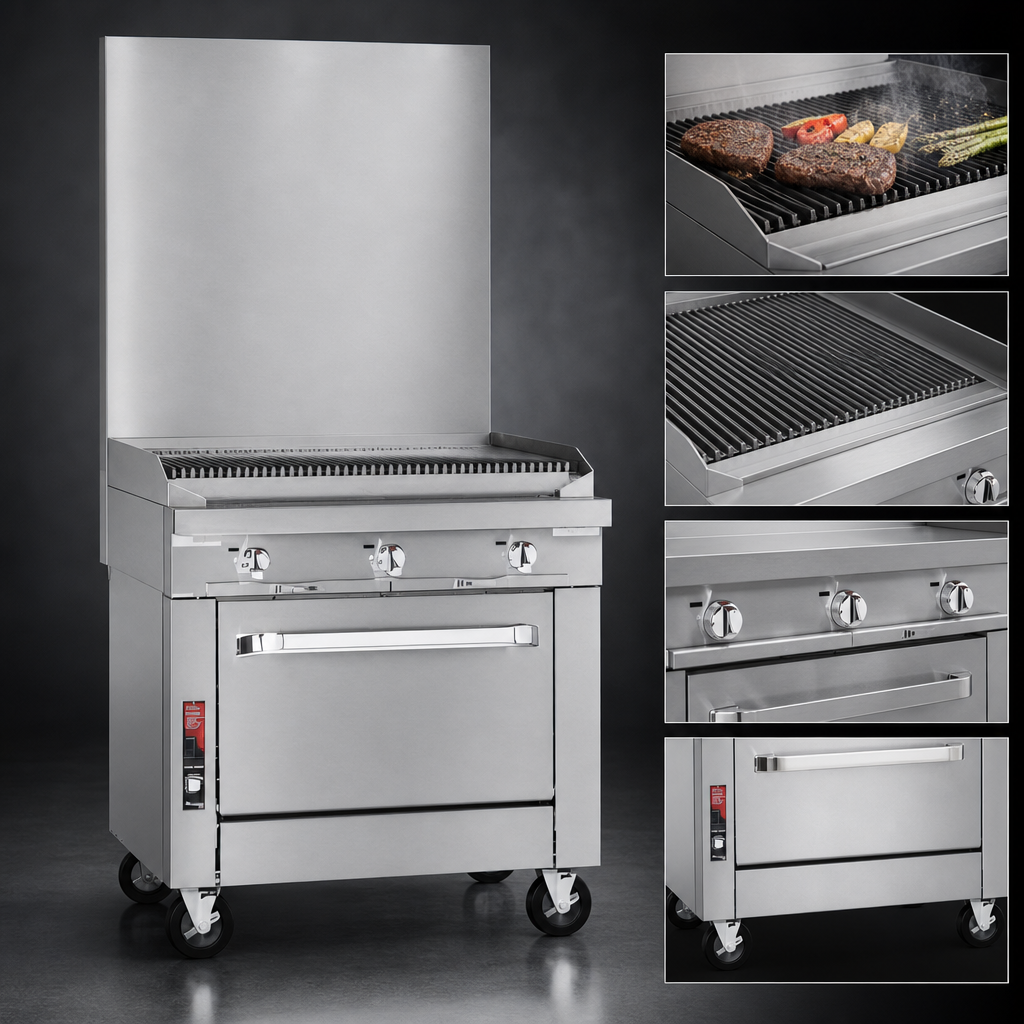

- Full-width charbroiler with four 16,000 BTU NAT burners (two high/low control knobs).
- Reversible cast-iron grates (⅛" or ¼" rib spacing) with adjustable front-to-back slope for meat, seafood, or vegetables.
- Stainless-steel burner radiants for maximum heat retention and easy cleanup.
- Stainless-steel front, sides, rear, and exterior bottom – #3 polished 430 & 304 stainless.
- 9 ¼" deep front rail keeps plates and pans within ergonomic reach.
- Removable drip tray and fully insulated burner box for a safer, cleaner work station.
- 5" stainless-steel flue riser channels smoke toward the hood.
- Modular design mounts on a countertop, refrigerated or freezer base, or into a Platinum battery without side gaps.
Technical Specs
| Model | P24N-CC (modular) |
|---|---|
| Total Input | 64,000 BTU/hr Natural | 56,000 BTU/hr LP |
| Burners | 4 × 16,000 BTU cast iron, manual high/low |
| Cooking Surface Temp | Up to 600 °F (315 °C) |
| Cooking Surface | Full 24" width – reversible cast-iron grates |
| Overall Width | 24" / 610 mm |
| Overall Depth | 37 ½" / 953 mm |
| Height (to grates) | 8 ½" / 216 mm |
| Height w/ 5" Flue | 13 ½" / 343 mm |
| Gas Connection | 1 ¼" front manifold (battery capable) & 1" rear NPT |
| Minimum Inlet Pressure | 7" W.C. NAT | 11" W.C. LP (regulator required) |
| Shipping Weight | ≈ 260 lb / 118 kg |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend terms) |
Factory Options & Accessories (extra)
- External gas pressure regulator
- 7 ¼" deep front rail or sauce-pan cut-outs
- 24" or 36" flue riser; extra-deep rear-extending flue
- Cable restraint kit for flexible-hose installations
- Plated fish grids
- Use cookware 12" Ø or larger on the rear section only to prevent overheating the front rail.
- Never place sheet pans over the grates while burners are on – reflected heat can damage the charbroiler and is not covered under warranty.
- Commercial installation under a vented hood is required; not for household use.
Need a full Platinum battery or financing? Chat with our equipment specialists for a custom quote and monthly payment options.
