Southbend (Middleby)  |  Platinum  |  SKU: P24N-BB-SU

Southbend (Middleby) P24N-BB-SU Platinum Gas Ranges

$6,531.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum™ 24" Modular Heavy-Duty Step-Up Range – 140,000 BTU

Model P24N-BB-SU | 4 Open Burners | Gas

Pack maximum firepower into the smallest footprint on the line. Southbend’s Platinum Series 24" step-up range delivers a combined 140,000 BTU of clog-free performance with the flexibility of a countertop (modular) format that drops neatly onto refrigerated, freezer or custom bases.

Performance & Construction Highlights

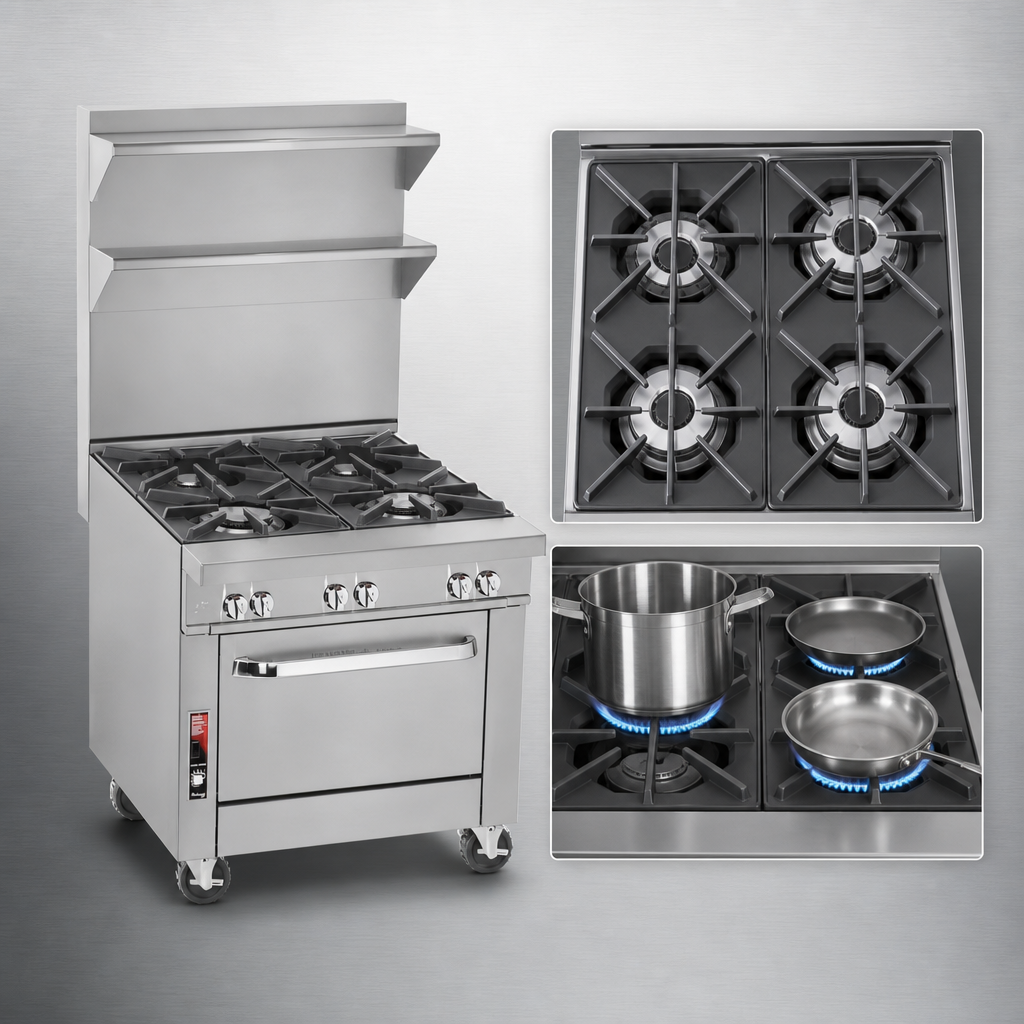

  • Four 35,000 BTU open burners (two front, two rear raised 4" for stock-pots & visibility)
  • Patented clog-free burner design reduces downtime and cleaning

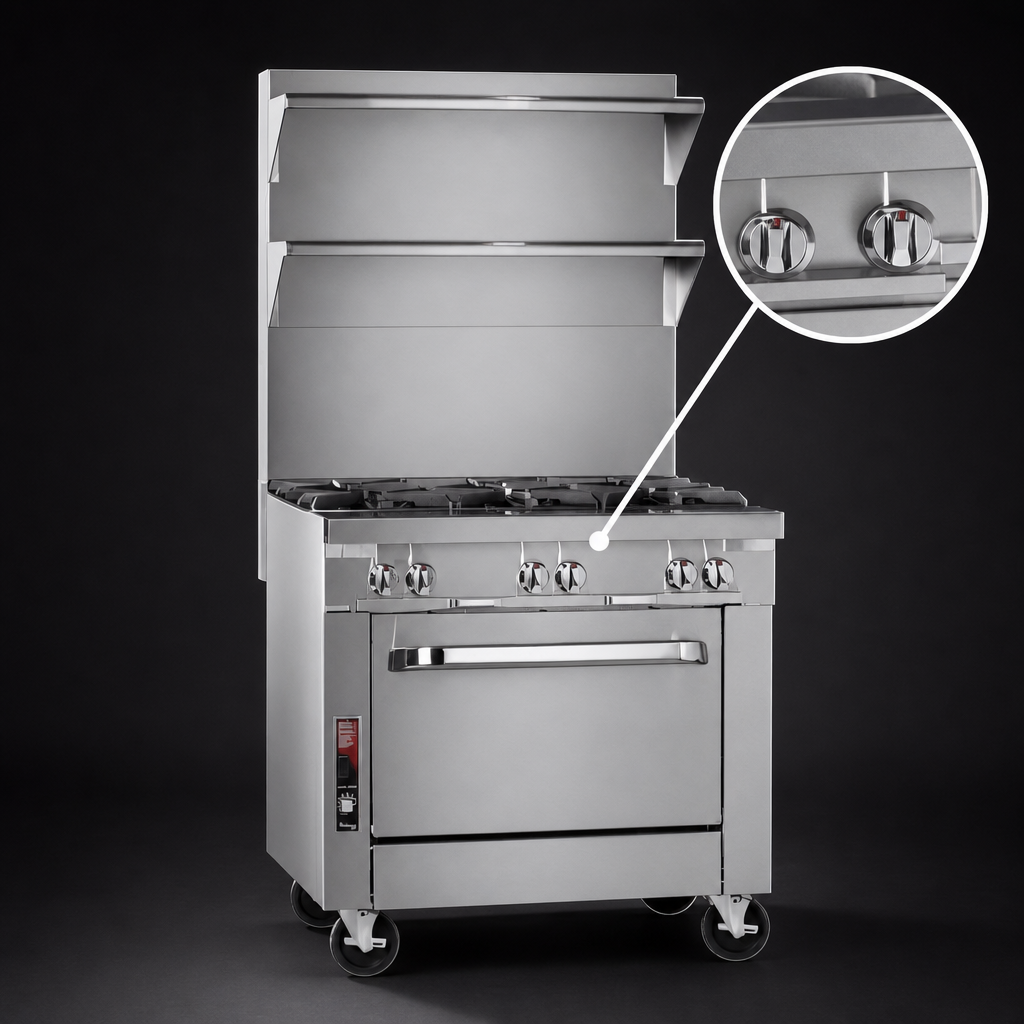

  • Manual infinite-valve controls deliver instant, precise flame adjustment
  • Removable, welded-steel top grates handle heavy cookware with ease
  • Full-width drip tray pulls straight out for quick clean-up
  • 9-1/4" deep front rail doubles as a plating & resting surface
  • Stainless steel front, sides, rear and exterior bottom for long-term durability
  • Fully-insulated burner box keeps surrounding stations cooler
  • 5" stainless flue riser vents heat up and away from the cookline
  • 1-1/4" front gas manifold & 1" rear connection – perfect for batteried installations
  • Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation
Why Go Modular?
  • Mounts directly on counters, refrigerated or freezer bases – no legs required
  • Step-up design frees the front burners for sauté while raising stockpots in the rear
  • Supplied solid end panel when positioned at the end of a battery line-up
Technical Specifications
Model P24N-BB-SU (Platinum Series)
Gas Type Natural or Propane (field convertible)
Total Input 140,000 BTU/hr (4 × 35,000 BTU)
Cooking Width 24" / 610 mm
Overall Depth 34" / 864 mm
Overall Height ≈34" to cook surface  |  ≈39" with 5" flue
Gas Connections 1-1/4" front manifold  |  1" NPT rear
Clearances 0" sides & rear (non-combustible)  |  10" sides / 6" rear (combustible)
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year limited parts & labor
Popular Options & Accessories (sold separately)
  • External gas pressure regulator
  • 24" or 36" flue riser with optional storage shelves
  • Front-locking casters or open-frame base
  • Battery spark ignition kit
  • Extra-deep rear-extending flue riser for added pan storage
Commercial use only: Follow Southbend’s oversized cookware policy – do not allow pots to extend over the front rail to prevent heat damage to components.

Looking for low monthly payments? Ask about Middleby Equipment Financing for fast credit decisions and Section 179 tax advantages.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

13.5in

Width

24.0in

Depth

37.5in

Shipping Weight

260.0lbs

Base

modular

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (2) step-up open burners

Specifications

Platinum Heavy Duty Range, gas, 24", modular, (2) 35,000 BTU open burners, (2) 35,000 BTU step-up open burners, manual controls, stainless steel front sides, rear & exterior bottom, 140,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
