Southbend (Middleby) P24C-TT Platinum Gas Ranges
$8,715.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) P24C-TT Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P24C-TT Platinum Gas Ranges
$8,715.00
Unit price
/
Unavailable
Description

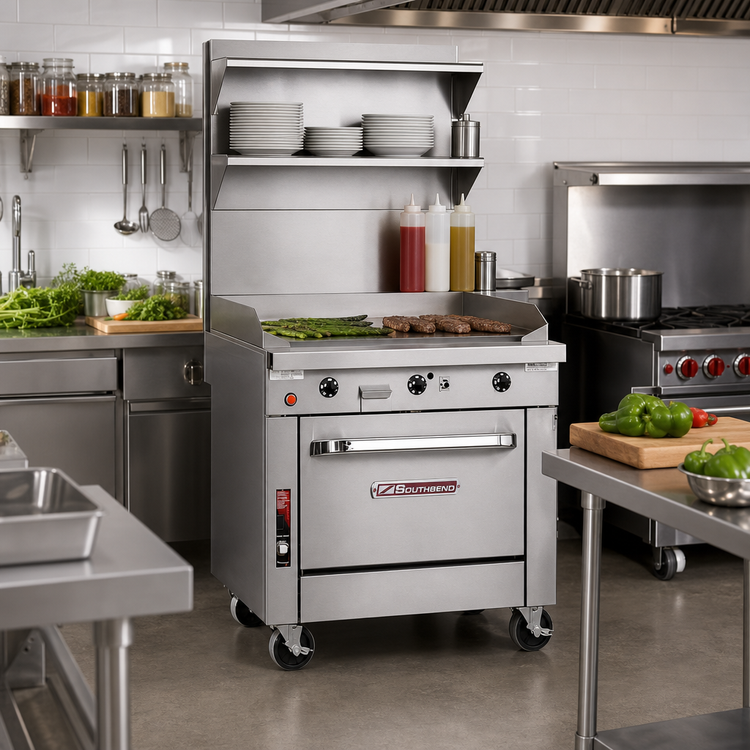

Southbend Platinum Heavy Duty 24" Thermostatic Griddle Range
Model P24C-TT | 64,000 BTU Natural GasBuilt for the most demanding commercial kitchens, the Southbend Platinum Series 24" thermostatic griddle range delivers precision temperature control, rugged stainless-steel construction, and a convenient storage cabinet— all in a compact footprint that slips seamlessly into a battery line or stands boldly on its own.
Key Features

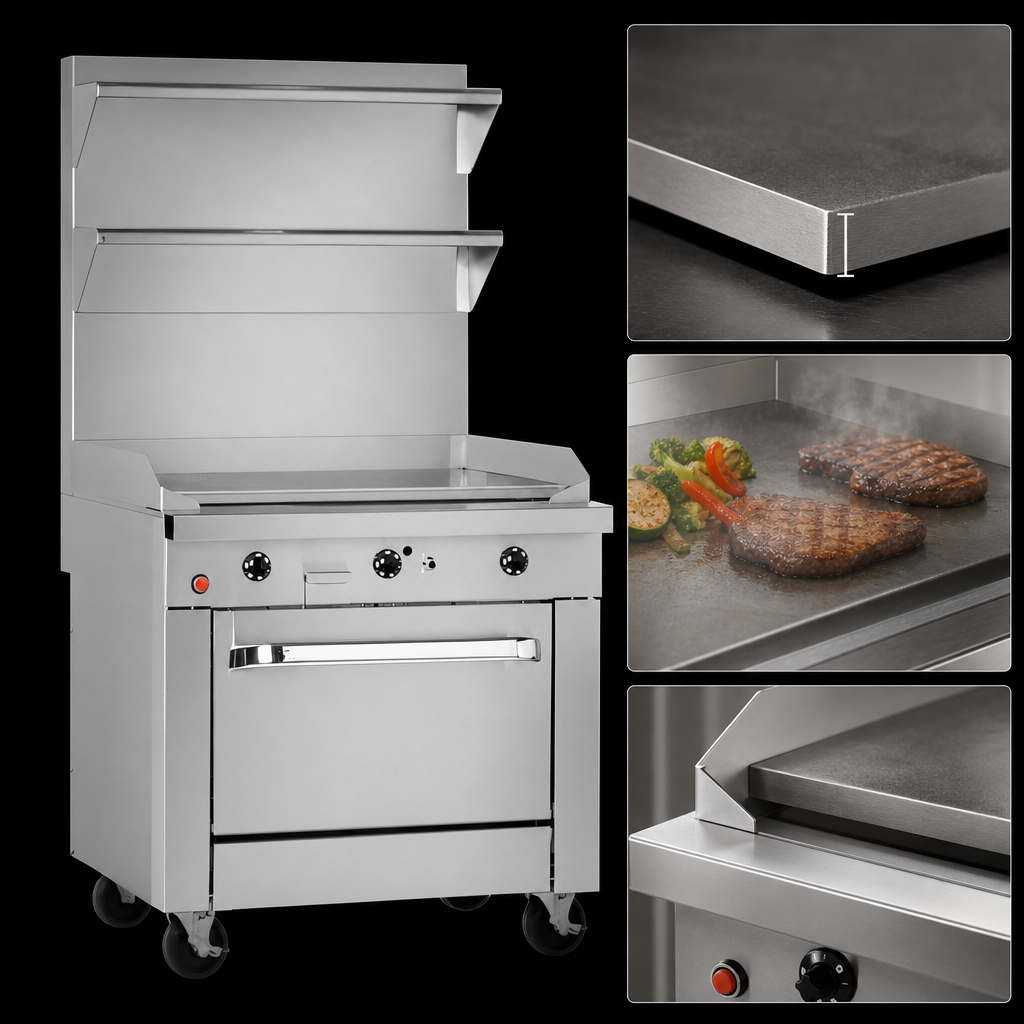

- Full-width 24" griddle with 1" thick polished steel plate for unmatched heat retention

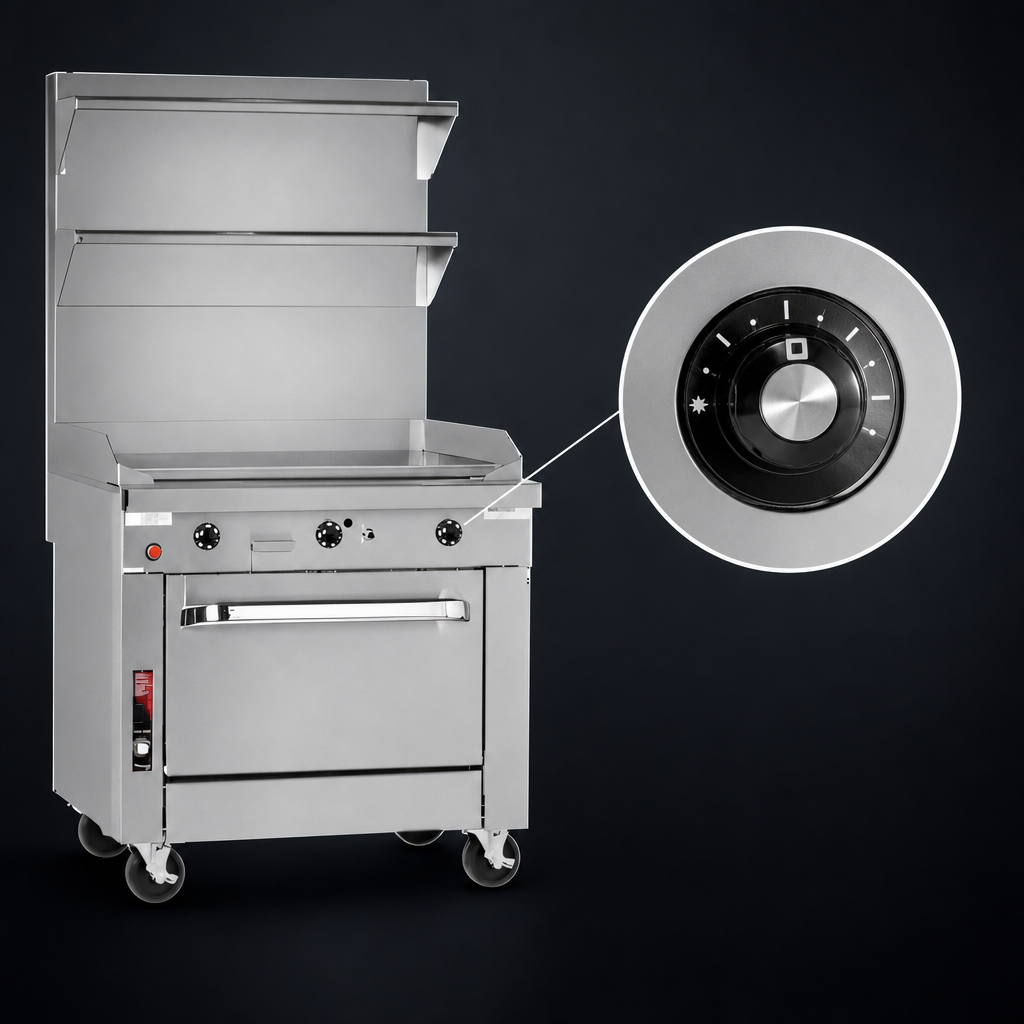

- “Insta-On” thermostatic controls maintain 180 °F – 400 °F (82 °C – 204 °C) for consistent results
- Powerful 64,000 BTU burner system with reliable battery spark (piezo) ignition
- Stainless steel front, sides, rear & exterior bottom resist corrosion and simplify cleaning
- Cabinet base with center-opening removable doors keeps cookware and supplies close at hand
- 9-1/4" deep front rail stays cool and protects operators from flare-ups
- Removable grease drawer plus integrated side & rear splashers streamline clean-up
- Fully insulated lining and burner box improve efficiency and protect surrounding equipment
- 6" stainless steel adjustable legs for rock-solid stability on uneven surfaces
- Certified: cCSAus, CSA Flame, CSA Star & NSF
Why It Belongs in Your Line-Up
- Even heat distribution across the entire plate—ideal for breakfast menus, burgers, or searing proteins
- Thermostatic accuracy lets you create independent temperature zones and reduce food waste
- Durable all-stainless construction stands up to 24/7 high-volume operation
- Spacious cabinet base reclaims precious countertop space
- Part of the Platinum Series—engineered for continuous, heavy-duty service
Technical Specifications
| Overall Width | 24" / 610 mm |
|---|---|
| Overall Depth | 34" / 864 mm |
| Working Height | 36" / 914 mm (to cook surface) + 5" flue riser |
| Cooking Surface | 1" thick polished steel plate, full width |
| Heat Output | 64,000 BTU/hr (Natural) | 56,000 BTU/hr (Propane – special order) |
| Temperature Range | 180 °F – 400 °F / 82 °C – 204 °C |
| Gas Connection | 1 ¼" front manifold; 1" rear male NPT |
| Ignition | Electronic piezo (battery spark) |
| Legs | 6" stainless steel, height adjustable |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor |
What’s Included
- 5" stainless steel flue riser
- Stainless steel grease drawer
- Installation & operation manual
- Southbend limited warranty registration
Popular Factory Options (call to add before shipping)
- Locking caster kit
- Grooved or chrome griddle plate
- 24" or 36" flue riser with shelves
- Open-frame base with casters (future battery mounting)
- External gas pressure regulator
Important Installation Notes:
• Provide a vented hood; follow all local fire and sanitary codes.
• Maintain 10" side and 12" rear clearance from combustible construction.
• Limit oversized cookware (>12" Ø) to the rear portion of the plate to prevent heat damage to the front rail and controls.
• Intended for commercial use only – not for household installation.
• Provide a vented hood; follow all local fire and sanitary codes.
• Maintain 10" side and 12" rear clearance from combustible construction.
• Limit oversized cookware (>12" Ø) to the rear portion of the plate to prevent heat damage to the front rail and controls.
• Intended for commercial use only – not for household installation.
Ask about Middleby Equipment Financing for fast approvals and predictable monthly payments.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
41.0in
Width
24.0in
Depth
37.5in
Shipping Weight
330.0lbs
Top
(1) griddle with thermostat
Plate Thickness
1.000" = 1"
Base
cabinet(s)
Exterior Finish
stainless steel front & sides
Specifications
Platinum Heavy Duty Range, gas, 24", griddle, 1" thick plate, thermostatic controls, battery spark ignition, cabinet base, stainless steel front sides, rear, exterior bottom & 6" adjustable legs, 64,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
