Southbend (Middleby) P24C-PP Platinum Gas Ranges
Description

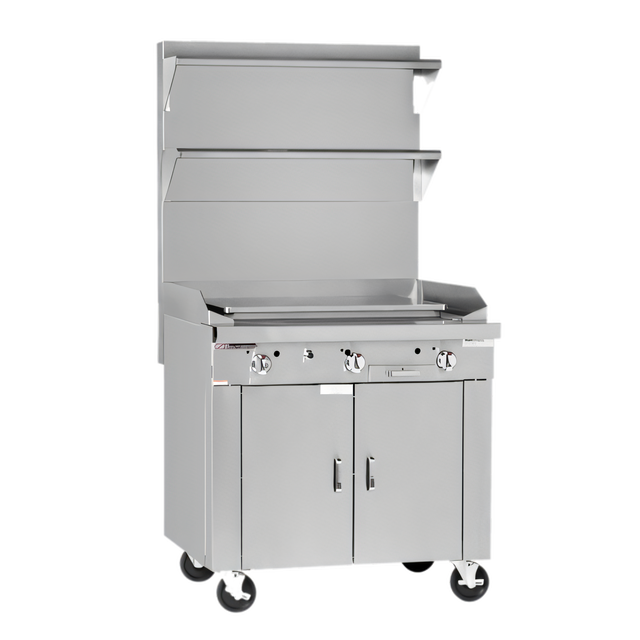

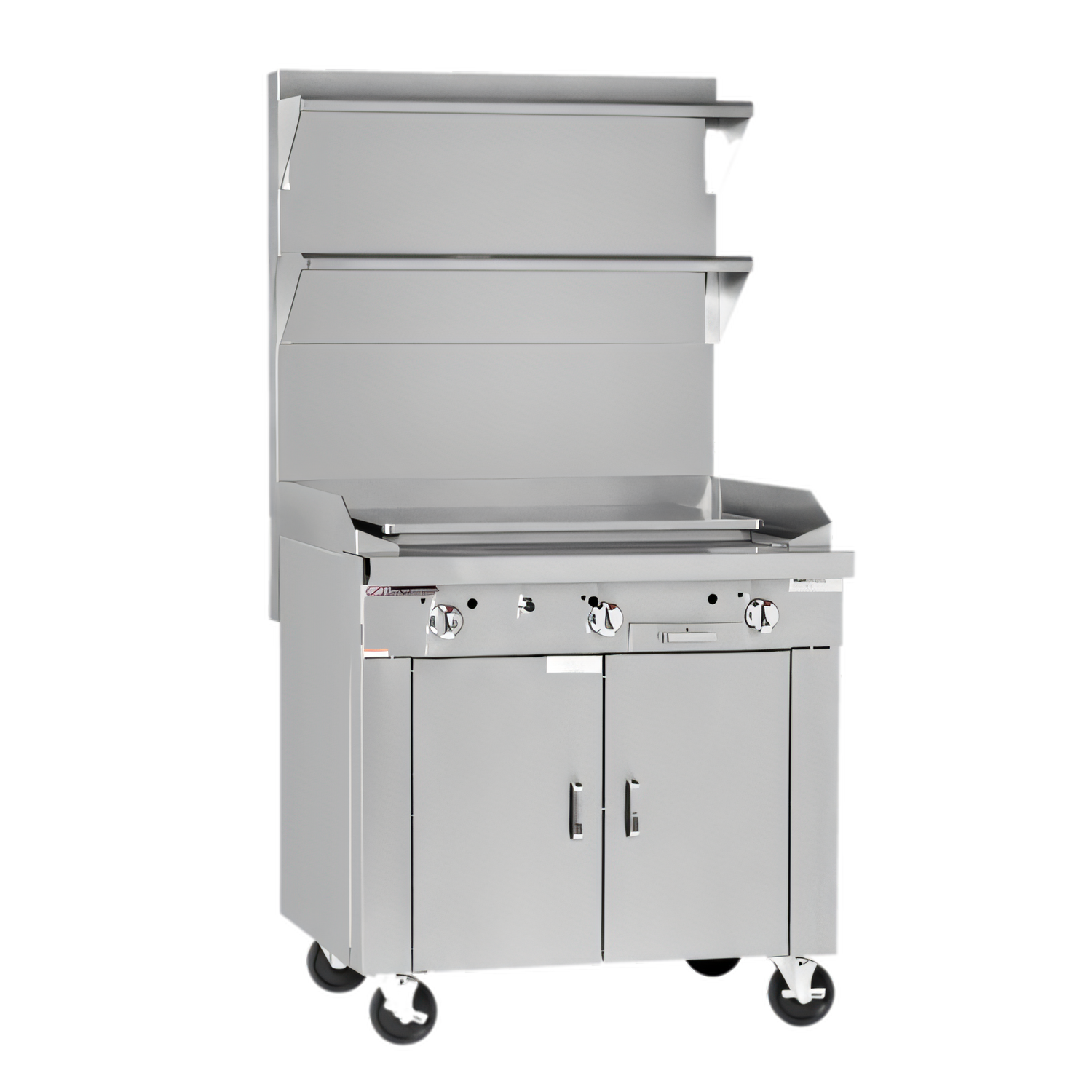

Southbend Platinum 24" Heavy-Duty Plancha Range
Model P24C-PP | 32,000 BTU | Gas | CSA & NSF ListedBring top-tier searing power and all-day durability to your cookline with Southbend’s Platinum Series 24-inch plancha range. A raised, 17-3/4" steel plancha plate delivers scorching front-zone heat for a perfect crust while providing a cooler finishing zone toward the rear—ideal for high-volume à la minute production, from tapas to tacos al pastor.
Key Advantages

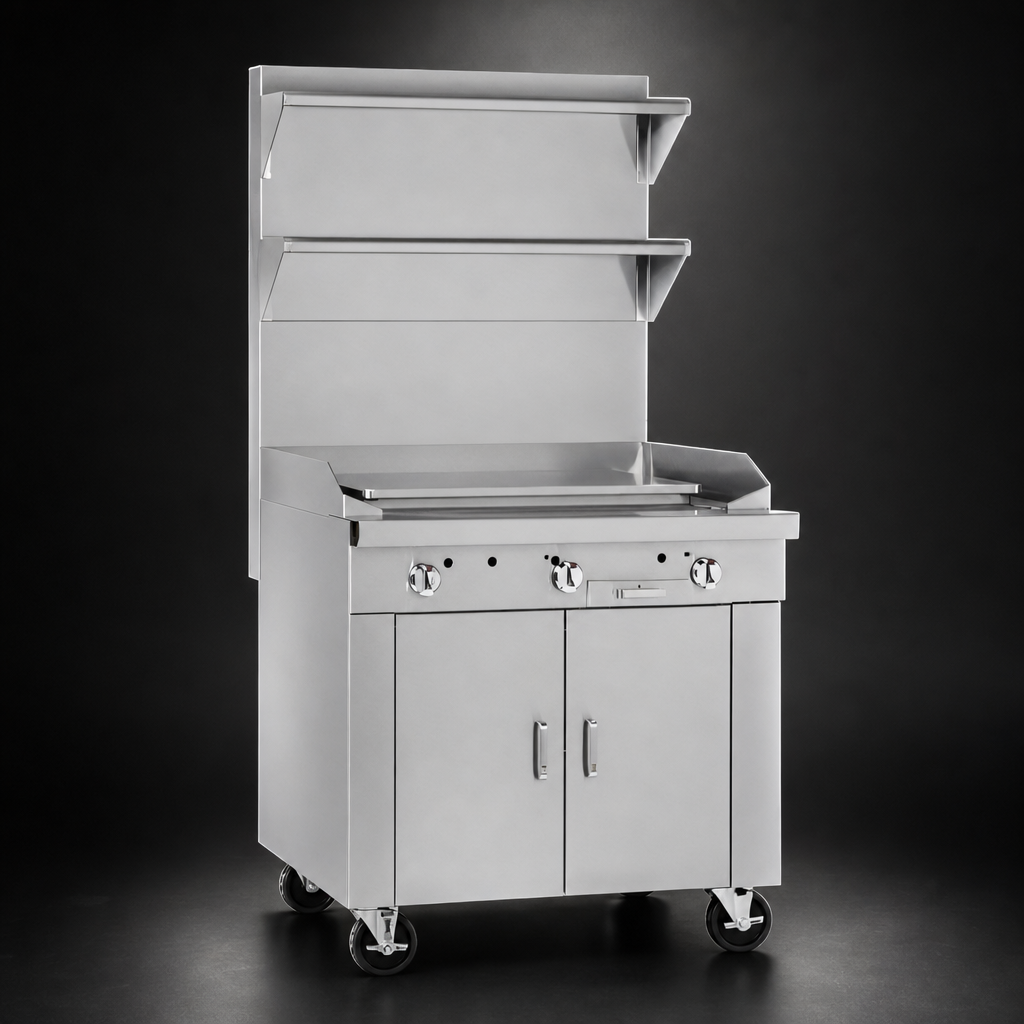

- Built-in cabinet base adds convenient, fully-enclosed storage with a door that can hinge left or right.
- 32,000 BTU output from two 16,000 BTU cast-iron burners for rapid pre-heat & lightning-fast recovery.

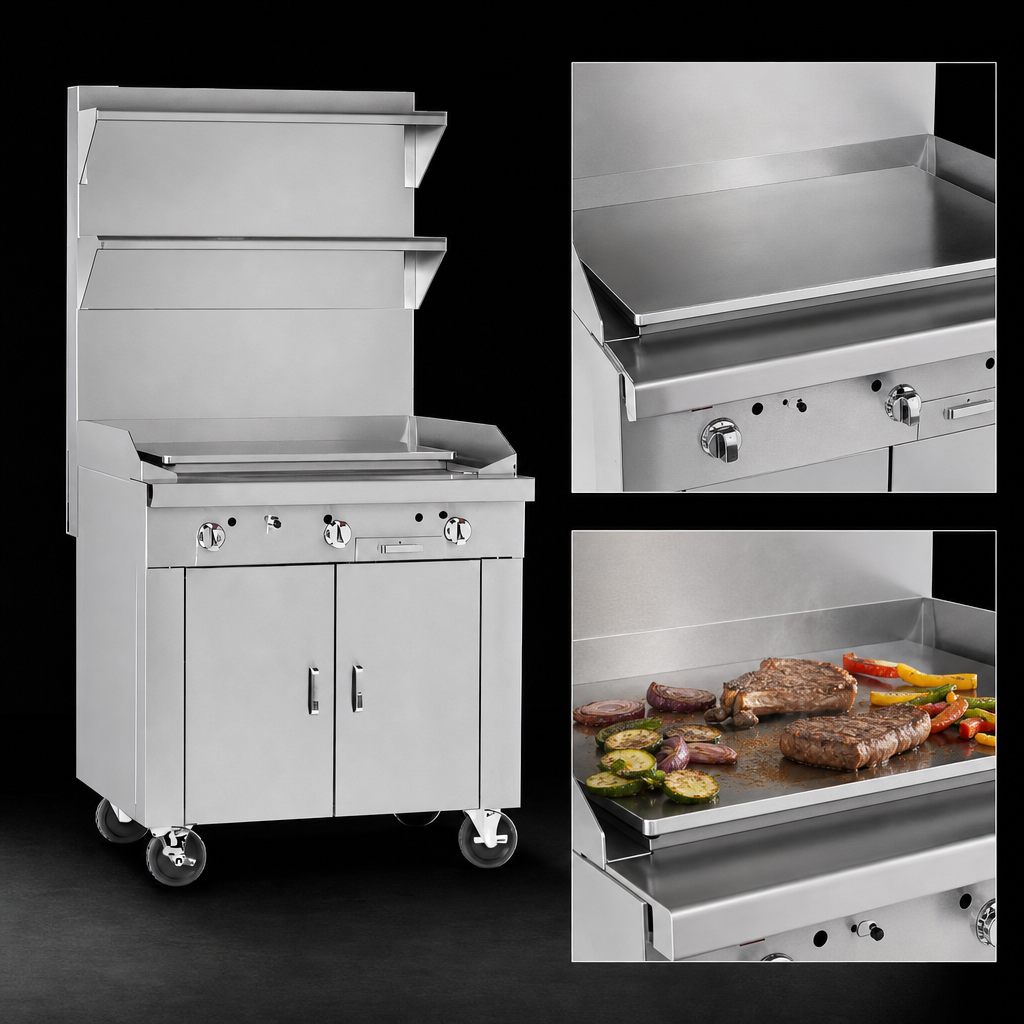

- High-performance plancha: ½" thick reinforced steel plate hits up to 800 °F on the front ⅔ for an instant sear; rear ⅓ runs cooler for finishing and holding.
- Battery spark ignition & manual controls—no electrical hook-up required.
- 3" wide side scrap channels and an oversized stainless grease drawer speed up end-of-shift clean-up.
- 5" deep front rail keeps operators safe from radiant heat and splatter.
- All-stainless exterior (front, sides, rear & bottom) with 6" adjustable legs built for the toughest kitchens.
- Fully insulated burner box plus 5" stainless flue riser for efficient, comfortable operation.
At-a-Glance Specs
| Cooking surface | 17-3/4" W raised plancha (½" steel) |
|---|---|
| Total width | 24" (610 mm) |
| Depth (front → back) | 37-1/2" (953 mm) |
| Height (to cook surface / with 5" flue) |
36" / 41" (914 / 1 041 mm) |
| Input rating | 32,000 BTU/hr (Natural gas) | 31,000 BTU/hr (P L ) |
| Gas connection | 1-¼" front manifold | 1" rear male NPT; min. 7" W.C. NAT, 11" W.C. LP |
| Shipping weight | Approx. 330 lb (149.7 kg) |
| Certifications | CSA Gas, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Ideal Applications
- Latin & Asian street-food concepts requiring intense sear marks
- Steakhouses & gastropubs finishing proteins and vegetables on-demand
- Hotel banquet finishing stations where quick recovery is critical
- Caterers needing a compact, high-BTU workhorse without electrical service
Need a matched battery line or factory-sized gas regulator? Contact our team for complimentary design assistance and accessories.
