Southbend (Middleby) P24C-HH Platinum Gas Ranges

Southbend Platinum 24" Heavy-Duty Uniform Hot Top Range

Engineered for relentless, even heat, the Southbend Platinum P24C-HH delivers 64,000 BTU to a full-width steel hot top that rockets to 700 °F. Its heavy-duty build, battery spark ignition and spacious stainless cabinet make it the go-to choice for high-volume kitchens that demand power and durability in a compact 24-inch footprint.

Key Performance Features

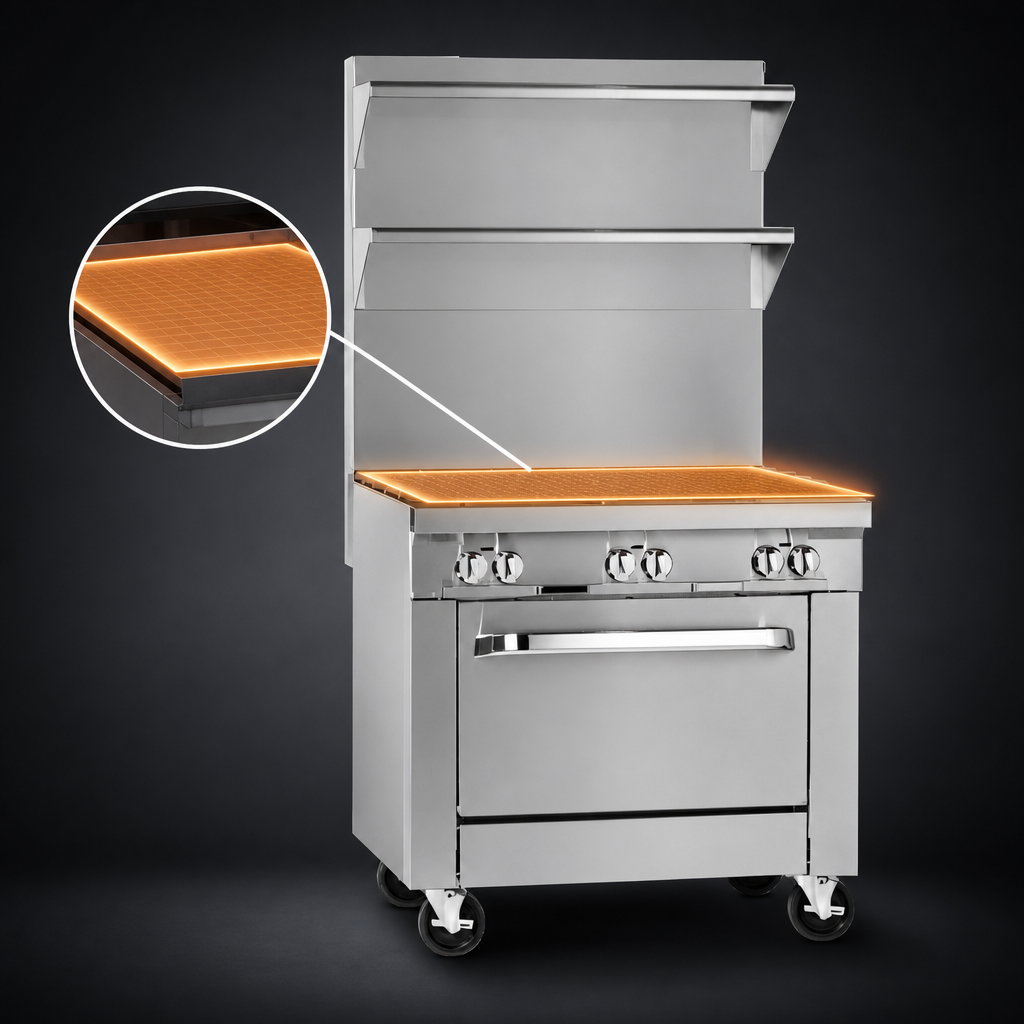

• Full-width uniform hot top heated by four × 16,000 BTU burners.
• Manual high/low valves with reliable battery spark (piezo) ignition —no standing pilots.
• Removable steel plates reach 700 °F for searing, browning and rapid boil applications.
• 9-1/4 in. deep front rail keeps hands cool and offers staging space.
• Fully insulated lining and burner box improve efficiency and kitchen comfort.
• Stainless steel front, sides, rear and exterior bottom built to handle daily abuse.
• 6 in. adjustable stainless legs for quick leveling on any floor.
• Spacious stainless cabinet base with center-opening doors for pots, pans or sheet-pan storage.

Smart Construction Details

• 1-1/4 in. front gas manifold for seamless battery line-ups; 1 in. rear male NPT connection for stand-alone use.
• Standard 5 in. stainless steel flue riser protects your backsplash and improves draft.
• Zero clearance to non-combustibles; only 10 in. side / 12 in. rear clearance to combustibles.
• Field convertible from Natural to LP gas with optional kit.

Technical Specifications

Factory Options & Accessories

• 24 in. or 36 in. flue riser (with one or two 10 in. shelves)
• Casters with front brakes and cable-restraint kit
• External gas pressure regulator
• Tray or tubular shelves (12 in. deep) for cabinet interior
• Open-frame base with casters
• Extra-deep rear-extending flue riser
• 7-1/4 in. deep front rail or square belly bar
• Removable interior shelf for cabinet base

Why Operators Love the Platinum Series

• Rugged, field-proven design ideal for chains, institutions and high-volume independents.
• Modular footprint lets you battery with other 24", 36" & 48" Platinum sections for a custom cook suite.
• Backed by Southbend’s free battery-design assistance and nationwide service network.
• Equipment financing available through Middleby to keep cash flow flexible.

Install under a vented hood and supply regulated gas pressure (7" W.C. Natural or 11" W.C. Propane) for optimal performance and safety.
