Southbend (Middleby) P24C-GG Platinum Gas Ranges
Description
Southbend Platinum Series 24" Heavy-Duty Gas Griddle Range
Model P24C-GG • 64,000 BTU • Cabinet BaseAdd uncompromising power and durability to your cookline with the Southbend Platinum Series 24" Heavy-Duty Range. A full-width, 1" thick griddle plate delivers even heat across the entire cooking surface while an all-stainless exterior, battery spark ignition and a convenient storage cabinet make it a workhorse built for the busiest commercial kitchens.
Why You’ll Love It
- 64,000 BTU of searing heat from four 16,000 BTU burners located beneath the plate.

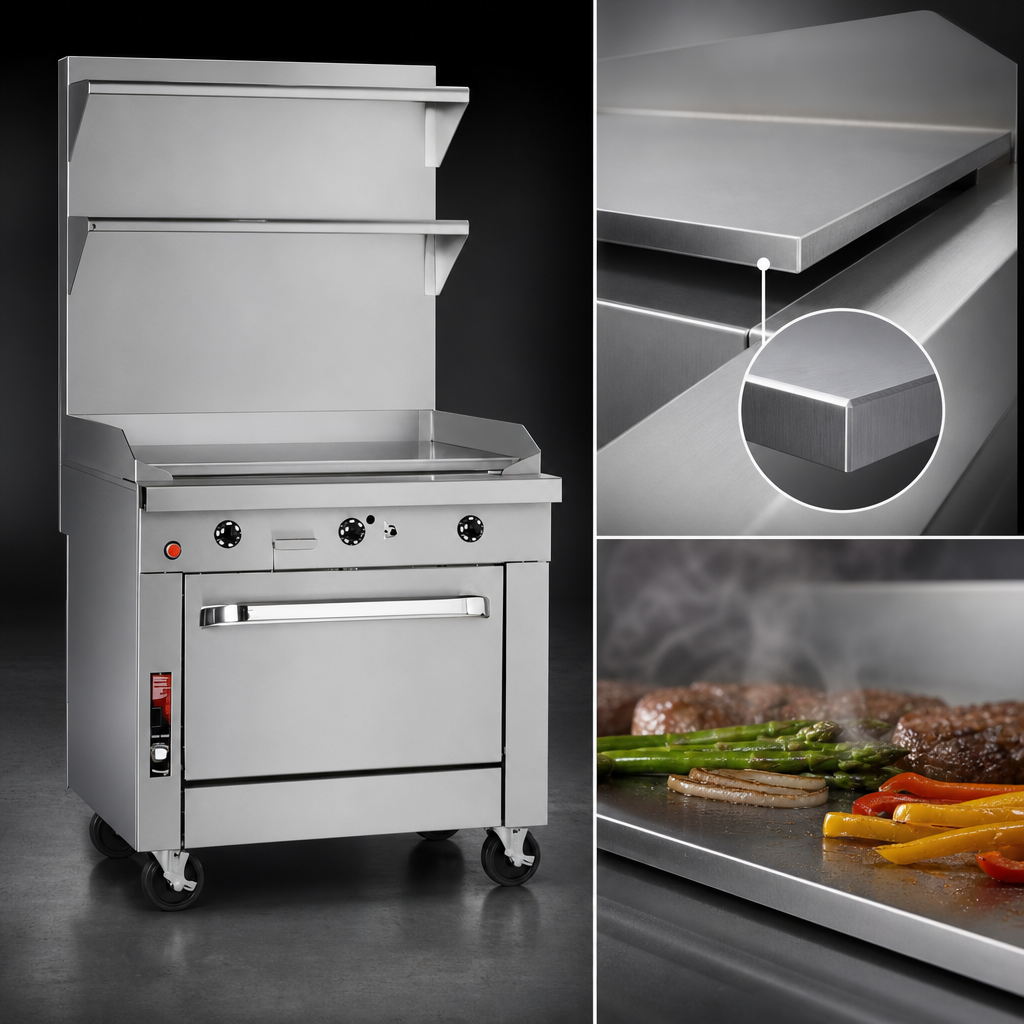

- 1" thick polished steel plate provides outstanding heat retention and recovery.

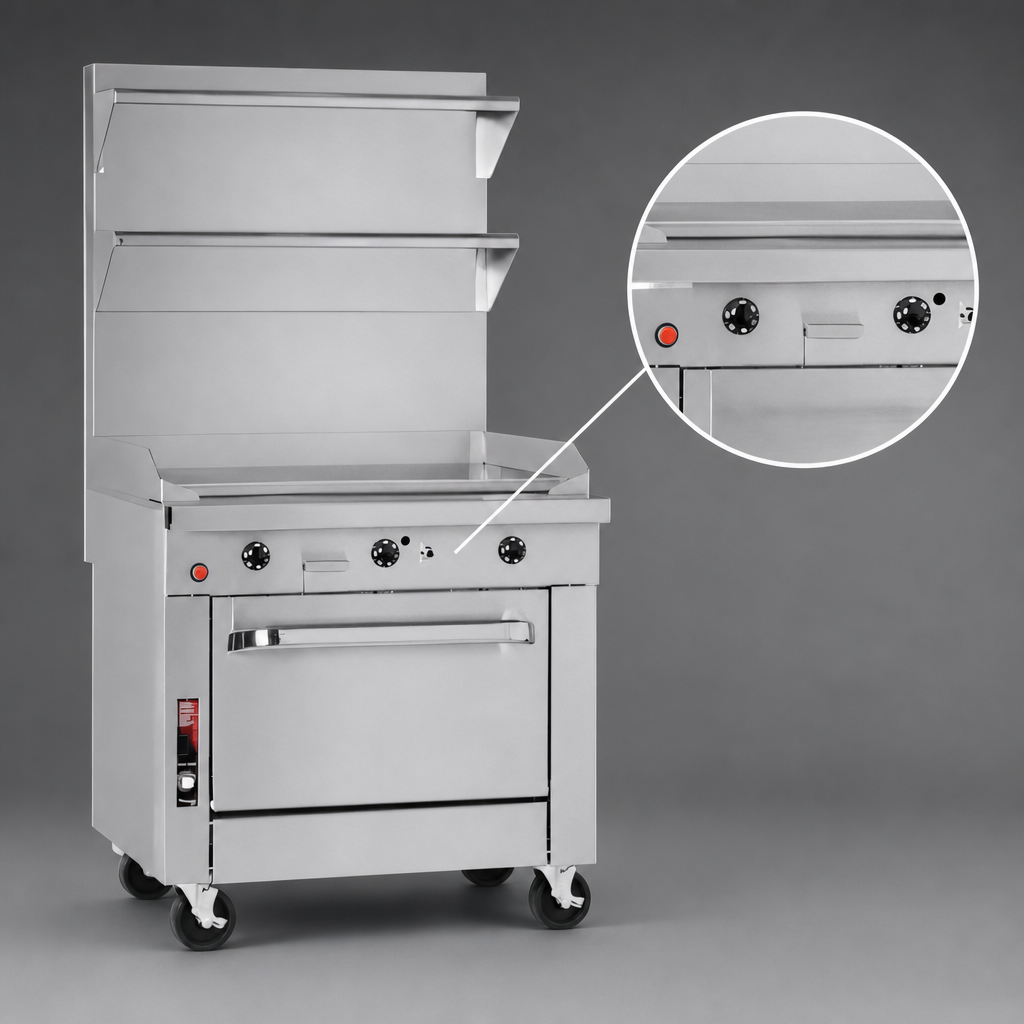

- Manual independent controls (two) give you simple, bullet-proof operation—ideal for chefs who prefer full control over temperature zones.
- Battery spark ignition (Piezo) lights pilots instantly—no external power required.
- Built-in grease management with a removable stainless steel drawer for fast clean-up.
- All-stainless exterior (front, sides, rear & bottom) plus 6" adjustable legs for easy leveling and sanitation access.
- Spacious cabinet base with center-opening doors keeps utensils, sheet pans or seasoning close at hand.
- Certified safe & sanitary – cCSAus, CSA Flame, CSA Star & NSF listed.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Popular Factory Options (Sold Separately)
- Set of locking casters
- External gas pressure regulator
- 24", 36" or extra-deep flue risers (with optional utensil shelves)
- Grooved or chrome-plated griddle surface
- Tubular or tray shelves (12" deep)
- Removable interior cabinet shelf
- Cable restraint kit for mobile installations
Technical Specifications
| Cooking surface | 23 7⁄8" W × 23 1⁄2" D full-width griddle |
|---|---|
| Plate thickness | 1" (25 mm) polished steel |
| Total input | 64,000 BTU/hr (Natural gas) 56,000 BTU/hr (Propane) |
| Controls | 2 manual gas valves with battery spark ignition |
| Gas connection | 1¼" front manifold, 1" rear male NPT |
| Overall width | 24" (610 mm) |
| Overall depth | 34" (864 mm) |
| Working height | 36" (914 mm) on 6" adjustable legs |
| Shipping weight | Approx. 330 lb (149.7 kg) |
| Clearances | Combustible: 10" sides, 12" rear Non-combustible: 0" |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor |
A regulated gas supply is required (pressure regulator sold separately). Installation under a vented hood and in accordance with all local codes is strongly recommended.
