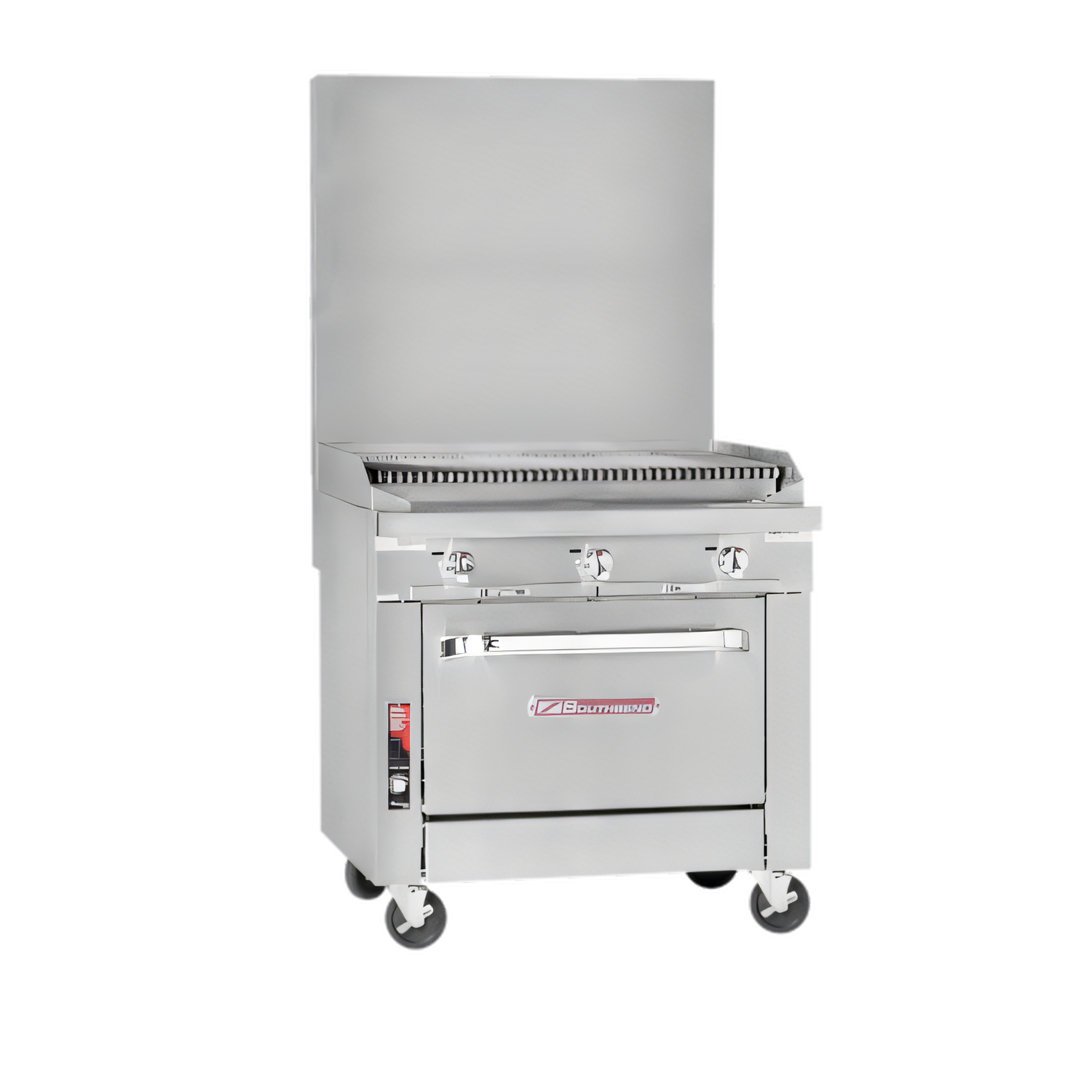

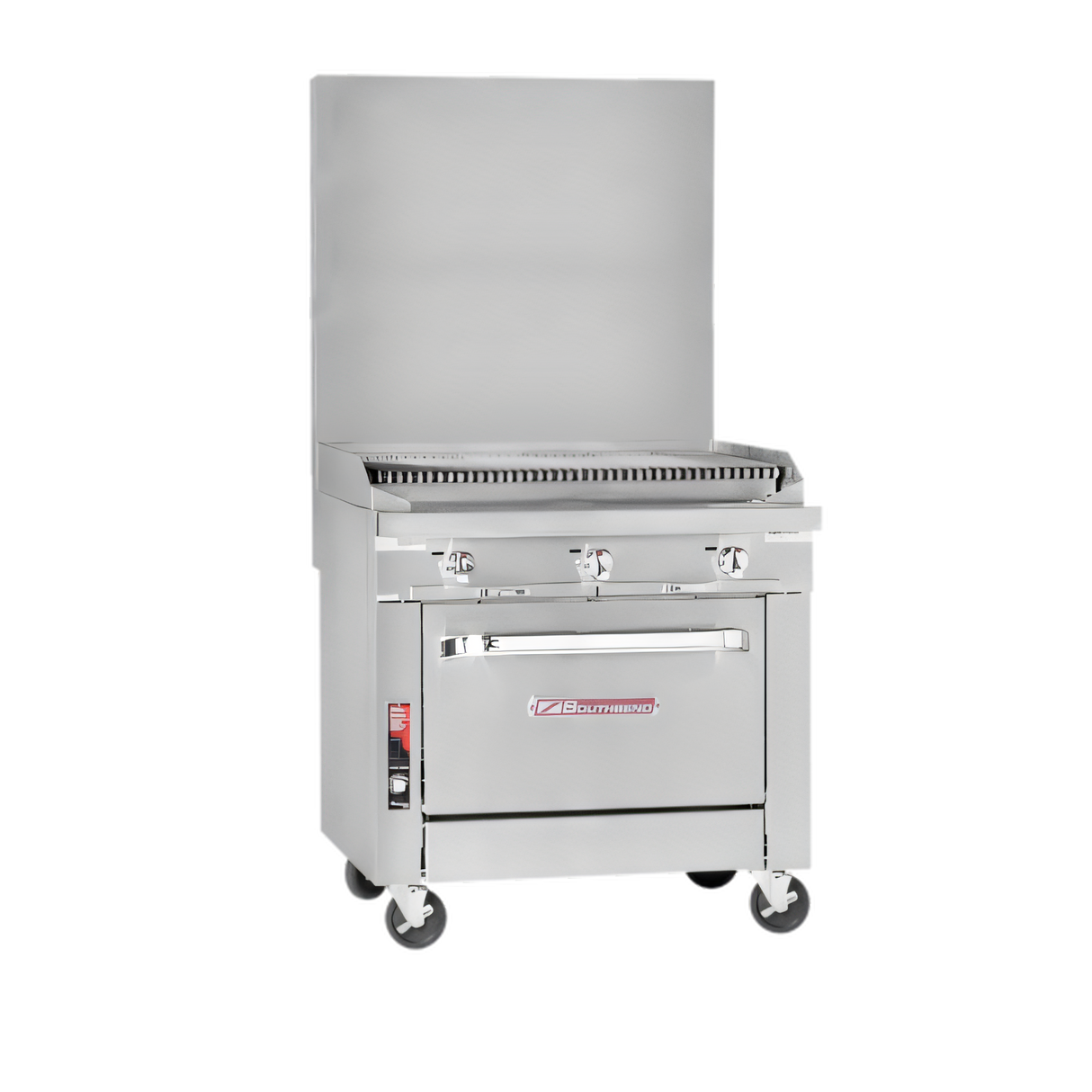

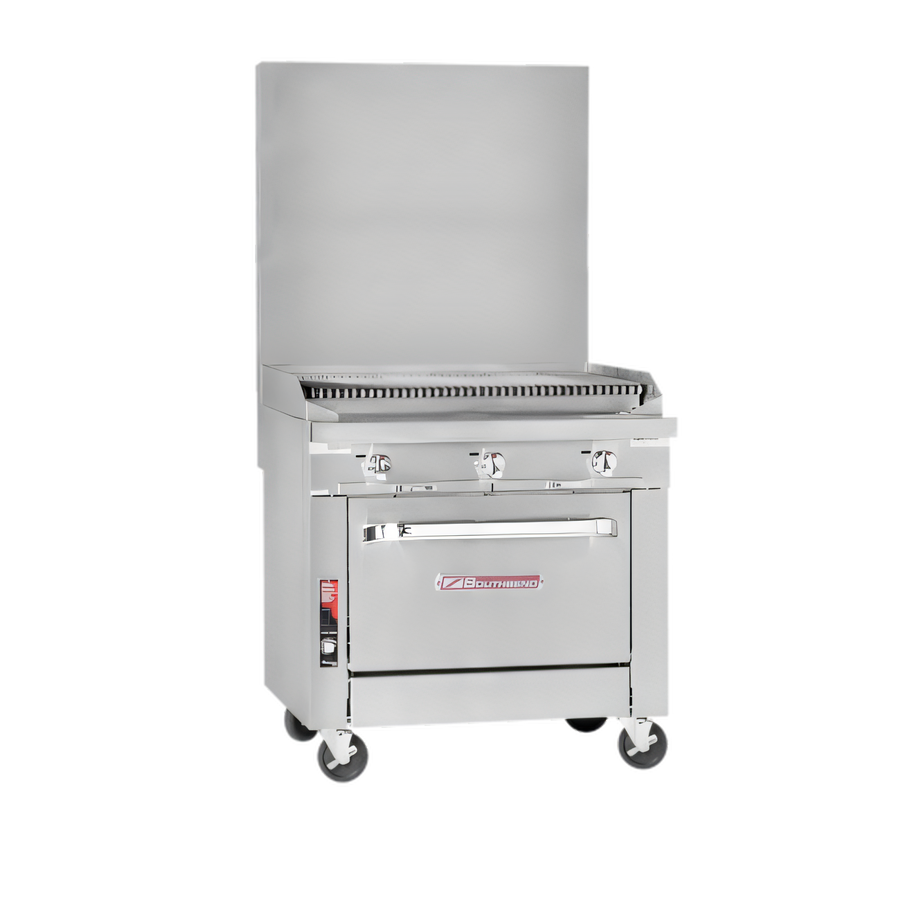

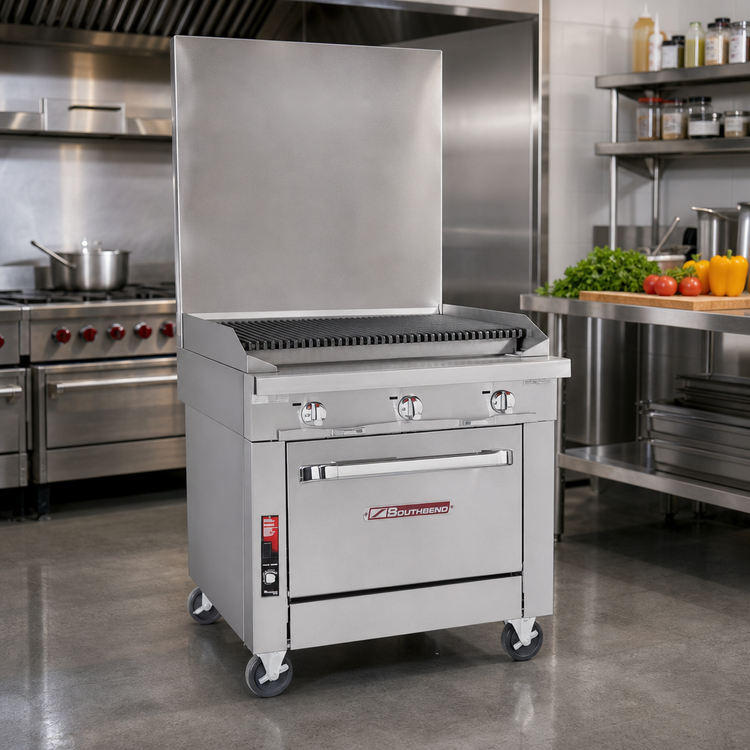

Southbend Platinum P24C-CC 24-Inch Gas Full-Width Charbroiler with Cabinet Base

Stainless Steel Exterior, Cast Iron Grates, Manual Controls

A compact, high-output charbroiler built for heavy-duty service, with a durable stainless steel cabinet base and cast iron grates for consistent searing.

  • 24-inch full-width charbroiler in a floor-model cabinet base design.
  • Four 16,000 BTU burners deliver 64,000 BTU of cooking power.
  • Removable cast iron grates flip for 1/8-inch or 1/4-inch grid width and adjust front-to-back slope.
  • Stainless steel radiants, insulated burner box, and stainless steel exterior support durability and heat retention.
  • Manual high/low controls, removable drip tray, and adjustable stainless steel legs simplify operation and cleaning.

Overall Dimensions:

24.0"W x 37.5"D x 41.0"H

Product Weight:

330.0 lb

Full-Width 24-Inch Charbroiler

Compact sectional charbroiler design provides a full-width cooking surface in a 24-inch footprint.

Cabinet Base with Center-Opening Doors

Stainless steel cabinet base includes two removable doors that open from the center for under-unit storage.

High-Output Gas Burners

Four 16,000 BTU burners deliver strong, even heat for high-volume charbroiling.

Removable Cast Iron Grates

Heavy-duty grates have an adjustable front-to-back slope and flip for either 1/8-inch or 1/4-inch grid width.

Stainless Steel Radiants

Stainless steel burner radiants help distribute heat and support reliable performance.

Manual High/Low Controls

Simple manual controls provide straightforward burner adjustment during cooking.

Heavy-Duty Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for long-lasting durability.

Service-Friendly Design

Features a removable drip tray, fully insulated lining and burner box, and 6-inch adjustable stainless steel legs.

Type Charbroiler
Style Heavy Duty
Installation Type Floor Model
Controls Manual
BTU 64,000 BTU
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Rear Gas Connection
Material Stainless Steel
Finish #3 Polished Stainless Steel
Shipping Width 39 Inches
Shipping Depth 44 Inches
Shipping Height 45 Inches
Shipping Weight 400 lbs.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

P24C-CC is the cabinet-base model, while P24N-CC is the modular mount version.
It uses removable cast iron grates with an adjustable front-to-back slope, and the grates can flip for either 1/8-inch or 1/4-inch grid width.
The unit has a 1-1/4-inch front manifold and a 1-inch rear gas connection with a male NPT connector.
The model is rated at 64,000 BTU.
Yes. The documentation recommends installation under a vented hood.
