Southbend (Middleby)  |  Platinum  |  SKU: P18N-X

Southbend (Middleby) P18N-X Platinum Gas Ranges

$4,328.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series 18" Heavy-Duty Modular Range

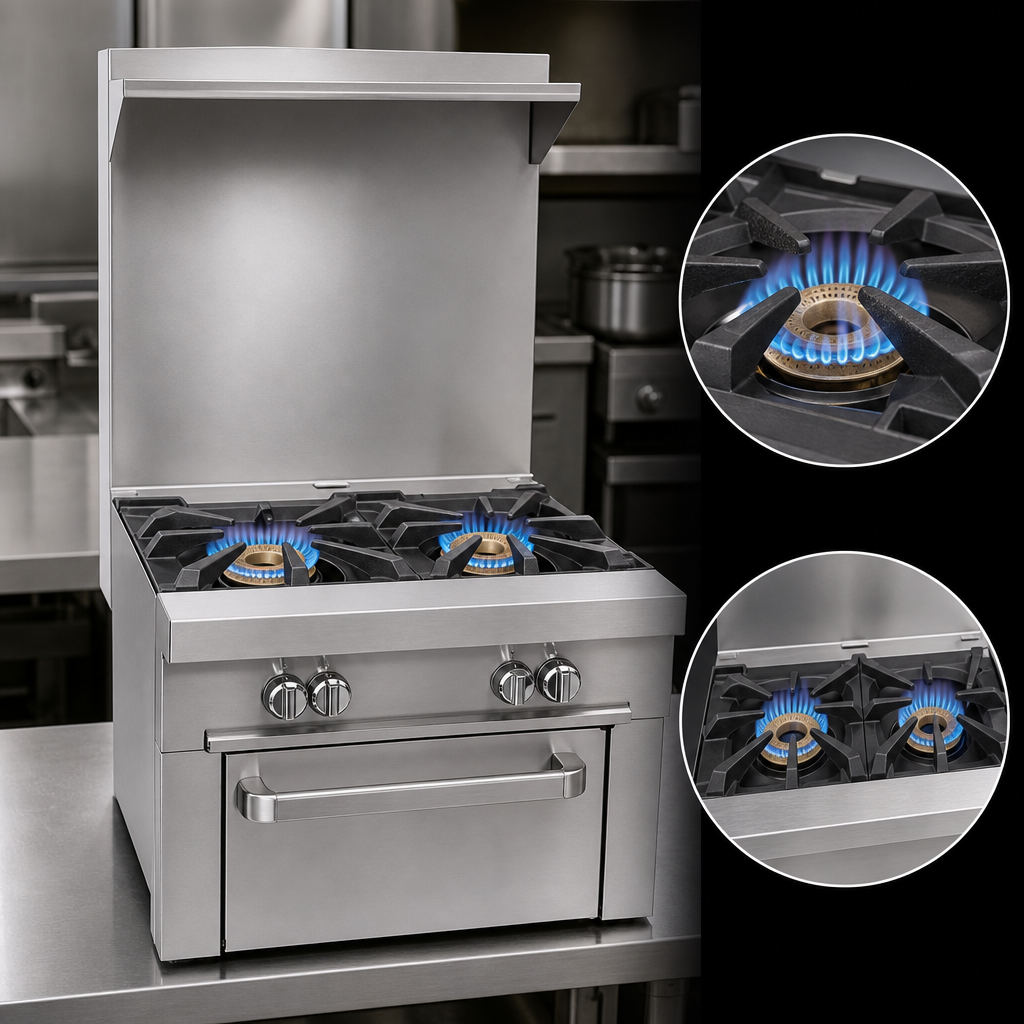

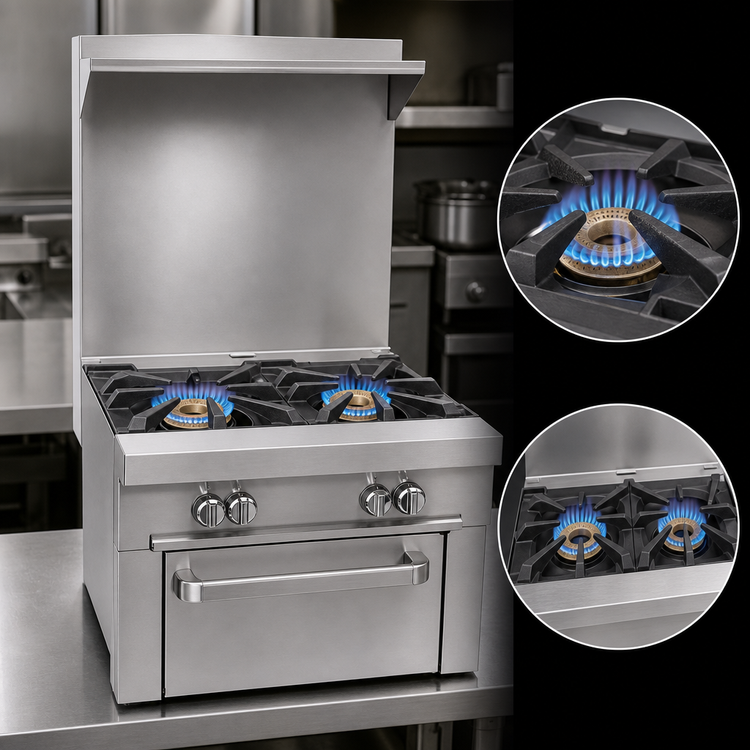

Model P18N-X – Two 45,000 BTU Pyromax™ Open Burners

Built for relentless commercial use, the Southbend Platinum P18N-X delivers 90,000 total BTU in just 18 inches of cook-line space. Pair it with other Platinum sectional units or set it on a refrigerated, freezer, or countertop base to create the high-production battery your kitchen demands.

Why You’ll Love It
  • Patented Pyromax™ clog-free burners – 45,000 BTU each for rapid heat recovery and consistent flame.
  • Modular design – mounts on counters, chef bases, or refrigerated / freezer bases for a custom battery lineup.
  • Rugged all-stainless exterior (front, sides, rear & bottom) stands up to daily abuse and simplifies cleanup.
  • 9-1/4" deep front rail plus a removable drippings tray to keep the cook-top clear.
  • Welded steel top grate lifts off in seconds for effortless cleaning and burner access.
  • Fully insulated burner box lowers surface temperatures and boosts kitchen comfort.
  • Field convertible for Natural or Propane gas without loss of output.
  • Backed by a 1-year parts & labor warranty from Southbend.
Specifications
Gas Type Natural or Propane
Total Input 90,000 BTU/hr (2 × 45,000 BTU burners)

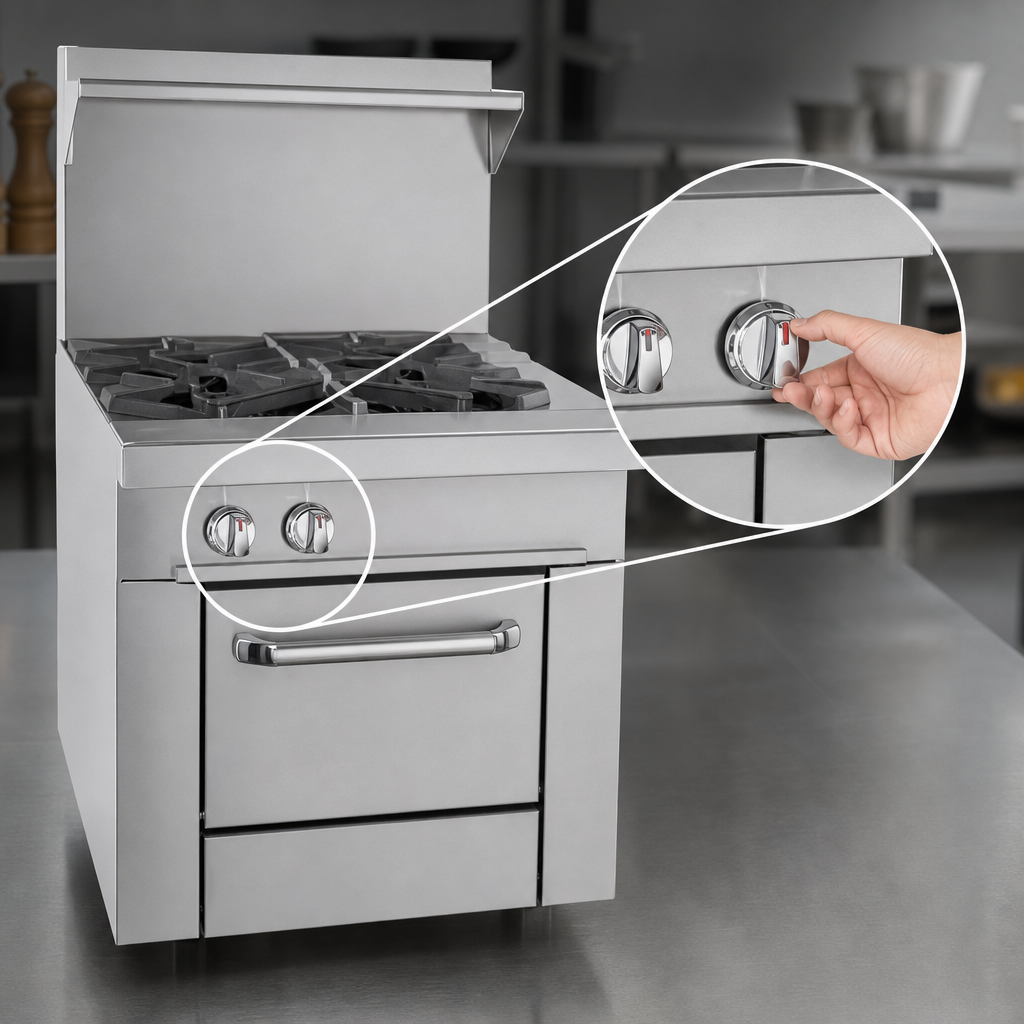

Controls Manual, heavy-duty gas valves
Cooking Surface Width 18 in / 457 mm
Flue Riser Height 5 in stainless (24" & 36" risers optional)
Front Gas Manifold 1-1/4" NPT
Rear Gas Connection 1" NPT male
Min. Supply Pressure 7" WC Natural / 11" WC LP
Exterior Construction #430 / #304 stainless steel
Certifications CSA Flame, CSA Star, cCSAus, NSF
Popular Options (sold separately)
  • External gas pressure regulator
  • 24" or 36" high flue riser with optional shelving
  • Locking front casters or open-frame caster base
  • 7-1/4" deep front rail or cut-outs for sauce pans
  • Battery spark ignition kit
Oversized Cookware Notice: Pots or pans 12" Ø and larger should be used on the rear grate only. Allowing cookware to overlap the front rail may trap heat and damage internal components. Damage resulting from improper cookware placement is not covered under warranty.

Intended for commercial use only. Install under a vented hood and follow all local fire & sanitation codes. For full installation, operation, and warranty details, visit the Southbend service page here.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

13.5in

Width

18.0in

Depth

37.5in

Shipping Weight

150.0lbs

Top

(2) open burners

Base

modular

Exterior Finish

all stainless steel exterior

Specifications

Platinum Heavy Duty Range, gas, 18", modular, (2) 45,000 BTU open burners, manual controls, stainless steel front sides, rear & exterior bottom, 90,000 BTU, CSA Flame, CSA Star, cCSAus, NSF
