Southbend (Middleby)  |  Platinum  |  SKU: P18N-T

Southbend (Middleby) P18N-T Platinum Gas Ranges

$6,243.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

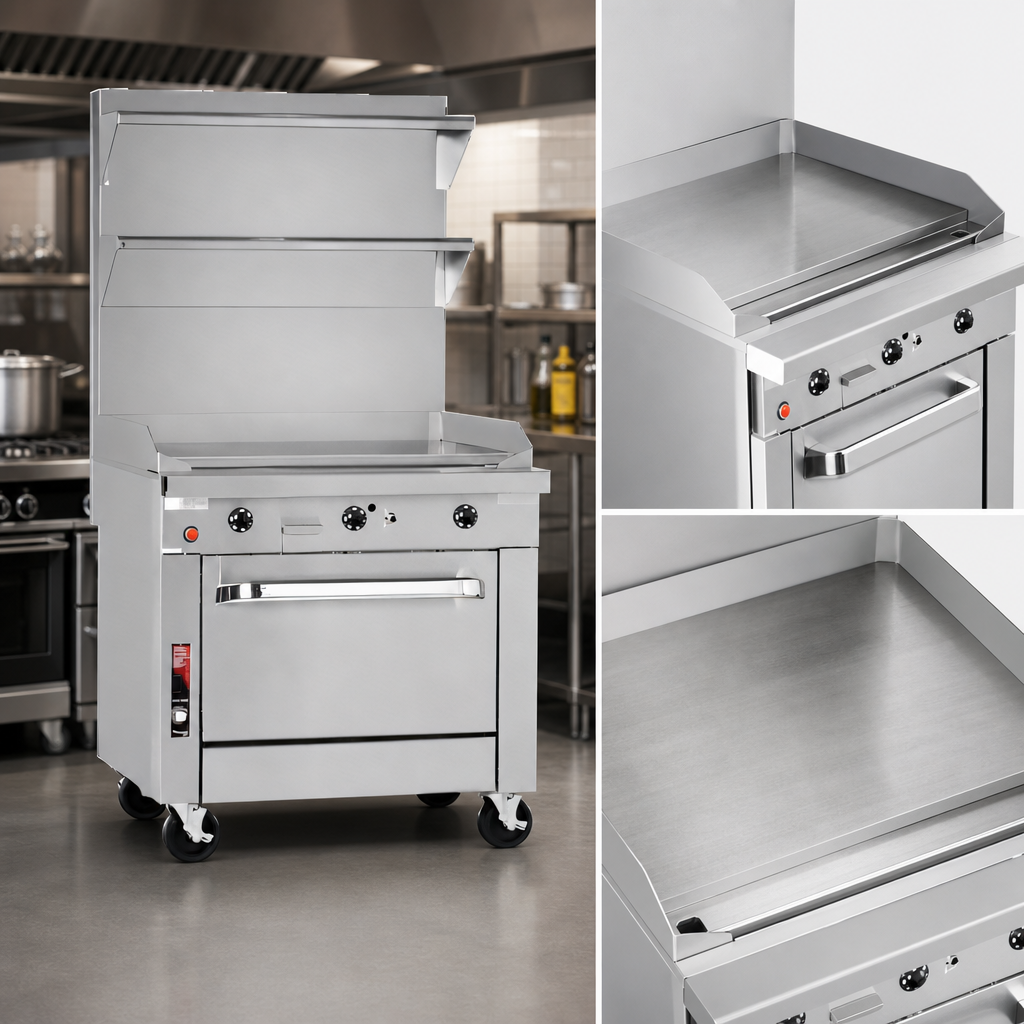

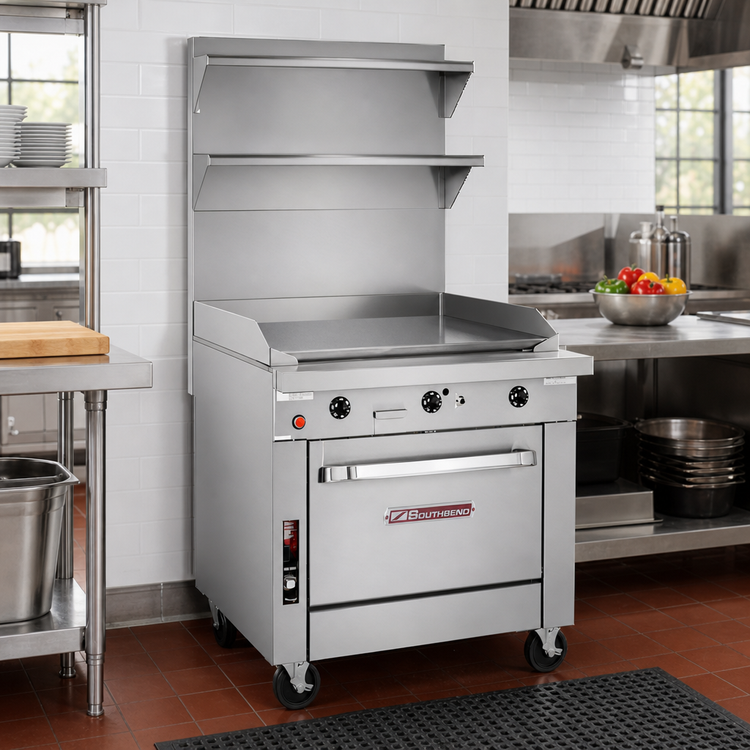

Southbend Platinum 18" Heavy-Duty Thermostatic Griddle – Modular (P18N-T)

40,000 BTU gas sectional range with 1" thick plate

Engineered for demanding commercial kitchens, the Southbend Platinum P18N-T delivers uncompromising performance in a compact 18-inch footprint. A full-width, 1-inch thick griddle plate, “Insta-On” thermostatic control, and rugged stainless-steel construction make it the perfect stand-alone countertop unit or the ideal end-piece in a Platinum battery line-up.

Key Features

  • 40,000 BTU NAT (36,000 BTU LP) burner system with electronic Piezo pilot ignition
  • 1" (25 mm) polished steel griddle plate with integrated side & rear splashers

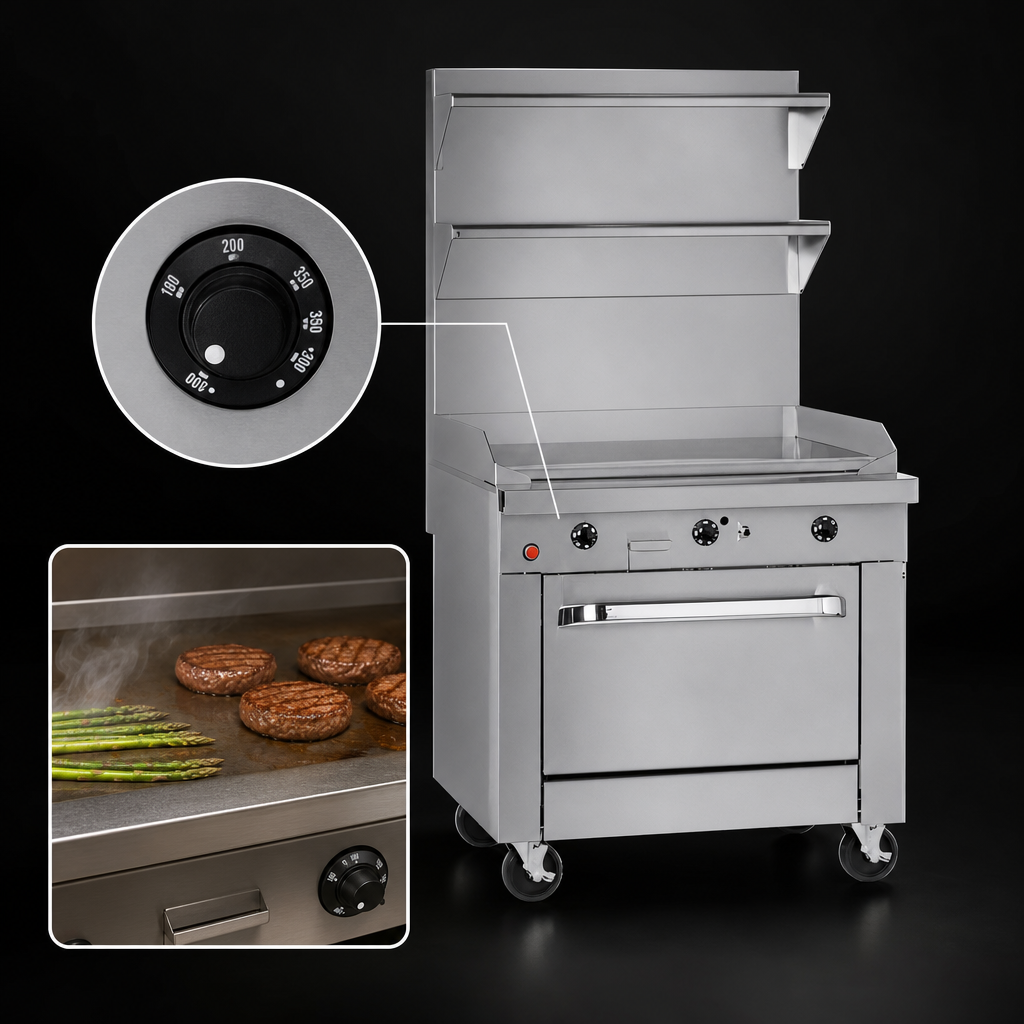

  • “Insta-On” thermostatic surface control from 180 °F – 400 °F (82 °C – 204 °C)
  • Modular design – mount on a countertop, refrigerated base, freezer base, or integrate into a Platinum battery
  • 9-1/4" deep front rail and removable stainless-steel grease drawer for quick clean-up
  • Fully-insulated burner box for maximum efficiency and a cooler kitchen environment
  • 5" stainless-steel flue riser directs heat and combustion gases to the hood
  • Rugged #3-polished stainless-steel front, sides, rear, and exterior bottom
  • 1-1/4" front gas manifold couples to adjacent sectional units; 1" rear male NPT connection
  • Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation

Specifications

Model P18N-T (Platinum Series)
Unit type 18" Modular Heavy-Duty Range with Full-Width Thermostatic Griddle
Fuel Natural gas (LP kit available)
Total heat input 40,000 BTU/hr NAT  |  36,000 BTU/hr LP
Temperature range 180 °F – 400 °F  (82 °C – 204 °C)
Plate thickness 1" (25 mm) polished steel
Overall dimensions* 18" W × 37-1/2" D × 25-1/2" H (to top of 5" flue)
Shipping weight Approx. 240 lb (109 kg)
Gas connections Front: 1-1/4" manifold  |  Rear: 1" male NPT
Clearances Combustible: 10" sides, 12" rear  |  Non-combustible: 0"
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year parts & labor (commercial use)

*Dimensions include standard 5" flue riser. 1" manufacturing tolerance applies.

Popular Factory Options (sold separately)

  • Grooved or chrome-plated griddle surface
  • 24" or 36" high flue riser with optional shelving
  • Casters (front casters lock) or open-frame base
  • External gas pressure regulator or cable restraint kit
Important safety note: Oversized cookware (12" Ø or larger) should not overhang the front rail; excessive heat can damage front-mounted components. Always install under a properly vented hood and follow local code requirements.

Bring heavy-duty Platinum performance to tight spaces with the Southbend P18N-T – where power, precision, and durability meet in just 18 inches.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

13.5in

Width

18.0in

Depth

37.5in

Shipping Weight

250.0lbs

Top

(1) griddle

Base

modular

Plate Thickness

1.000" = 1"

Exterior Finish

all stainless steel exterior

Specifications

Platinum Heavy Duty Range, gas, 18", modular, griddle, 1" thick plate, thermostatic controls, battery spark ignition, stainless steel front, sides, rear & exterior bottom, 40,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
