Southbend (Middleby) P18N-P Platinum Gas Ranges
Southbend (Middleby) P18N-P Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P18N-P Platinum Gas Ranges
Description
Southbend Platinum Series 18" Modular Plancha Range – 16,000 BTU
Model P18N-P | Natural or Propane GasBuilt for the toughest commercial kitchens, the Southbend Platinum Series 18" Modular Plancha Range delivers searing heat, lightning-fast recovery, and rock-solid construction in a space-saving footprint. Drop it onto a countertop, refrigerated base, or chef’s suite battery and turn out perfectly caramelised proteins and vegetables service after service.
Why You’ll Love It

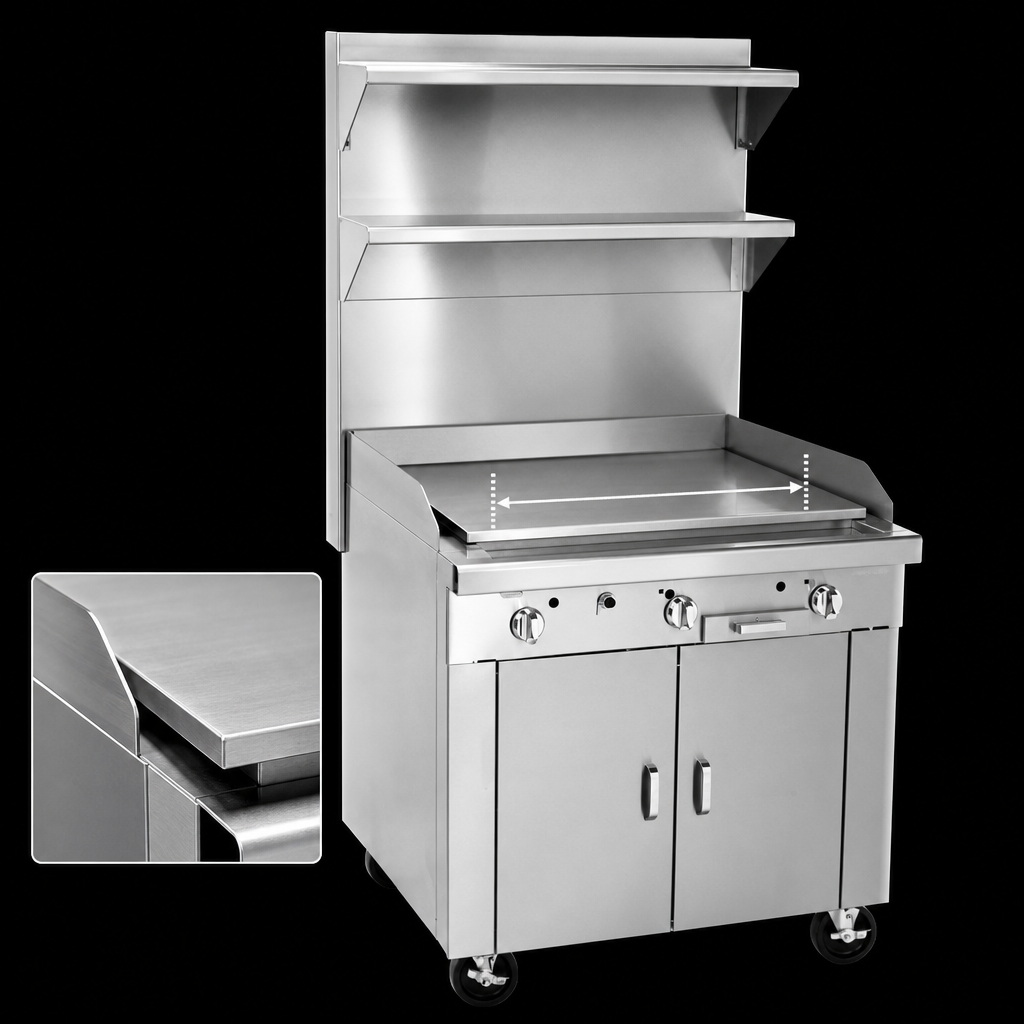

- High-Heat Plancha — 11-3/4" wide, 1/2" thick reinforced steel plate reaches up to 800 °F on the front 2/3 for rapid searing; rear 1/3 runs cooler for finishing and holding.
- Single 16,000 BTU cast-iron burner delivers quick pre-heat and exceptional recovery between loads.
- Battery spark ignition—no electrical hook-up required.
- Raised plate & 3" side troughs keep grease and debris away from food while making swipe-down cleaning effortless.
- Oversize stainless grease drawer removes easily for end-of-shift cleanup.
- Rugged stainless body (front, sides, rear & exterior bottom) with fully insulated lining and burner box.
- 5" deep front rail provides plating space and accepts optional cut-outs or accessories.
- Field-friendly gas connections—1-1/4" front manifold seamlessly couples in a battery; 1" rear NPT connection for standalone installs.
- CSA & NSF listed for gas safety and sanitation compliance.
- 1-year parts & labour warranty backed by Southbend’s nationwide service network.
Technical Specs
| Cooking Surface | 11 ¾" W raised plancha, ½" thick steel |
|---|---|
| Total BTU | 16,000 BTU/hr (Natural) / 15,500 BTU/hr (LP) |
| Burner / Control | 1 cast-iron burner, manual valve, battery spark ignition |
| Overall Width | 18" (457 mm) |
| Overall Depth | 34" (864 mm) including 5" flue riser |
| Overall Height | 12 ½" (318 mm) to plate / 17 ½" with standard 5" flue |
| Gas Connection | 1¼" front sectional manifold / 1" rear male NPT |
| Ship Weight | 240 lb (108.9 kg) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labour (heavy-duty sectional range category) |
Popular Factory Options & Accessories
- External gas pressure regulator
- 24" or 36" flue riser with optional utensil shelves
- Front rail upgrades: 7-¼" deep rail, sauce-pan cut-outs or square belly bar
- Open-frame base or casters (when mounted in a battery)
- Cable restraint kit for flexible gas hose installations
Installation Notes
- Zero clearance to non-combustible surfaces; keep 10" side & 12" rear clearances from combustibles.
- Install beneath a vented hood and supply regulated gas pressure (7" W.C. Natural, 11" W.C. LP).
- If using casters with a flex-hose, attach a restraint device to protect the hose.
