Southbend Platinum Heavy Duty 18-Inch Modular Gas French Hot Top Sectional Range

Countertop Mount, 35,000 BTU, Manual Controls

Built for battery-style installations, this compact sectional range delivers concentrated French hot top heat in a rugged stainless steel package.

  • Modular mount design fits a countertop, refrigerated base, or freezer base.
  • Single 35,000 BTU burner provides focused heat for demanding commercial cooking.
  • French hot top surface features a removable steel plate and up to 900°F center temperature.
  • Manual high/low controls and battery spark ignition simplify operation.
  • Stainless steel front, sides, rear, and exterior bottom are built for durability.
  • Standard 6-inch adjustable legs and 5-inch flue riser come with the unit.

Overall Dimensions:

18.0"W x 37.5"D x 13.5"H

Product Weight:

240.0 lb

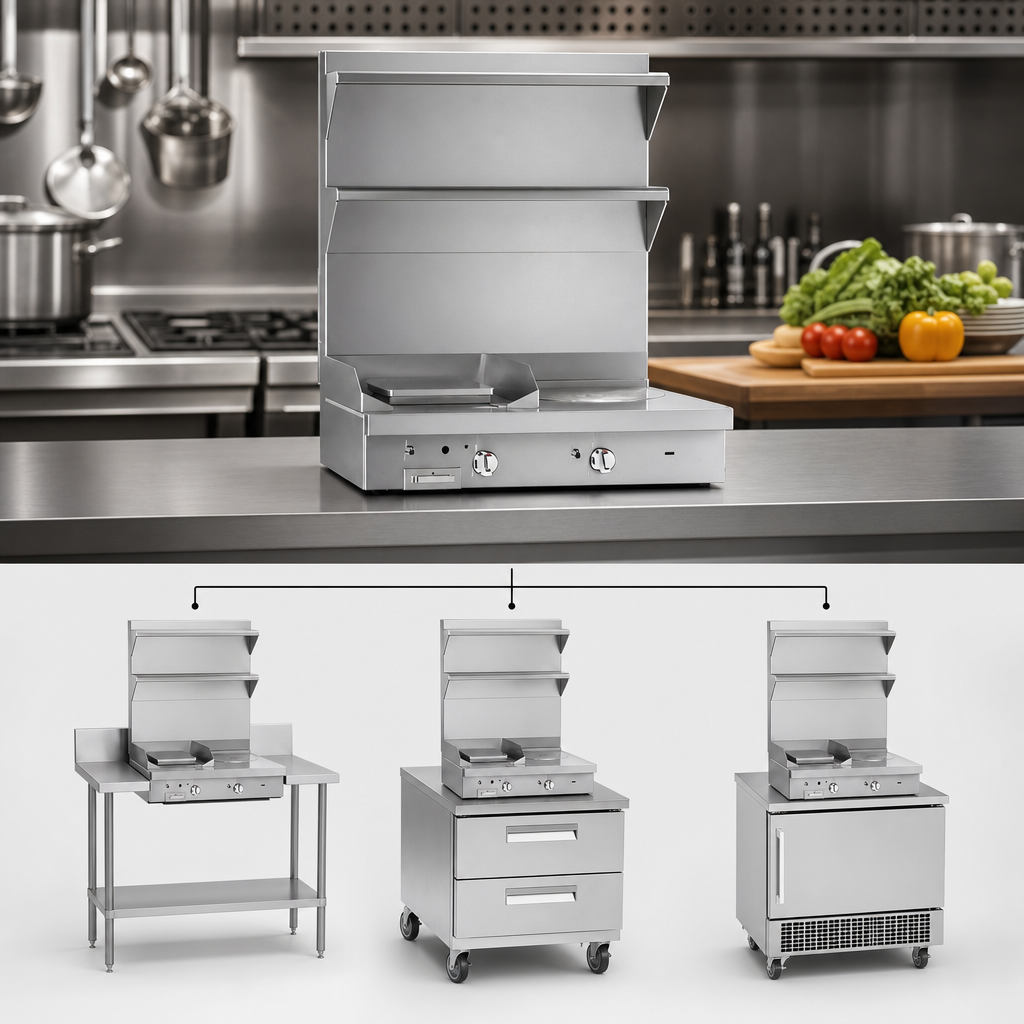

Modular Mount Design

Designed to mount on a countertop, refrigerated base, or freezer base for flexible line-up placement.

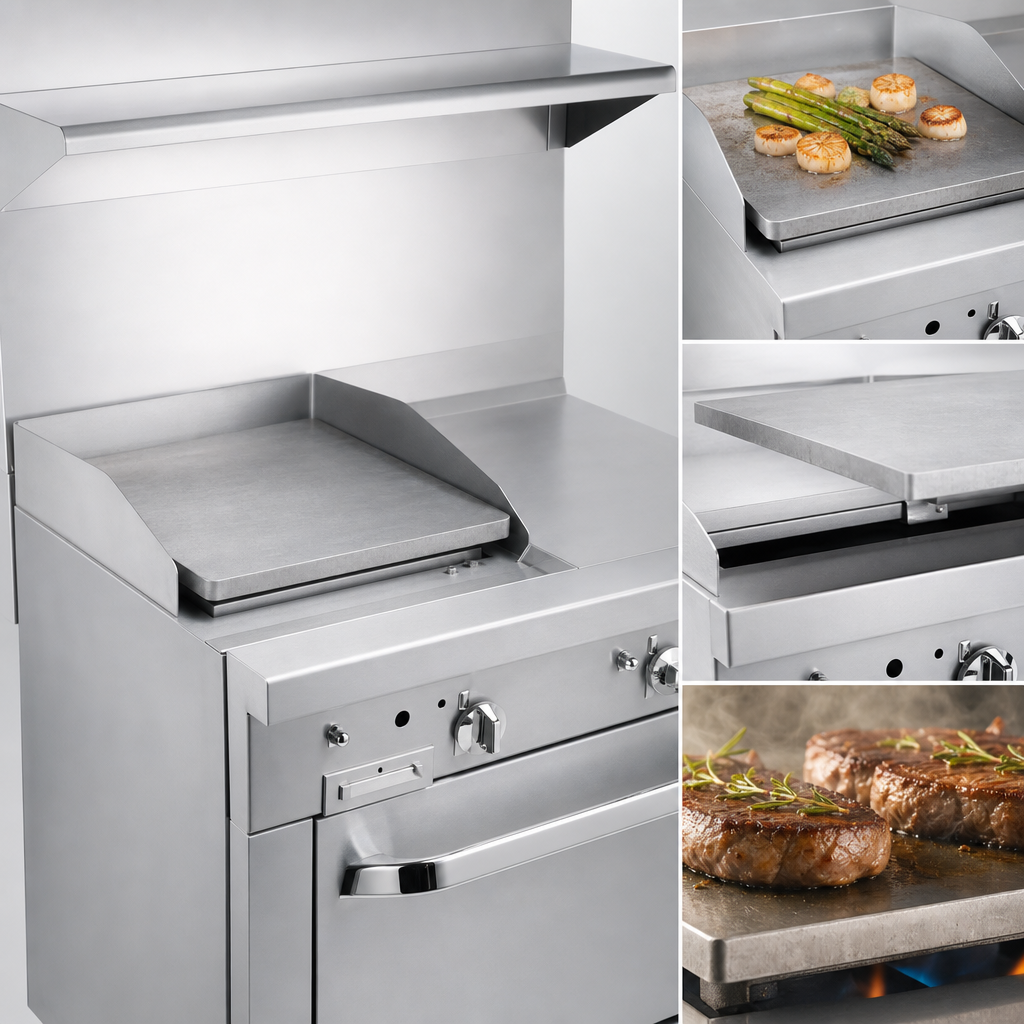

French Hot Top Surface

Uses a removable steel plate with center surface temperatures up to 900°F for intense, even heat.

35,000 BTU Burner

Single burner delivers concentrated heat output for heavy-duty cooking applications.

Manual High/Low Controls

Simple manual controls with a high/low setting for easy heat adjustment.

Battery Spark Ignition

Battery spark ignition provides convenient startup without a standing pilot.

Stainless Steel Construction

Stainless steel front, sides, rear, and exterior bottom support long-term commercial durability.

Insulated Burner Box

Fully insulated lining and burner box help retain heat and improve performance.

Battery-Compatible Design

Can be positioned anywhere in a battery line; end units have a solid end side.

Utility Connections and Standard Components

Includes a 1-1/4-inch front manifold, 1-inch rear gas connection, 5-inch stainless steel flue riser, and 6-inch stainless steel adjustable legs.

Type Sectional Range
Style French Hot Top
Installation Type Countertop (Modular Mount)
Controls Manual
BTU 35,000 BTU
Gas Type Natural Gas
Gas Connection Size 1-1/4 Inches Front Manifold / 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C.
Material Stainless Steel
Finish #3 Polished
Country of Origin USA
Shipping Width 20 Inches
Shipping Depth 42.5 Inches
Shipping Height 21 Inches
Shipping Weight 240 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a modular mount unit designed for countertop, refrigerated base, or freezer base installation.
The unit uses a 1-1/4-inch front manifold and 1-inch rear gas connection. A regulated gas supply is required, and the pressure regulator must be ordered separately.
The unit has one 35,000 BTU burner.
The removable steel hot top can reach up to 900°F at the center.
Yes. Installation under a vented hood is recommended.
The unit includes a 1-year limited parts and labor warranty.
