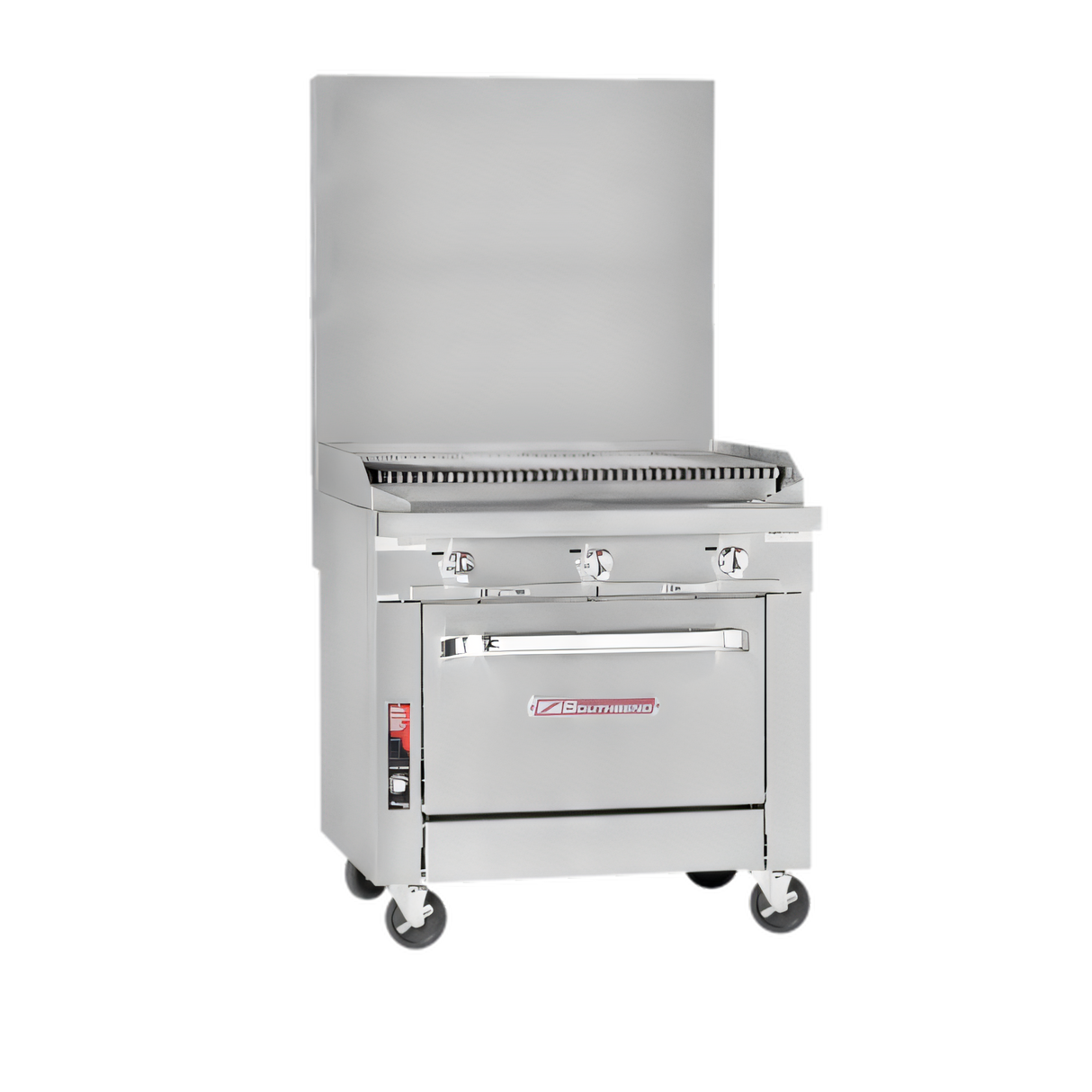

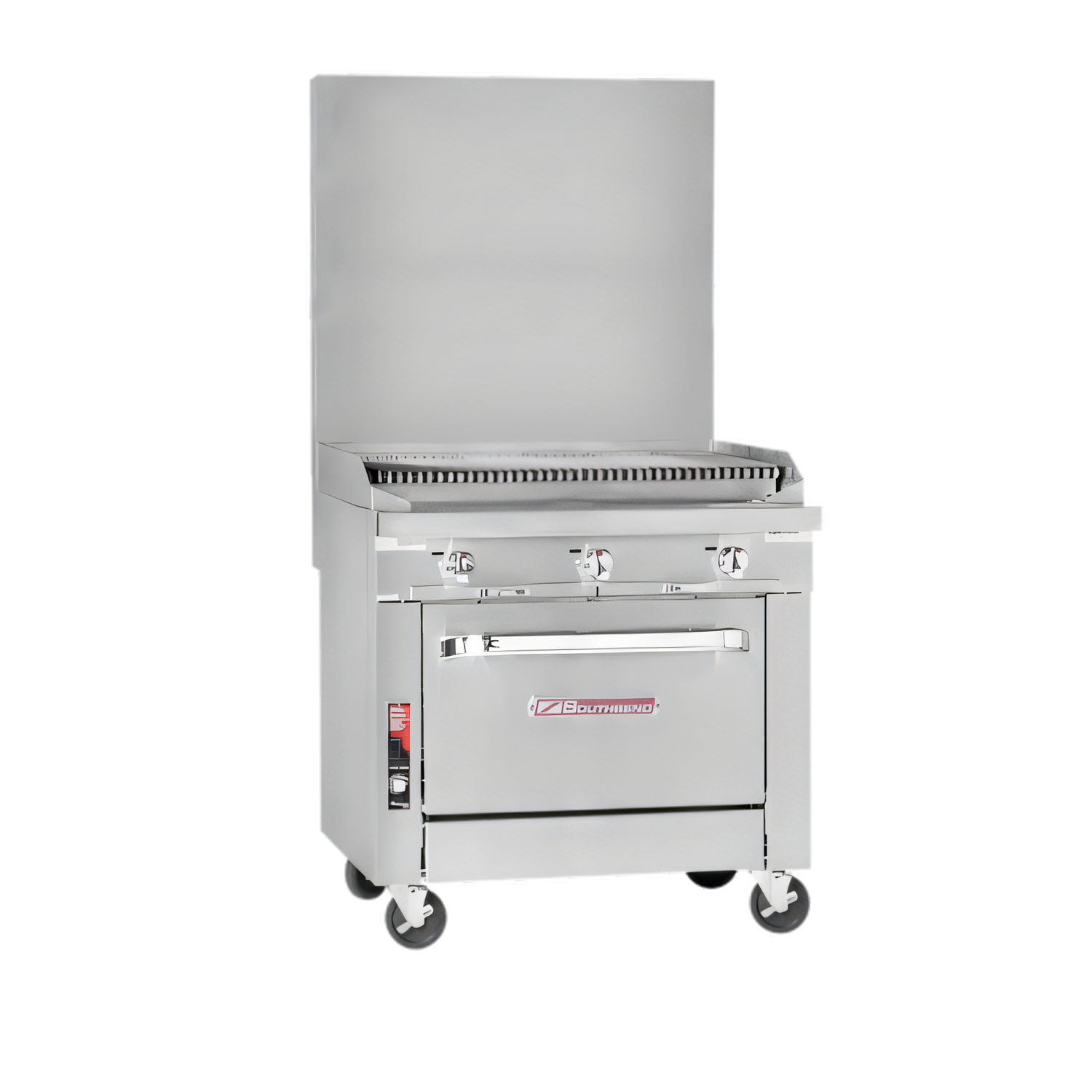

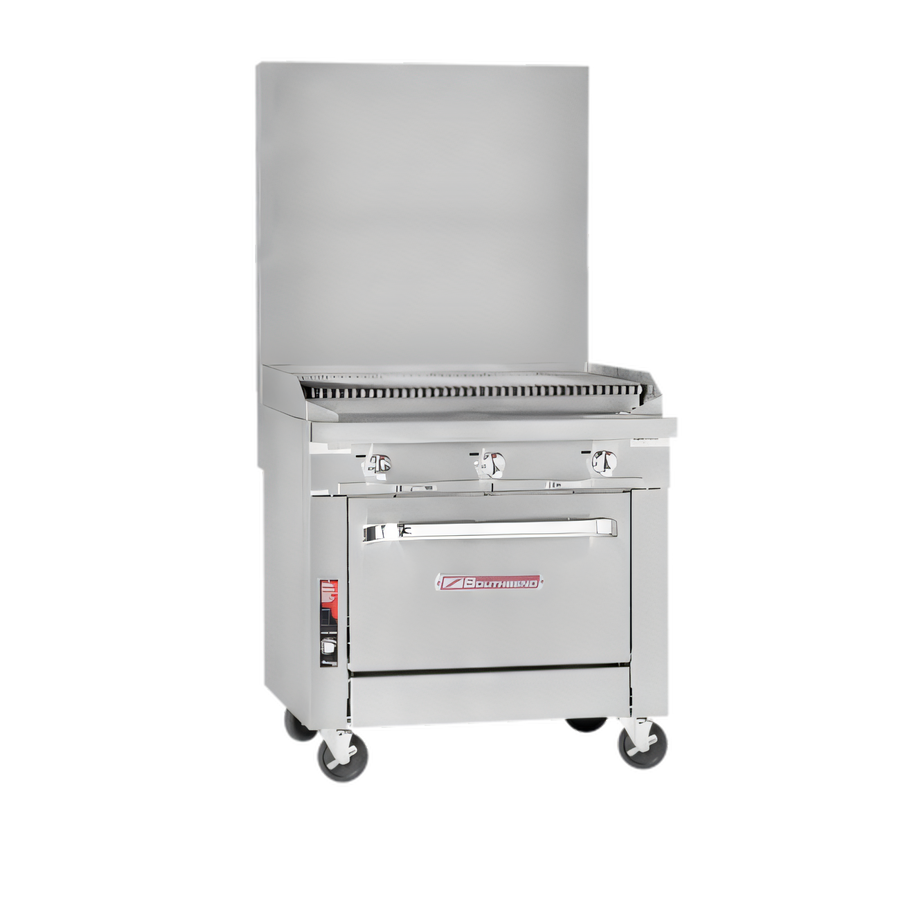

Southbend (Middleby) P18N-C Platinum Gas Ranges
Southbend (Middleby) P18N-C Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P18N-C Platinum Gas Ranges
Description
Southbend Platinum 18" Modular Gas Charbroiler Range
Model P18N-C | 48,000 BTU Natural Gas (LP orifice kit optional)Build a powerful battery or upgrade an existing cookline with Southbend’s Platinum Series 18 inch heavy-duty charbroiler. Two high-performance burners, full stainless construction, and reversible cast-iron grates give chefs the intense heat and rugged durability they demand service after service.
Performance & Design Highlights

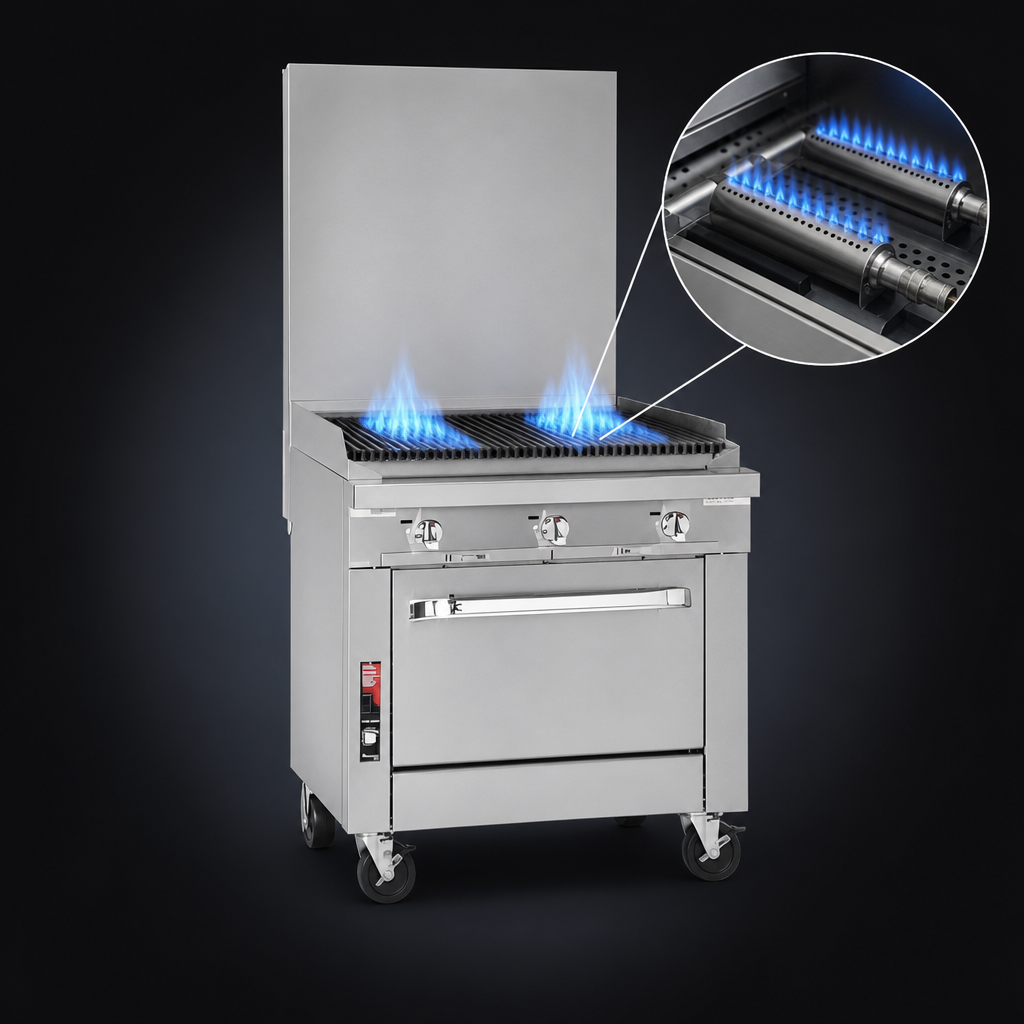

- 48,000 BTU total from two 24,000 BTU cast-iron burners.
- Adjustable, reversible cast-iron grates (1/8" or 1/4" grid) with front-to-back slope control.
- Stainless-steel radiants deliver even heat—surface reaches ≈ 600 °F on the high setting.
- Manual high/low gas valve for precise charring of steaks, seafood, vegetables and more.
- 9-1/4" deep stay-cool front rail doubles as plating shelf.
- Full stainless steel front, sides, rear & bottom plus fully insulated liner for long life on the line.
- 5" stainless flue riser channels smoke and heat into your hood system.
- Removable drip tray and grate design speed nightly clean-up.
- Modular body (8-1/2" high) mounts on refrigerated bases, countertops, chef stands or a Platinum battery.
Safety & Certifications
- CSA Flame
- CSA Star
- cCSAus
- NSF listed for sanitation
Technical Specifications
| Model | P18N-C (modular mount) |
|---|---|
| Gas Type / Rating | Natural Gas – 48,000 BTU h Propane – 42,000 BTU h* |
| Burners | (2) cast-iron – manual high/low control |
| Cooking Surface | 18" W × 24" D reversible cast-iron grates |
| Temperature Range | Up to ≈ 600 °F on high setting |
| Gas Connections | 1-1/4" front manifold (battery ready) 1" NPT rear connection |
| Overall Dimensions** | 18" W × 37-1/2" D × 13-1/2" H (incl. 5" flue) |
| Shipping Weight | ≈ 240 lb / 109 kg |
| Warranty | 1-year limited parts & labor |
*LP rating requires optional conversion kit.
**Dimension data per manufacturer drawing; verify clearances with local code.
Factory Options & Accessories
- External gas pressure regulator
- 24" or 36" flue riser (standard 5" included)
- Plated fish grids
- Cable restraint kit for mobile installations
- Open-frame or cabinet bases with locking casters
- Alternate front rail styles • removable cabinet shelf • battery end caps
• Never block the grates with a sheet pan while burners are on; reflected heat can damage the unit and void the warranty.
• Oversized cookware (12" Ø or larger) should be kept to the rear portion of the grate to avoid overheating the front rail.
