Southbend (Middleby)  |  Platinum  |  SKU: P18C-X

Southbend (Middleby) P18C-X Platinum Gas Ranges

$5,242.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

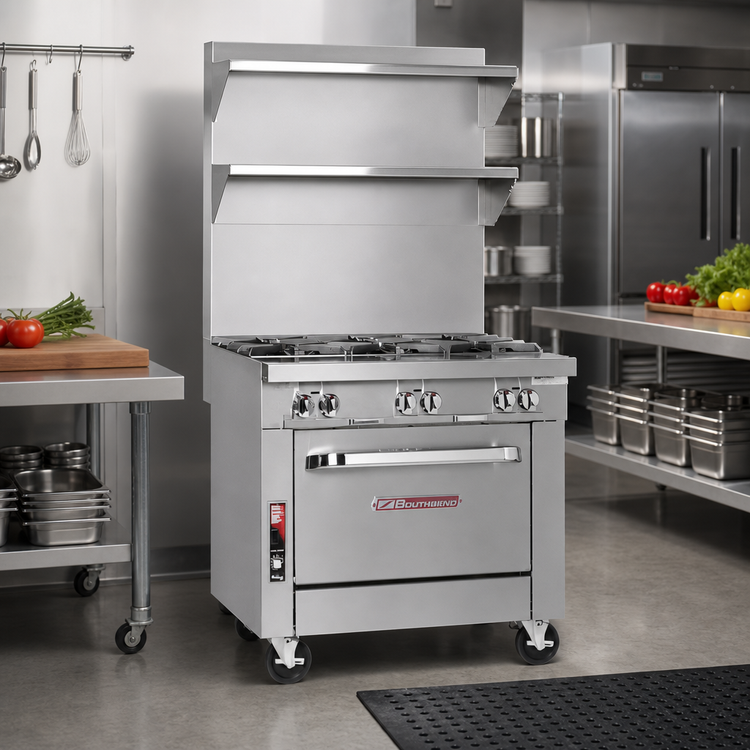

Southbend Platinum Series 18″ Heavy-Duty Gas Range

Model P18C-X • Two 45,000 BTU Open Burners • Cabinet Base

Built for the busiest commercial kitchens, the Southbend Platinum P18C-X packs a combined 90,000 BTU of patented Pyromax™ power into a rugged 18-inch footprint. Pair it effortlessly with other Platinum sectional units or use it as a compact stand-alone workhorse with built-in storage below.

Key Features

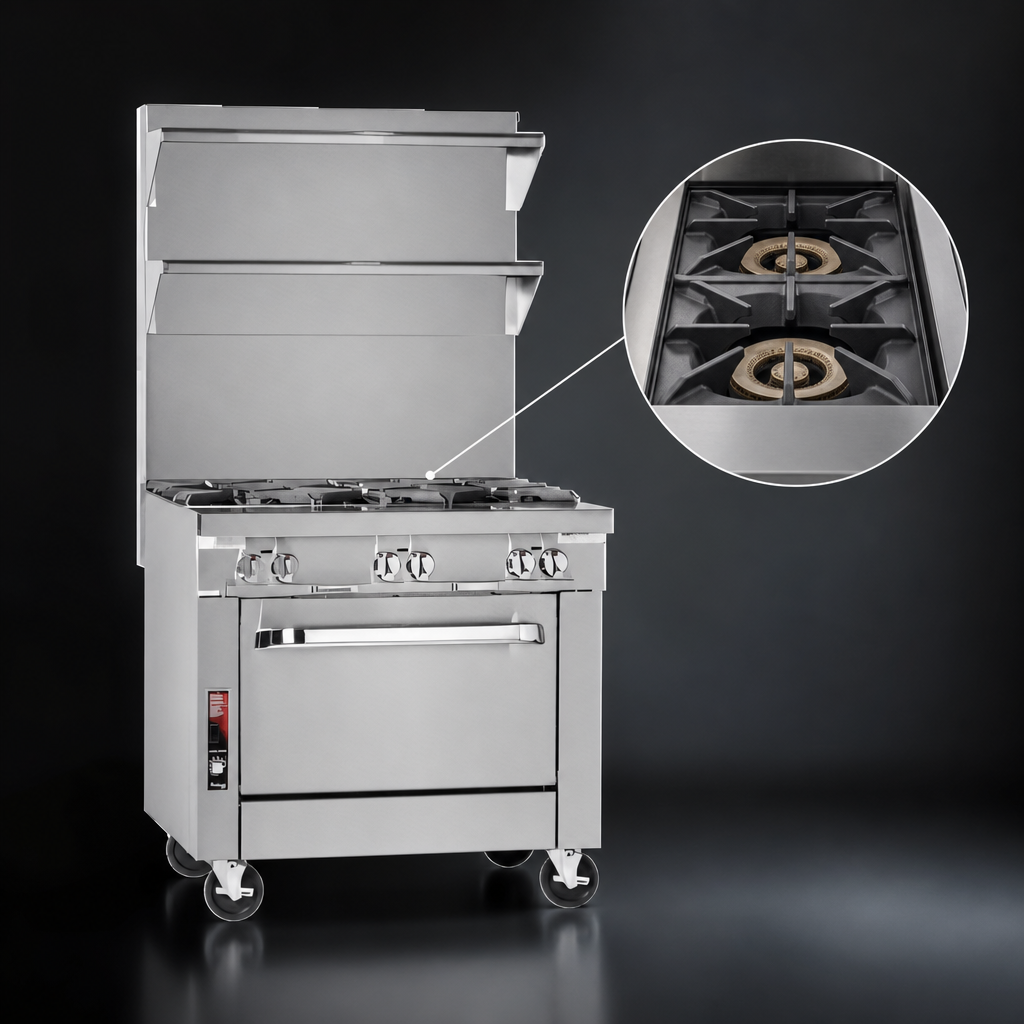

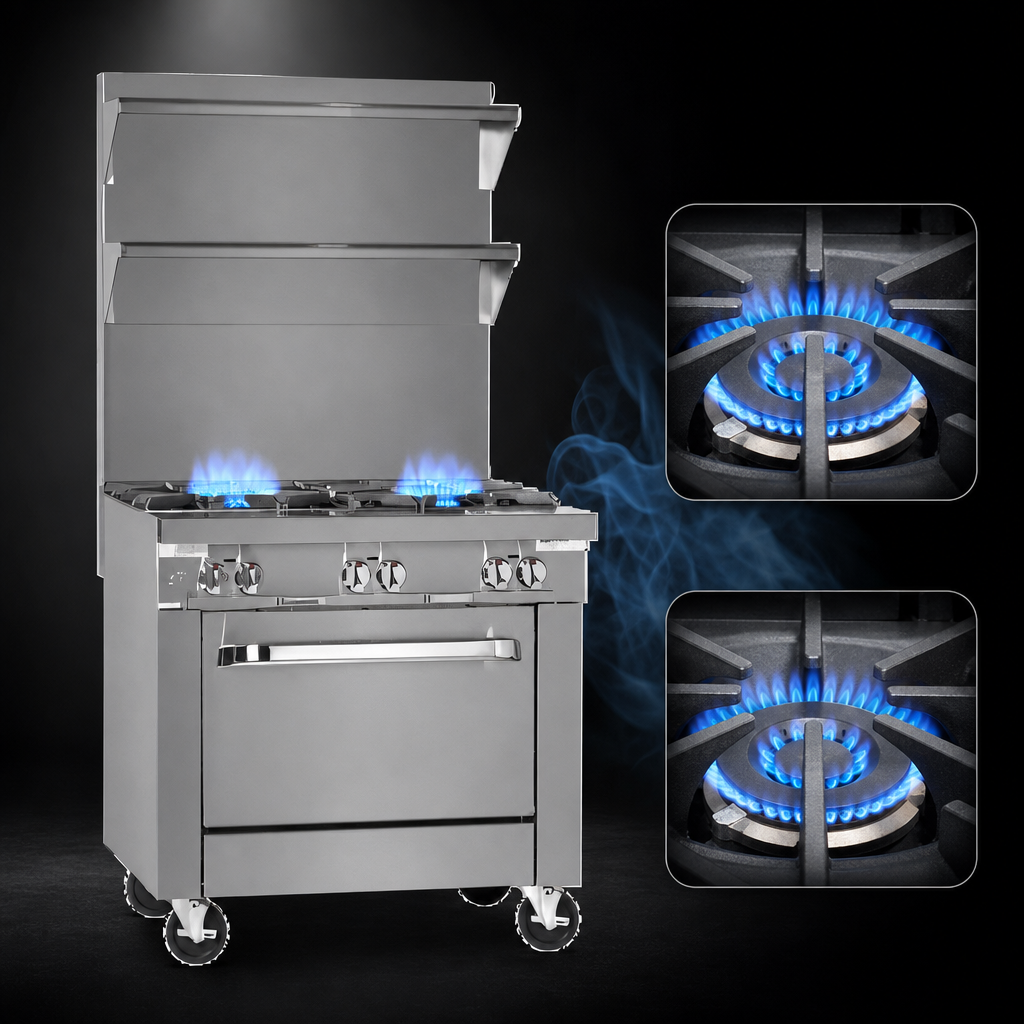

  • Two clog-free Pyromax™ open burners – 45,000 BTU each (Natural or LP)
  • Manual front-mounted burner controls for instant, precise flame adjustment
  • Removable welded-steel top grate handles heavy stock pots with ease
  • 9-¼″ deep front rail plus full-width drip tray for a cleaner, safer line
  • Fully insulated burner box improves efficiency & keeps side panels cool
  • Stainless steel front, sides, rear & exterior bottom for long-term durability
  • 5″ stainless flue riser channels heat directly into the hood
  • Stainless cabinet base with reversible door adds convenient dry storage
  • 6″ adjustable stainless legs level the unit on uneven floors
  • Sectional 1-¼″ front gas manifold couples to adjacent Platinum modules
  • Certifications: CSA Flame, CSA Star, cCSAus & NSF

Specifications

Model P18C-X (cabinet base)
Total BTU Input 90,000 BTU/hr
Burners 2 × 45,000 BTU Pyromax open burners
Gas Type Natural or Propane
Gas Connection 1 ″ NPT rear (supply)  |  1 ¼″ front battery manifold
Operating Pressure 7″ W.C. Natural • 11″ W.C. LP (external regulator required)
Width 18″ (457 mm)
Depth 37 ½″ (952 mm)
Height to Cook Surface 36 ½″ (±1″) (927 mm)
Overall Height w/ Flue 41 ½″ (1 054 mm)
Shipping Weight 220 lb (99.8 kg)
Clearances 0″ sides • 6″ rear (to combustibles)
Warranty 1-year parts & labor

Planning a full cookline? Southbend offers free battery design assistance to ensure perfect manifold alignment and utility planning.

Popular Factory Options (sold separately)

  • 24″ or 36″ flue riser with one or two storage shelves
  • Open-frame base with locking casters
  • Extra-deep rear-extending flue riser
  • Tray or tubular shelves for cabinet interior
  • Removable cast-iron grate top
  • Spark ignition for battery installations
  • External gas pressure regulator & flexible hose restraint kit
Commercial use only: This range must be installed under an appropriate ventilation hood by qualified personnel. Follow Southbend’s Oversized Cookware and Cleaning guidelines to maintain warranty coverage.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

41.0in

Width

18.0in

Depth

37.5in

Shipping Weight

220.0lbs

Top

(2) open burners

Base

storage base

Exterior Finish

all stainless steel exterior

Specifications

Platinum Heavy Duty Range, gas, 18", (2) 45,000 BTU open burners, manual controls, cabinet base, stainless steel front sides, rear & exterior bottom & 6" adjustable legs, 90,000 BTU, CSA Flame, CSA Star, cCSAus, NSF
