Southbend (Middleby)  |  Platinum  |  SKU: P18C-P

Southbend (Middleby) P18C-P Platinum Gas Ranges

$7,167.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

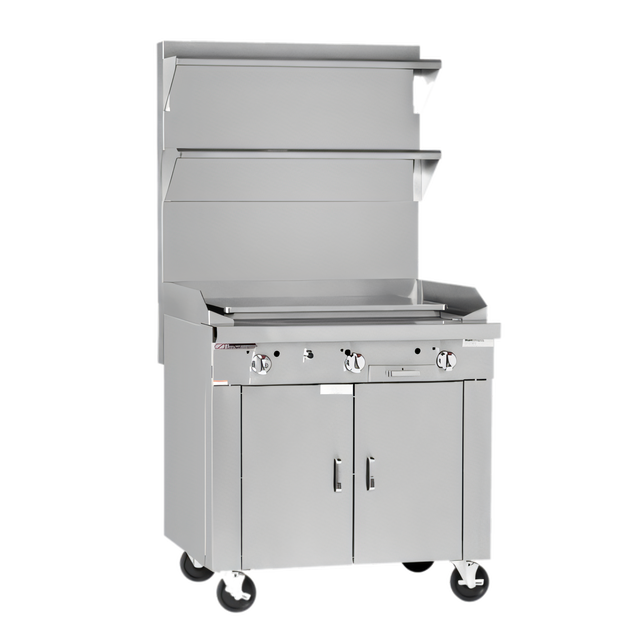

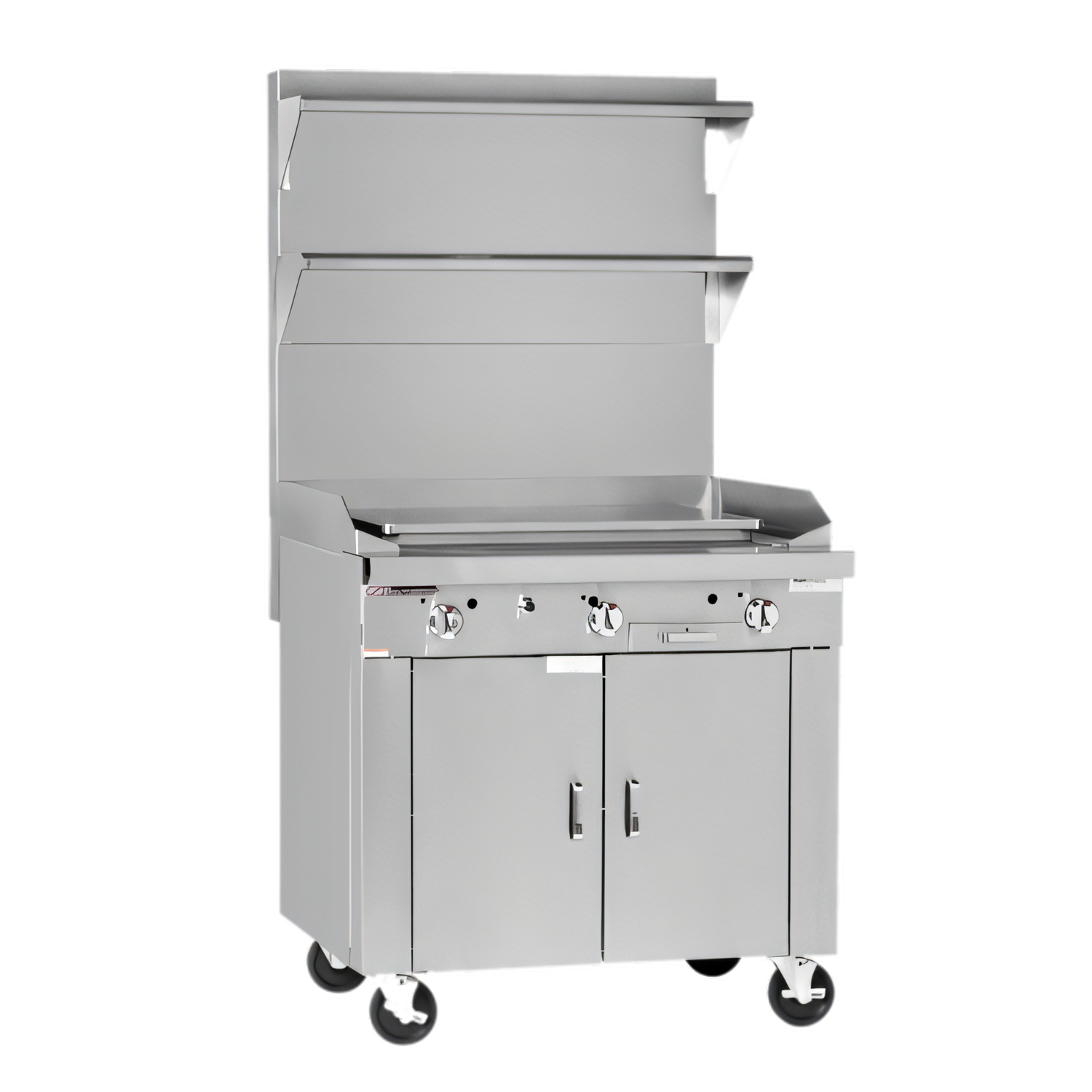

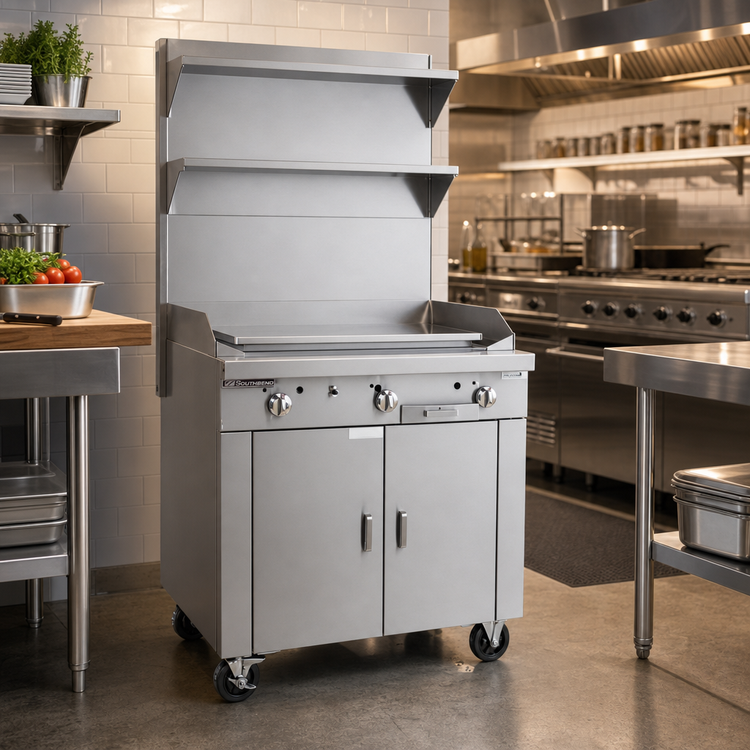

Southbend Platinum Series 18" Gas Plancha Range – Cabinet Base

Model P18C-P | 16,000 BTU | CSA & NSF Certified

Built for high-volume kitchens that demand brutal strength and lightning-fast recovery, the Southbend Platinum P18C-P packs a raised 11 3⁄4" plancha into an 18" heavy-duty range section. A ½" thick steel plate, a single 16,000 BTU cast-iron burner, and all-stainless construction deliver the searing power, durability, and easy cleanup today’s chefs expect from Southbend.

Why You’ll Love It

  • ½" reinforced steel plancha pre-heats fast and shrugs off daily abuse.
  • High-heat zone (front ⅔) reaches up to 800 °F for quick searing; rear ⅓ runs cooler for finishing & holding.
  • Raised plate with 3" side channels keeps grease away from food and speeds wipe-downs between loads.
  • Battery spark ignition – no electrical hook-up required.
  • Manual, single-knob control keeps operation simple and reliable.
  • Grease management made easy with an oversized, removable stainless drawer.
  • Rugged stainless steel cabinet base adds storage and features a reversible door.
  • Side & rear splashers plus a 5" deep front rail protect staff and surrounding equipment.
  • Fully-insulated burner box boosts efficiency and keeps outer surfaces cooler.
  • 6" adjustable stainless legs for perfect leveling under any hood.

Technical Specifications

Model P18C-P (Cabinet Base)
Gas Input 16,000 BTU/h Natural  | 15,500 BTU/h LP

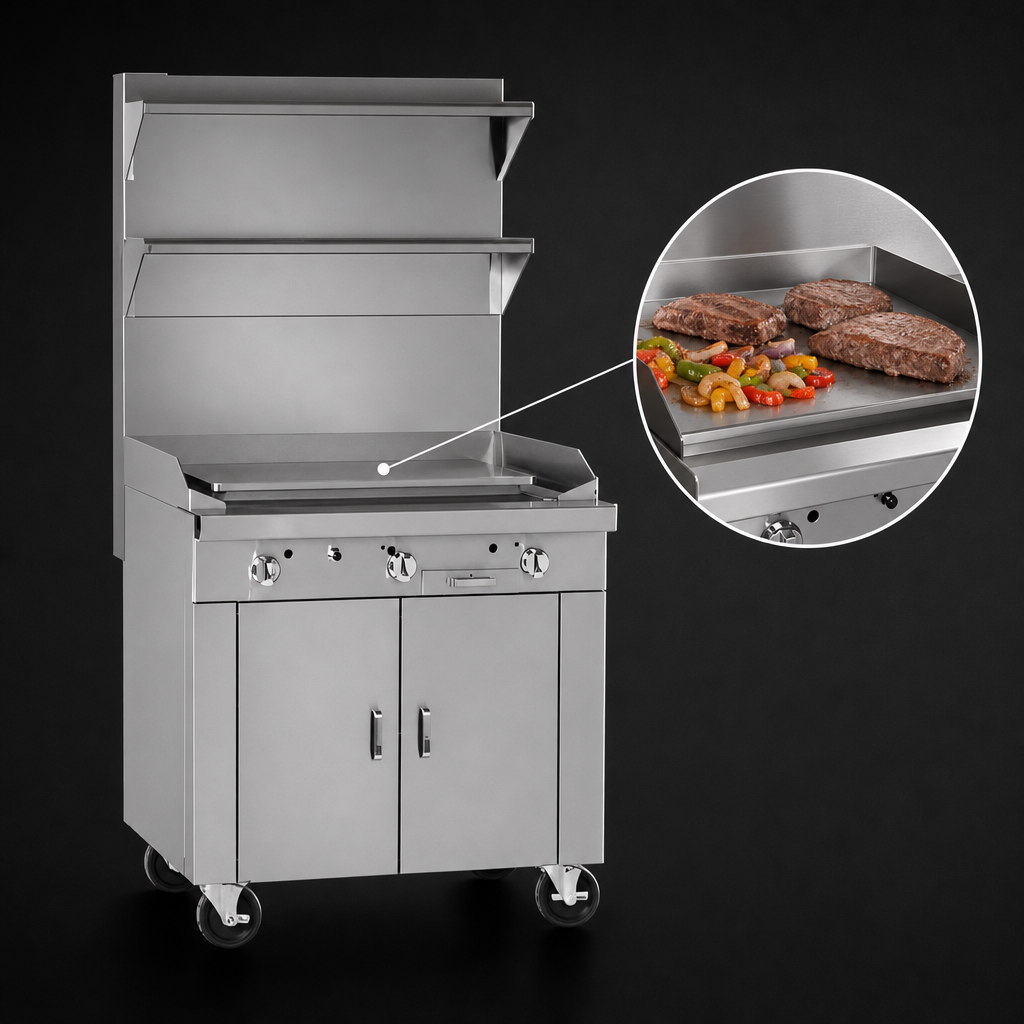

Plate Size 11 3⁄4" W × 18" D raised plancha

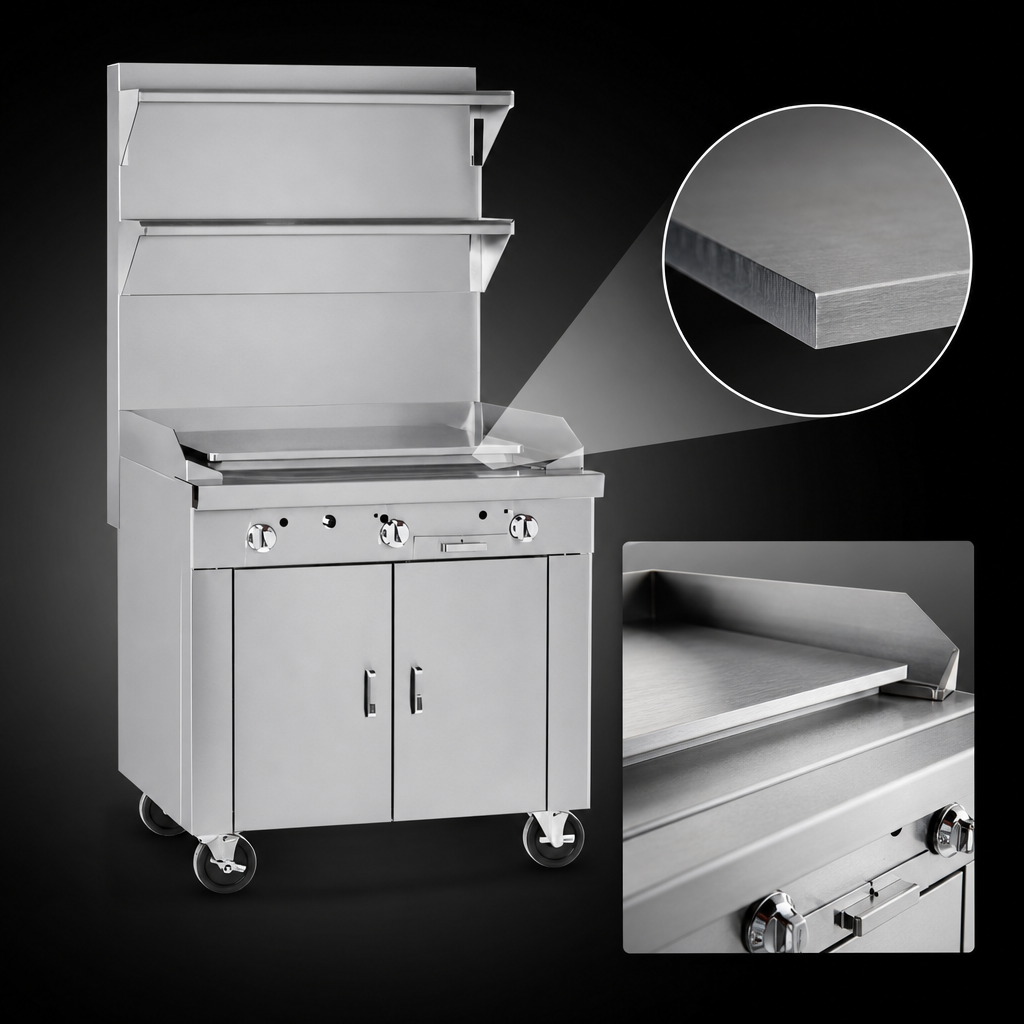

Plate Thickness ½" reinforced steel
Burner 1 cast-iron with manual valve
Ignition Battery spark (AAA battery, alkaline not covered under warranty)
Exterior Stainless front, sides, rear & bottom
Gas Connections 1 ¼" front manifold  | 1" rear NPT
Overall Dimensions 18" W × 34" D × 37 ½" H (with 5" flue riser)
Shipping Dimensions 20" W × 42 ½" D × 45" H – 270 lb
Clearances 0" non-combustible | 10" sides & 12" rear combustible
Certifications CSA, NSF
Warranty 1-year parts & labor (commercial use)
Important: Plancha ranges operate as a single high-heat surface and do not provide specific temperature settings. Use only commercial-grade cookware and avoid allowing pots or pans to hang over the front rail.

Need easy monthly payments? Ask about Middleby Equipment Financing to keep cash flow strong.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

18.0in

Depth

37.5in

Shipping Weight

270.0lbs

Base

storage base

Top

(1) plancha

Plate Thickness

.500" = 1/2"

Exterior Finish

all stainless steel exterior

Specifications

Platinum Heavy Duty Range, gas, 18", 11-3/4" plancha, 1/2" thick plate, manual controls, battery spark ignition, cabinet base, stainless steel front sides, rear & exterior bottom & 6" adjustable legs, 16,000 BTU, CSA, NSF
