Southbend (Middleby) P18C-F Platinum Gas Ranges
Description
Southbend Platinum 18" French Hot Top Range – Cabinet Base
Model P18C-F | 35,000 BTU Heavy-Duty Gas Sectional RangePack more power into less space. The Southbend Platinum P18C-F delivers a blistering 900 °F cooking surface from a single 18-inch French hot top while its all-stainless cabinet base keeps utensils, pans, and plating essentials right where you need them.
Key Performance Features

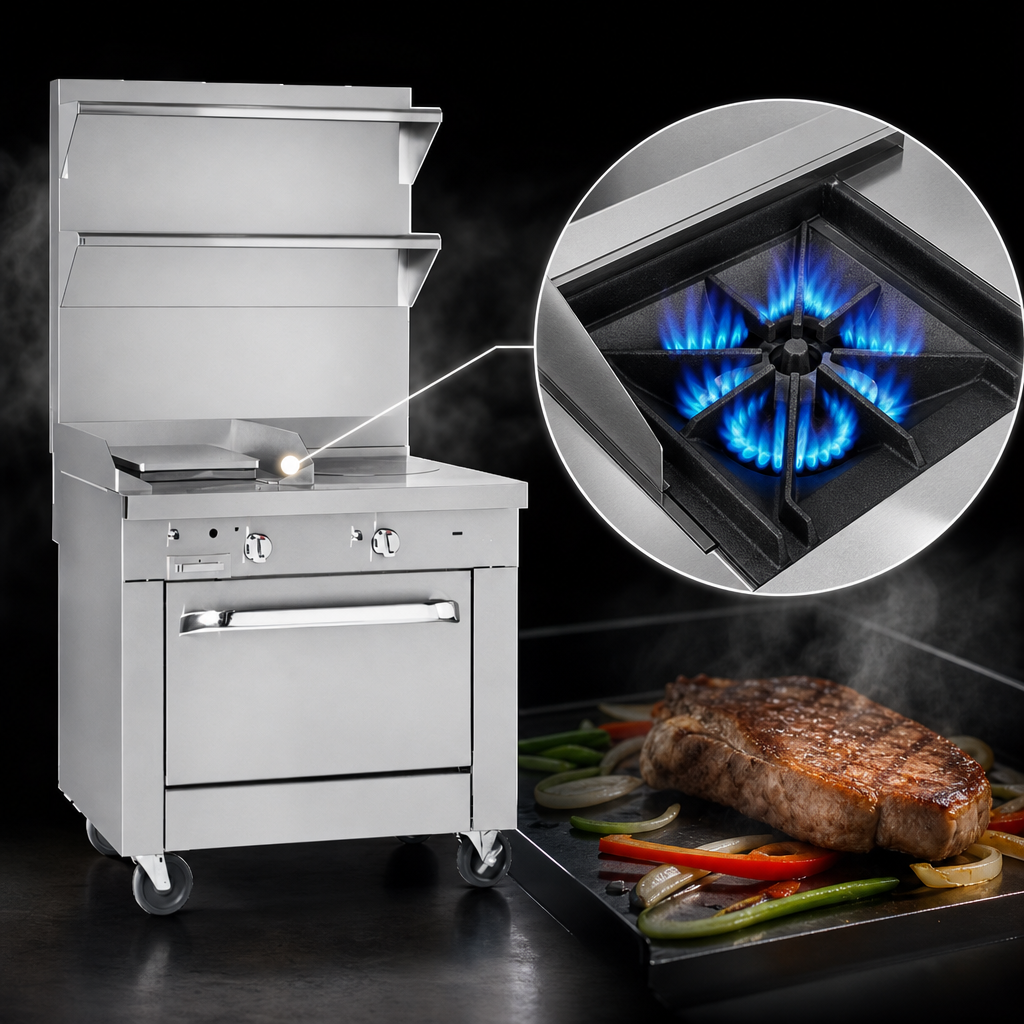

- One 35,000 BTU NAT/LP burner with manual High/Low control
- Battery-spark ignition — no electrical hookup required

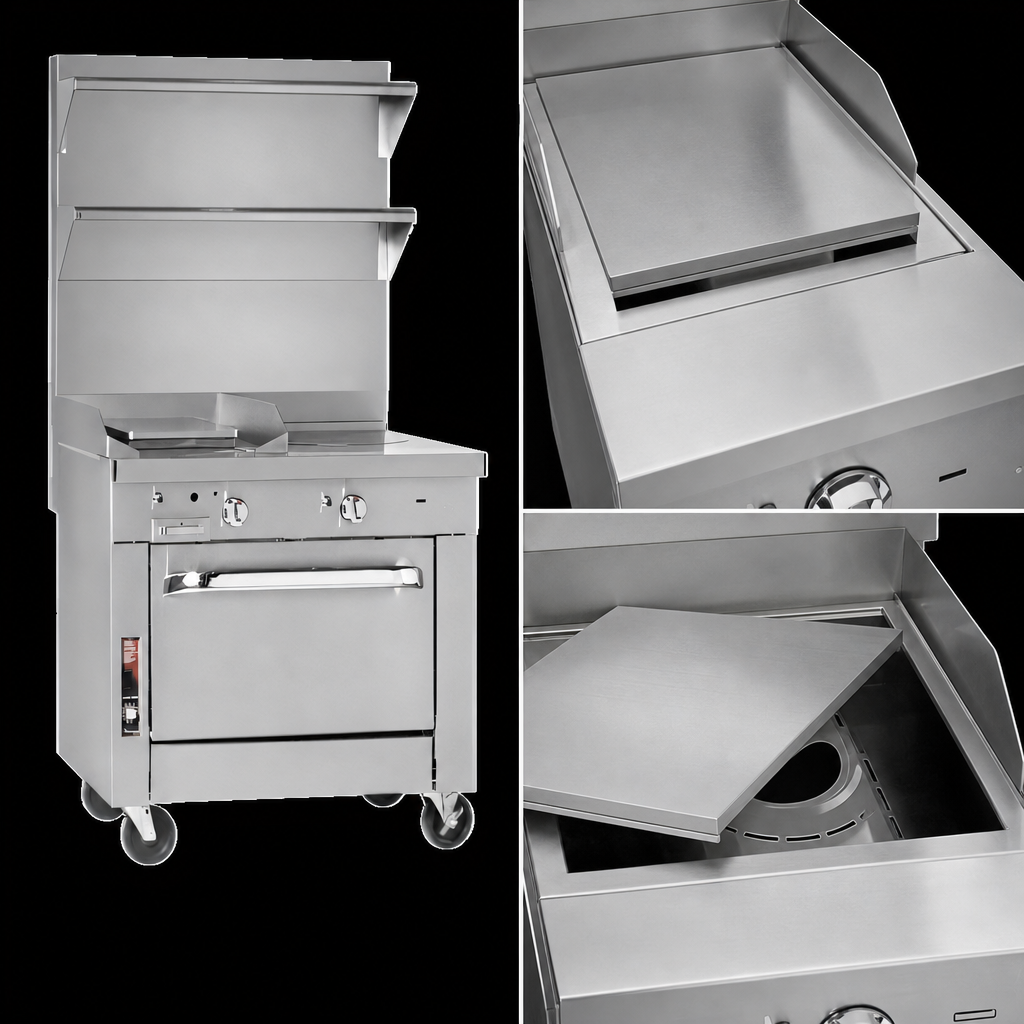

- Removable ¾" steel plate reaches up to 900 °F at the center
- 9-1/4" deep front rail provides extra plating & spill protection
- Fully insulated lining & burner box for improved efficiency
- Stainless steel front, sides, rear, exterior bottom, & cabinet door
- 5" stainless flue riser channels heat into the hood system
- 6" adjustable stainless legs make leveling simple on any floor
- CSA Flame, CSA Star, cCSAus, & NSF certified
- One-year limited parts & labor warranty
Popular Options & Accessories
- External gas pressure regulator
- Front casters (locking) & open-frame base with casters
- 24" or 36" flue riser with optional 10"-deep shelves
- Tray or tubular shelving (12" deep)
- Cable restraint kit (required with casters)
- Removable interior shelf for cabinet base
Technical Specifications
| Cooking Surface | 18" French hot top, removable steel plate |
|---|---|
| Total BTU | 35,000 BTU/hr (natural or propane) |
| Temperature Range | Up to 900 °F (482 °C) at plate center |
| Controls | Manual High/Low valve • Battery spark ignition |
| Gas Connections | 1 ¼" front manifold (battery line-ups) 1" rear male NPT |
| Required Inlet Pressure | 7" W.C. NAT • 11" W.C. LP |
| Overall Dimensions | 18" W × 40.5" D × 37.5" H (with 5" flue) |
| Shipping Dimensions | 20" W × 42.5" D × 45" H |
| Shipping Weight | 270 lb (122.5 kg) |
| Exterior Construction | 430 & 304 stainless steel |
| Certifications | CSA Flame • CSA Star • cCSAus • NSF |
| Warranty | 1-year limited parts & labor |
Install under a vented hood and connect to a regulated gas supply in accordance with local codes. Intended for commercial use only.
