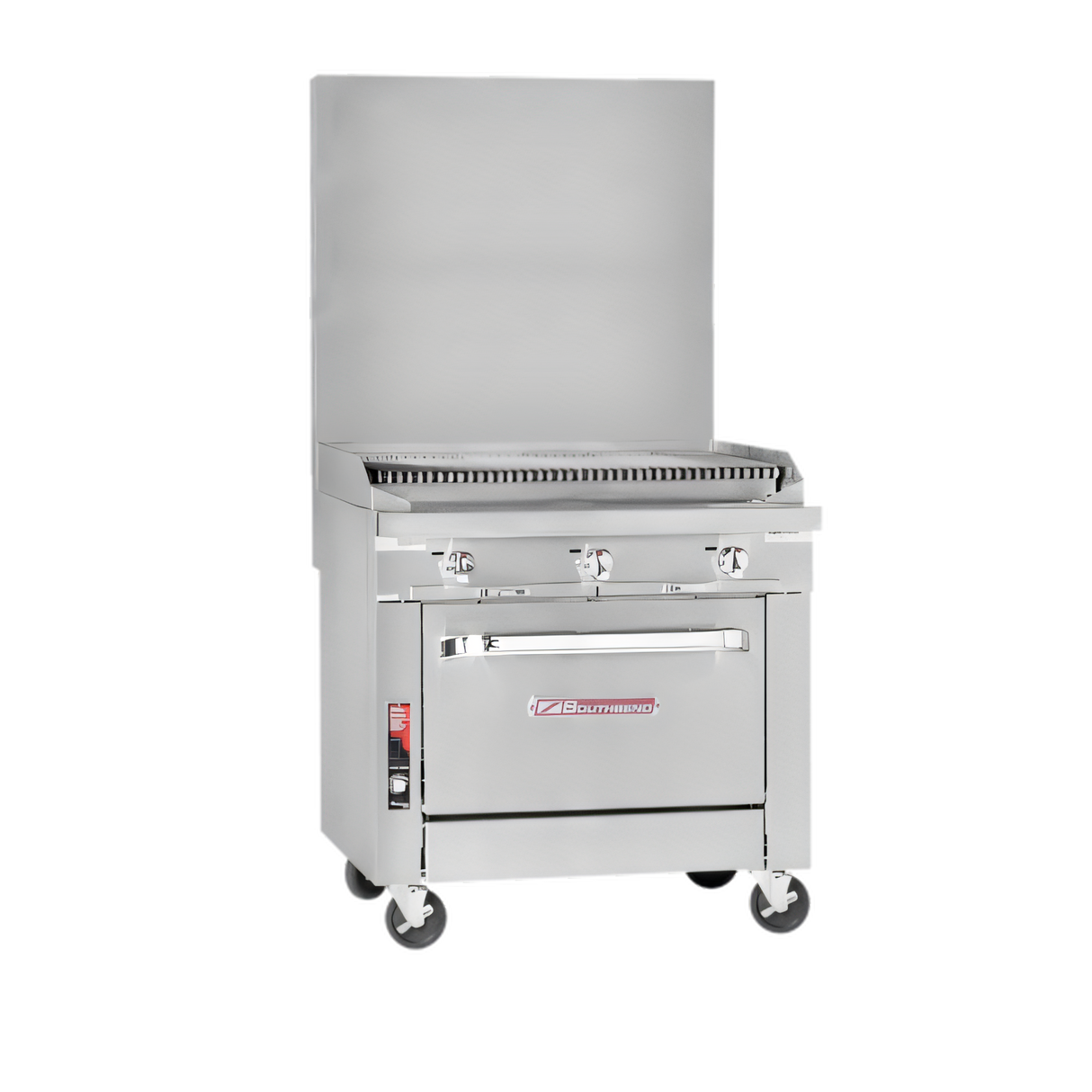

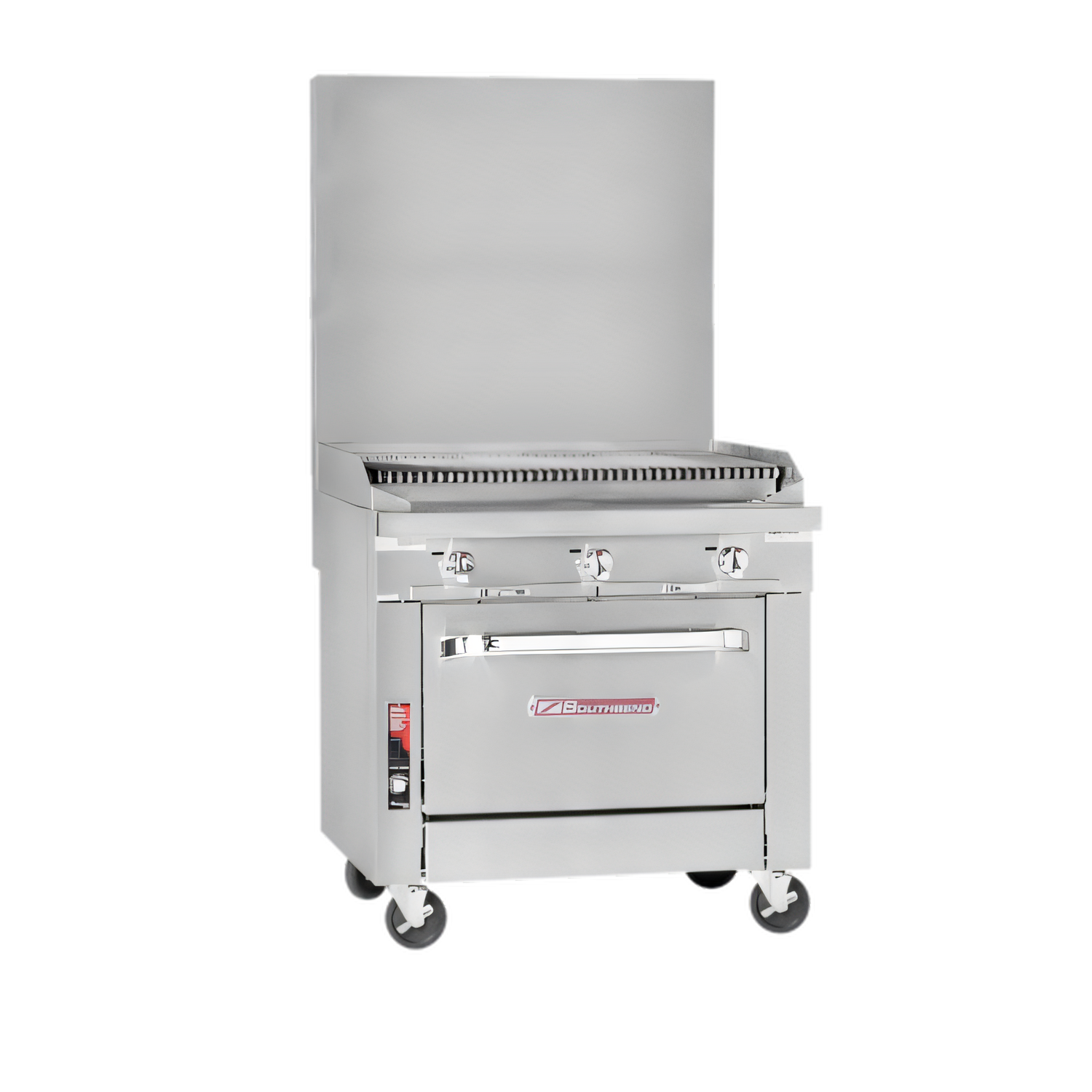

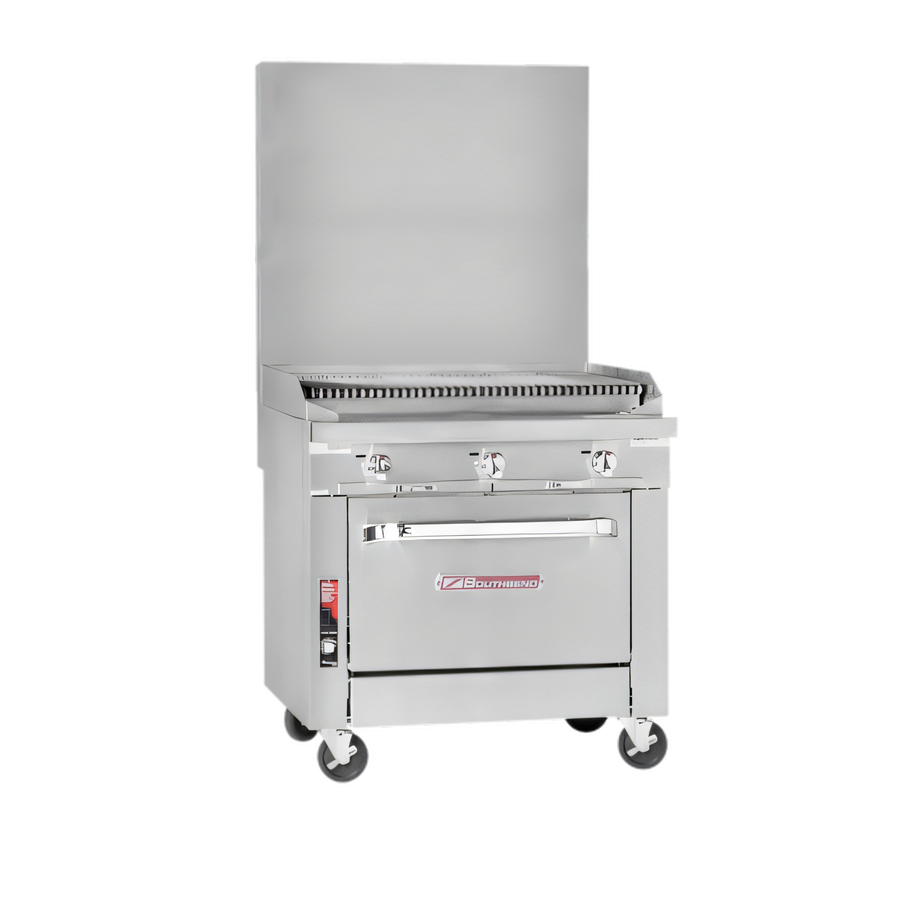

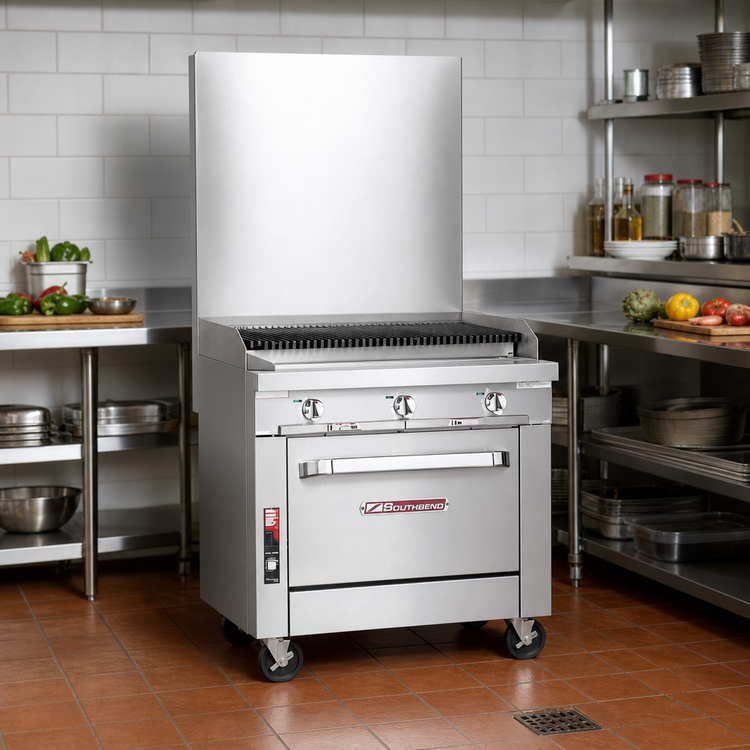

Southbend Platinum Heavy Duty 18-Inch Gas Sectional Full-Width Charbroiler with Cabinet Base

SKU: P18C-C
$6,610.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum Heavy Duty 18-Inch Gas Sectional Full-Width Charbroiler with Cabinet Base

Manual Controls, Cast Iron Grates, Stainless Steel Radiants

A compact 18-inch sectional charbroiler that delivers 48,000 BTU of heavy-duty grilling power in a stainless steel cabinet-base design.

  • 18-inch full-width charbroiler with 48,000 BTU output for high-volume cooking.
  • Removable cast iron grates flip for 1/8-inch or 1/4-inch grid width and adjust front-to-back slope.
  • Stainless steel radiants and insulated burner box help promote even heat distribution.
  • Manual high/low control offers straightforward burner adjustment.
  • Cabinet base includes a removable door that can hinge on either the right or left.
  • Standard 6-inch adjustable stainless steel legs provide stable installation.
  • Stainless steel front, sides, rear, and exterior bottom add durability for demanding kitchens.

Overall Dimensions:

18.0"W x 37.5"D x 41.0"H

Product Weight:

270.0 lb

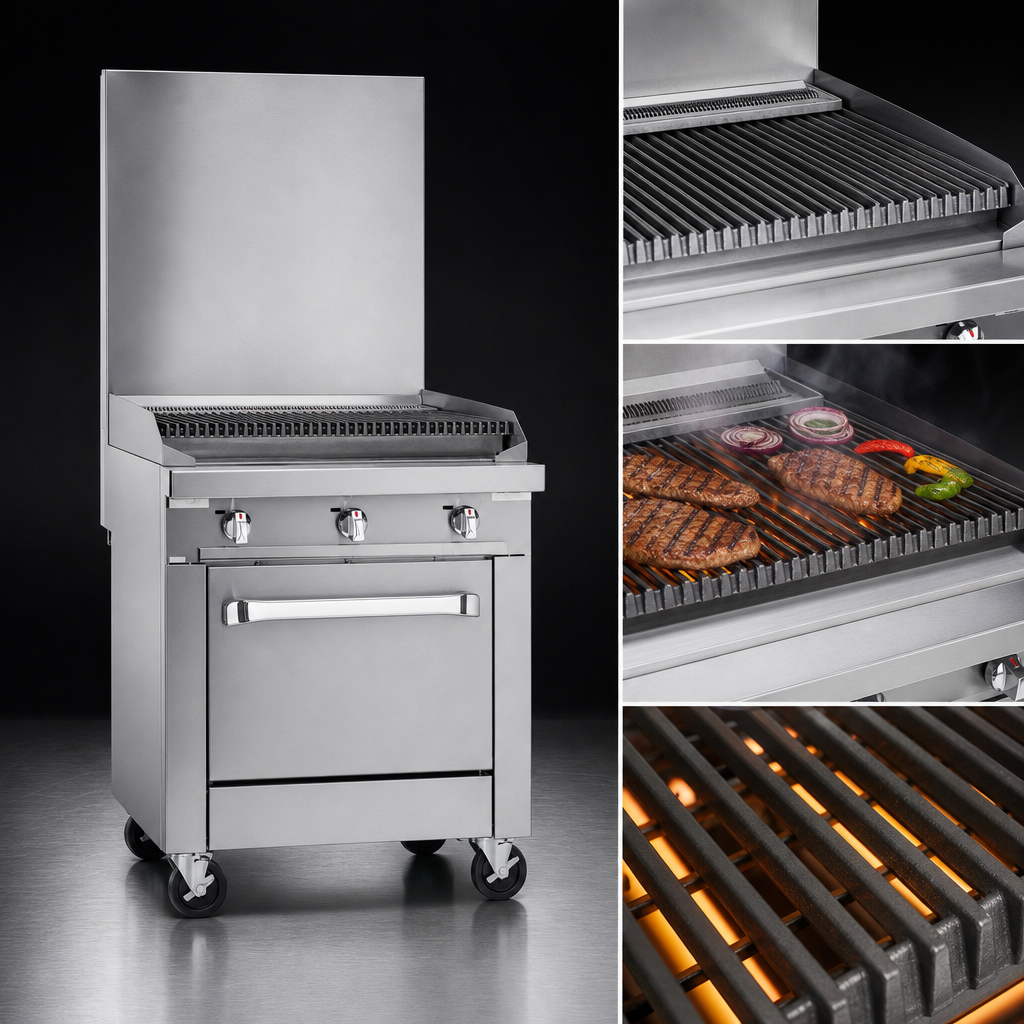

Full-Width Charbroiler

An 18-inch sectional charbroiler with 48,000 BTU output and operating temperatures up to 600°F on high.

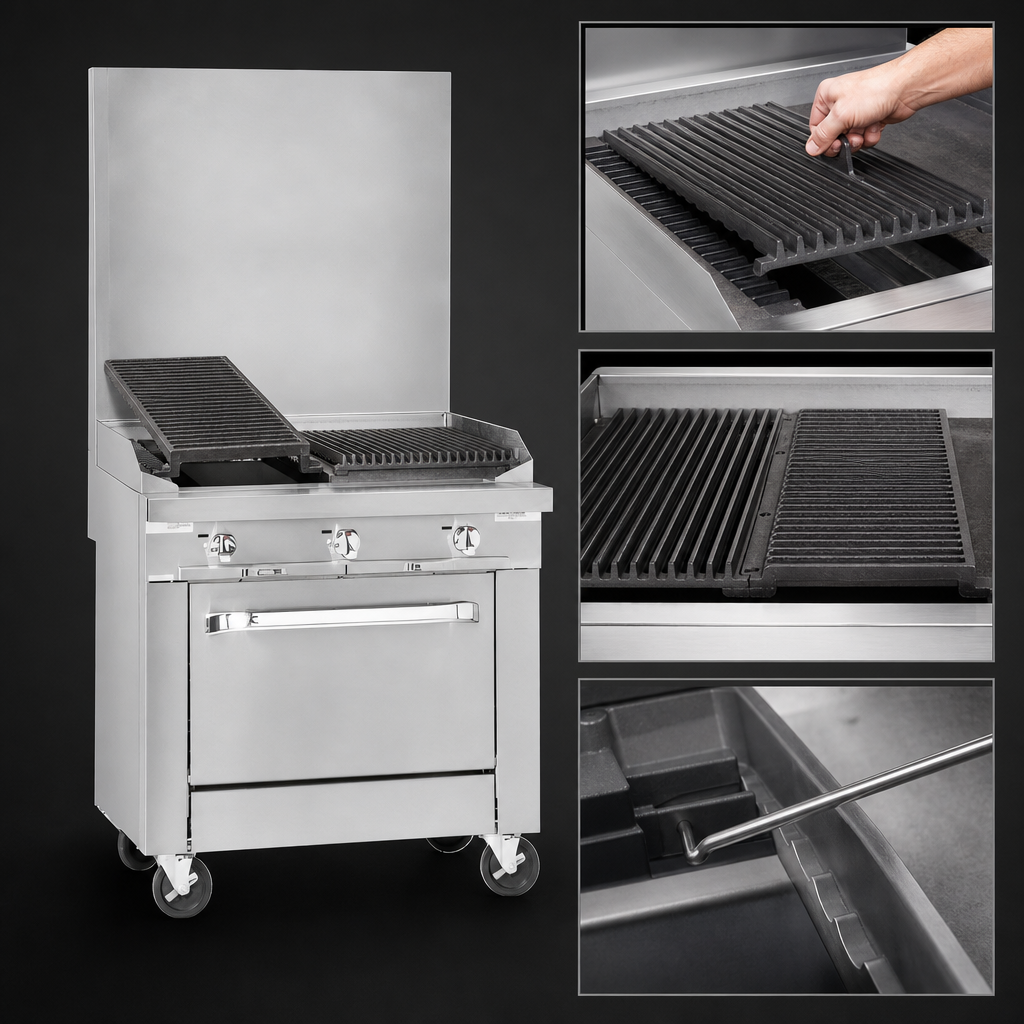

Removable Cast Iron Grates

Heavy-duty grates flip to provide either 1/8-inch or 1/4-inch grid width and include adjustable front-to-back slope.

Stainless Steel Radiants

Helps distribute heat more evenly across the cooking surface.

Manual High/Low Control

Simple manual knob control for burner adjustment.

Cabinet Base with Reversible Door

Stainless steel cabinet base includes a removable door that can hinge on either the right or left side.

Heavy-Duty Stainless Construction

Front, sides, rear, and exterior bottom are stainless steel for durability and easy cleaning.

Standard Adjustable Legs

6-inch stainless steel adjustable legs are included as standard equipment.

Removable Drippings Tray

Built to collect grease and simplify cleanup.

Type Charbroiler
Style Sectional Range
Installation Type Floor Model
Controls Manual
Material Stainless Steel
Finish Polished Stainless Steel
BTU 48,000 BTU
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas; 11 Inches W.C. Propane
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 42.5 Inches
Shipping Height 45 Inches
Shipping Weight 270 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The removable cabinet door can hinge on the right or the left.
It has a 1-1/4 inch front manifold connection and a 1 inch rear gas connection; a regulated gas supply is required and the pressure regulator must be ordered separately.
The charbroiler reaches an even surface temperature up to 600°F on the high setting.
Yes. Casters are available as an option, and a cable restraint kit is recommended when using casters with a flexible hose gas connection.
Installation under a vented hood is recommended, and the unit is for noncombustible locations only.
The unit includes a limited warranty of 1 year parts and 1 year labor.
