Southbend (Middleby)  |  Platinum  |  SKU: P16N-X

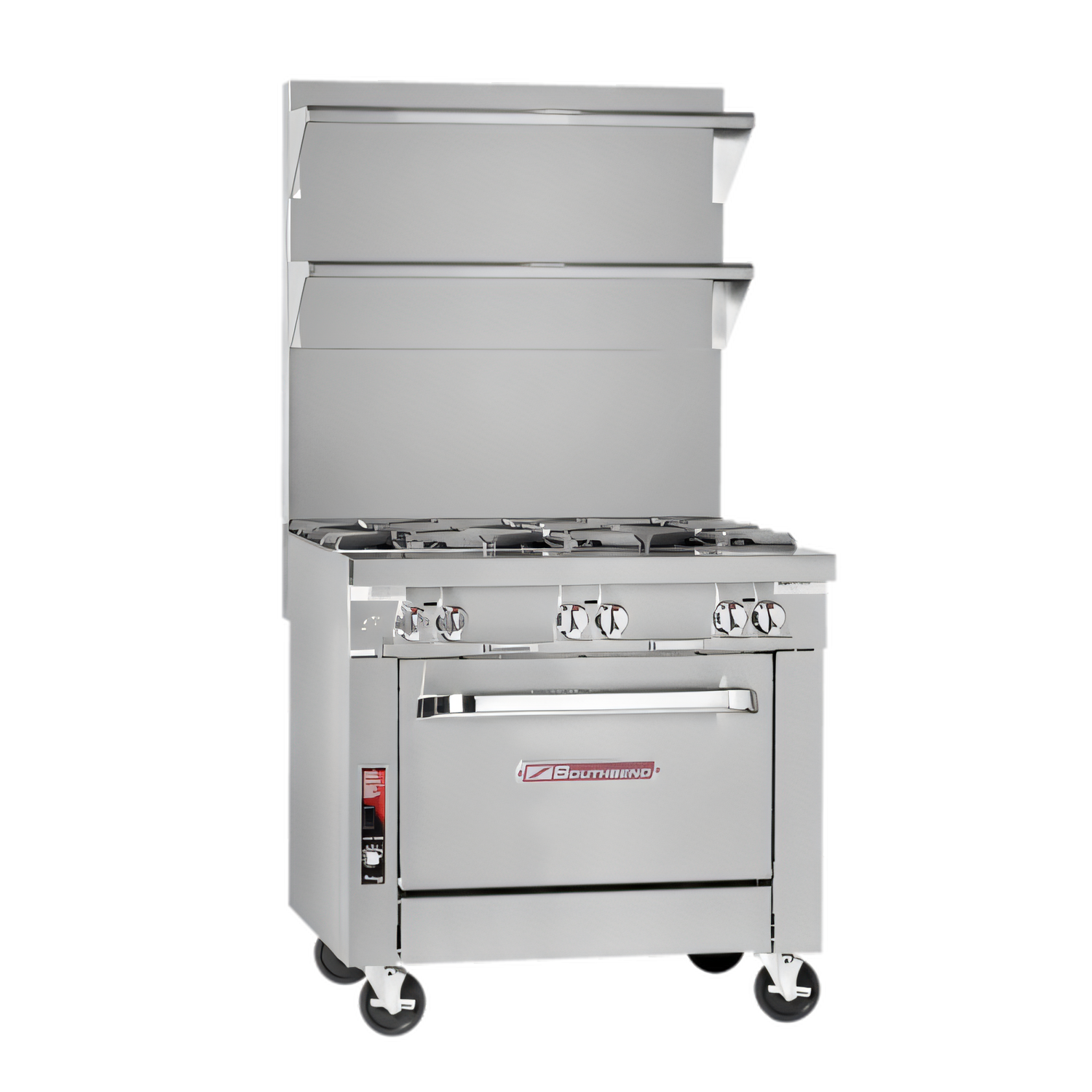

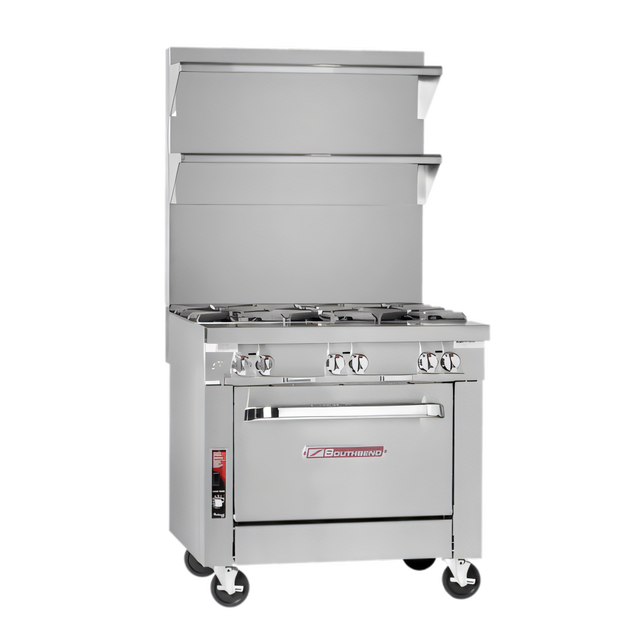

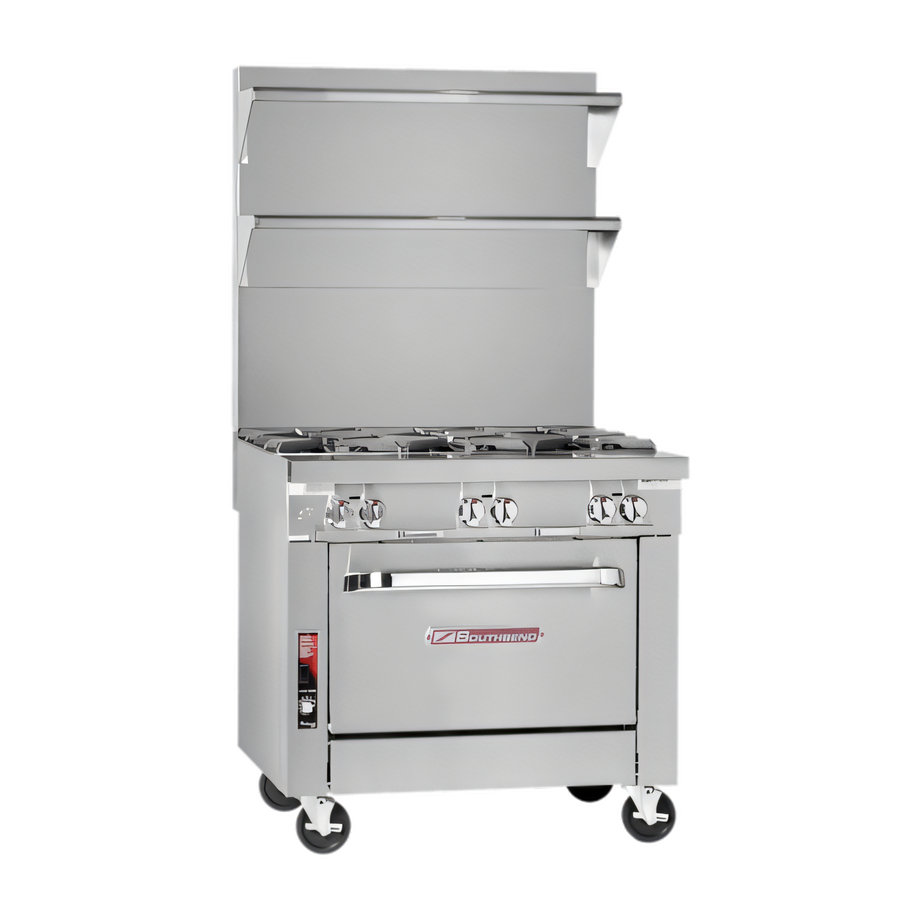

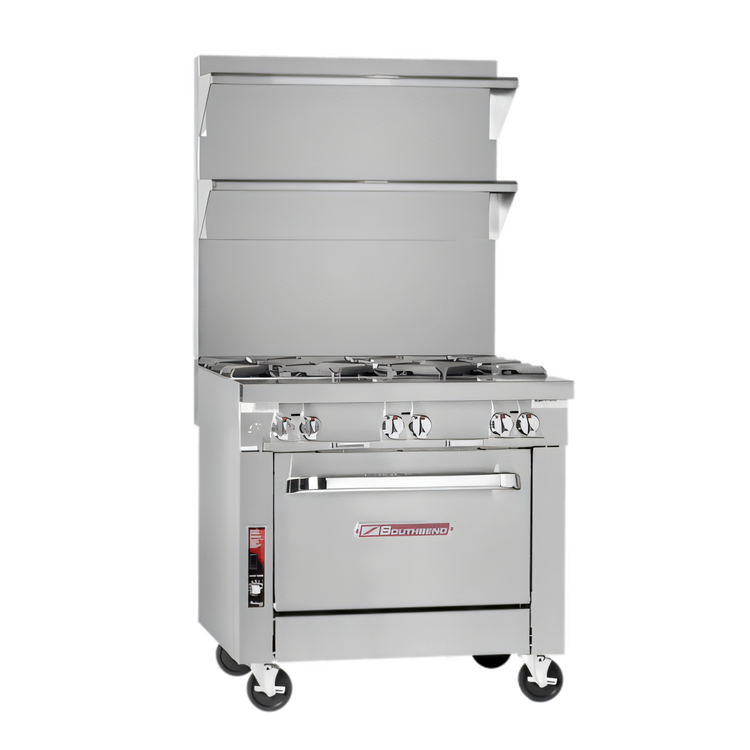

Southbend (Middleby) P16N-X Platinum Gas Ranges

$4,328.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Griddles Commercial Grills Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series 16" Heavy-Duty Modular Range

Model P16N-X | 90,000 BTU, Natural or LP Gas

Engineered for the most demanding commercial kitchens, the Southbend Platinum P16N-X delivers 90,000 BTU of searing power from two patented Pyromax™ 45,000 BTU open burners—all in a space-saving 16 inch footprint that drops seamlessly into any sectional battery.

Highlights & Benefits

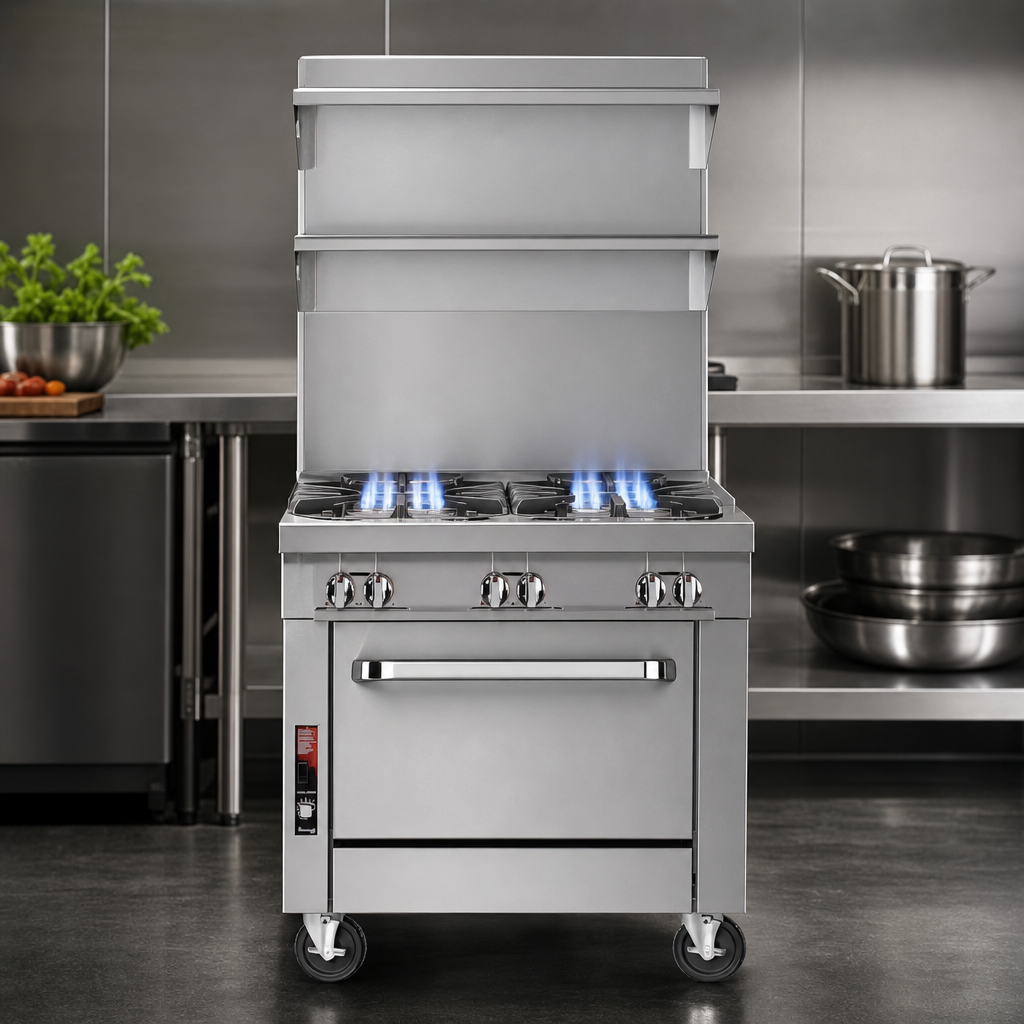

  • (2) clog-free Pyromax™ 45,000 BTU burners for rapid heat recovery and even flame distribution.
  • Removable welded steel top grate supports stock pots up to 12" in diameter.
  • 9-1/4" deep front rail stays cool while providing extra plating space.
  • Fully insulated burner box reduces ambient heat and improves kitchen comfort.
  • Slide-out drippings tray simplifies end-of-shift clean-up.
  • All-stainless exterior (front, sides, rear & bottom) stands up to daily abuse and harsh cleaners.
  • 5" stainless steel flue riser directs exhaust toward the hood and away from the chef.
  • Modular design mounts on countertops, refrigerated bases, or can battery with other Platinum units.
  • CSA Flame, CSA Star, cCSAus & NSF certified for gas safety and sanitation compliance.

Technical Specifications

Burners 2 × 45,000 BTU open-top Pyromax™ (clog-free)
Total Input 90,000 BTU/hr (Natural or LP)
Cooking Width 16" / 406 mm
Overall Depth 37-1/2" / 953 mm
Overall Height 34" (to cooking surface) + 5" flue riser
Front Gas Manifold 1-1/4" NPT (couples to adjacent sectional units)
Rear Gas Connection 1" NPT male
Minimum Gas Pressure 7" WC (Natural) | 11" WC (LP)
Shipping Weight 150 lb / 68 kg
Warranty 1-year parts & labor, factory-authorized service

Popular Factory Options (extra cost)

  • 24" or 36" flue riser with shelving
  • Removable cast-iron grate top
  • Open-frame base with locking casters
  • External gas pressure regulator
  • Cable restraint kit for mobile installations
Commercial use only: Oversized cookware (12" Ø or larger) should be positioned toward the rear burner to avoid excessive heat on the front rail. Never allow cookware to extend over the rail or block the flue.

Need easy monthly payments? Ask us about Middleby Equipment Financing—fast approvals, fixed rates, and Section 179 tax advantages.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

13.5in

Width

16.0in

Depth

37.5in

Shipping Weight

150.0lbs

Exterior Finish

stainless steel front & sides

Top

(2) open burners

Base

modular

Specifications

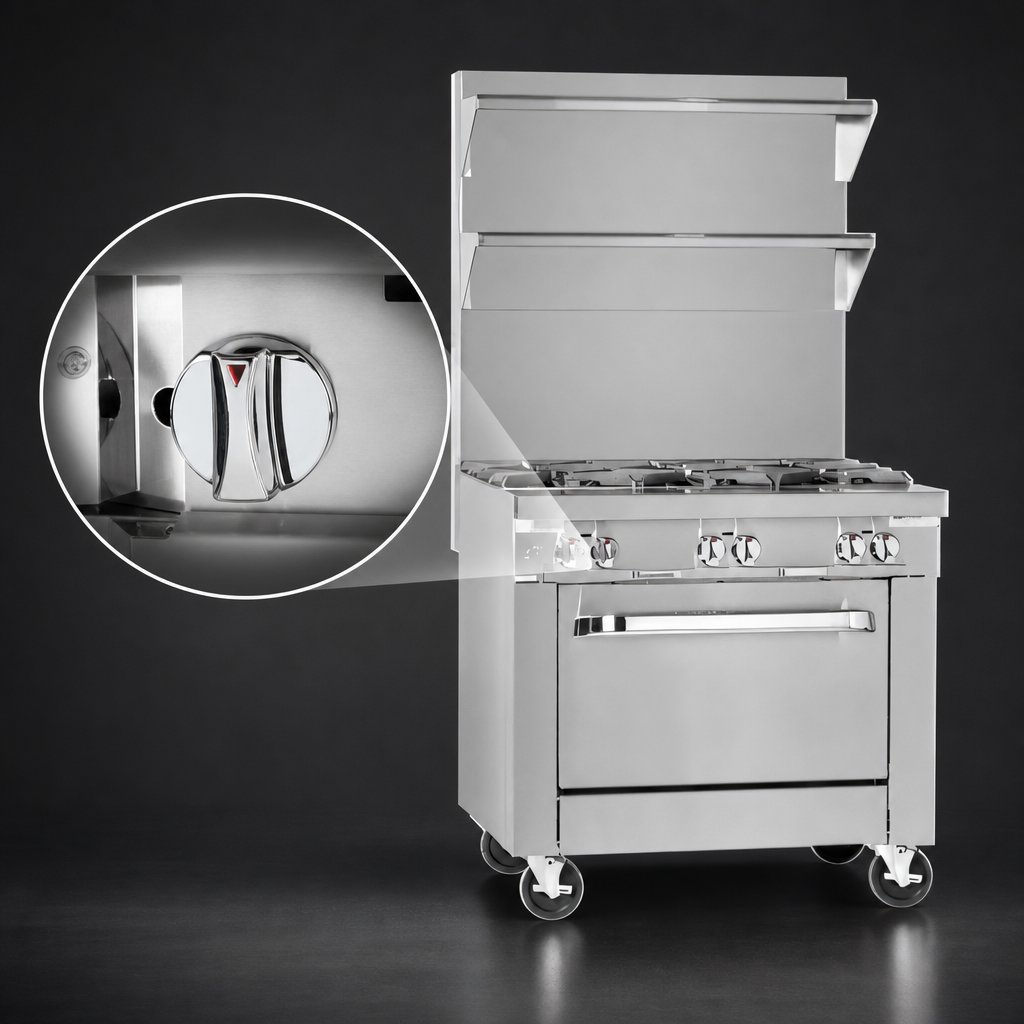

Platinum Heavy Duty Range, gas, 16", modular, (2) 45,000 BTU open burners, manual controls, stainless steel front, sides, rear & exterior bottom, 90,000 BTU, CSA Flame, CSA Star, cCSAus, NSF
