Southbend Platinum 16-Inch Modular Gas Griddle with Thermostatic Controls and 1-Inch Plate

40,000 BTU, Stainless Steel Exterior, Piezo Ignition

Built for demanding kitchens, this compact 16-inch modular griddle combines precise thermostatic heat control with a heavy-duty 1-inch plate and stainless steel construction.

  • 16-inch modular sectional griddle designed for mounting on a countertop or compatible base.
  • Thermostatic controls maintain griddle surface temperatures from 180°F to 400°F.
  • 1-inch thick griddle plate with side and rear splashers helps contain cooking mess.
  • 40,000 BTU natural gas performance with piezo electronic pilot ignition.
  • Stainless steel front, sides, rear, and exterior bottom for heavy-duty durability.
  • Removable stainless steel grease drawer simplifies cleanup and maintenance.

Overall Dimensions:

16.0"W x 37.5"D x 13.5"H

Product Weight:

240.0 lb

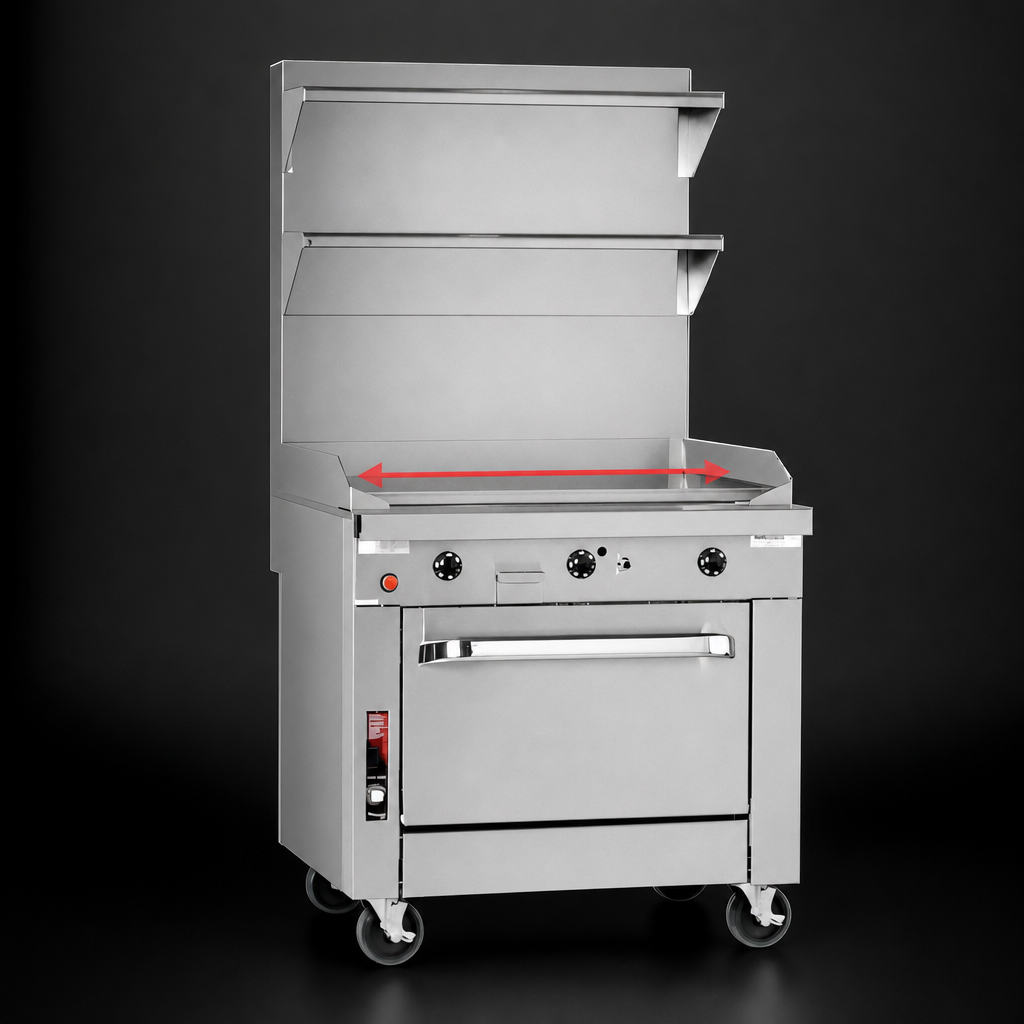

Full-Width Griddle Surface

Provides a 16-inch-wide cooking area in a compact sectional footprint.

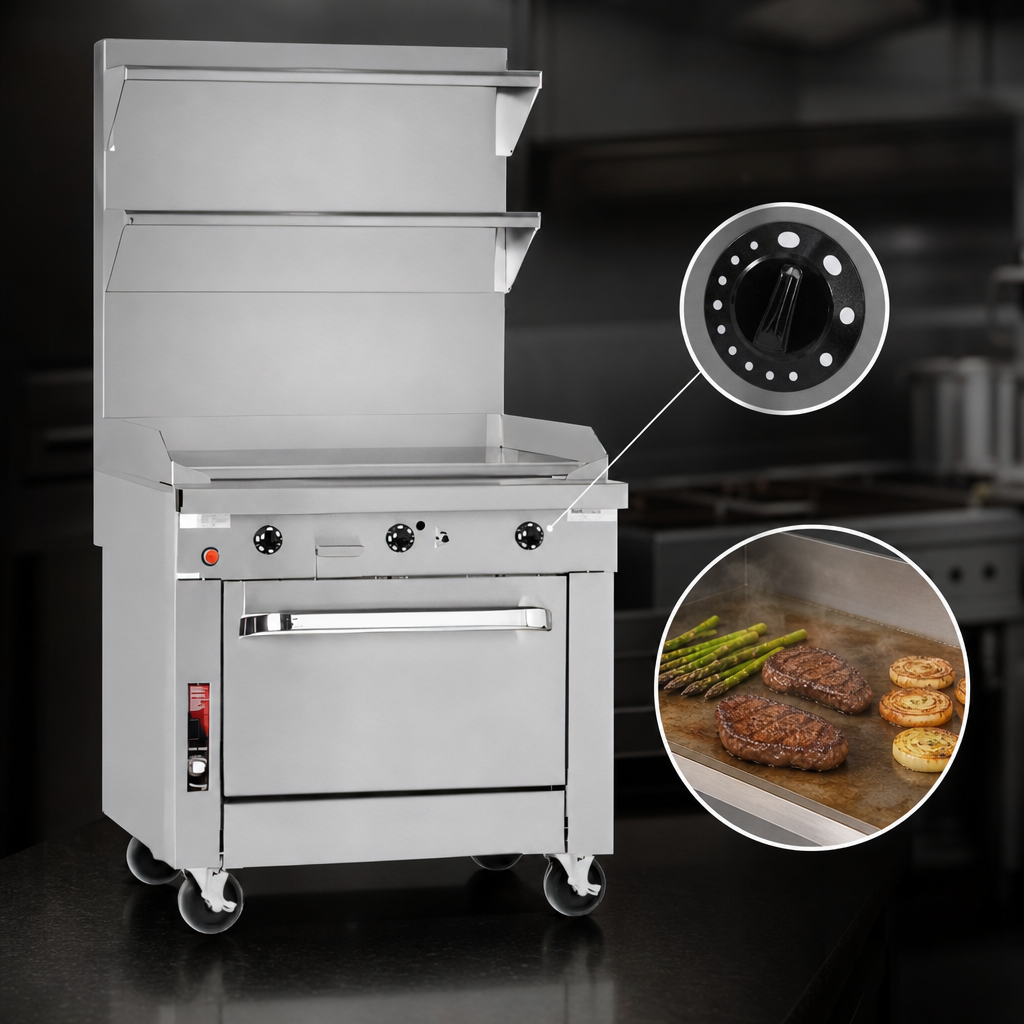

Thermostatic Heat Control

Maintains griddle surface temperature from 180°F to 400°F for consistent cooking results.

Piezo Electronic Ignition

Simple electronic pilot ignition for reliable startup.

1-Inch Thick Griddle Plate

Heavy plate construction supports even heat retention and rugged daily use.

Side and Rear Splashers

Helps reduce grease and food splatter around the cooking area.

Removable Grease Drawer

Stainless steel drawer catches grease for easier cleanup.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for durability.

Modular Mount Design

Designed for countertop or base mounting in a battery or sectional setup.

Gas Utility Connections

Includes a 1-1/4 inch front manifold and 1 inch rear gas connection.

Adjustable Legs

6-inch stainless steel adjustable legs are standard.

Type Griddle
Style Sectional
Installation Type Countertop
Material Stainless Steel
Finish Polished
Plate Thickness 1 Inch
Controls Thermostatic
Ignition Type Piezo
Temperature Range 180°F to 400°F
BTU 40,000 BTU
Gas Type Natural Gas
Gas Connection Size 1-1/4 Inch Front Manifold, 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C.
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 240 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The thermostatic control maintains the griddle surface between 180°F and 400°F.
Yes. A regulated gas supply is required, and the pressure regulator must be ordered separately.
It uses a 1-1/4 inch front manifold connection and a 1 inch rear gas connection with a male NPT connector.
Yes. The unit can be positioned in any location in a battery, and end units have a solid side.
Minimum clearance is zero for noncombustible construction, 10 inches on the sides, and 12 inches on the rear for combustible construction.
The unit includes a 1-year limited parts and labor warranty.
