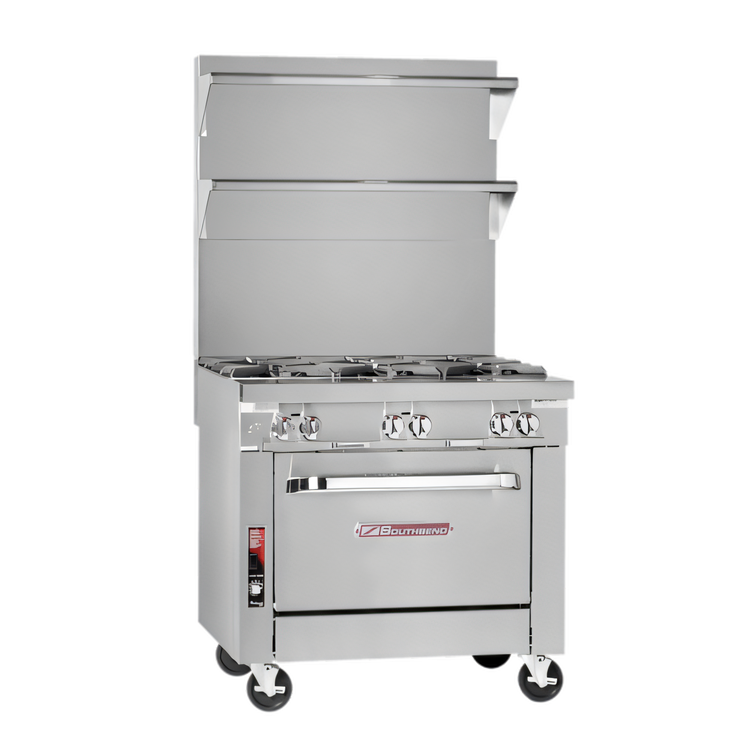

Southbend Platinum 16-Inch Modular Natural Gas Uniform Hot Top Sectional Range

SKU: P16N-H
$4,665.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 16-Inch Modular Natural Gas Uniform Hot Top Sectional Range

Heavy Duty, 40,000 BTU, Manual Controls, Stainless Steel Exterior

Built for battery cooking lines, this 16-inch modular hot-top range section delivers 40,000 BTU of natural gas heat in a rugged stainless steel package.

  • 16-inch modular sectional range designed for countertop or base-mounted installations.
  • Full-width uniform hot top with removable stainless steel plates for even cooking heat.
  • 40,000 BTU natural gas output with a maximum surface temperature of 700°F.
  • Manual high/low controls and Piezo electronic pilot ignition for simple operation.
  • Stainless steel front, sides, rear, and exterior bottom with a fully insulated burner box.
  • Standard 5-inch flue riser, 9-1/4-inch front rail, and 6-inch adjustable stainless steel legs.

Overall Dimensions:

16.0"W x 37.5"D x 13.5"H

Product Weight:

150.0 lb

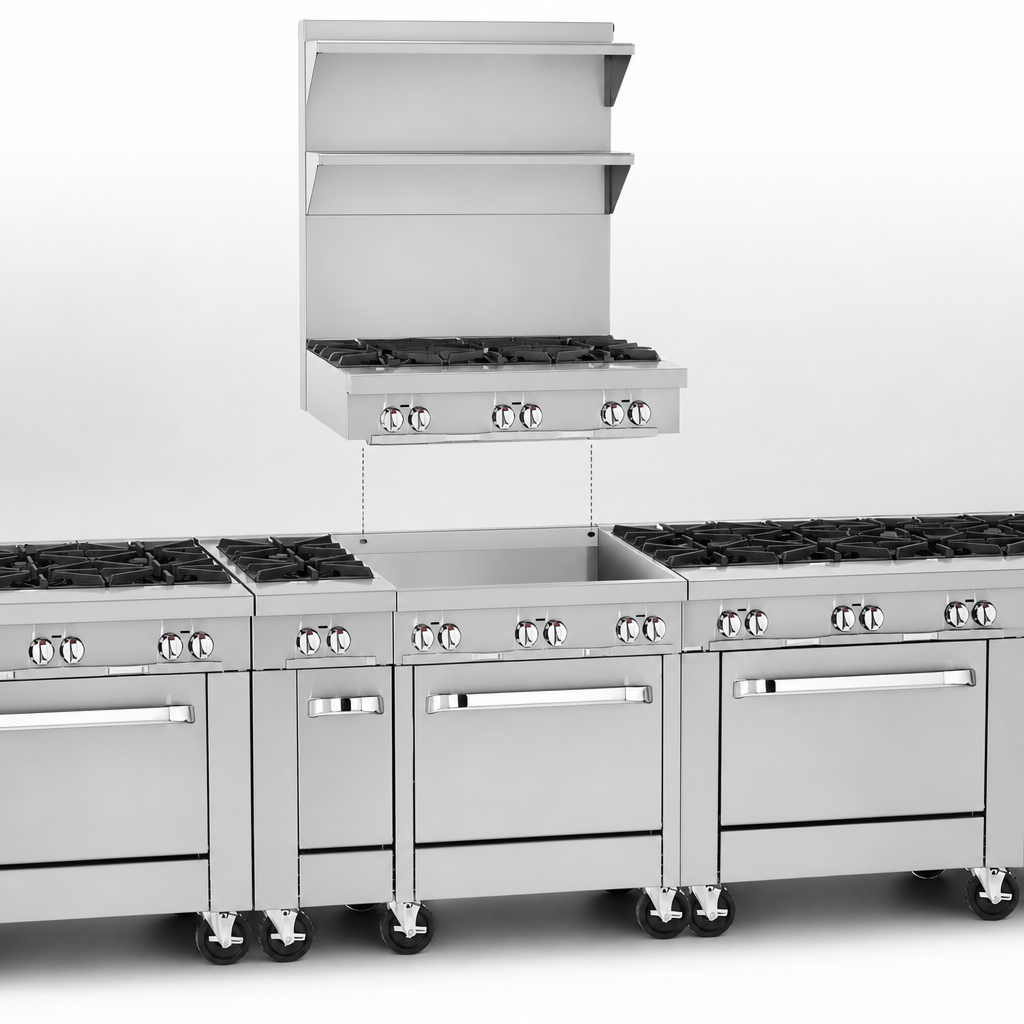

Modular Mount Design

Configured for modular installation and suitable for battery-style cooking lines.

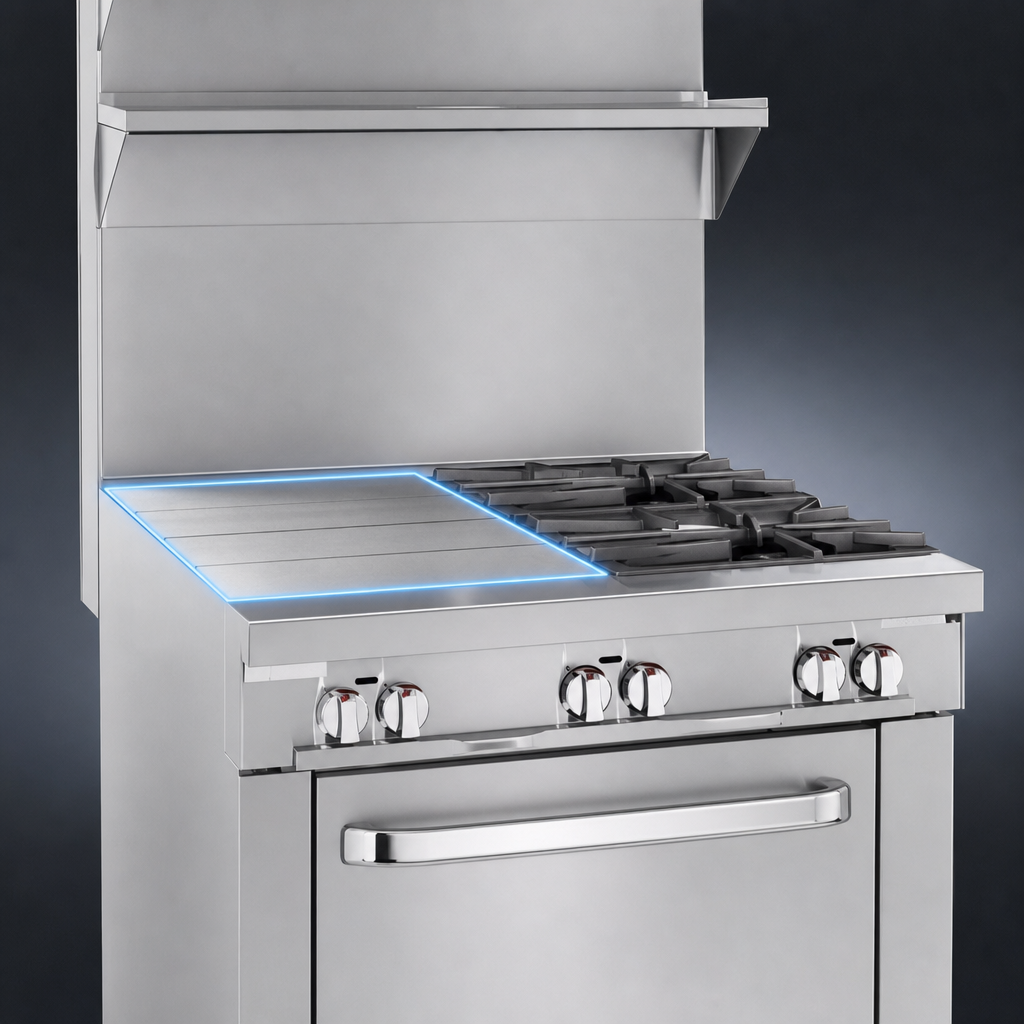

Full-Width Uniform Hot Top

The 16-inch hot top uses removable stainless steel plates to provide an even cooking surface.

High-Heat Performance

Delivers 40,000 BTU of natural gas power with surface temperatures up to 700°F.

Manual High/Low Controls

Simple manual controls make heat adjustment straightforward during service.

Piezo Electronic Ignition

Electronic pilot ignition supports reliable lighting without a standing pilot.

Stainless Steel Construction

Stainless steel front, sides, rear, and exterior bottom add durability and simplify cleaning.

Fully Insulated Burner Box

Insulation helps retain heat and improve operating efficiency.

Battery-Friendly Layout

Can be placed in any position in a battery; the end side is solid when positioned at the end of a lineup.

Type Uniform Hot Top Sectional Range
Style Modular
Installation Type Countertop
Controls Manual
BTU 40,000 BTU
Gas Type Natural Gas
Gas Inlet Pressure 7 Inches W.C.
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch Rear Gas Connection
Temperature Range Up To 700°F
Material Stainless Steel
Finish Polished Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 42.5 Inches
Shipping Height 21 Inches
Shipping Weight 150 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and 1-year labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

P16N-H is the natural gas model and is rated at 40,000 BTU.
Yes. The documentation states that all sectional units require a regulated gas supply and that the pressure regulator must be ordered separately.
It uses a 1-1/4-inch front manifold that couples to adjacent sectional units and a 1-inch rear gas connection with a male NPT connector.
The removable steel plates can reach up to 700°F on the high setting.
Yes. The unit can be placed in any position in a battery, and the end side is solid when it is installed at the end of the lineup.
The warranty is one year parts and one year labor from the date of original purchase.
