Southbend Platinum 16-Inch Modular Natural Gas Sectional Range Griddle with Manual Controls and 1-Inch Plate

SKU: P16N-G
$5,504.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 16-Inch Modular Natural Gas Sectional Range Griddle with Manual Controls and 1-Inch Plate

Countertop Modular Mount, 40,000 BTU, Stainless Steel Construction

Built for busy commercial kitchens, this compact modular griddle delivers a heavy-duty 1-inch plate, 40,000 BTU output, and durable stainless steel construction in a 16-inch footprint.

  • 16-inch modular sectional range griddle designed for countertop or base mounting.
  • 1-inch thick griddle plate provides a durable cooking surface for high-volume service.
  • Manual controls with piezo electronic ignition for simple operation.
  • Heavy-duty stainless steel front, sides, rear, and exterior bottom.
  • Includes a removable stainless steel grease drawer, splashers, and insulated burner box.
  • Natural gas model rated at 40,000 BTU for dependable heating performance.

Overall Dimensions:

16.0"W x 37.5"D x 13.5"H

Product Weight:

240.0 lb

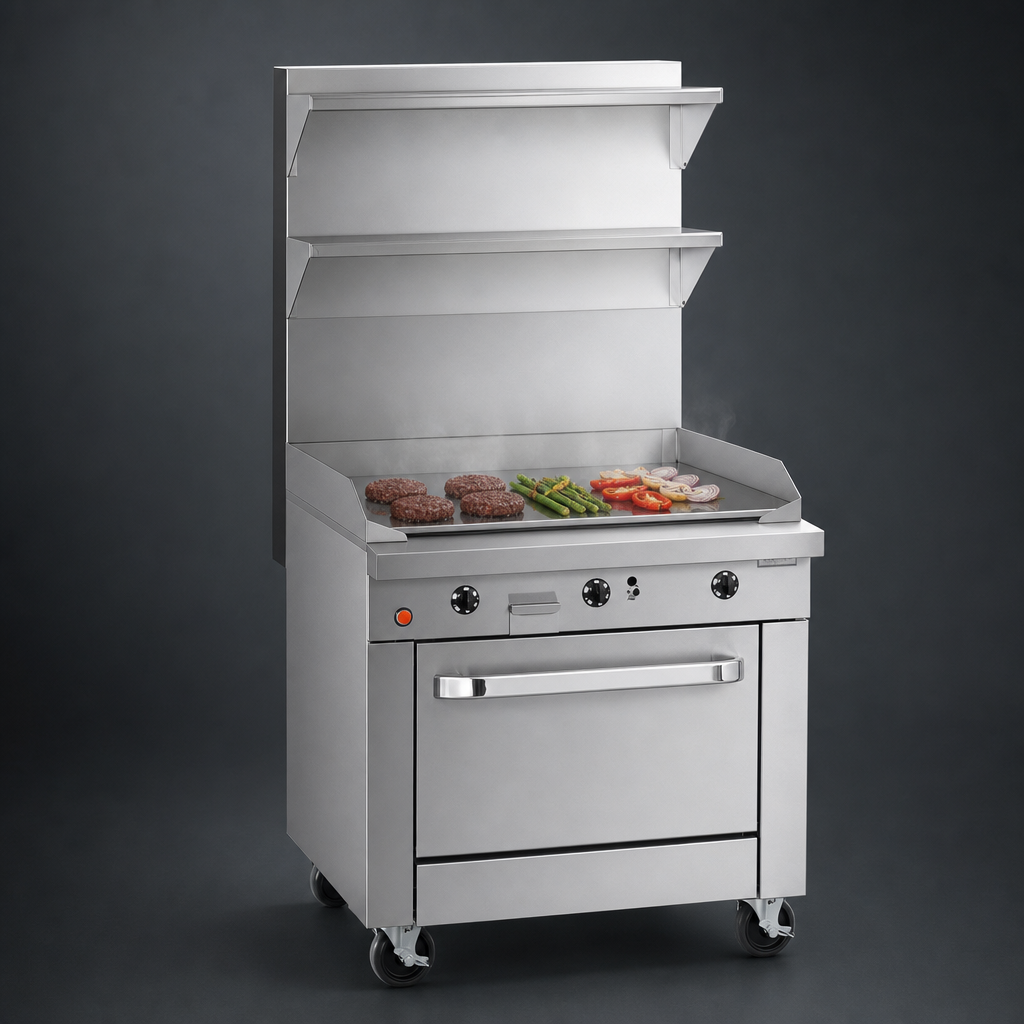

Full-Width Griddle Surface

The 16-inch sectional unit uses a full-width griddle top for efficient cooking in a compact footprint.

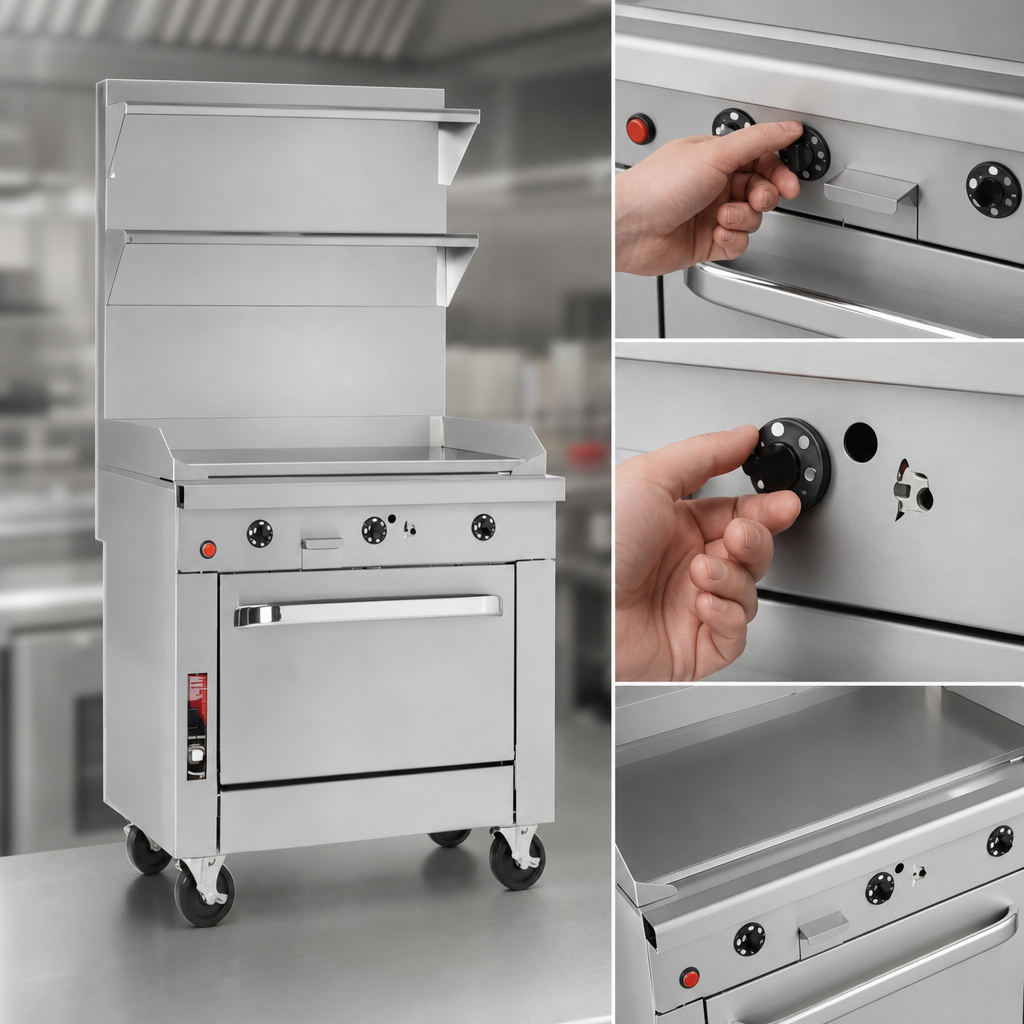

Manual Controls

Manual operation keeps the unit straightforward and easy to use.

Piezo Ignition

Electronic pilot ignition helps start the griddle quickly and reliably.

1-Inch Thick Plate

A heavy 1-inch griddle plate helps provide durability and heat retention.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are constructed from stainless steel for commercial durability.

Grease Management

A removable stainless steel grease drawer helps simplify cleaning and maintenance.

Insulated Burner Box

Fully insulated lining and burner box support efficient heat performance.

Battery-Friendly Modular Design

The modular unit can be positioned in any location within a battery setup.

Type Sectional Range Griddle
Style Modular
Installation Type Countertop
Controls Manual
BTU 40,000 BTU
Gas Type Natural Gas
Gas Inlet Pressure 7 Inches W.C.
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch Rear Gas Connection
Plate Thickness 1 Inch
Material Stainless Steel
Finish Stainless Steel
Shipping Width 20 Inches
Shipping Depth 42.5 Inches
Shipping Height 21 Inches
Shipping Weight 240 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is the natural gas version.
It is a modular unit designed for countertop or base mounting, not a floor model.
This specific model uses manual controls. Manual griddles do not allow specific temperature operation.
The unit uses a 1-1/4 inch front manifold connection and a 1 inch rear gas connection with a male NPT connector.
Yes. The documentation says all sectional units require a regulated gas supply, and the pressure regulator must be ordered separately.
Yes, installation under a vented hood is recommended.
