Southbend (Middleby) P16C-X Platinum Gas Ranges
Description
Southbend Platinum Series 16" Heavy-Duty Gas Range
Model P16C-X | Cabinet-Base | 90,000 BTUBuilt for the busiest commercial kitchens, the Southbend Platinum 16" Heavy-Duty Range delivers uncompromising power in a compact footprint. Two patented 45,000 BTU Pyromax® clog-free open burners provide instant, even heat, while a fully welded stainless-steel cabinet base offers convenient onboard storage. If your line needs high performance that fits almost anywhere, this is the section you’ve been waiting for.
Key Features

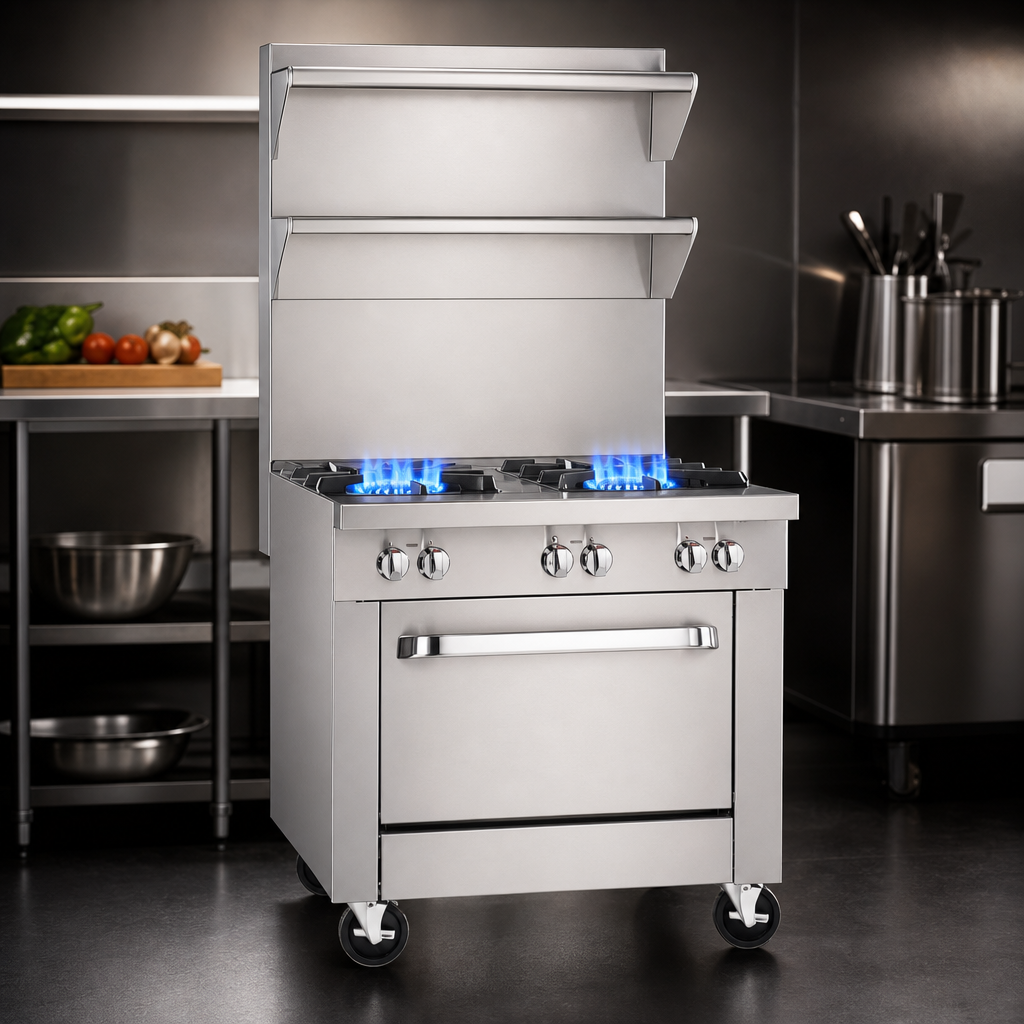

- 2 × 45,000 BTU open burners (90,000 BTU total) with Signature Pyromax clog-free design
- Removable, welded steel top grate for quick change-outs and thorough cleaning
- 9-1/4" deep front rail keeps pans and utensils within easy reach
- Stainless-steel cabinet base with reversible door for flexible left- or right-hand hinge
- Fully insulated lining and burner box help maintain a cooler kitchen environment
- 5" stainless-steel flue riser channels heat safely to the ventilation hood

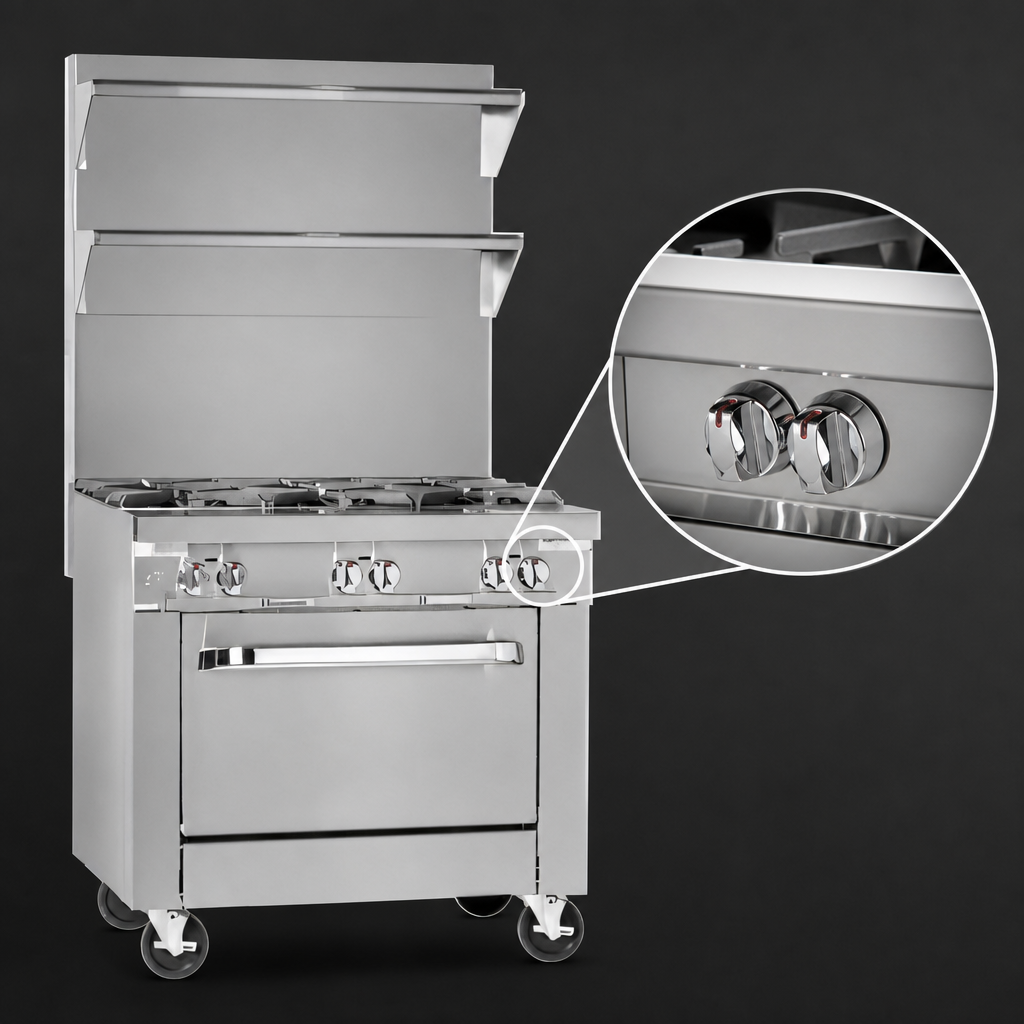

- Manual, field-serviceable burner controls for ultimate reliability
- Durable #3 finish 430 & 304 stainless on front, sides, rear, and exterior bottom
- 6" adjustable stainless-steel legs for fast, secure leveling
Popular Options & Accessories (sold separately)
- 24" or 36" flue riser (with optional 10"-deep shelves)
- External gas pressure regulator
- Locking casters or open-frame base for mobile battery lines
- Tubular or solid tray shelves (12" deep)
- Alternate front-rail depths & cut-outs for sauté pans
- Removable cast-iron grate top
- Cable restraint kit & battery spark ignition
Technical Specifications
| Burners | 2 open – 45,000 BTU each |
|---|---|
| Total Input | 90,000 BTU/hr (26.4 kW) |
| Gas Types | Natural or Propane |
| Gas Connections | 1-1/4" front manifold, 1" rear male NPT |
| Min. Supply Pressure | 7" W.C. (Nat) | 11" W.C. (LP) |
| Exterior Dimensions | 16" W × 37-1/2" D × 41" H (406 × 953 × 1,041 mm) |
| Cooking Surface Height | 36" (914 mm) |
| Shipping Weight | 220 lb (99.8 kg) |
| Construction | Stainless steel front, sides, rear & exterior bottom; fully insulated |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
| Warranty | 1-year limited parts & labor (commercial use) |
Intended for commercial applications only. Installation under a vented hood and a regulated gas supply is required. Consult local codes for compliance.
