Southbend (Middleby) P16C-T Platinum Gas Ranges
Description
Southbend Platinum Series 16" Heavy-Duty Griddle Range – Model P16C-T
Thermostatic • Gas • 40,000 BTU • Stainless Cabinet BasePack more production into every linear inch with the Platinum P16C-T. This 16" sectional range combines a full-width, 1" thick griddle plate with “Insta-On” thermostatic precision, giving chefs the speed and accuracy they need without sacrificing valuable line space. Heavy-gauge stainless steel, a removable cabinet door, and tool-free service access keep uptime high and ownership costs low.
Why you’ll love it
- Precise surface temps – thermostatic control from 180 °F – 400 °F for consistent results shift after shift.

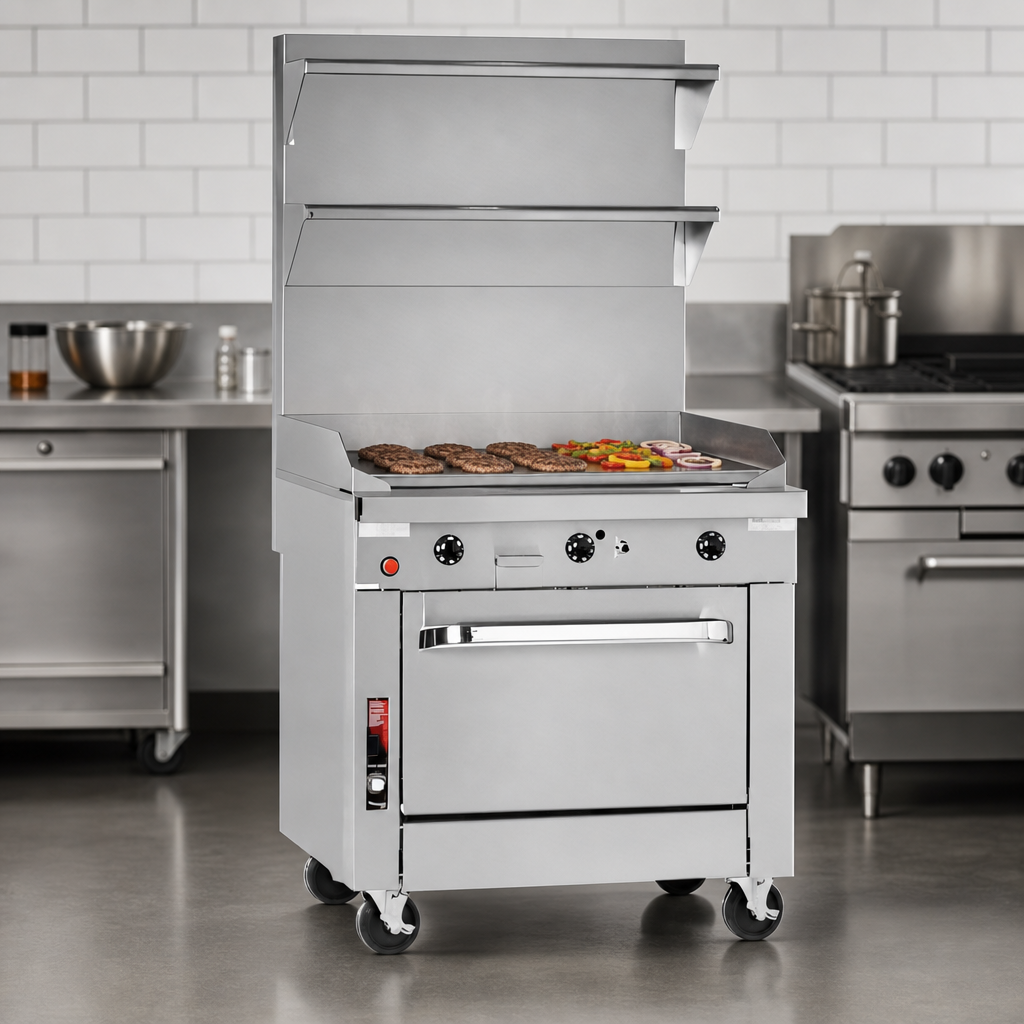

- Full-width 1" plate – retains heat, minimizes recovery time, and resists warping under continuous duty.
- 40,000 BTU total output – two 20,000 BTU burners with reliable piezo-electric pilot ignition.
- Space-saving cabinet base – stainless enclosure with a door that hinges left or right to suit your line.
- Operator-friendly details – 9-1/4" deep front rail, 5" stainless flue riser, and a large, removable grease drawer.
- Built for batteries – 1-1/4" front gas manifold makes ganging with other Platinum sections effortless.
- Safety & approvals – cCSAus, CSA Flame, CSA Star, and NSF listed for peace of mind and hassle-free inspection.
- 1-year parts & labor warranty – backed by Southbend’s nationwide service network.
At-a-Glance Specs
| Cooking surface | 16 in W × full depth, 1" thick polished steel plate |
|---|---|
| Controls | “Insta-On” thermostatic dial, 180 °F – 400 °F (82 °C – 204 °C) |
| Total input | 40,000 BTU/hr Natural (36,000 BTU/hr LP) |
| Gas connection | 1 ¼" front manifold (coupling), 1" rear male NPT; 7" W.C. NAT / 11" W.C. LP minimum supply |
| Overall dimensions | 16" W × 37 ½" D × 41" H (to top of 5" flue) |
| Shipping weight | ≈ 270 lb / 122 kg |
| Construction | Stainless steel front, sides, rear, exterior bottom & 6" adjustable legs; fully insulated burner box |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Customize it
- 24" or 36" flue riser with optional utensil shelves
- Grooved or chrome-finish griddle plate
- Locking casters & cable restraint kit
- External gas pressure regulator
- Extra-deep front rail or rail cut-outs for sauce pans
- Removable interior shelf & open-frame base
Installation & Clearance
- Zero clearance to non-combustible surfaces.
- 10" side and 12" rear clearance required from combustible construction.
- Must be installed under an appropriate vent hood per local code.
- Commercial use only; not intended for household installation.
One-year limited parts & labor warranty. Full terms available at southbendnc.com.
