Southbend (Middleby)

Southbend Platinum Heavy Duty Sectional Gas Deep Fryer, 45 lb Capacity, Floor Model, Range Match

SKU: P16C-PF45
$8,697.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Fryers Gas Fryers New Arrivals Restaurant Equipment Southbend (Middleby) Stock Pot Ranges

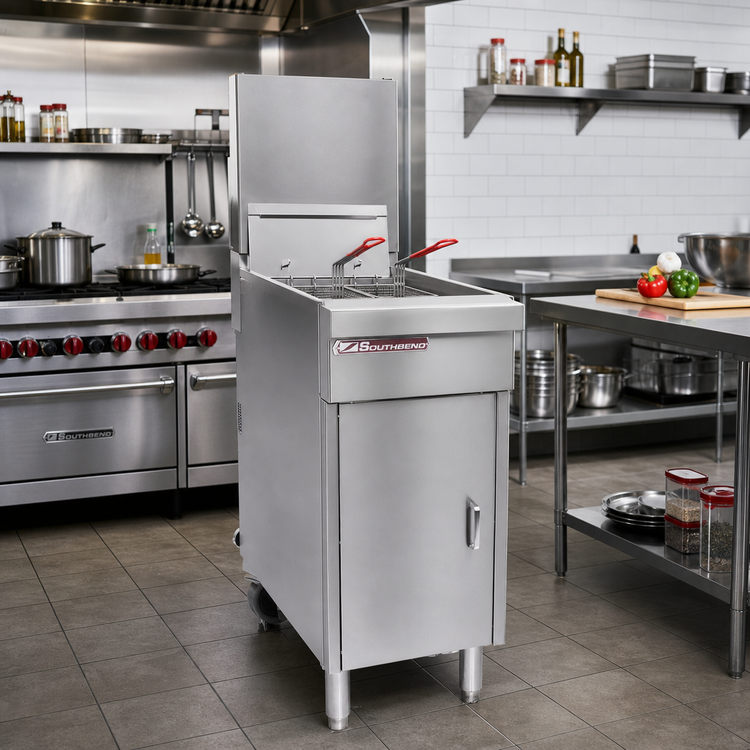

Southbend Platinum Heavy Duty Sectional Gas Deep Fryer, 45 lb Capacity, Floor Model, Range Match

122,000 BTU, Thermostatic Controls, Stainless Steel Construction

This range-match sectional fryer delivers 122,000 BTU of quick-recovery frying power, a 45 lb. capacity, and durable stainless steel construction for high-volume kitchens.

  • 45 lb. capacity heavy-duty sectional fryer built to match sectional range batteries.
  • 122,000 BTU gas heat helps support fast recovery between fry loads.
  • Adjustable thermostatic controls cover a 200°F to 400°F cooking range with high-limit safety.
  • Includes two twin plated mesh fry baskets with heat-resistant handles.
  • Stainless steel tank and cabinet help provide durability and easier cleanup.
  • Front legs and rear fixed casters simplify leveling and placement.
  • Made in the USA for commercial kitchen use.

Overall Dimensions:

20.0"W x 42.5"D x 45.0"H

Product Weight:

210.0 lb

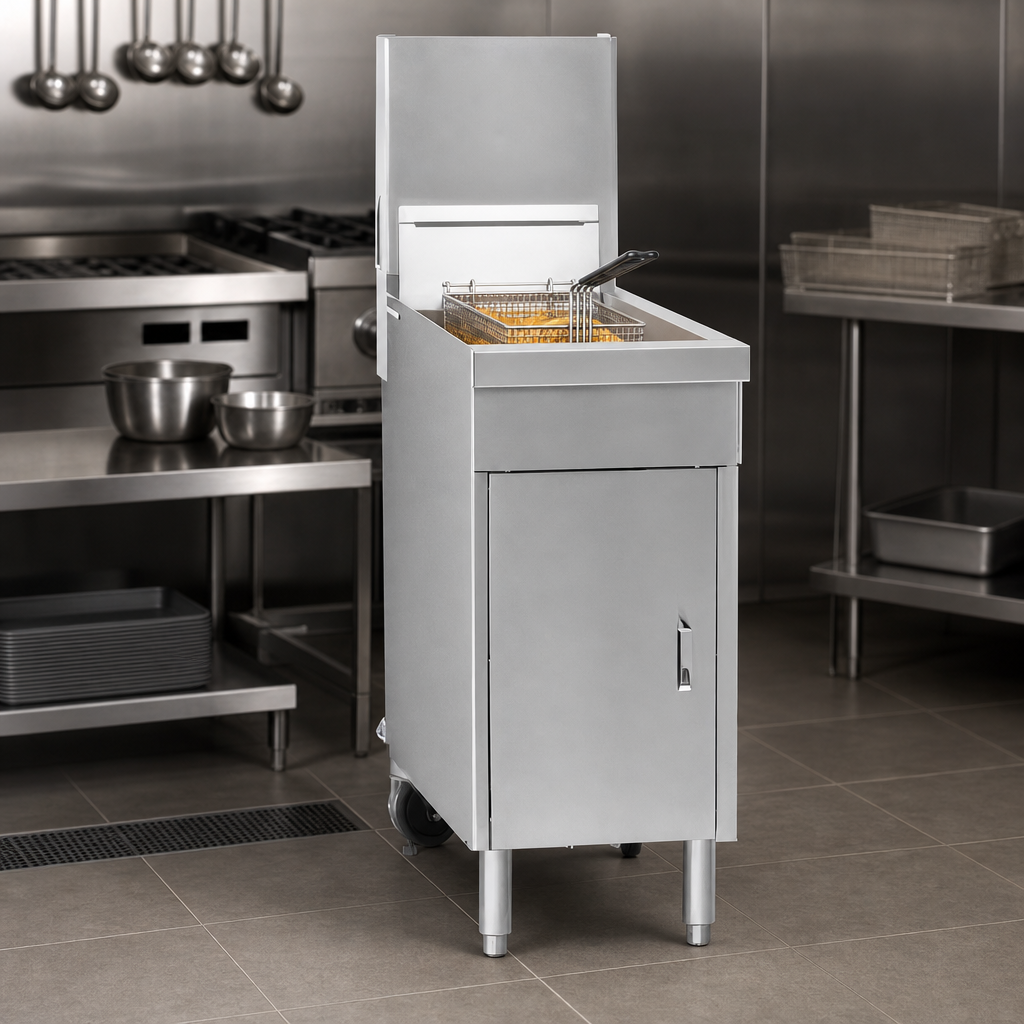

45 lb. Capacity

Sized for heavy-duty frying workloads with a 45 lb. fat capacity.

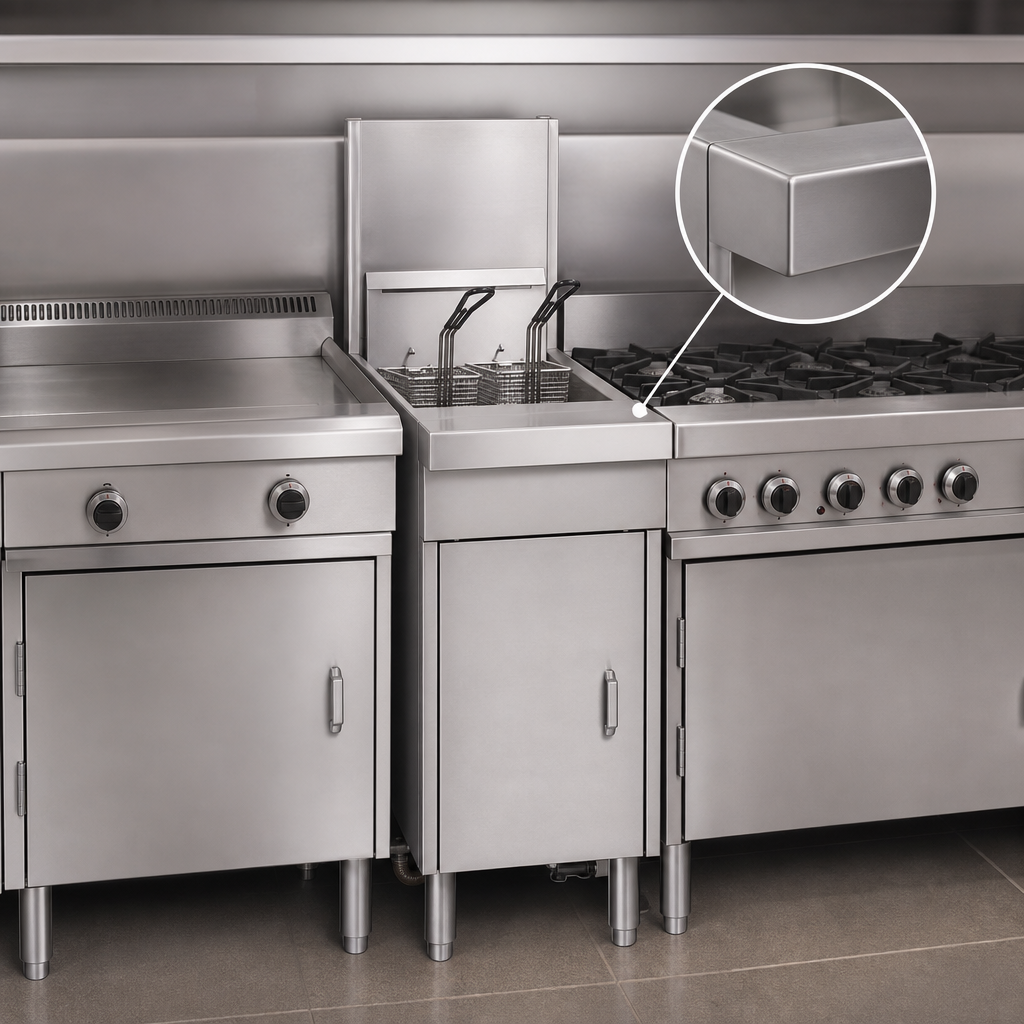

Range-Match Front Rail

9-inch front rail is designed to align with sectional range batteries.

122,000 BTU Gas Output

High-output burner system supports quick recovery between batches.

Thermostatic Temperature Control

Adjustable 200° to 400°F control with a 475°F high-limit shutoff.

Two Fry Baskets Included

Ships with two twin plated mesh fry baskets with heat-resistant handles.

Stainless Steel Construction

Stainless steel tank and cabinet help resist corrosion and simplify cleanup.

Large Cold Zone

Helps capture food particles, reduce flavor transfer, and extend oil life.

Fast-Drain Frypot

Front-access 1-1/4 inch full-port drain valve helps reduce clogging.

Stable Floor Installation

Front legs and rear fixed casters simplify leveling and placement.

Safety Gas System

Includes manual shut-off, pilot ignition, pressure regulator, and 100% safety shutoff.

Type Sectional Deep Fryer
Style Heavy Duty Range Match
Installation Type Floor Model
Capacity 45 Pounds
Controls Thermostatic
Temperature Range 200°F to 400°F
BTU 122,000 BTU
Gas Type Natural Gas / Propane
Gas Connection Size 1-1/4 Inch Front Manifold, 1 Inch NPT Rear Connection
Material Stainless Steel
Interior Finish Type 430 Stainless Steel
Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 45 lb. capacity.
Yes. It includes two twin plated mesh fry baskets with heat-resistant handles.
The adjustable thermostat covers 200°F to 400°F, and the high-limit safety shuts down at 475°F.
It has a 1-1/4 inch front manifold and a 1 inch NPT rear gas connection.
Yes. The cutsheet states that it must be installed under a vented hood.
The product includes a standard 1-year limited parts and labor warranty.
