Southbend (Middleby) P16C-P Platinum Gas Ranges
Description

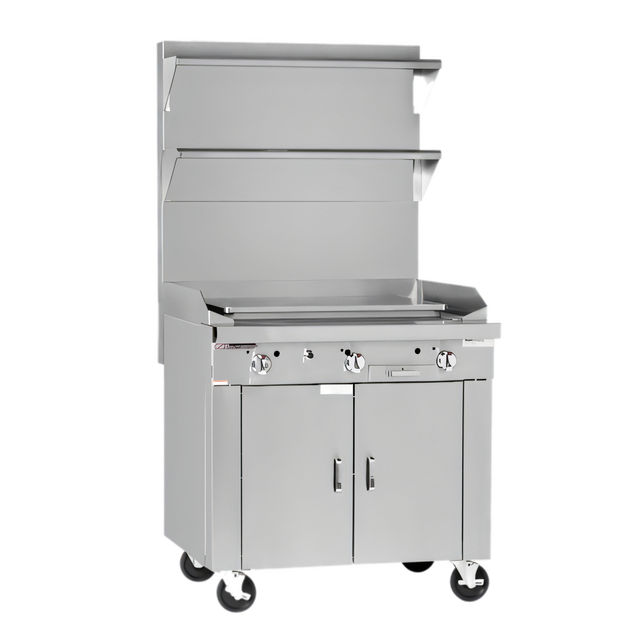

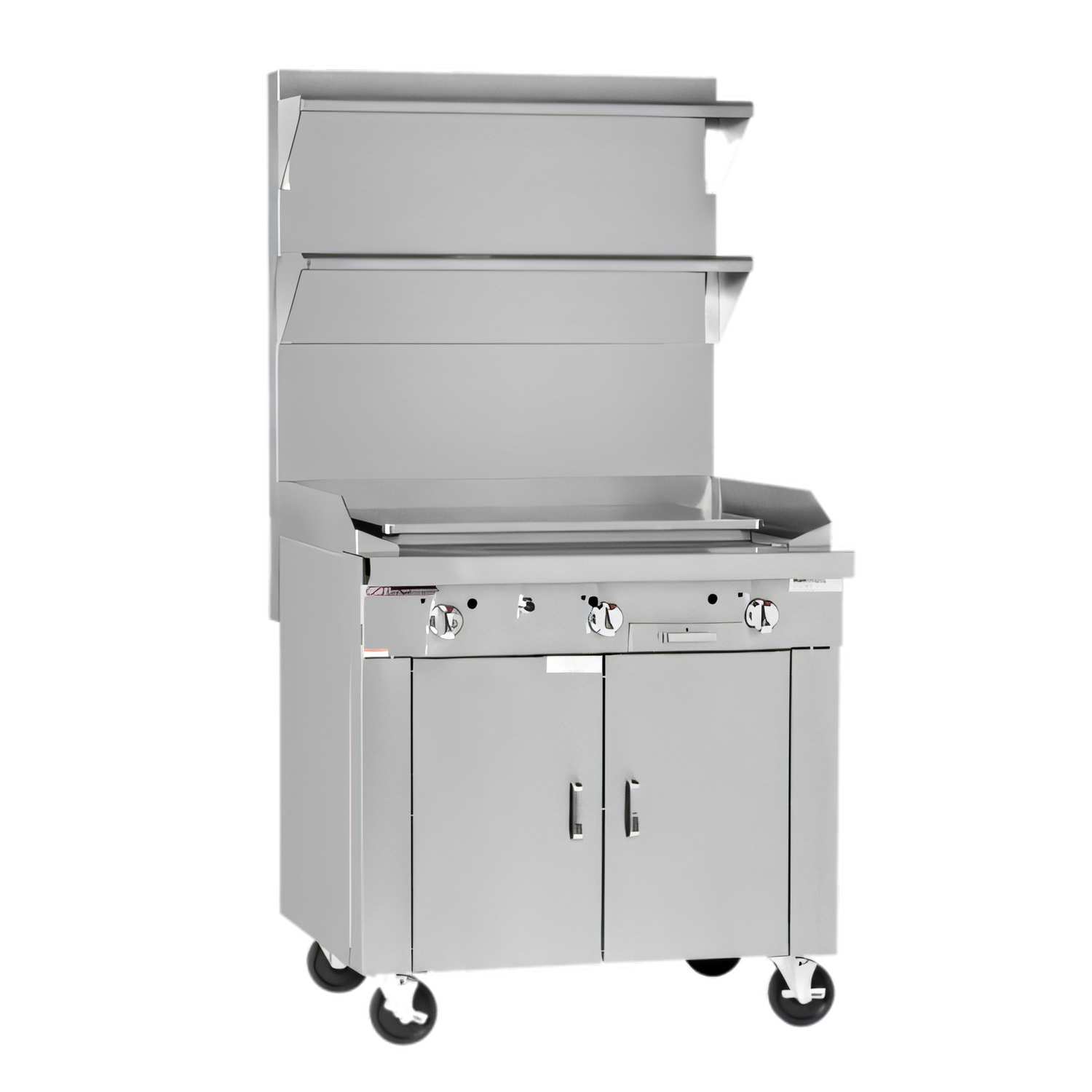

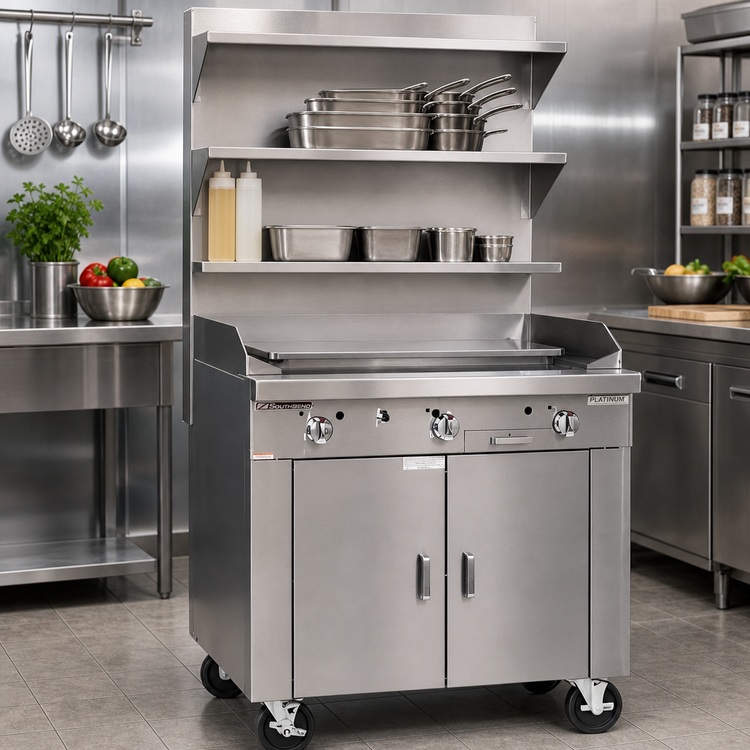

Southbend Platinum Series 16" Heavy-Duty Gas Plancha Range – Cabinet Base (Model P16C-P)
16,000 BTU | ½" Reinforced Steel Plate | CSA & NSF CertifiedBuilt for serious, high-volume kitchens, the Southbend Platinum 16" Plancha Range pairs blistering sear power with the rugged construction chefs expect from Southbend. A compact 9 ¾" raised plancha plate heats to 800 °F on the front zone for lightning-fast caramelization, while the rear third holds lower temperatures for finishing and holding. All wrapped in a stainless-steel cabinet base that adds storage and the flexibility to drop into any Platinum battery.
Key Features
- One 16,000 BTU natural-gas cast-iron burner (15,500 BTU LP).

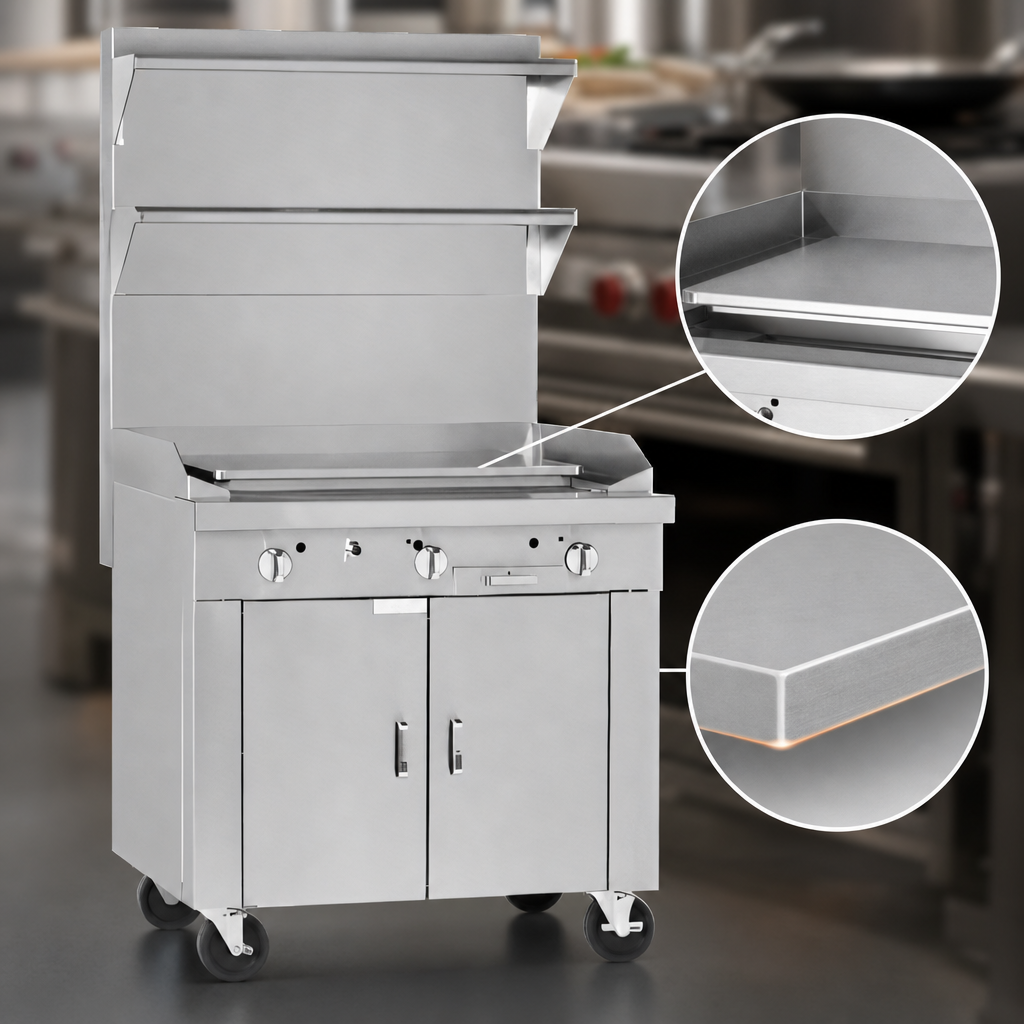

- 9 ¾" wide plancha griddle with ½" thick reinforced steel plate for exceptional heat retention.
- Two-zone performance: up to 800 °F on the front ⅔ for searing; lower heat on rear ⅓ for finishing.
- Raised, easy-clean plancha design with 3" side collections and extra-capacity stainless grease drawer.

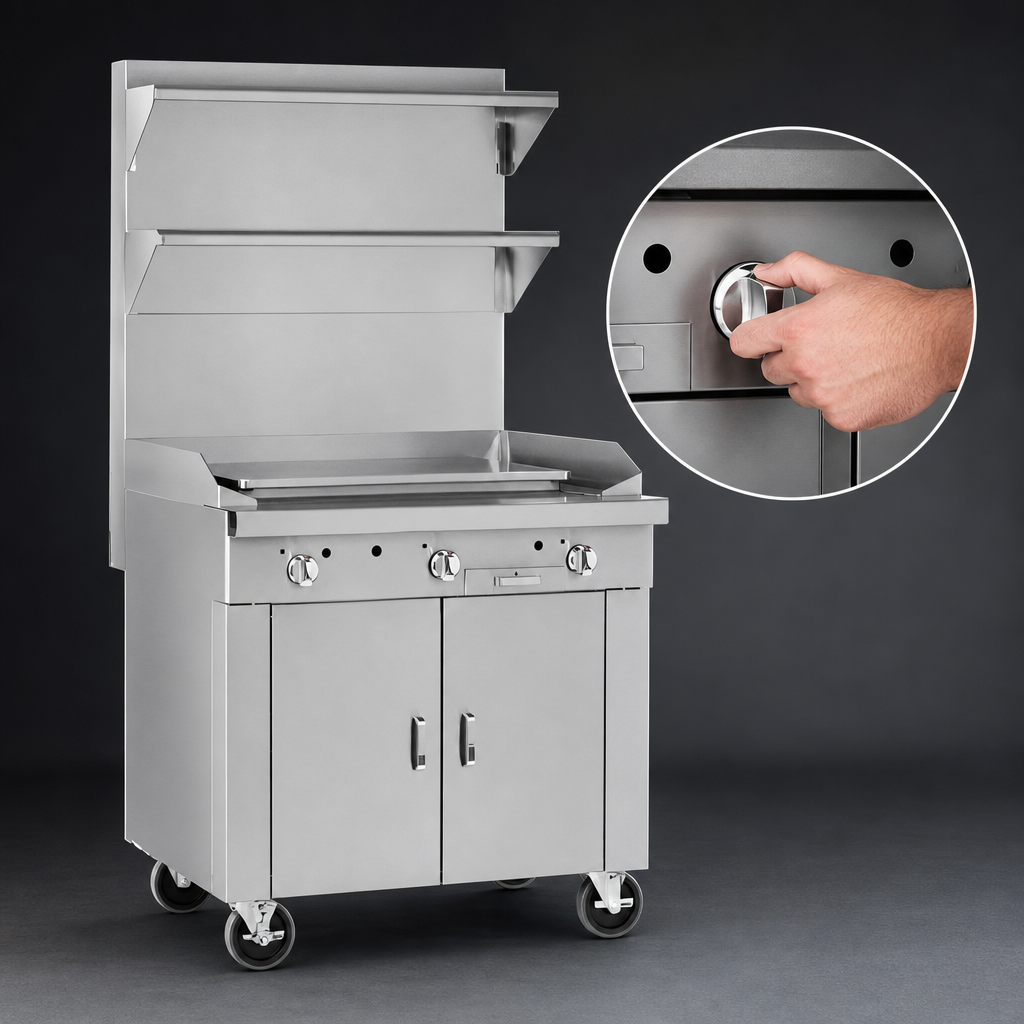

- Battery-powered spark ignition and simple manual control knob—no electrical hook-up required.
- Stainless cabinet base with removable, field-reversible door keeps sheet pans and utensils close.
- 5" deep front rail and 5" high stainless flue riser protect staff and surrounding equipment.
- Side & rear splashers plus fully insulated burner box for a cooler, safer kitchen.
- 6" adjustable stainless-steel legs level the unit on uneven floors.
- 1¼" front manifold and 1" rear NPT gas connection simplify line-up installations.
Why Choose a Plancha Griddle?
- Speed: Rapid pre-heat and recovery slash ticket times during peak service.
- Versatility: Ideal for tapas, tortillas, sliders, seafood, vegetables, and finishing steak marks.
- Cleanliness: Raised plate & wide side gutters let you scrape and clear without interrupting flow.
- Consistency: Thick plate distributes heat evenly for repeatable results every service.
Technical Specifications
| Model | P16C-P (Cabinet Base) |
|---|---|
| Overall Width | 16" (406 mm) |
| Plancha Plate | 9 ¾" W × 20" D × ½" T reinforced steel |
| Total BTU | 16,000 BTU/hr NG | 15,500 BTU/hr LP |
| Ignition | Battery spark |
| Controls | 1 manual gas valve |
| Gas Connection | 1¼" front manifold (couples in battery), 1" rear male NPT |
| Construction | Stainless steel front, sides, rear, bottom & cabinet base |
| Legs | 6" adjustable stainless steel |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend warranty terms) |
| Shipping Weight | 270 lb (122.5 kg) |
Popular Options (Sold Separately)
- External gas pressure regulator.
- Locking front casters or open-frame base with casters.
- 24" or 36" flue riser with optional utensil shelves.
- Tubular, tray, or removable interior shelves for cabinet base.
- Cable restraint kit for mobile installations.
Intended for commercial use only. Installation under a properly sized vent hood and in accordance with local codes is required.
