Southbend (Middleby)

Southbend Platinum 16-Inch Heavy Duty Gas Griddle with Cabinet Base

SKU: P16C-G
$5,916.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

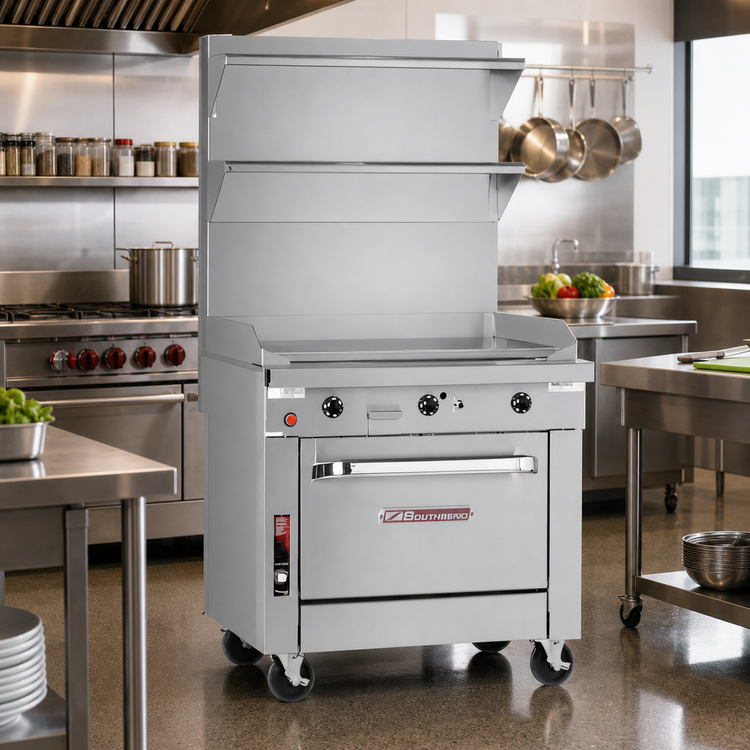

Southbend Platinum 16-Inch Heavy Duty Gas Griddle with Cabinet Base

Manual Controls, Piezo Ignition, 1-Inch Plate

This compact 16-inch gas griddle delivers heavy-duty performance with a 1-inch plate, stainless steel construction, and a durable cabinet base.

  • Compact 16-inch-wide sectional griddle for space-conscious commercial cooklines.
  • 1-inch-thick stainless steel plate with side and rear splashers handles heavy service.
  • Manual controls and piezo electronic pilot ignition keep operation simple and reliable.
  • Rated at 40,000 BTU on natural gas, with 36,000 BTU propane output listed in the documentation.
  • Stainless steel front, sides, rear, and exterior bottom support long-term durability.
  • Removable grease drawer, reversible cabinet door, and adjustable legs make daily use easier.

Overall Dimensions:

16.0"W x 37.5"D x 41.0"H

Product Weight:

270.0 lb

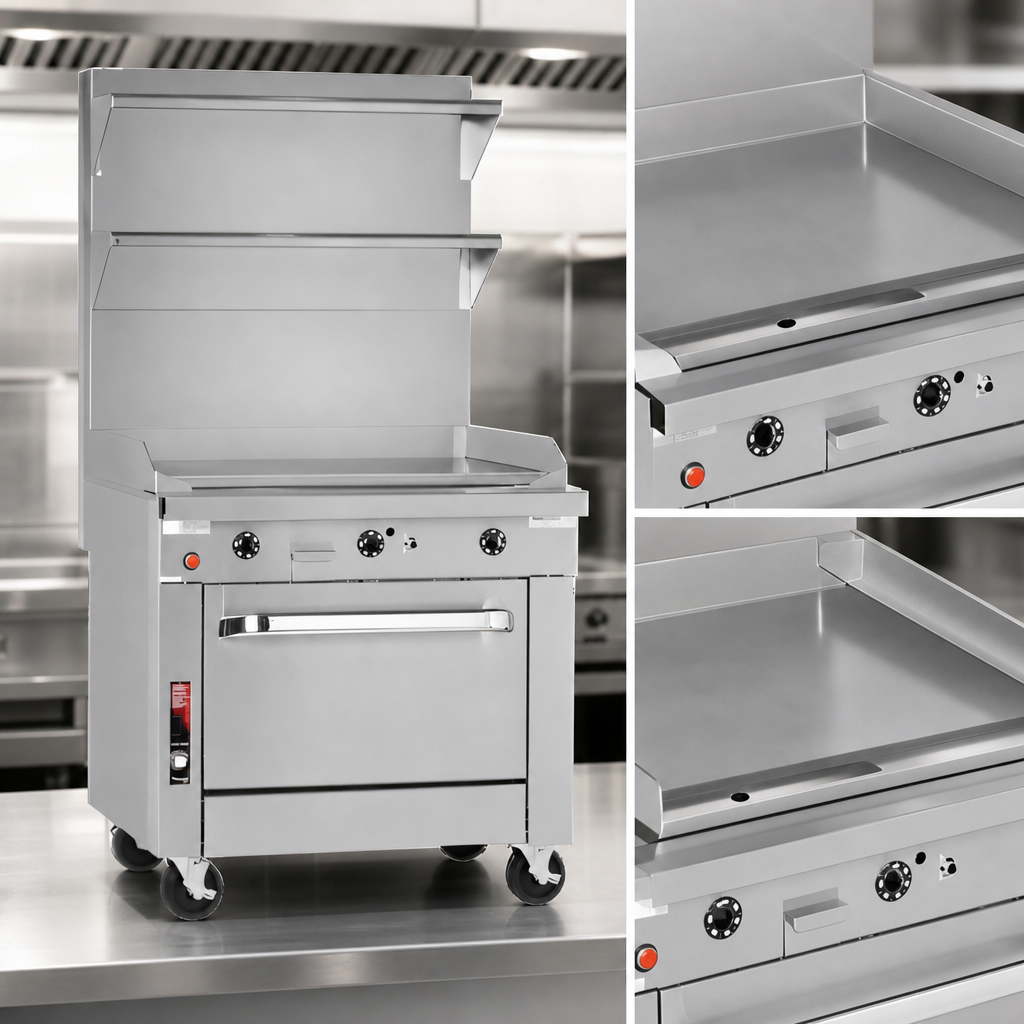

16-Inch Full-Width Griddle

Compact full-width cooking surface designed for sectional range installations.

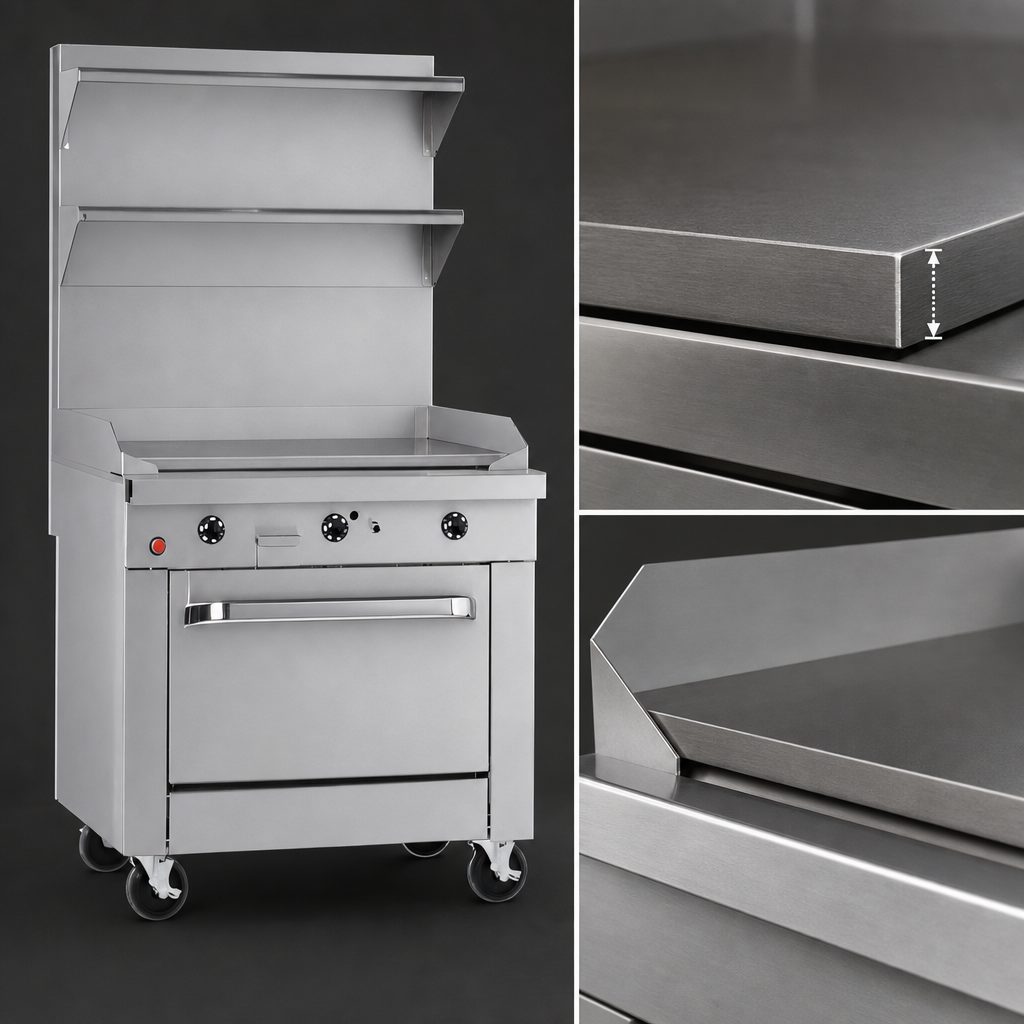

1-Inch Thick Griddle Plate

Heavy-duty stainless steel plate with side and rear splashers to help contain spills.

Manual Controls

Straightforward manual heat control; specific temperature settings are not available on manual griddles.

Piezo Electronic Pilot Ignition

Electronic pilot ignition provides quick, dependable startup.

40,000 BTU Output

Rated at 40,000 BTU on natural gas and 36,000 BTU on propane.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for durability and easy cleaning.

Removable Grease Drawer

Stainless steel grease drawer simplifies cleanup at the end of service.

Cabinet Base with Reversible Door

Service-friendly design includes a 9-1/4-inch front rail, a removable cabinet door that can hinge on the right or left, and 6-inch adjustable legs.

Type Griddle
Style Sectional Range
Installation Type Floor Model (With Cabinet Base)
Controls Manual
BTU 40,000 BTU
Gas Inlet Pressure 7 Inches W.C. (Natural Gas); 11 Inches W.C. (Propane)
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Rear Gas Connection
Material Stainless Steel
Finish Polished Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 42.5 Inches
Shipping Height 45 Inches
Shipping Weight 270 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a manual griddle. Manual griddles do not allow specific temperature operation.
It uses piezo electronic pilot ignition.
The documentation lists a minimum of 7 Inches W.C. for natural gas and 11 Inches W.C. for propane. A regulated gas supply is required, and the pressure regulator must be ordered separately.
Yes. The removable cabinet door can hinge on the right or left.
Yes. Installation under a vented hood is recommended.
The warranty is 1 year parts and labor.
