Southbend (Middleby) P16C-C Platinum Gas Ranges
Description
Platinum Series 16" Heavy-Duty Gas Charbroiler Range
Southbend Model P16C-C – Cabinet-Base Section, 40,000 BTUDesigned for the toughest commercial kitchens, the Southbend Platinum Series P16C-C packs a powerful, full-width charbroiler into a compact 16-inch footprint. Heavy-duty construction, industry-leading heat consistency, and a flexible cabinet base make it easy to slot this unit into any heavy-duty battery line-up or stand-alone station.
Key Features
- Full-width charbroiler with two 20,000 BTU NAT (18,000 BTU LP) burners – total 40,000 BTU.

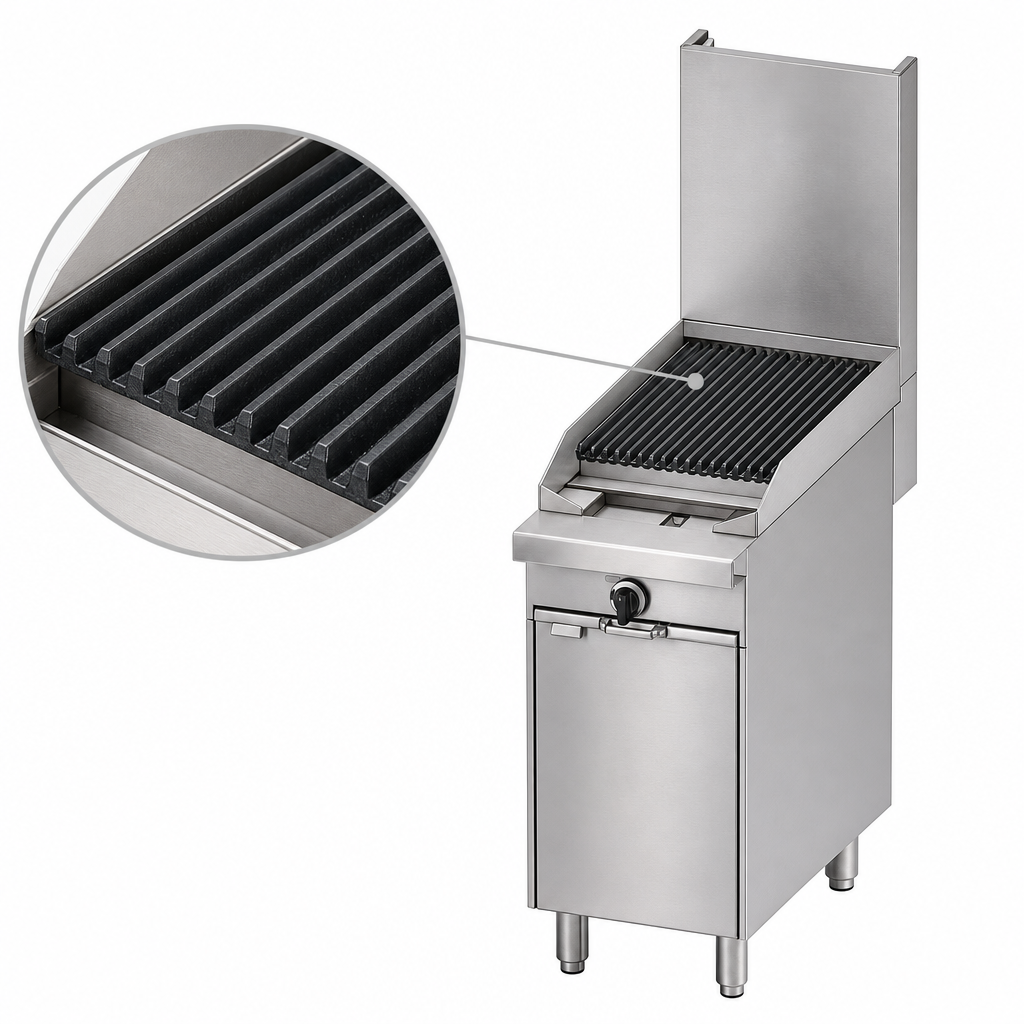

- Removable cast-iron grates flip to create 1/8" or 1/4" grid spacing and adjust front-to-back slope.

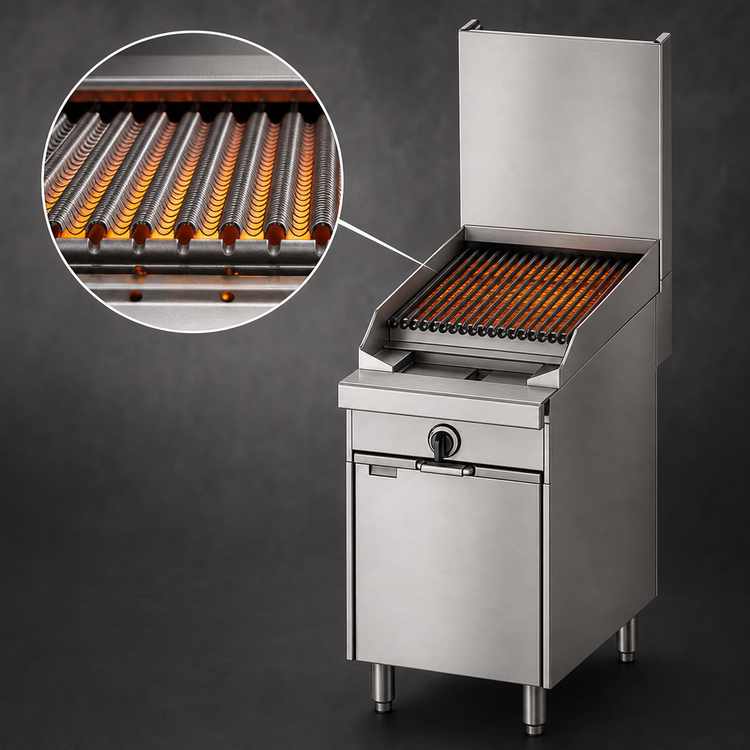

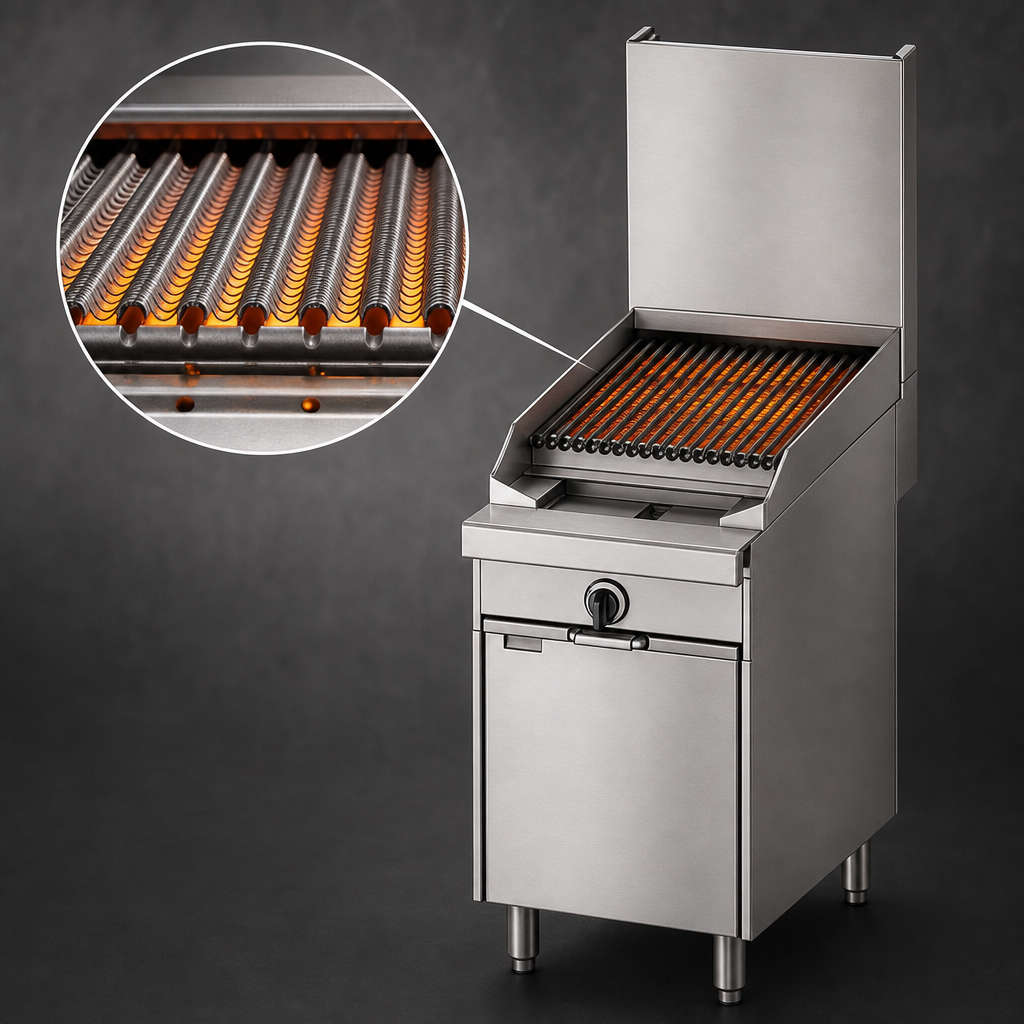

- Stainless-steel burner radiants deliver an even 600 °F (315 °C) surface temperature on high.
- 9-1/4" deep front rail and removable drip tray keep the cook line clean and efficient.
- Fully insulated lining and burner box retain heat and improve energy efficiency.
- Rugged #3-finish stainless steel front, sides, rear and exterior bottom for long-life durability.
- 5" stainless-steel flue riser (optional 24" or 36" risers available).
- Cabinet base with removable, field-reversible door; 6" adjustable stainless legs.
- Manual high/low valve for instant control.
- CSA Flame, CSA Star, cCSAus and NSF certified for commercial use.
Optional Upgrades (factory-installed)
- External gas pressure regulator
- Locking front casters or open-frame base with casters
- 7-1/4" deep “old-style” front rail or front-rail cut-outs for saucepans
- 24" or 36" flue riser, or extra-deep rear-extending flue
- Plated fish grids & interior cabinet shelf
Specifications
| Cooking surface width | 16" / 406 mm |
|---|---|
| Overall depth | 37 1/2" / 953 mm |
| Work height | 36" / 914 mm (41" / 1041 mm to top of 5" flue) |
| Heat input | 40,000 BTU/hr NAT (36,000 BTU/hr LP) |
| Gas connection | 1 ¼" front manifold, 1" rear male NPT; min. 7" W.C. NAT / 11" W.C. LP |
| Grate type | Reversible cast iron, adjustable slope |
| Certifications | CSA Flame • CSA Star • cCSAus • NSF |
| Warranty | 1-year parts & labor (see warranty statement) |
| Shipping weight | Approx. 270 lb / 122.5 kg |
Why Choose Platinum Series?
- Sectional design lets you build a perfectly tailored cook line without wasting space.
- Free battery-layout assistance from Southbend experts simplifies planning.
- Premium stainless finishes match the rest of your Platinum heavy-duty equipment for a seamless look.
- Limit oversized cookware (12" dia. or larger) to the rear section of the grate to avoid overheating the front rail.
- Never cover the grates with a sheet pan while burners are on; reflected heat can cause permanent damage and void the warranty.
