Southbend (Middleby) P12N-H Platinum Gas Ranges
Description
Southbend Platinum Heavy Duty 12" Modular Hot Top Range

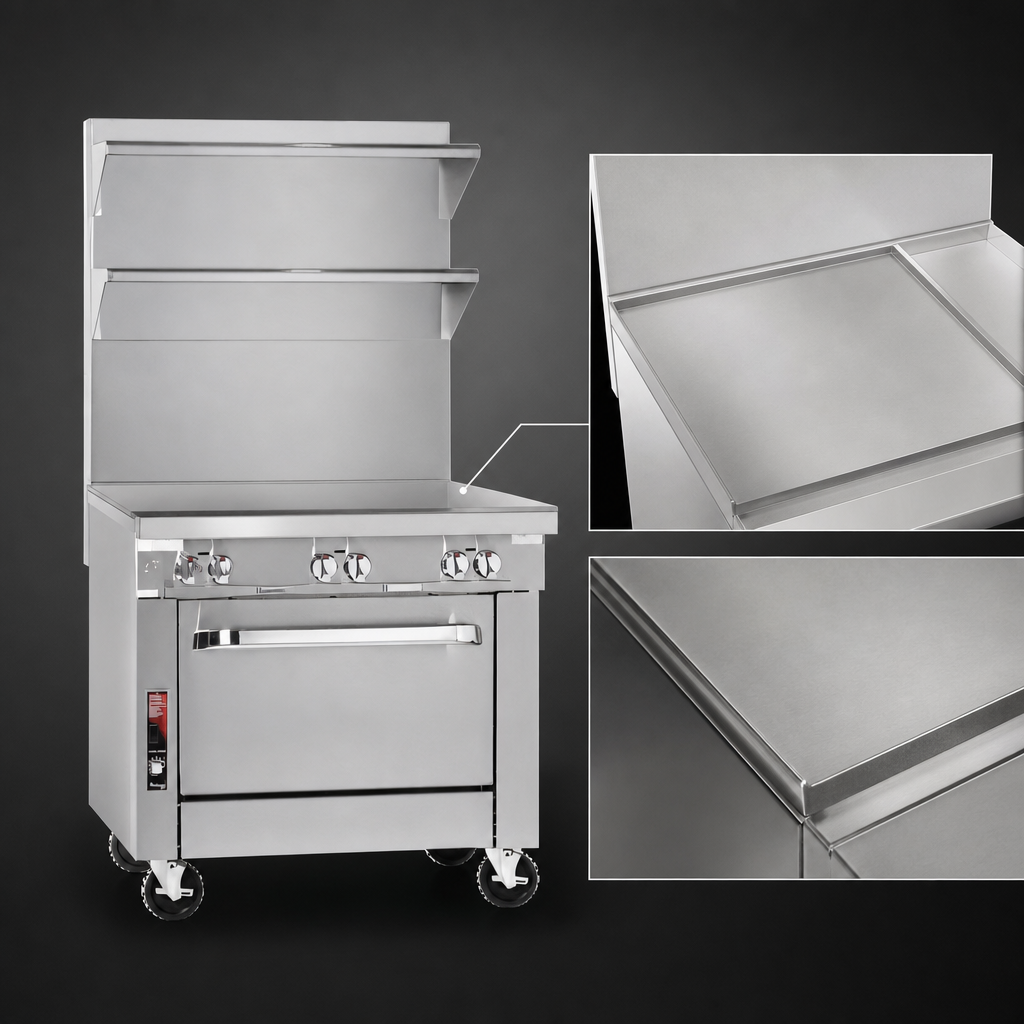

Model P12N-H • 32,000 BTU Gas • Uniform Steel Hot TopPurpose-built for high-volume kitchens, the Platinum 12" Modular Hot Top delivers powerful, even heat on a space-saving footprint—perfect for upgrading a battery line or topping a refrigerated base.
Key Features
- Full-width steel hot top with removable plates heats to 700 °F for uniform cooking.
- Two 16,000 BTU burners regulated by a single high/low control knob.
- Electronic piezo ignition—instant starts, no standing pilot.
- 12" wide modular design mounts on countertops, refrigerated or freezer bases, or within a Platinum battery.
- Rugged stainless steel front, sides, rear & exterior bottom for easy cleanup and long life.
- 9 ¼" deep front rail adds working comfort and prevents pan overhang.
- Fully-insulated burner box improves efficiency and keeps surrounding equipment cooler.
- 5" stainless steel flue riser directs heat and fumes away from the line.
- Certified: CSA Flame, CSA Star, cCSAus & NSF.
Specifications
| Model | P12N-H (Modular) |
|---|---|
| Total Input | 32,000 BTU/hr (Natural or LP) |
| Burner Configuration | 2 × 16,000 BTU cast burners |
| Cooking Surface | Uniform hot top, 700 °F max |
| Gas Connection | 1 ¼" front manifold; 1" rear male NPT |
| Min. Gas Pressure | 7" W.C. Natural / 11" W.C. LP |
| Overall Width | 12" (305 mm) |
| Overall Depth | 37 ½" (953 mm) |
| Overall Height | 33 ¾" (857 mm) to cooking surface + 5" flue riser |
| Shipping Weight | ≈ 130 lb (59 kg) |
| Warranty | 1-year parts & labor |
Optional Accessories
- External gas pressure regulator
- Front locking casters or open-frame base with casters
- Cable restraint kit for mobile installations
- 24" or 36" flue risers with single or double shelves
- Tray or tubular shelves (12" deep)
- Alternative front rails & utensil cut-outs
Ask us to configure the ideal setup for your cook line.
Uniform Hot Top Advantages
- Slide pots anywhere—no cold spots or open flames.
- Ideal for large stock pots, sauce pans and staging pans before service.
- Removable plates make deep cleaning fast and simple.
Built in the USA and engineered for round-the-clock performance, the Southbend Platinum 12" Modular Hot Top is the compact powerhouse your kitchen has been waiting for.
