Southbend Platinum Heavy Duty 12-Inch Modular Natural Gas Sectional Range, 1 Open Burner and 1 Step-Up Burner, 70,000 BTU

Modular mount for countertop, refrigerated, or freezer base installation.

This compact sectional range delivers 70,000 BTU in a durable 12-inch stainless steel modular design built for flexible installation.

  • 12-inch sectional gas range with one standard open burner and one step-up open burner
  • 70,000 BTU total output with manual controls
  • Modular mount design installs on a countertop, refrigerated base, or freezer base
  • Stainless steel front, sides, rear, and exterior bottom for durability
  • Removable welded steel top grate and drip tray simplify cleanup
  • 1-1/4-inch front manifold and 1-inch rear gas connection support battery installations

Overall Dimensions:

12.0"W x 37.5"D x 13.5"H

Product Weight:

130.0 lb

Two Open-Burner Layout

Includes one 35,000 BTU open burner and one 35,000 BTU step-up open burner for a 70,000 BTU total output.

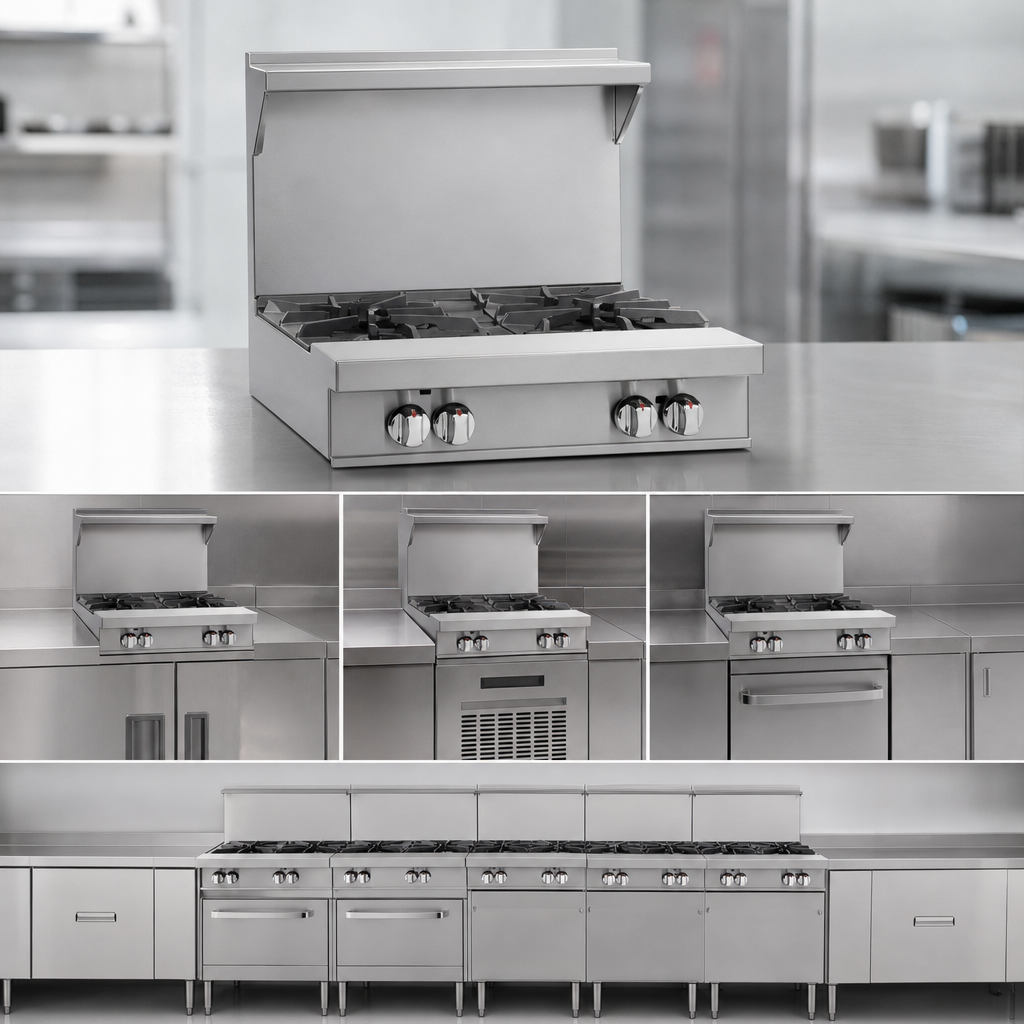

Modular Mount Design

Built for mounting on a countertop, refrigerated base, or freezer base as part of a battery setup.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for durability and easier cleaning.

Removable Top Grate

The welded steel top grate lifts out for simple maintenance and cleanup.

Removable Drip Tray

Helps collect debris and makes routine cleaning easier.

Manual Controls

Straightforward manual operation for reliable everyday use.

Insulated Burner Box

Fully insulated lining and burner box help support heat retention and performance.

Gas Hookup Flexibility

Features a 1-1/4-inch front manifold and 1-inch rear gas connection.

Type Sectional Range
Style Modular
Installation Type Countertop
Controls Manual
BTU 70,000 BTU
Gas Type Natural Gas
Gas Inlet Pressure 7 Inches W.C.
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Rear Gas Connection
Material Stainless Steel
Finish Polished
Country of Origin USA
Shipping Width 12 Inches
Shipping Depth 38 Inches
Shipping Height 14 Inches
Shipping Weight 130 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This is the natural gas version of the range section.
The unit delivers 70,000 BTU total from two 35,000 BTU open burners.
The modular unit is designed for countertop, refrigerated base, or freezer base mounting.
No. The documents state that a pressure regulator must be ordered separately.
The documents note zero clearance to noncombustible construction, with 10 inches required on the sides and 6 inches on the rear for combustible construction.
Yes. Installation under a vented hood is recommended.
