Southbend (Middleby) P12N-B Platinum Gas Ranges
Description
Southbend Platinum Series P12N-B
12" Modular Heavy-Duty Range with Two 35,000 BTU Open Burners
Pack 70,000 BTU of searing heat into just 12 inches of cookline real estate. Designed for the busiest commercial kitchens, the Southbend Platinum P12N-B delivers uncompromising power, versatility, and long-term durability in a compact, battery-ready footprint.
Why You’ll Love It

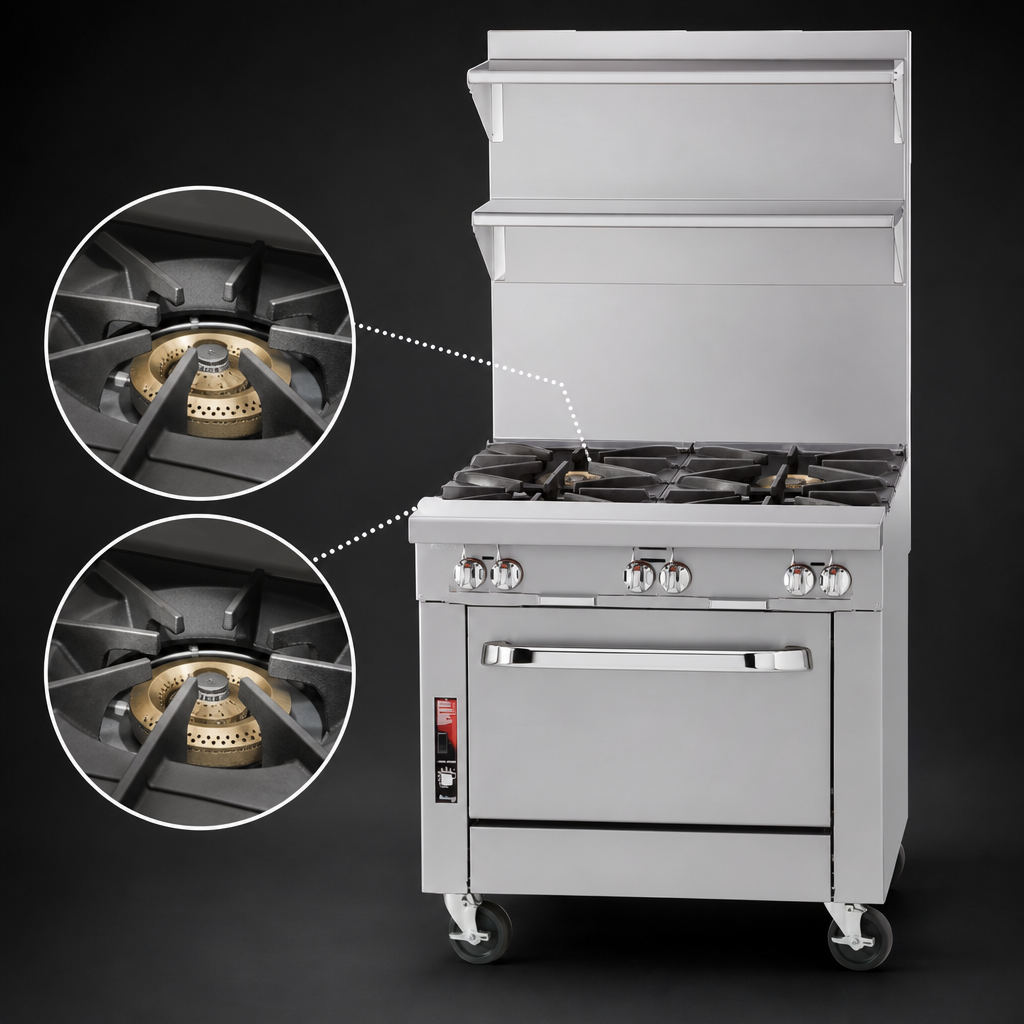

- Clog-Free Performance: Two patented 35,000 BTU open burners (lifetime warranty) resist spill-overs and keep flames at peak efficiency.

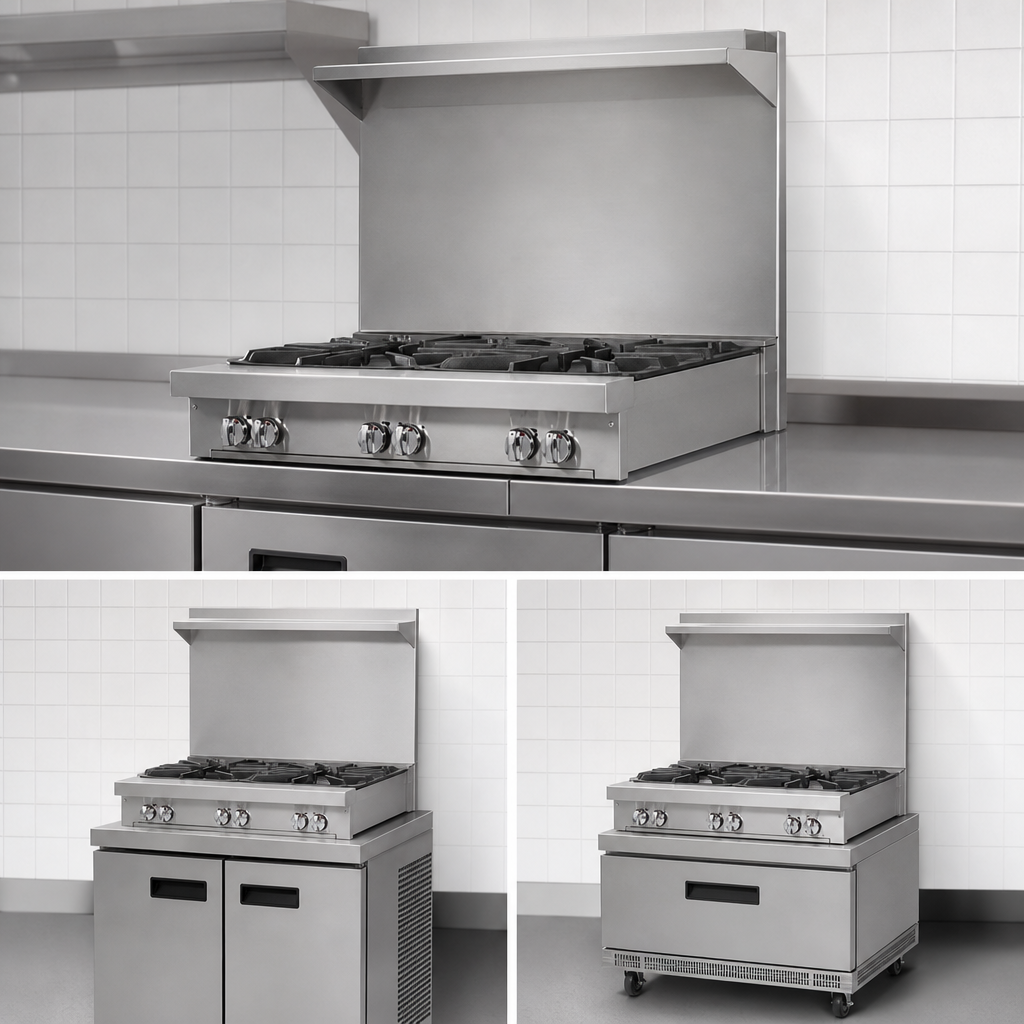

- Modular Flexibility: Counter-mount the unit on a refrigerated, freezer, or equipment base—or drop it into any Platinum battery.
- Built to Last: Fully welded stainless-steel front, sides, rear and bottom shrug off daily abuse and simplify cleanup.
- Operator Friendly: Removable welded-steel top grate and extra-wide drip tray make end-of-shift maintenance fast and painless.
- Service Simplified: 1-1/4" front manifold couples seamlessly with adjacent sections; 1" rear NPT connection speeds installation.
- Cool-Touch Front Rail: 9-1/4" deep rail adds plating space without trapping excess heat.
- Warranty Confidence: Backed by a one-year parts & labor warranty plus lifetime coverage on the open burners.
Technical Specs
| Model | Platinum P12N-B (Modular) |
|---|---|
| Total Input | 70,000 BTU/hr (Natural or Propane) |
| Burners | 2 × 35,000 BTU open-top, clog-free |
| Cook Surface Width | 12" / 305 mm |
| Overall Depth | 24" / 610 mm (cooking surface) 37-1/2" / 953 mm overall |
| Front Rail Depth | 9-1/4" / 235 mm |
| Flue Riser | 5" high stainless steel (standard) |
| Gas Connections | 1-1/4" front manifold (battery ready) 1" rear gas inlet, male NPT |
| Clearances | 0" sides/rear non-combustible 10" sides / 6" rear combustible |
| Shipping Weight | Approx. 130 lb / 59 kg |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
Common Factory Options (Extra Cost)
- External gas pressure regulator
- 24" or 36" flue riser (with optional shelving)
- Extra-deep rear-extending flue riser
- Front rail cut-outs or 7-1/4" deep legacy rail
- Casters with locking front set & cable restraint kit
- Tray, tubular, or open-frame shelving
- Removable cast-iron grate top
- Battery spark ignition
Need a custom battery layout? Southbend’s engineering team will configure a complete lineup at no charge.
Warranty & Support
• 1 year parts & labor on the entire unit
• Lifetime warranty on patented clog-free burners
Service is handled nationwide by Southbend Authorized Service Agencies.
Intended for commercial use only. Installation under a vented hood and a regulated gas supply is required. Always check local codes.
