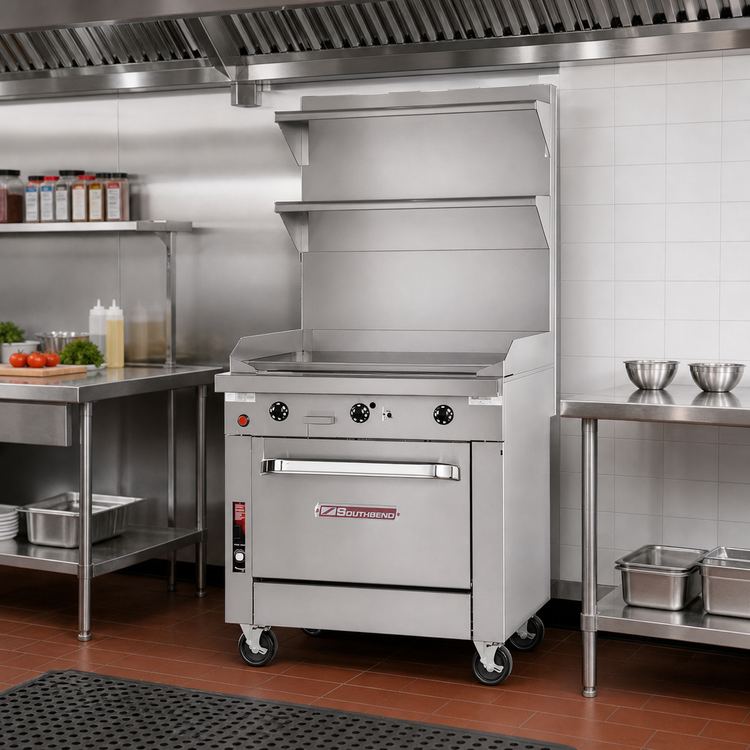

Southbend Platinum 12-Inch Heavy Duty Gas Sectional Range with Full-Width Griddle and Cabinet Base

SKU: P12C-G
$5,349.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 12-Inch Heavy Duty Gas Sectional Range with Full-Width Griddle and Cabinet Base

Manual Controls, Piezo Ignition, 1-Inch Griddle Plate

Compact yet heavy-duty, this 12-inch Platinum gas sectional range delivers a full-width manual griddle, stainless steel construction, and a built-in cabinet base for efficient cookline use.

  • 12-inch sectional gas range with a full-width manual griddle
  • 1-inch thick griddle plate with side and rear splashguards
  • Piezo electronic pilot ignition and manual controls
  • Stainless steel front, sides, rear, exterior bottom, and cabinet base
  • Removable stainless steel grease drawer for easier cleanup
  • 6-inch stainless steel adjustable legs standard
  • Reversible cabinet door can hinge on the right or left

Overall Dimensions:

12.0"W x 37.5"D x 41.0"H

Product Weight:

225.0 lb

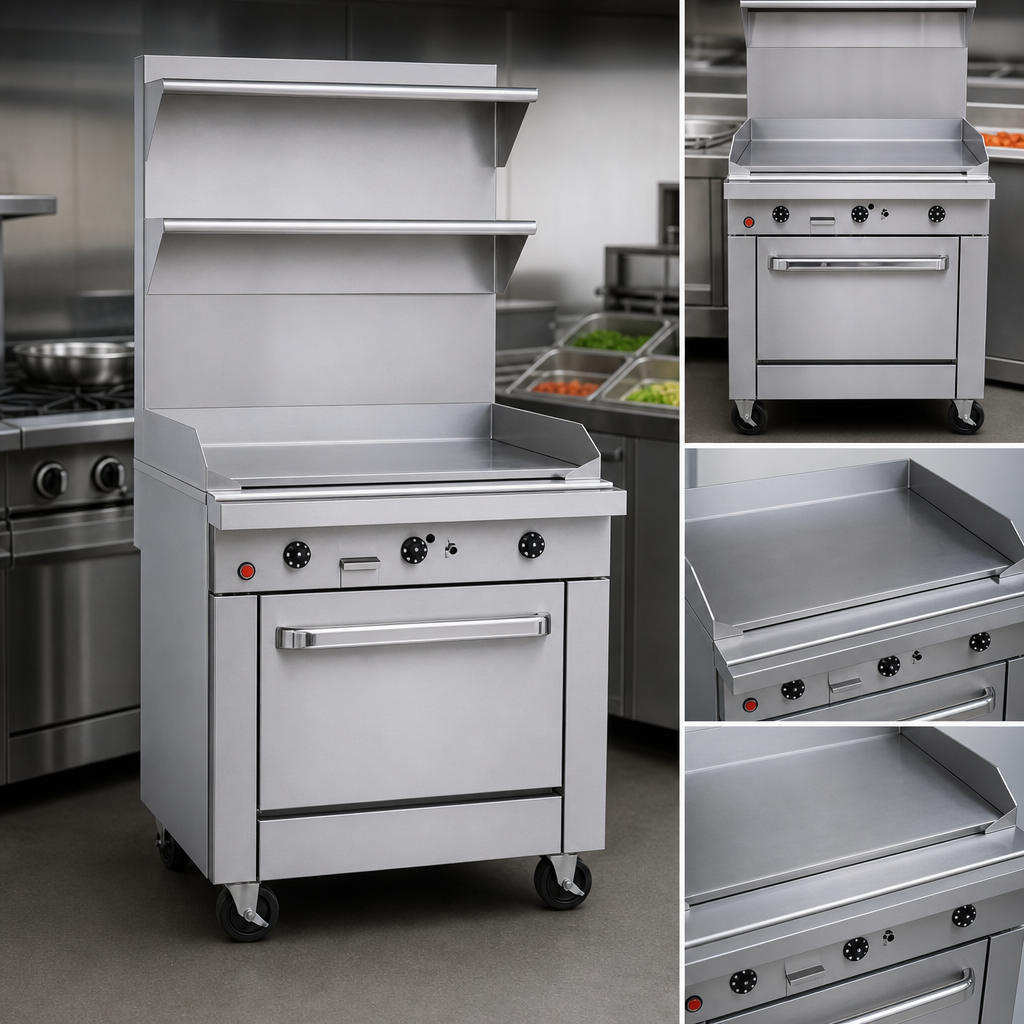

Full-Width Manual Griddle

The 12-inch range section is built around a full-width griddle for compact, high-output cooking.

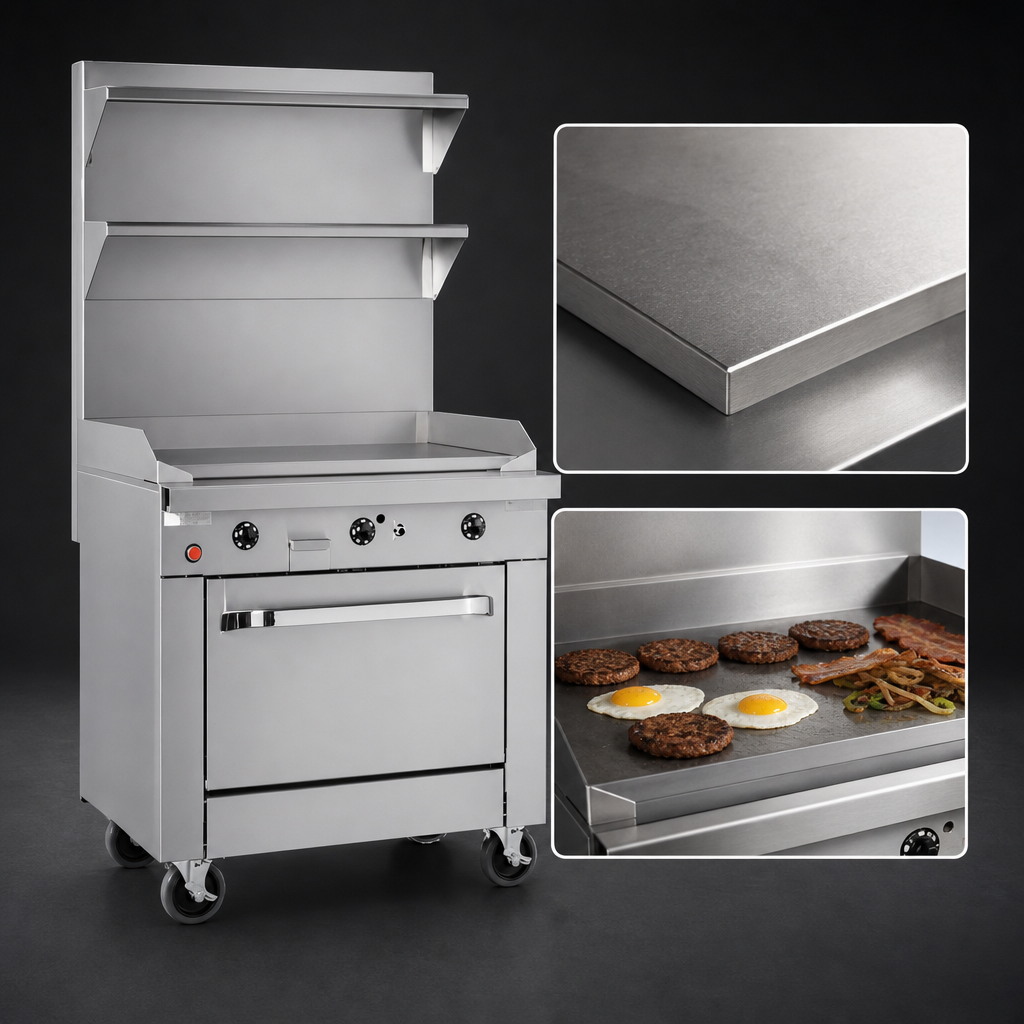

1-Inch Thick Griddle Plate

Heavy griddle plate helps retain heat and support consistent cooking performance.

Piezo Ignition

Electronic pilot ignition simplifies startup.

Stainless Steel Construction

Front, sides, rear, exterior bottom, and cabinet base are stainless steel for durability.

Removable Grease Drawer

A stainless steel grease drawer helps make cleanup quicker and easier.

Reversible Cabinet Door

The cabinet base door can hinge on either the right or left side for installation flexibility.

Side and Rear Splashguards

Splashguards help contain grease and reduce mess behind and beside the griddle.

Adjustable Legs

6-inch stainless steel legs are standard for leveling the unit.

Type Sectional Range
Style Full-Width Griddle
Installation Type Floor Model
Controls Manual
Material Stainless Steel
Finish Polished Stainless Steel
BTU 32,000 BTU (Natural Gas) / 28,000 BTU (Propane)
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. (Natural Gas); 11 Inches W.C. (Propane)
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 42.5 Inches
Shipping Height 45 Inches
Shipping Weight 225 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 12-inch full-width griddle with a 1-inch thick plate.
It uses manual controls, and manual griddles do not allow specific temperature operation.
Minimum gas supply pressure is 7 inches W.C. for natural gas and 11 inches W.C. for propane. A regulator is required and must be ordered separately.
Yes. The removable cabinet door can hinge on the right or the left side.
Yes. The documentation recommends installation under a vented hood.
Yes. Casters are an optional accessory, and a cable restraint kit is recommended when using casters with a flexible-hose gas connection.
