Southbend Platinum 12-Inch Heavy Duty Gas Sectional Range with Cabinet Base and 2 Open Burners

SKU: P12C-B
$4,329.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 12-Inch Heavy Duty Gas Sectional Range with Cabinet Base and 2 Open Burners

Manual Controls, 70,000 BTU Total, Stainless Steel Construction

Compact but powerful, this 12-inch gas sectional range delivers two 35,000 BTU open burners in a durable stainless steel cabinet-base design.

  • 12-inch heavy-duty sectional gas range with two open-top burners
  • 70,000 BTU total output for fast, high-heat cooking
  • Stainless steel front, sides, rear, and exterior bottom for durability
  • Cabinet base includes a removable door that can hinge left or right
  • Removable welded steel top grate and drip tray simplify cleaning
  • 6-inch stainless steel adjustable legs and a standard flue riser
  • Manual burner controls for straightforward operation

Overall Dimensions:

12.0"W x 37.5"D x 41.0"H

Product Weight:

200.0 lb

Two Open-Top Burners

Equipped with two 35,000 BTU open-top burners for a total of 70,000 BTU of cooking power.

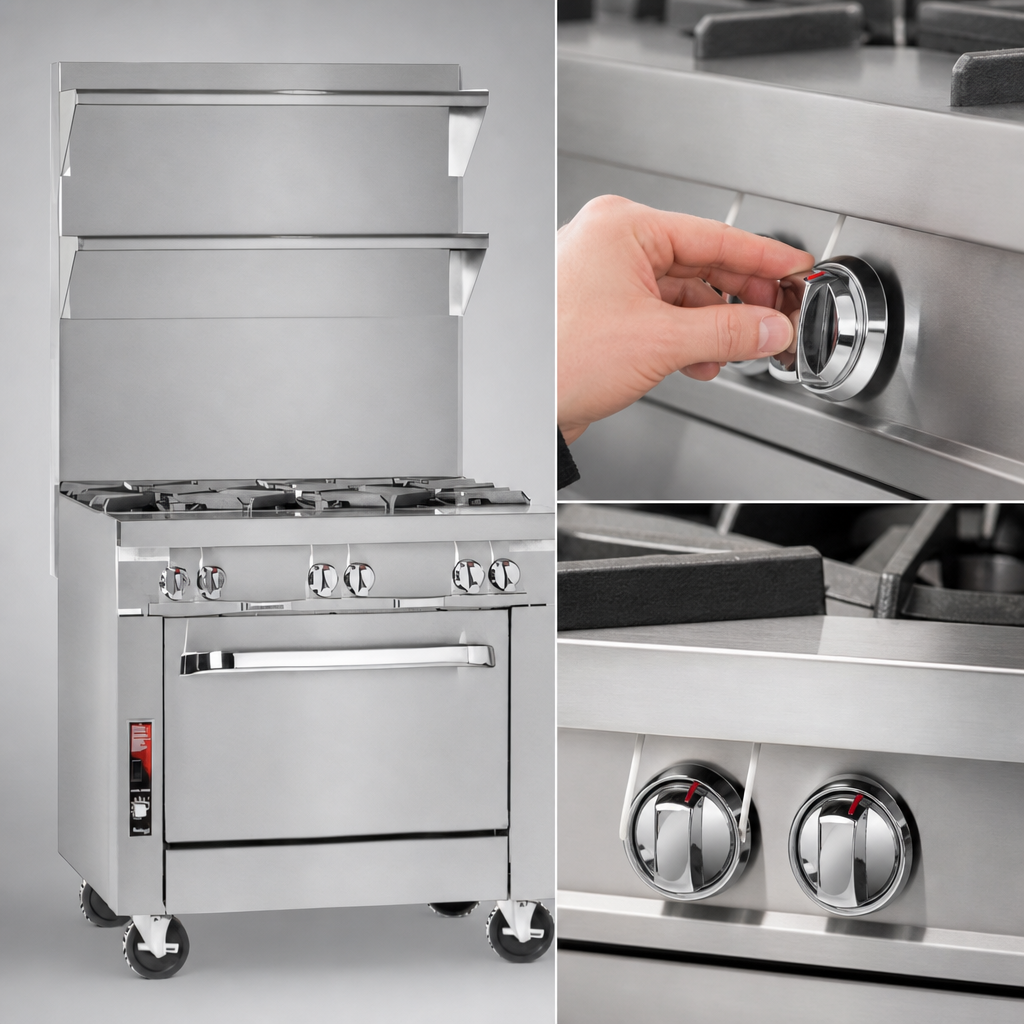

Manual Controls

Simple manual controls provide direct burner operation.

Cabinet Base with Reversible Door

The stainless steel cabinet base includes a removable door that can hinge on either the right or left side.

Removable Top Grate

Welded steel top grate lifts out for easier cleaning and maintenance.

Removable Drip Tray

Helps catch debris and grease, and can be removed for cleanup.

Stainless Steel Exterior Construction

Front, sides, rear, and exterior bottom are constructed from polished stainless steel for durability.

Front Gas Manifold and Rear Gas Connection

Designed with a 1-1/4 inch front manifold and 1 inch rear gas connection for sectional installation.

Adjustable Stainless Steel Legs

Standard 6-inch adjustable legs help level the unit during installation.

Battery-Ready Sectional Design

Can be used in a sectional battery setup, with end positions finished solid when installed at the end of a battery.

Standard Flue Riser

Includes a 5-inch high stainless steel flue riser as standard construction.

Type Sectional Range
Style Open Burner
Installation Type Floor Model (With Cabinet Base)
Controls Manual
BTU 70,000 BTU
Cooking Surface Width 12 Inches
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Rear Male NPT Connector
Gas Inlet Pressure 7 Inches W.C. Natural Gas; 11 Inches W.C. Propane
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 38 Inches
Shipping Height 41 Inches
Shipping Weight 200 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and 1-year labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The P12C-B includes a stainless steel cabinet base with a removable door.
The range has two 35,000 BTU open-top burners for a total of 70,000 BTU.
Yes. The removable cabinet door can hinge on the right or left side.
It has a 1-1/4 inch front gas manifold and a 1 inch rear gas connection with a male NPT connector.
No. The documentation states that a regulated gas supply is required and the pressure regulator must be ordered separately.
Installation under a vented hood is recommended.
