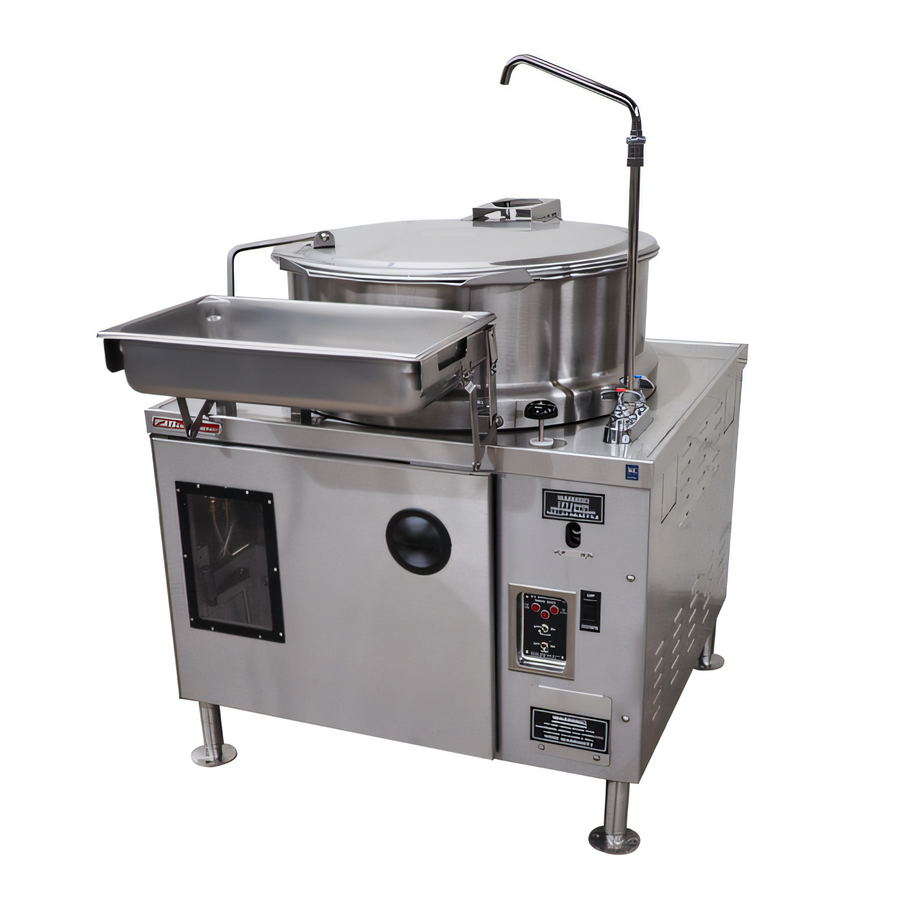

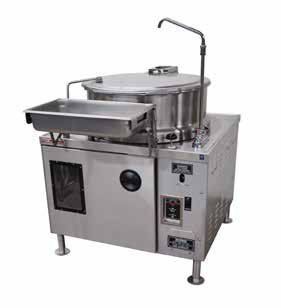

Southbend Steam 40-Gallon Electric Manual-Tilt Steam Jacketed Kettle with Cabinet Base

316 Stainless Steel Liner, 2/3 Steam Jacket, 24 kW Boiler

This 40-gallon kettle pairs a self-contained electric steam boiler with a 316 stainless steel liner and manual tilt control for efficient, sanitary batch cooking.

  • 40-gallon capacity with a 2/3 steam jacket for even, efficient heating.
  • Self-contained 24 kW electric boiler and manual crank tilt for controlled emptying.
  • 316 stainless steel liner and stainless steel construction for durability and easy cleaning.
  • Standard low-water cut-off, pressure gauge, air vent, safety relief valve, and sight gauge.
  • Includes hot/cold swing-spout fill faucet, 2-inch sanitary draw-off, removable strainer, and pan support.
  • Cabinet base with stainless steel legs and flanged feet; water treatment system standard.

Overall Dimensions:

36.0"W x 33.0"D x 65.5"H

Product Weight:

430.0 lb

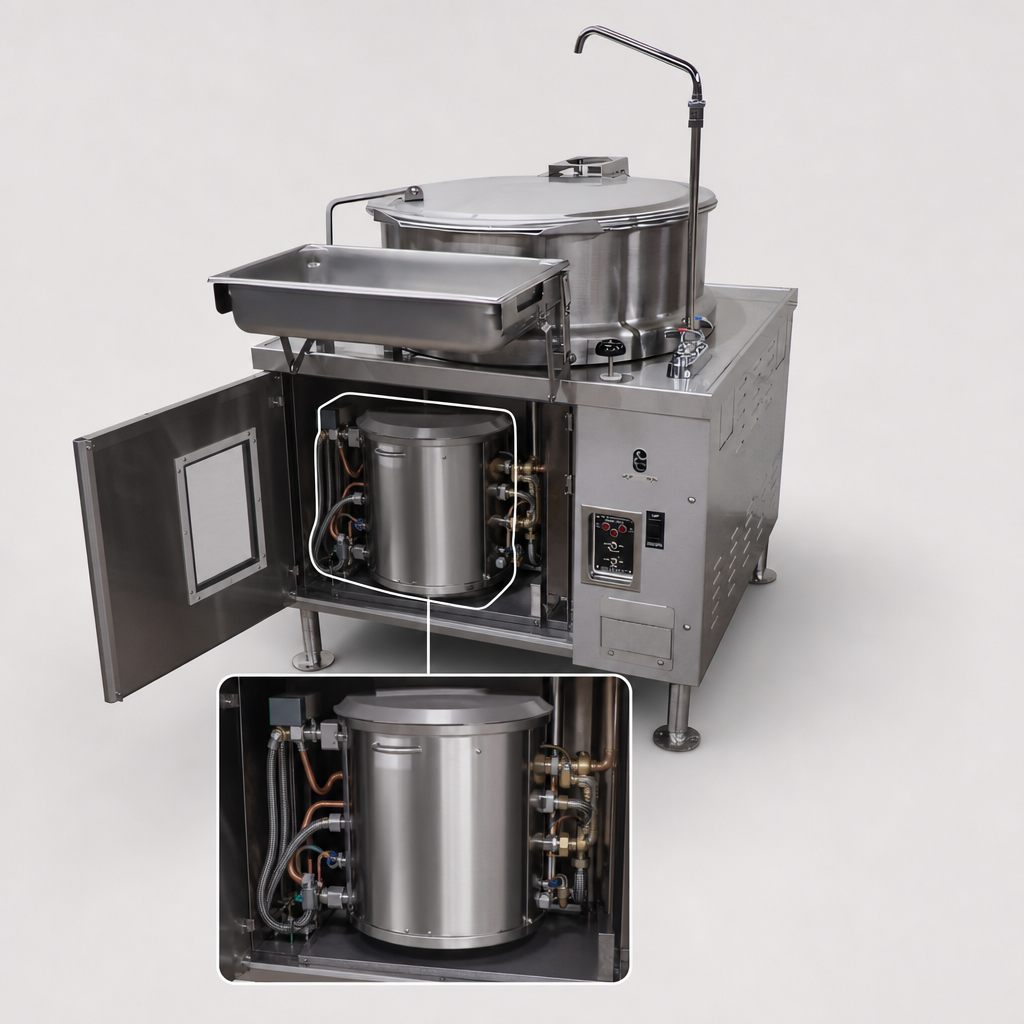

Self-Contained 24 kW Electric Boiler

Mounted in the cabinet base for independent operation and service.

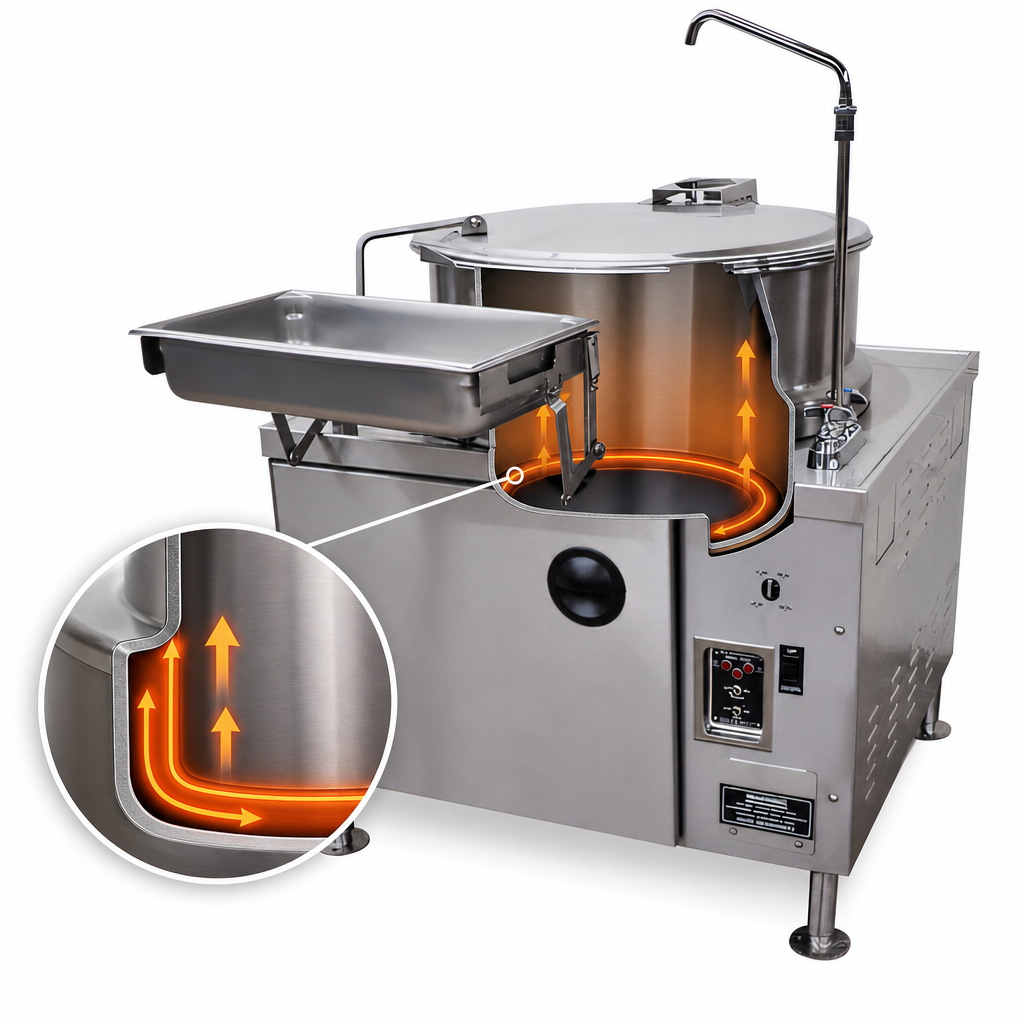

2/3 Steam Jacket Design

Heats the kettle evenly across most of the vessel for efficient cooking.

Manual Tilt With Removable Crank

Provides positive control when tilting the kettle for complete emptying.

316 Stainless Steel Liner

Corrosion-resistant liner standard on 25- and 40-gallon models.

Hot and Cold Swing-Spout Fill Faucet

Built into the cabinet top for convenient filling.

2-Inch Sanitary Draw-Off Valve

Enclosed draw-off empties into a removable swing drain with stainless steel strainer.

Safety and Monitoring Package

Includes low-water cut-off, pressure gauge, air vent, safety relief valve, and water level sight gauge.

Automatic Boiler Fill and Solenoid Valves

Automatic cold-water boiler fill and electric solenoid valves for steam, drain, and water.

Water Treatment System

Comes standard to help support boiler performance.

Counter-Balanced Cover and Pan Support

One-piece cover and removable support for one 12 x 20 x 2.5-inch pan.

Stainless Steel Cabinet Base

Enclosed base with 6-inch stainless steel legs, flanged feet, and magnetic-latch door.

Type Tilting Kettle
Style Steam Jacketed
Installation Type Floor Model
Capacity 40 Gallons
Controls Electric
Material Stainless Steel
Interior Finish 316 Stainless Steel
Watts 24 kW
Voltage 208/240/480 Volts
Phase 3-Phase
Hertz 60 Hz
Pan Capacity 1
Pan Size 12 x 20 x 2.5 Inches
Shipping Width 36 Inches
Shipping Depth 33 Inches
Shipping Height 66 Inches
Shipping Weight 430 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and 1 year labor from the date of original purchase.

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The kettle tilts manually with a removable crank; a power tilt mechanism is available as an accessory.
The unit is available for 208, 240, or 480 volts AC, 3-phase, 60 Hz operation.
Yes, a water treatment system comes standard.
It includes a hot and cold swing-spout fill faucet, a 2-inch sanitary draw-off valve, a removable swing drain, and a stainless steel strainer.
With the cover down, it brings 20 gallons of water to a boil in about 35 minutes.
