Southbend (Middleby)

Southbend Steam 40-Gallon Gas Tilting Steam Kettle with 2/3 Jacket

SKU: KTLG-40
$31,352.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Southbend (Middleby) Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

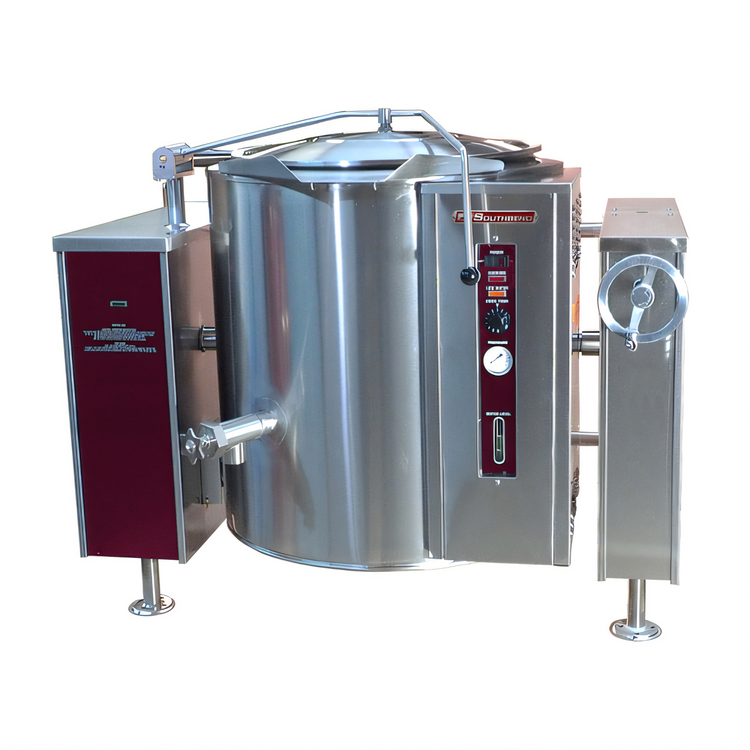

Southbend Steam 40-Gallon Gas Tilting Steam Kettle with 2/3 Jacket

Thermostatic Control, Electronic Ignition, Crank Tilt

This 40-gallon gas tilting kettle combines precise thermostatic control, a durable 316 stainless steel liner, and a crank tilt mechanism for efficient high-volume cooking.

  • 40-gallon capacity supports large-batch soups, sauces, stocks, and other prepared foods.
  • 2/3 jacketed construction promotes even heat transfer across the kettle.
  • Thermostatic control with direct immersion thermostat helps maintain consistent cooking temperatures.
  • Electronic ignition and operation indicator lights support dependable daily use.
  • Crank tilt mechanism, faucet bracket, and flanged feet make pouring and installation easier.
  • 316 stainless steel interior liner and stainless steel exterior are built for commercial durability.

Overall Dimensions:

55.25"W x 43.63"D x 53.25"H

Product Weight:

930.0 lb

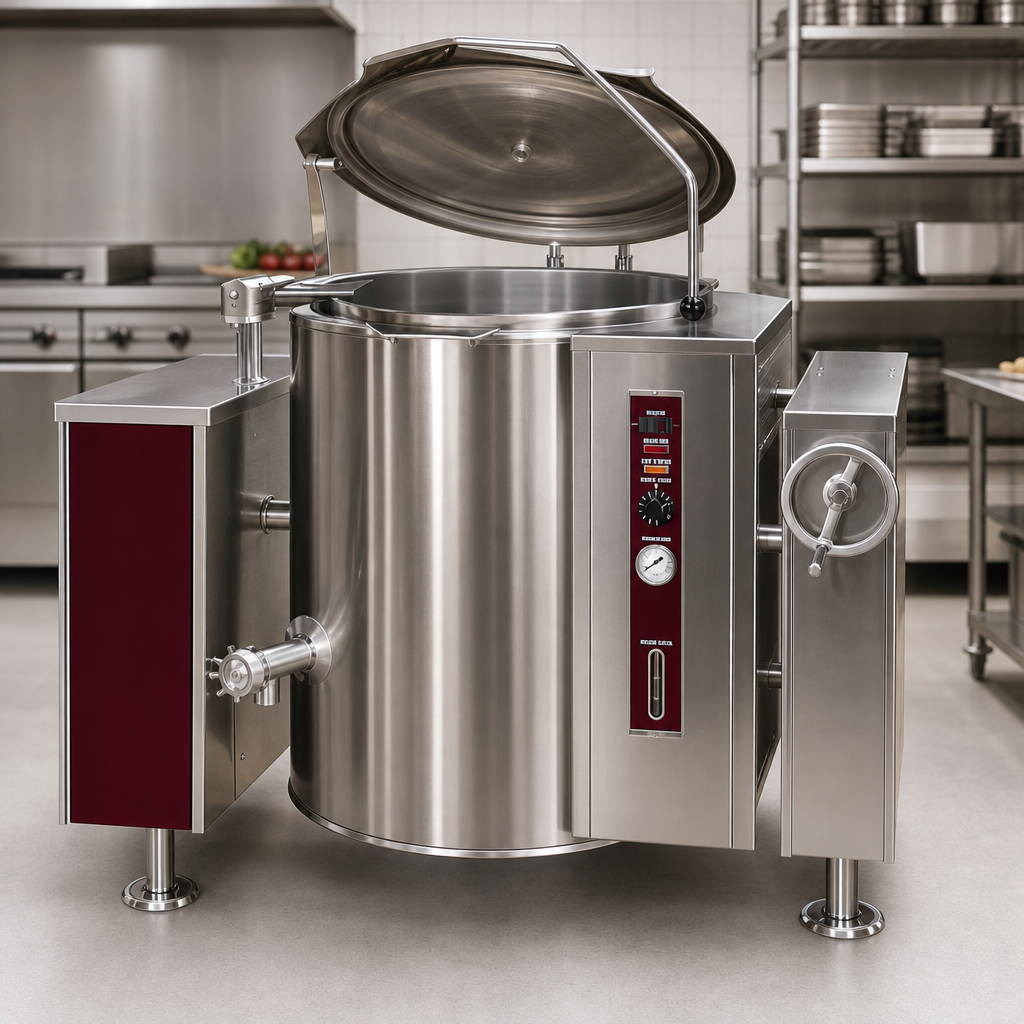

40-Gallon Capacity

Large-capacity kettle designed for high-volume batch cooking.

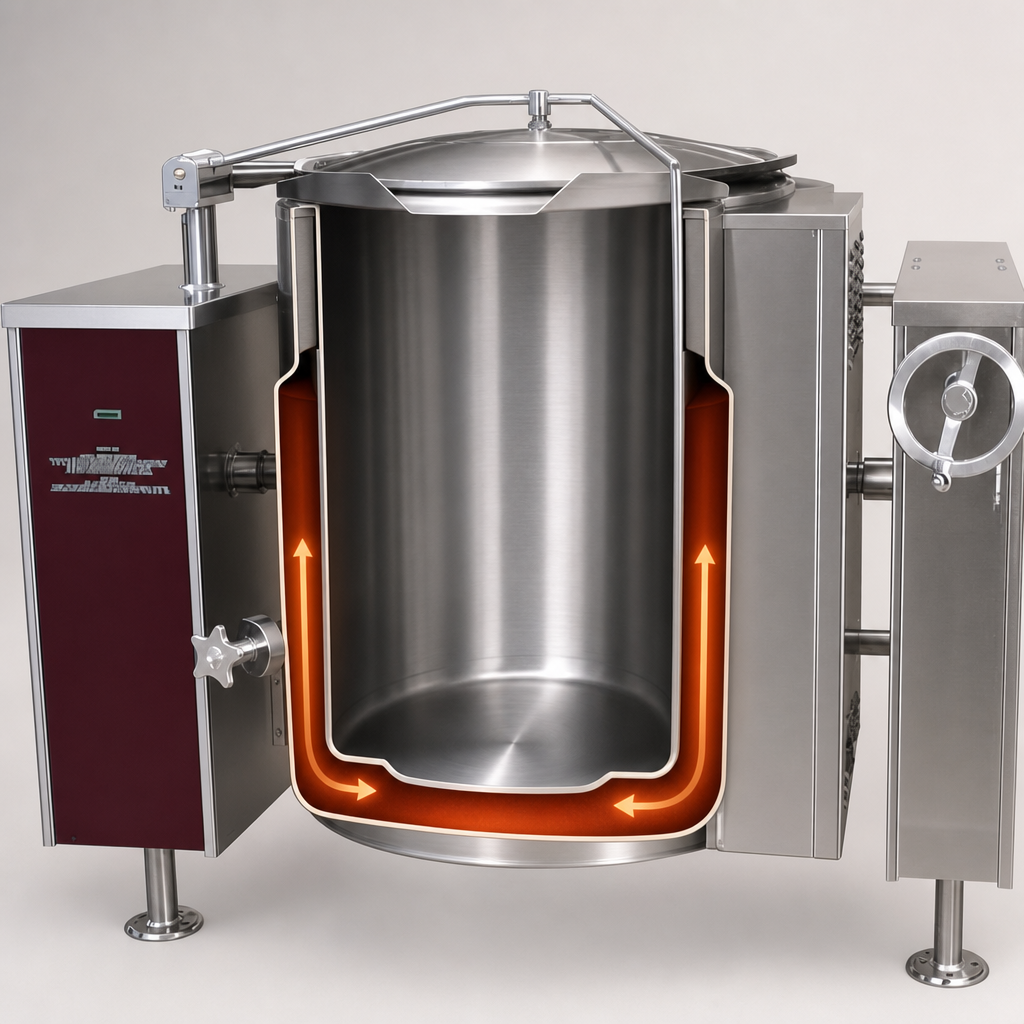

2/3 Jacketed Design

Partial jacket construction helps deliver even heat transfer during cooking.

Thermostatic Control with Direct Immersion Thermostat

Helps maintain accurate cooking temperatures for consistent results.

Electronic Ignition

Provides reliable ignition for gas operation.

Crank Tilt Mechanism

Manual crank tilt allows controlled pouring and emptying.

Safety and Monitoring Package

Includes a water sight glass, cooking and ignition indicator lights, pressure gauge, low-water shut-off with indicator light, pressure switch, and pressure relief valve.

Durable Stainless Steel Construction

Features a 316 stainless steel interior liner with a stainless steel exterior.

Utility-Ready Base

Console, faucet bracket, 1-5/8-inch diameter legs, and flanged feet support installation and daily use.

Type Steam Kettle
Style Tilting
Installation Type Floor Model
Capacity 40 Gallons
Jacket Type 2/3 Jacket
Controls Thermostatic
Ignition Type Electronic
Tilt Mechanism Crank
Thermostat Type Direct Immersion
Material Stainless Steel
Interior Finish 316 Stainless Steel
BTU 100,000 BTU
Shipping Width 56 Inches
Shipping Depth 44 Inches
Shipping Height 54 Inches
Shipping Weight 930 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The kettle has a 40-gallon capacity.
No. It has a 2/3 jacketed, or partial jacket, design.
It uses thermostatic control with a direct immersion thermostat.
It uses a crank tilt mechanism for controlled pouring and emptying.
It includes a water sight glass, pressure gauge, low-water shut-off with indicator light, pressure switch, and pressure relief valve.
The kettle has a 316 stainless steel interior liner and a stainless steel exterior.
