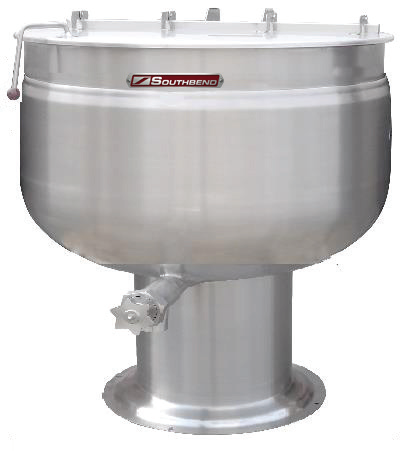

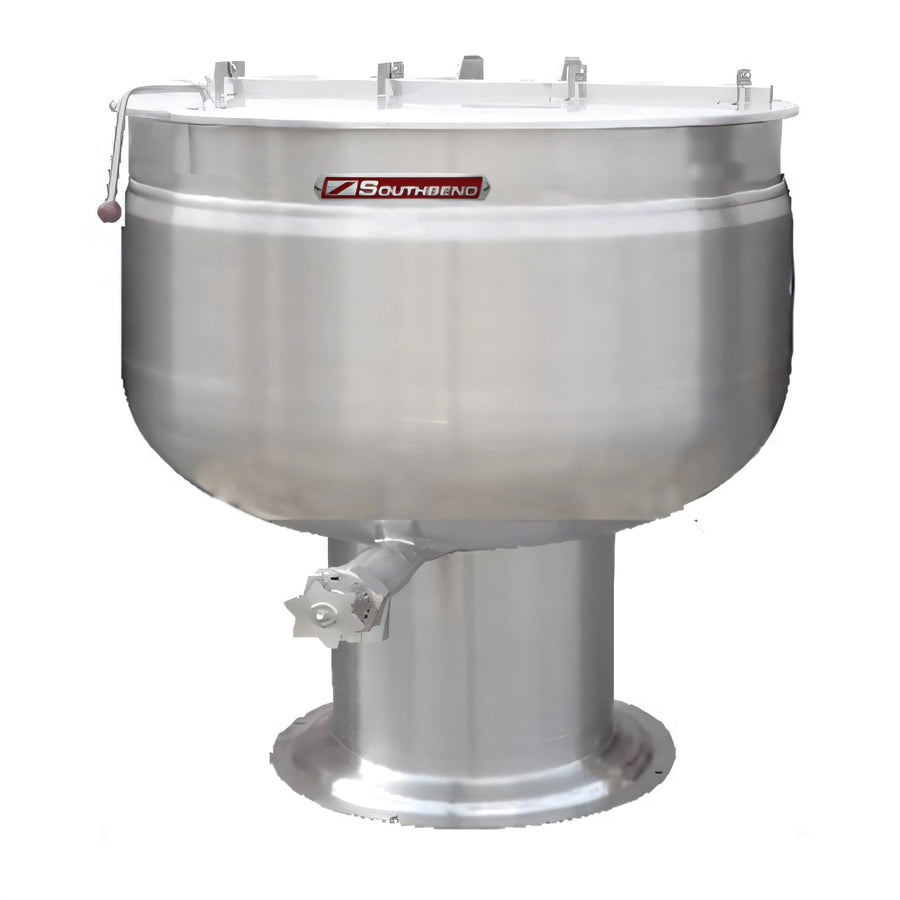

Southbend Steam Stationary Direct Steam Full Jacket 80-Gallon Pedestal Kettle

304 Stainless Steel Construction, 316 Stainless Steel Liner, 2-Inch Draw-Off

Built for high-volume production, this direct steam kettle combines full-jacket heating, stainless steel durability, and a floor-mounted pedestal base.

  • 80-gallon capacity supports large batch cooking in busy foodservice operations.
  • Direct steam design requires a 5 to 25 PSI steam supply for efficient heating.
  • Full jacket construction and a hemispherical bottom promote even heat circulation.
  • 304 stainless steel exterior and 316 stainless steel interior liner deliver long-lasting durability.
  • Includes a 2-inch sanitary draw-off valve with perforated strainer, plus a standard faucet bracket.
  • Pedestal base is designed to be secured to the floor for stable installation.

Overall Dimensions:

43.88"W x 49.5"D x 40.5"H

Product Weight:

380.0 lb

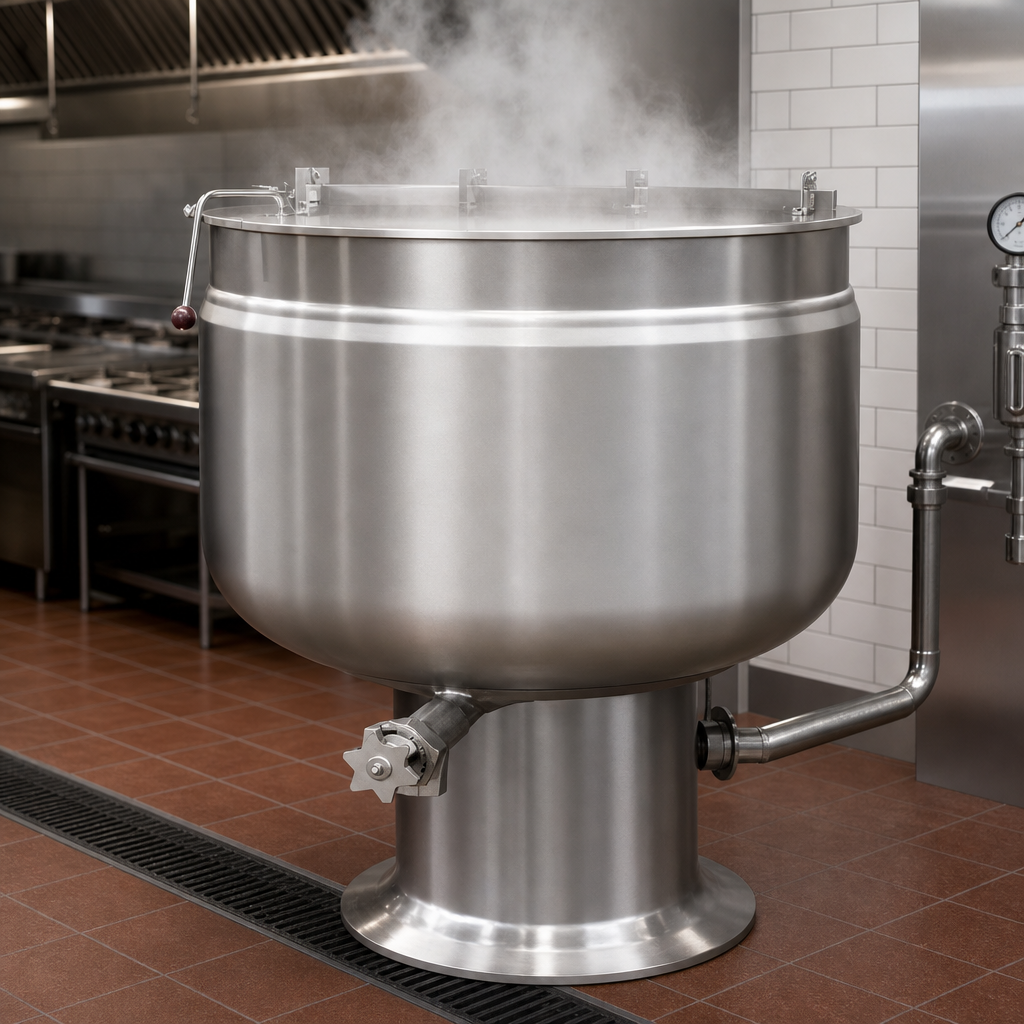

Direct Steam Operation

Designed for direct steam service and requires a steam supply of 5 to 25 PSI.

Direct Steam Operation

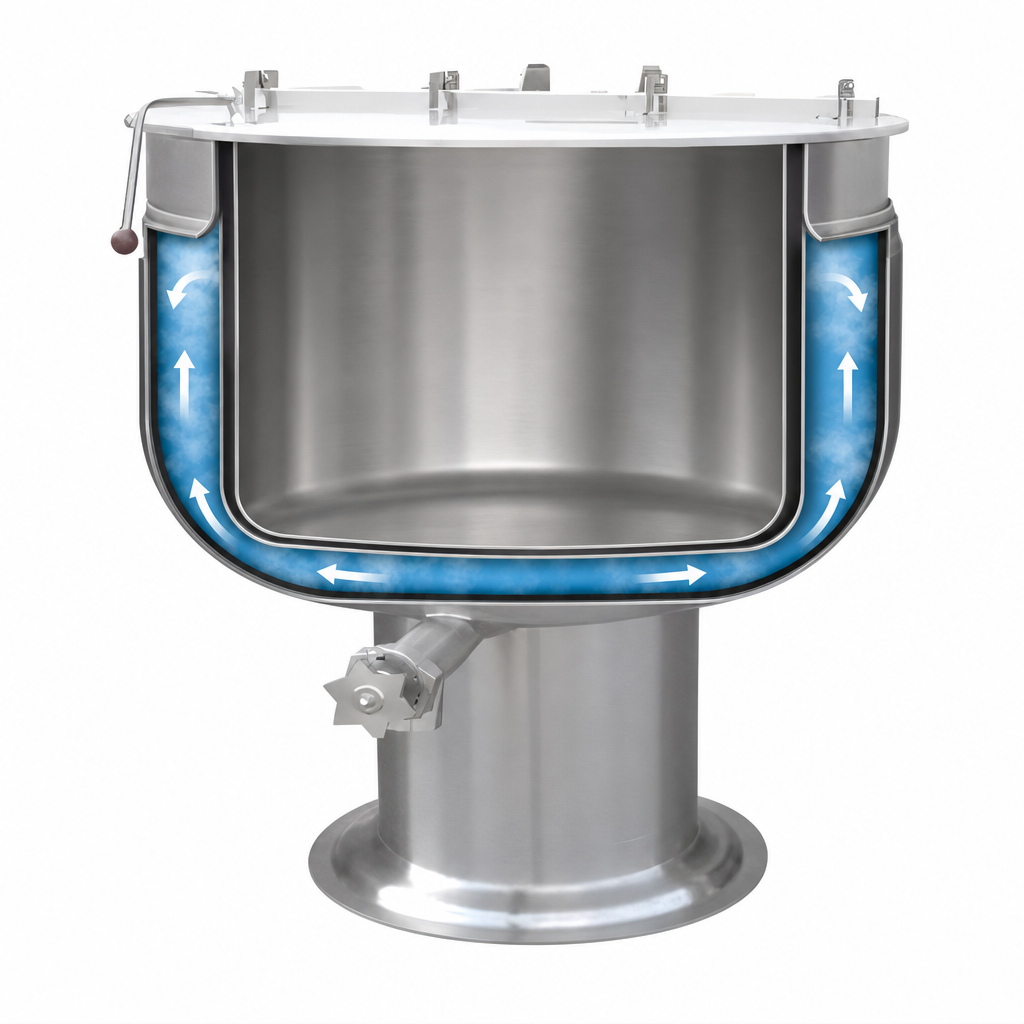

Full Jacket Steam Chamber

Double-wall kettle construction creates a full steam jacket for more even heating.

Full Jacket Steam Chamber

80-Gallon Capacity

Large 303-liter capacity is suited to high-volume batch cooking.

304 Stainless Steel Construction

All-welded satin finish exterior provides durability for commercial kitchen use.

316 Stainless Steel Interior Liner

Corrosion-resistant interior liner is ideal for food-contact applications.

2-Inch Sanitary Draw-Off Valve

Includes a perforated strainer for controlled draining and product transfer.

Spring-Assisted Split Stainless Steel Cover

Hinged split cover helps retain heat and makes access easier during use.

Pedestal Base

Floor-mounted pedestal base includes four 7/16-inch holes for securing the unit to the floor.

Standard Faucet Bracket

Factory-included bracket supports faucet attachment options.

Hemispherical Bottom

Bottom shape is designed for superior heat circulation within the kettle.

Type Stationary Kettle
Style Direct Steam
Jacket Type Full Jacket
Installation Type Floor Model
Base Type Pedestal Base
Capacity 80 Gallons
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Steam Supply Connection 3/4 Inch IPS
Condensate Return Connection 1/2 Inch IPS
Shipping Width 44 Inches
Shipping Depth 50 Inches
Shipping Height 41 Inches
Shipping Weight 380 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and 1-year labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It requires direct steam at a minimum of 5 PSI and a maximum of 25 PSI.
Standard included items listed in the documentation are a 2-inch sanitary draw-off valve with perforated strainer, a stainless steel cover, and a faucet bracket.
The document lists a 3/4-inch IPS steam supply connection and a 1/2-inch IPS condensate return connection.
This model uses a pedestal base with four 7/16-inch holes for securing the unit to the floor.
The warranty sheet states a limited warranty of one year parts and one year labor from the date of original purchase.
Optional accessories include a 35 PSI high-pressure option, a 3-inch draw-off valve, etched markings, a triple basket assembly, a steam trap assembly, and several faucet or kettle filler options.
