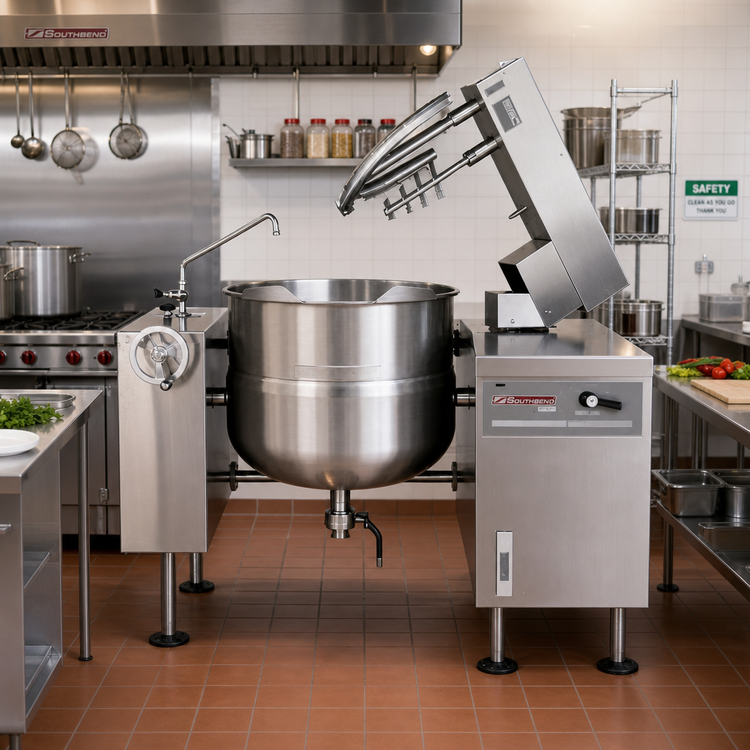

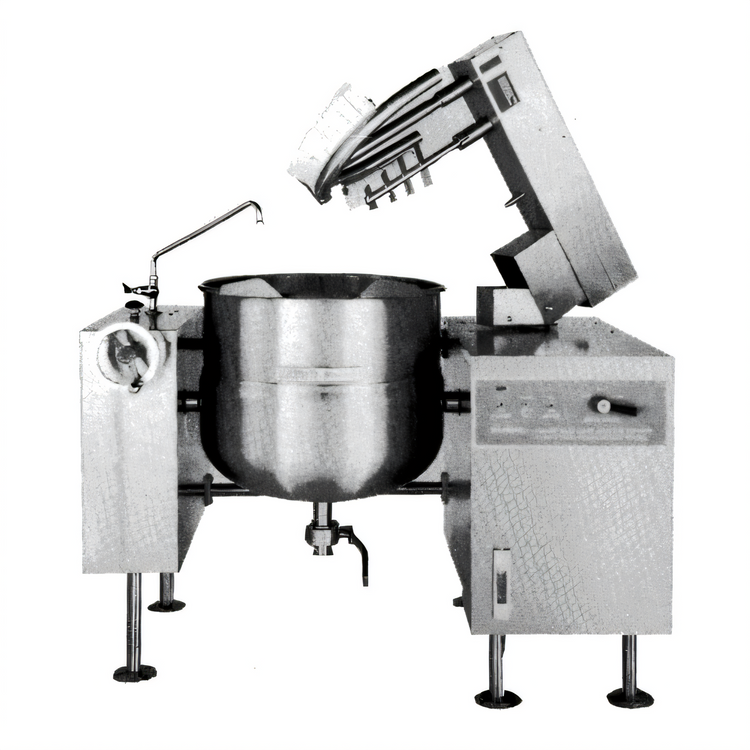

Southbend Steam 40 Gallon Direct Steam Tilting Mixer Kettle with 2/3 Jacket and Power Tilt
Southbend Steam 40 Gallon Direct Steam Tilting Mixer Kettle with 2/3 Jacket and Power Tilt
304 Stainless Steel Construction, 316 Stainless Steel Liner, Includes 2 Agitators
This floor-mounted 40-gallon steam kettle mixer combines direct steam heating, power tilt, and variable-speed agitation for efficient high-volume batch cooking.
- 40-gallon capacity is built for large batch production.
- Direct steam design with a 2/3 steam jacket supports efficient heating.
- 316 stainless steel liner is suited for high-acid products.
- Power tilt mechanism helps empty the kettle completely and simplifies cleaning.
- Includes two removable agitators for versatile mixing.
- 304 stainless steel construction and adjustable flanged feet support heavy-duty floor installation.
Overall Dimensions:
62.0"W x 56.0"D x 75.63"HProduct Weight:

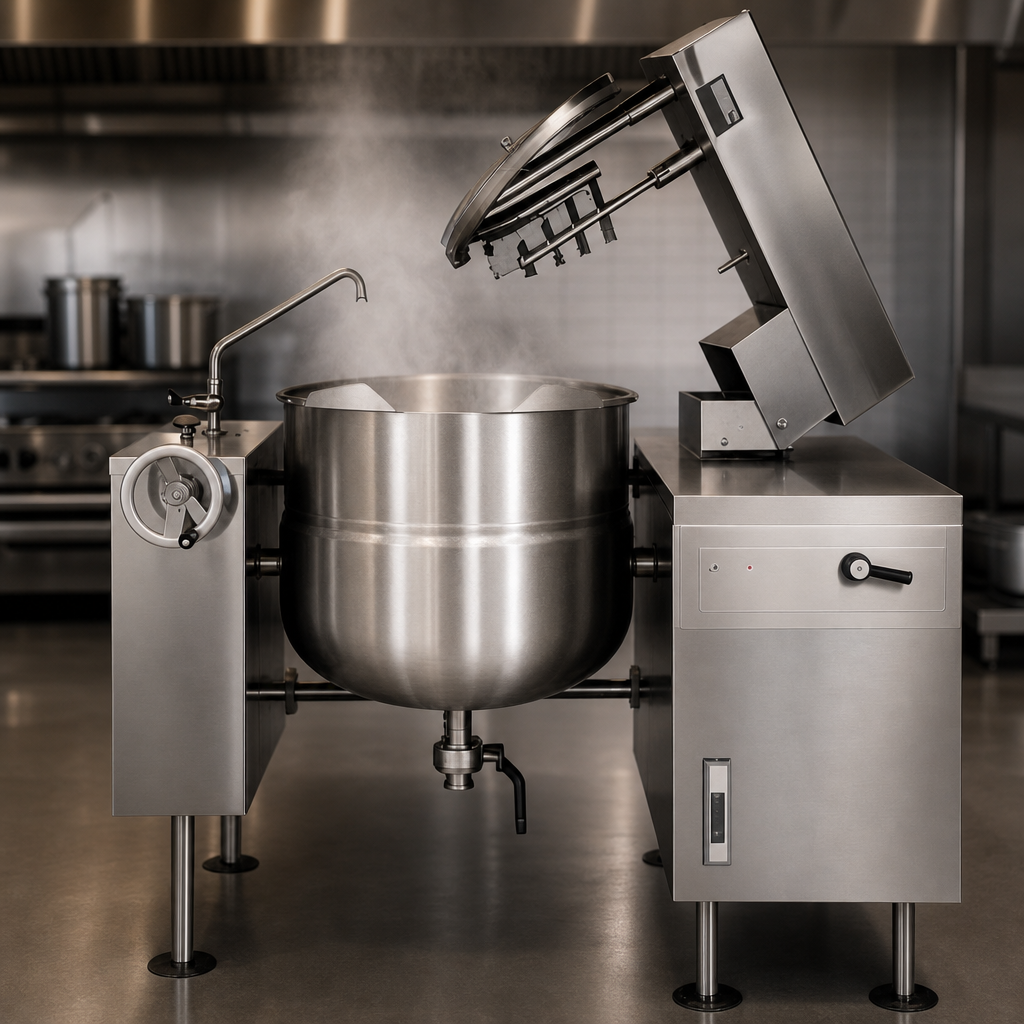

700.0 lbDirect Steam Operation
Designed to operate with direct steam at 5-30 PSI; high-pressure operation up to 5-45 PSI is available as an option.

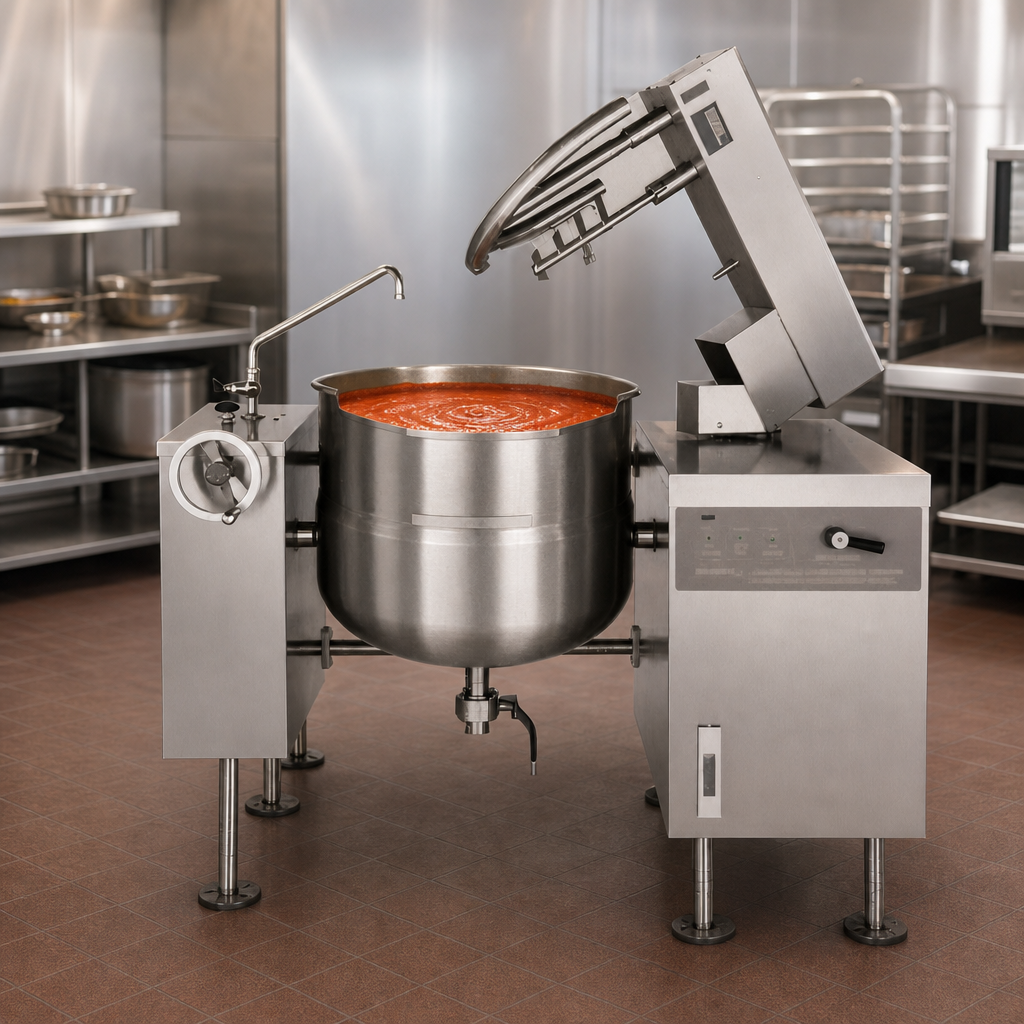

40 Gallon Capacity
Large-capacity kettle supports high-volume cooking and mixing applications.
2/3 Steam Jacket
Double-wall kettle interior forms a steam jacket around the lower two-thirds of the kettle for effective heat transfer.
316 Stainless Steel Liner
The kettle liner is 316 stainless steel for improved performance with high-acid content products.
304 Stainless Steel Construction
Welded stainless steel body and tubular stainless steel legs are built for durability in demanding kitchen environments.
Power Tilt Mechanism
A sealed, self-locking tilt mechanism allows the kettle to tilt forward a full 90° for complete emptying.
Variable-Speed Mixer System
A 5 hp electric motor drives a hydraulic pump for variable-speed mixing control.
Two Included Agitators
Includes a primary stainless steel scraper/agitator and a secondary high-speed mixer; both remove without tools for cleaning.
Floor-Mounted Control Console
Front console includes the main power switch, mixer lift switch, and variable speed control.
Adjustable Flanged Feet
Tubular stainless steel legs are fitted with four-hole adjustable flanged feet for secure floor mounting.
Certifications & Compliance
Warranty & Protection
1 year parts and 1 year labor
