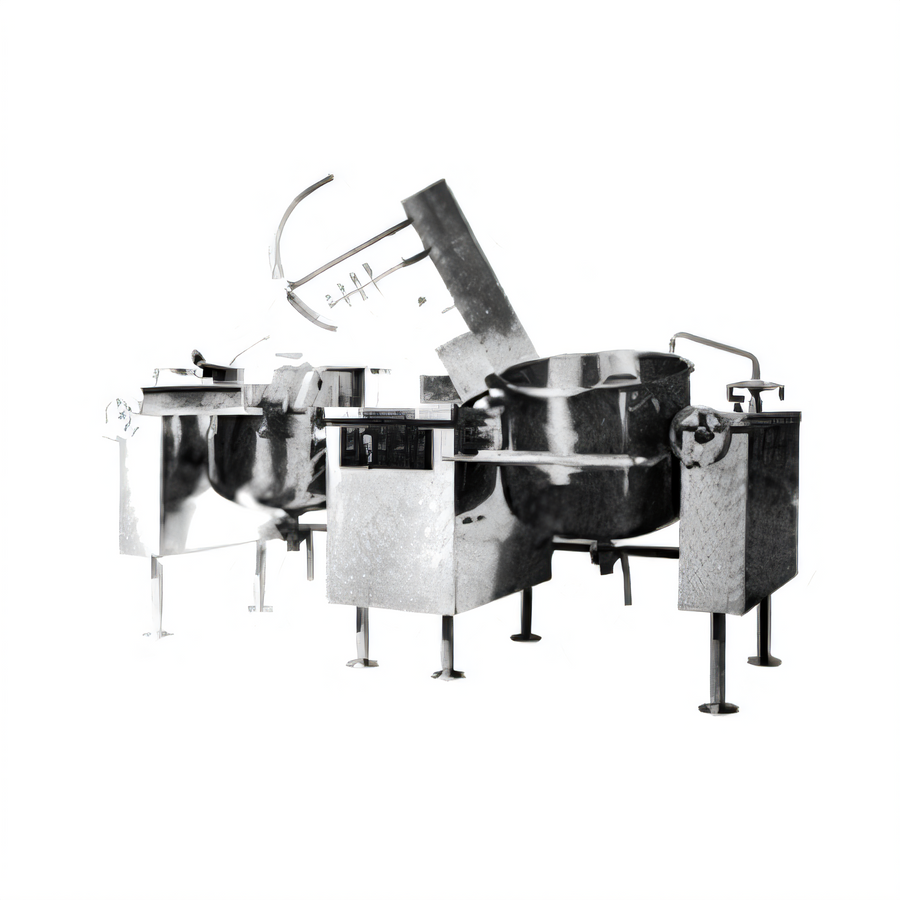

Southbend Steam Direct Steam Twin Tilting Mixer Kettle, 2 x 40-Gallon, Power Tilt
Southbend Steam Direct Steam Twin Tilting Mixer Kettle, 2 x 40-Gallon, Power Tilt
Leg-Mounted, 316 Stainless Steel Liner, 2/3 Jacket, 5 HP Variable-Speed Mixer
This direct steam twin 40-gallon kettle system combines high-volume capacity, efficient heating, and a powerful variable-speed mixer to streamline demanding batch production.
- Two 40-gallon kettles let you handle large-volume prep in a single floor-mounted unit.
- Direct steam operation and a 2/3 jacketed design support efficient, even heat transfer.
- 316 stainless steel liners are suited for high-acid products, while 304 stainless steel construction adds durability.
- Power tilt mechanism tilts each kettle forward 90° and self-locks for controlled emptying.
- A 5 HP variable-speed mixer delivers flexible mixing performance for a range of recipes.
- Includes two removable agitators and a swing-away bridge for easier cleaning and access.
Overall Dimensions:
102.0"W x 56.0"D x 75.63"HProduct Weight:

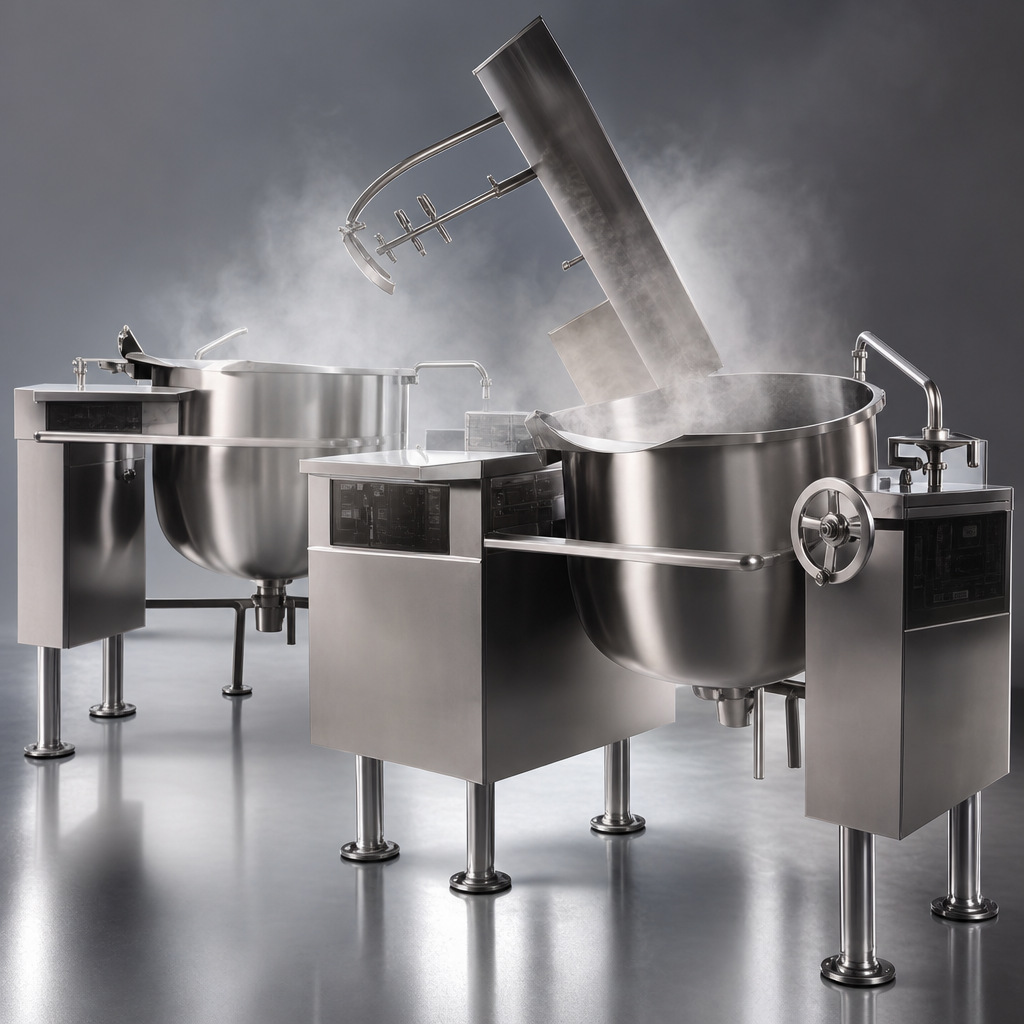

1360.0 lbDirect Steam Operation
Runs on direct steam at 5 to 30 PSI for high-output batch cooking.

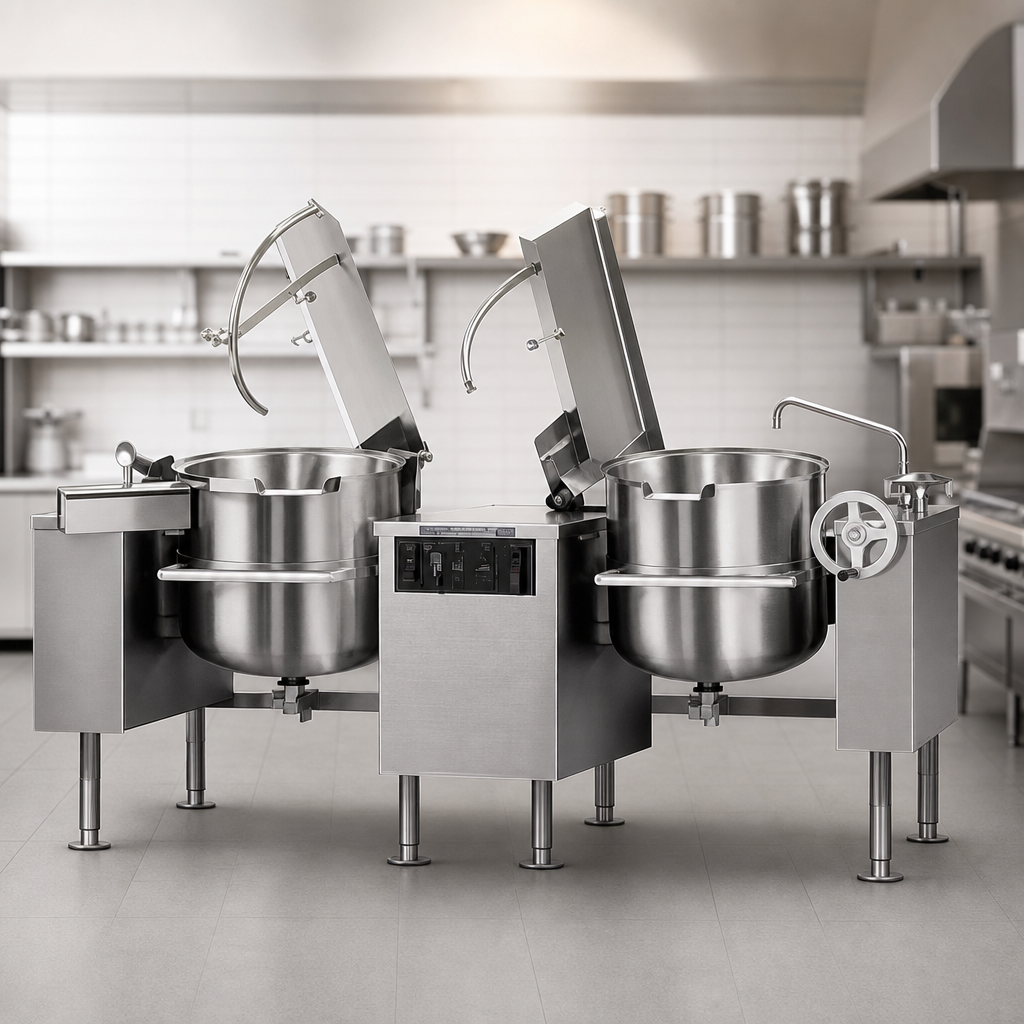

Twin 40-Gallon Kettles
Two large-capacity kettles provide significant volume for soups, sauces, and other bulk prep.
2/3 Jacketed Kettle Design
The lower 2/3 steam jacket and hemispheric bottom promote efficient heat transfer.
316 Stainless Steel Liner
The liner is designed for high-acid products and improved corrosion resistance.
Power Tilt with Self-Locking Stop
Each kettle tilts forward a full 90° for complete emptying and secure control.
5 HP Variable-Speed Mixer with Swing-Away Bridge
A hydraulic-pump-driven mixer provides variable speed control, and the 10-gauge bridge swings 140° out of the way for tilting or cleaning.
Two Removable Agitators Included
Comes with a primary stainless steel scraper/agitator and a secondary high-speed mixer, both removable without tools.
304 Stainless Steel Open-Leg Frame
Welded 304 stainless steel construction, tubular legs, adjustable flanged feet, and a floor-mounted control console support secure installation.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty.
