Southbend (Middleby)

80 Gallon Direct Steam Tilting Kettle with Manual Crank Tilt

SKU: KDLT-80
$17,108.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Cooking Equipment Equipment New Arrivals Restaurant Equipment Southbend (Middleby) Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

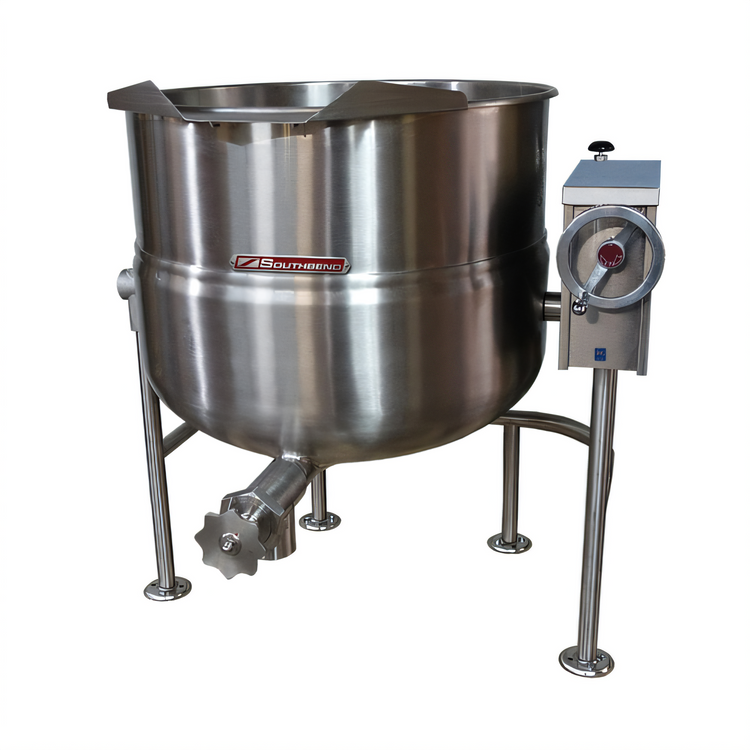

80 Gallon Direct Steam Tilting Kettle with Manual Crank Tilt

2/3 Jacket, 316 Stainless Steel Liner, 304 Stainless Steel Exterior

This heavy-duty 80-gallon direct steam kettle is built for high-volume production with controlled manual crank tilting and durable stainless steel construction.

  • 80-gallon capacity supports batch cooking in busy commercial kitchens.
  • Direct steam heating and a 2/3 jacket help deliver efficient, even heat transfer.
  • Manual crank tilt with self-locking positive stop gives the operator controlled pouring.
  • 316 stainless steel interior liner improves corrosion resistance and durability.
  • 304 stainless steel exterior stands up to daily kitchen wear.
  • Console and quad-leg base with adjustable flanged feet provide stable floor-mounted support.
  • Faucet bracket adds convenient support for installation or workflow setup.

Overall Dimensions:

46.75"W x 37.75"D x 42.5"H

Product Weight:

424.0 lb

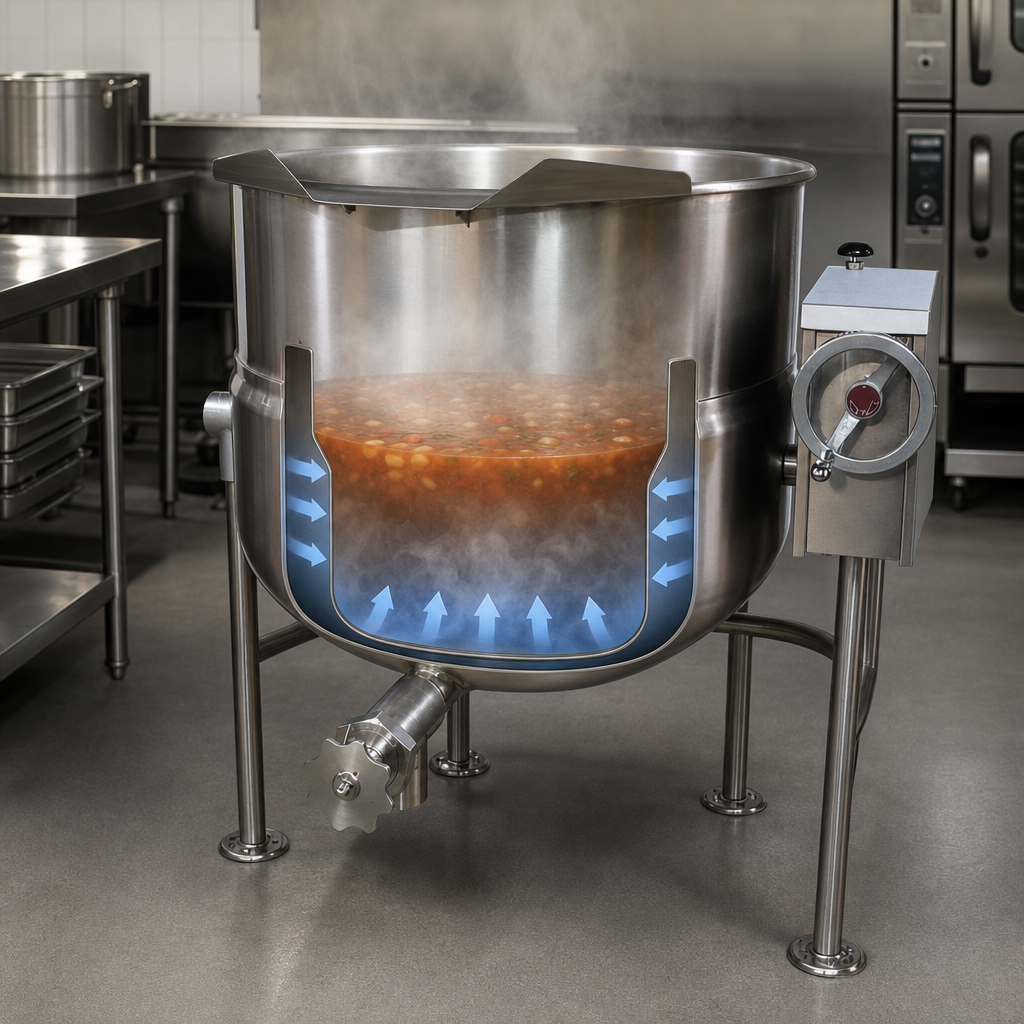

Direct Steam Heating

Uses direct steam for efficient heat transfer in high-volume kettle cooking.

Direct Steam Heating

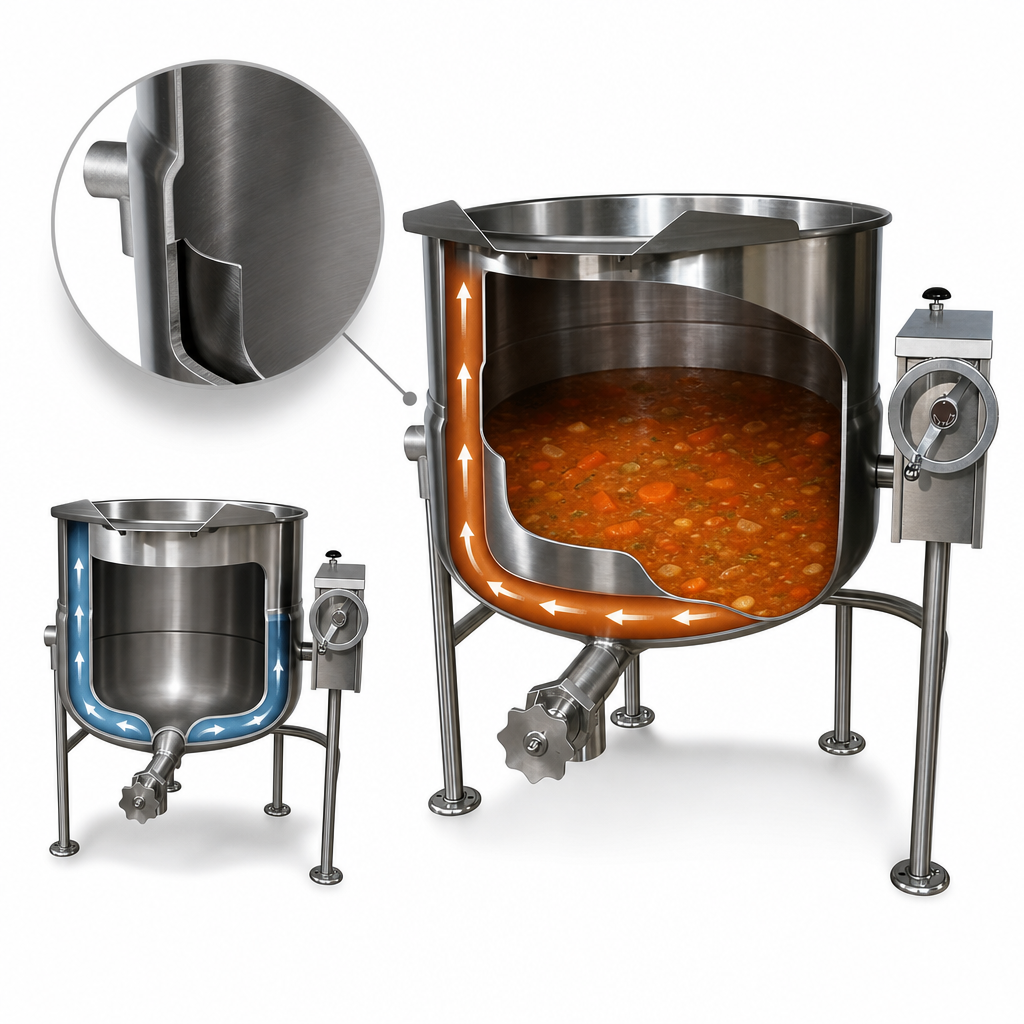

2/3 Jacket Design

Partial-jacket construction helps distribute steam around the kettle for even heating.

2/3 Jacket Design

Manual Crank Tilt

Crank tilt mechanism allows controlled emptying and pouring.

Self-Locking Positive Stop

Helps hold the kettle in position during tilting for safer operation.

316 Stainless Steel Interior Liner

Corrosion-resistant interior liner built for demanding foodservice use.

304 Stainless Steel Exterior

Durable stainless steel exterior designed for long-term commercial kitchen performance.

Console and Quad-Leg Base

Floor-style support structure with adjustable flanged feet for stability.

Faucet Bracket

Includes a faucet bracket to support convenient installation or workflow needs.

Type Steam Kettle
Style Tilting
Installation Type Floor Model
Capacity 80 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Shipping Width 47 Inches
Shipping Depth 38 Inches
Shipping Height 43 Inches
Shipping Weight 424 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and 1 year labor.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The kettle has an 80-gallon capacity.
It uses a manual crank tilt with a self-locking positive stop.
The kettle has a 316 stainless steel interior liner and a 304 stainless steel exterior.
Yes, this model is a direct steam tilting kettle with a 2/3 jacket.
It uses a console and quad-leg base with adjustable flanged feet.
Southbend's limited warranty covers one year of parts and one year of labor from the original purchase date, with additional published limits and service conditions.
