Southbend (Middleby)

Southbend Steam 40 Gallon Direct Steam Full-Jacketed Manual Crank Tilting Kettle

SKU: KDLT-40F
$23,282.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Southbend (Middleby) Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

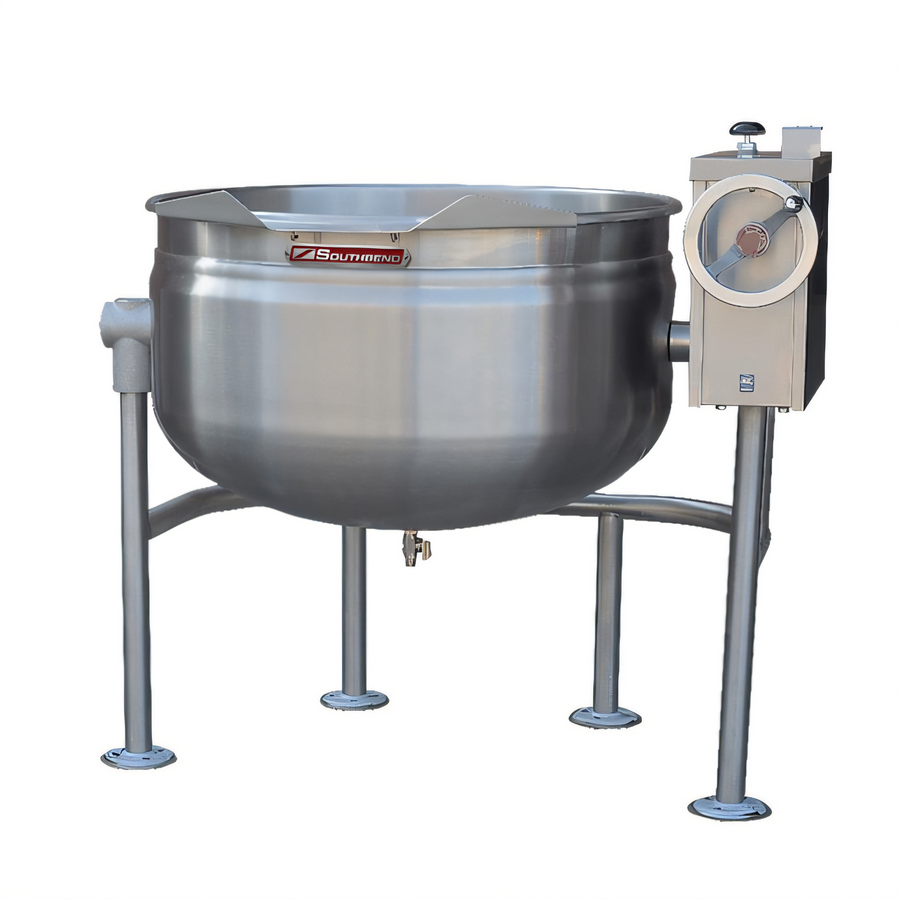

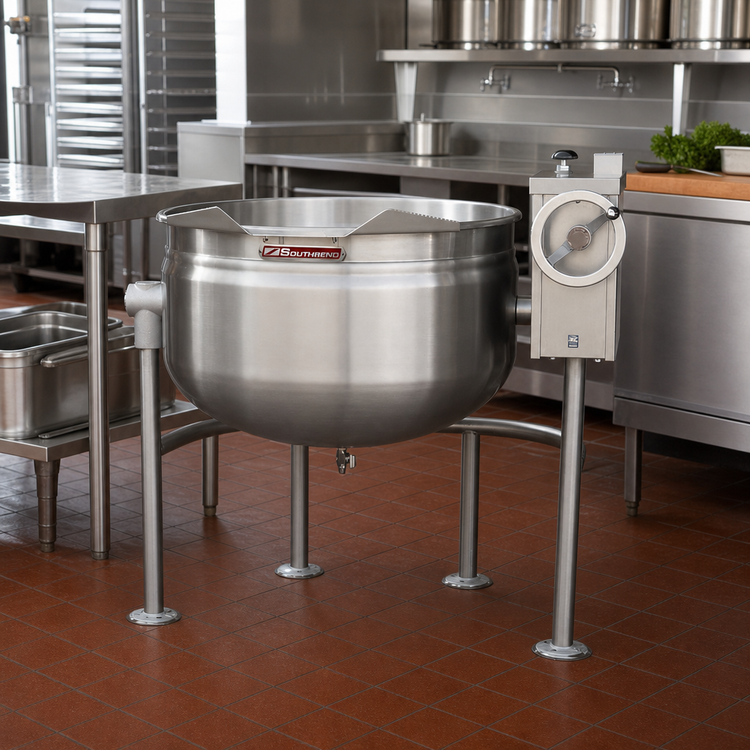

Southbend Steam 40 Gallon Direct Steam Full-Jacketed Manual Crank Tilting Kettle

316 Stainless Steel Liner, 304 Stainless Steel Exterior, Floor Model

Built for large-batch soups, sauces, and stocks, this 40-gallon direct steam kettle combines even heating with a safe manual crank tilt.

  • 40-gallon capacity supports high-volume batch cooking.
  • Direct steam, full-jacketed construction promotes even, consistent heating.
  • Manual crank tilt with a self-locking positive stop helps control emptying.
  • 316 stainless steel liner is well suited for high-acid recipes.
  • 304 stainless steel exterior and tubular leg base provide durable floor-mounted support.

Overall Dimensions:

39.75"W x 34.75"D x 37.0"H

Product Weight:

396.0 lb

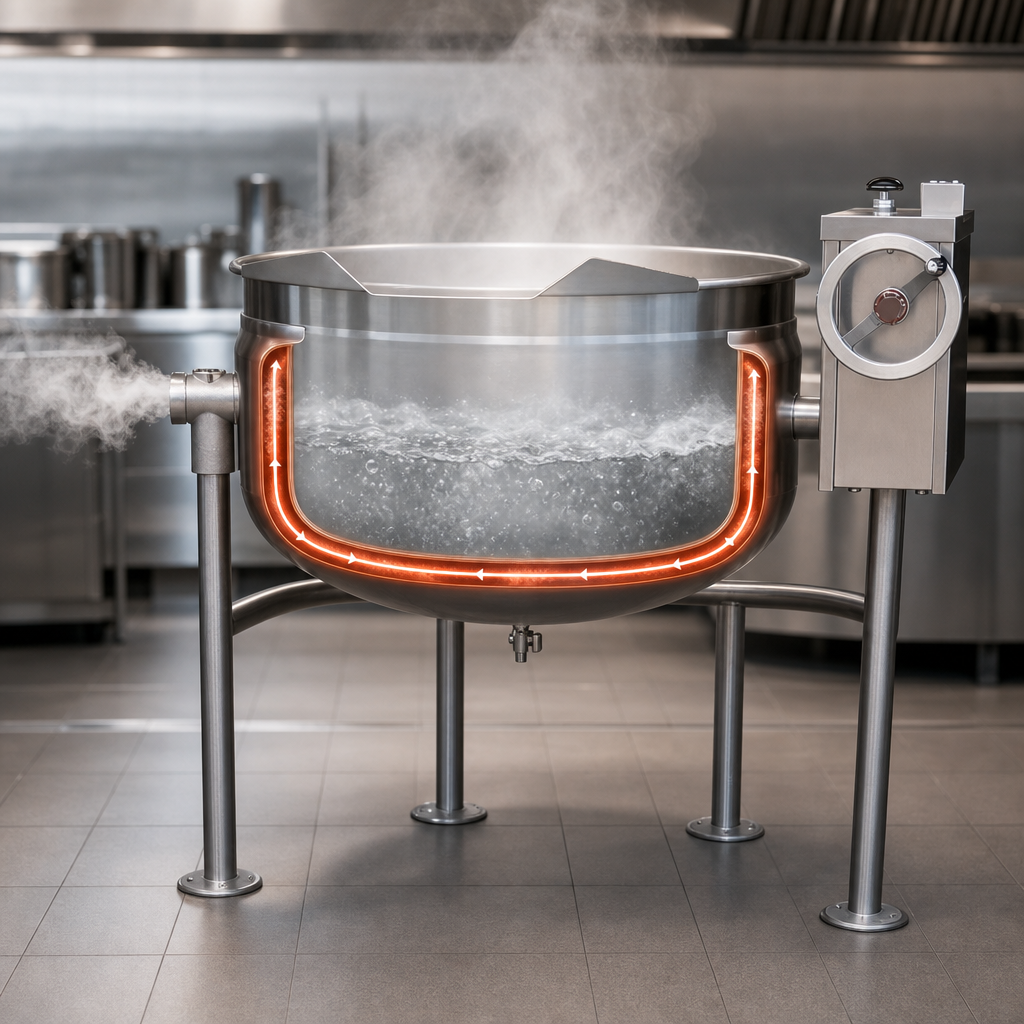

Direct Steam Operation

Uses direct steam at 5 to 30 PSI for responsive, even heat transfer.

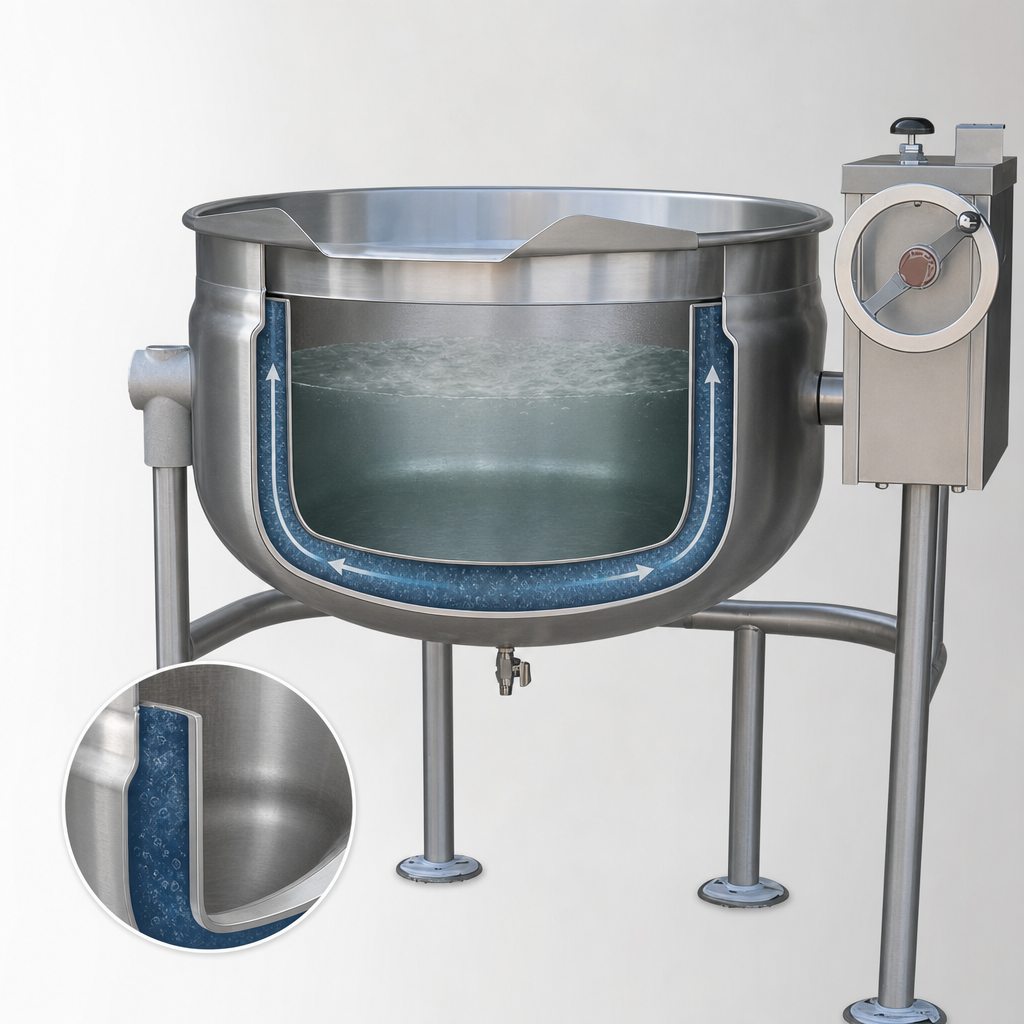

Full-Jacketed Construction

The double-wall kettle interior forms a steam jacket around the cooking chamber for consistent heating.

Manual Crank Tilt

Tilts forward a full 90 degrees and includes a self-locking positive stop for controlled emptying.

316 Stainless Steel Liner

Standard interior liner is 316 stainless steel for high-acid cooking applications.

304 Stainless Steel Exterior

All-welded #4 finish 304 stainless steel construction supports long-term durability.

Hemispherical Bottom

Bottom design helps improve heat circulation.

Stainless Steel Leg Support

Stainless steel tubular legs with adjustable flanged feet help secure the floor-mounted unit.

Standard Faucet Bracket

Includes a standard bracket for optional faucet installation.

Capacity 40 Gallons
Type Steam Kettle
Style Full Jacketed
Installation Type Floor Model
Base Tri-Leg
Tilt Mechanism Manual Crank
Steam Pressure 5 to 30 PSI
Steam Supply Connection 3/4 Inch IPS
Condensate Return Connection 1/2 Inch IPS
Faucet Connection 1/4 Inch IPS
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Finish #4 Finish
Selling Unit Each
Units Per Case 1
Shipping Width 40 Inches
Shipping Depth 35 Inches
Shipping Height 37 Inches
Shipping Weight 396 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and 1 year labor from date of original purchase.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has a 40-gallon capacity.
It uses a manual crank tilt with a self-locking positive stop and tilts forward a full 90 degrees.
The kettle has a 316 stainless steel interior liner and a 304 stainless steel exterior.
It operates with direct steam at a minimum of 5 PSI and a maximum of 30 PSI.
Service connections include a 3/4 inch IPS steam supply, 1/2 inch IPS condensate return, and 1/4 inch IPS faucet connection.
Optional accessories include draw-off valves, covers, basket assemblies, faucets, measuring strips, a strainer hook, a pan carrier, and a kettle heat shield.
