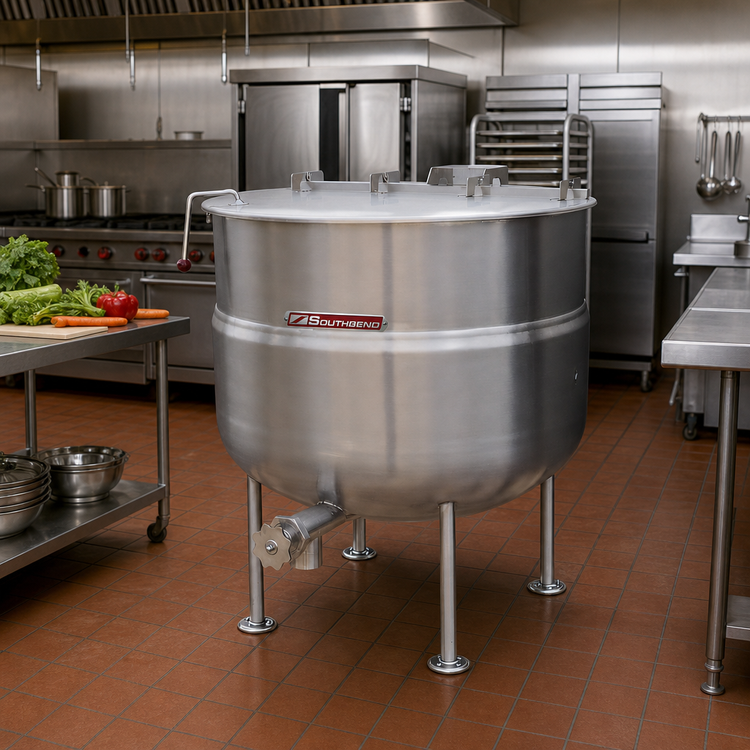

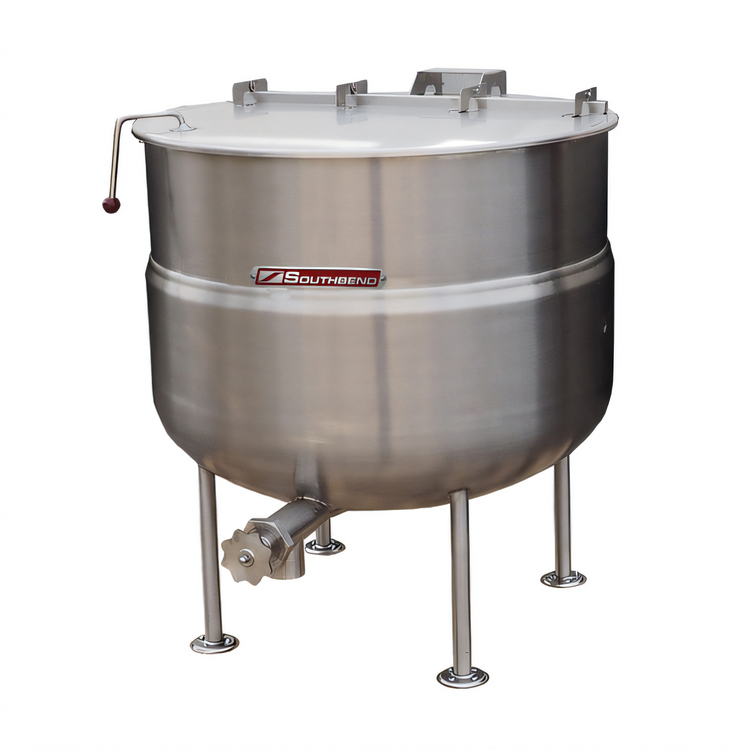

Southbend Steam KDLS-150 Stationary Direct Steam Quad-Leg Kettle, 150 Gallon Capacity
Southbend Steam KDLS-150 Stationary Direct Steam Quad-Leg Kettle, 150 Gallon Capacity
2/3 Jacket, 2-Inch Draw-Off, 316 Stainless Steel Interior
Built for high-volume batch cooking, this 150-gallon direct steam kettle combines even heat circulation, rugged stainless steel construction, and a stable floor-mounted quad-leg base.
- 150-gallon stationary direct steam kettle for large-volume production.
- Lower 2/3 steam jacket and hemispherical bottom promote efficient, even heating.
- 316 stainless steel interior liner and 304 stainless steel exterior for long-lasting durability.
- Includes a 2-inch sanitary draw-off valve with perforated strainer and a hinged split stainless steel cover.
- Quad-leg base with adjustable flanged feet helps secure the kettle to the floor.
- Optional high-pressure operation and other add-on accessories are available.
Overall Dimensions:
44.0"W x 44.0"D x 48.0"HProduct Weight:

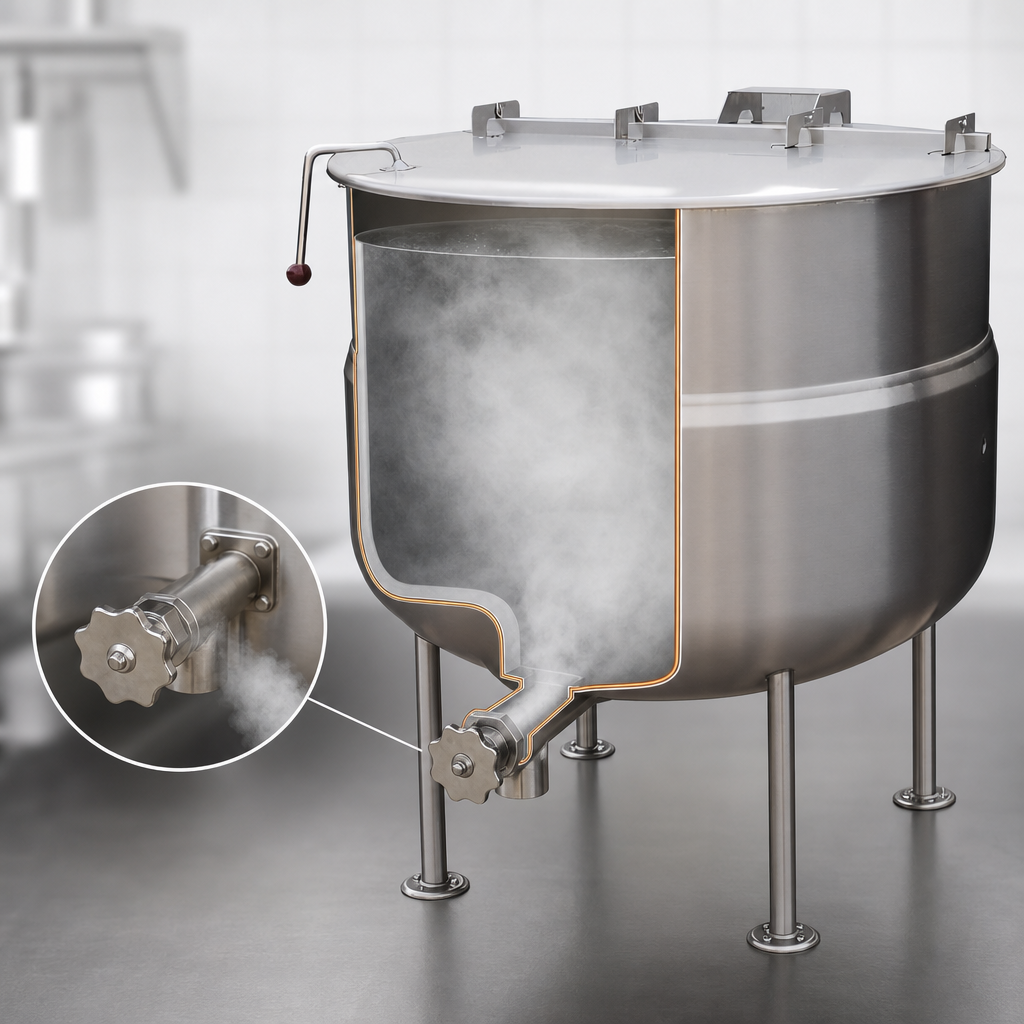

465.0 lbDirect Steam Operation
Designed for direct steam service with a standard operating range of 5 to 20 PSI.

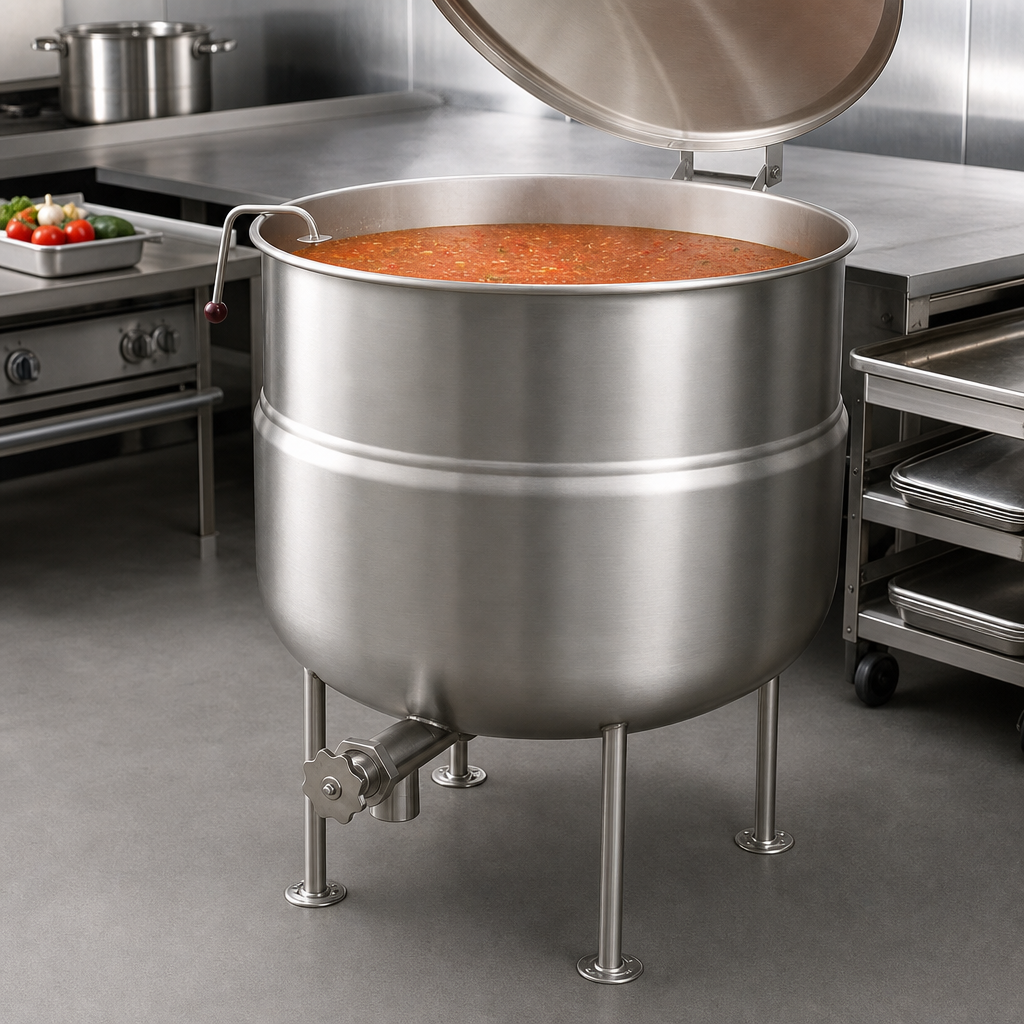

150-Gallon Capacity
Large-capacity kettle sized for high-volume soup, sauce, and batch cooking production.
2/3 Steam Jacket
Double-wall construction forms a steam jacket around the lower two-thirds of the kettle for efficient heat transfer.
Hemispherical Bottom
Bottom design supports superior heat circulation and more even cooking performance.
316 Stainless Steel Interior Liner
Corrosion-resistant food-contact interior built for durability in commercial kitchens.
304 Stainless Steel Exterior
All-welded satin-finish stainless steel exterior provides a rugged, professional build.
Quad-Leg Floor Mount
Mounted on four stainless steel tubular legs with adjustable flanged feet for floor securing.
2-Inch Sanitary Draw-Off Valve
Standard draw-off includes a perforated strainer for controlled product discharge.
Included Split Cover
Hinged flat split stainless steel cover is included for easier access and heat retention.
Optional High-Pressure Operation
35 PSI high-pressure operation is available at additional cost for higher cooking temperature.
Service Connections
Steam supply is 3/4-inch IPS; condensate return is 1/2-inch IPS; optional cold water fill faucet connection is also listed.
Certifications & Compliance
Warranty & Protection
1 year parts and labor
