Southbend (Middleby)

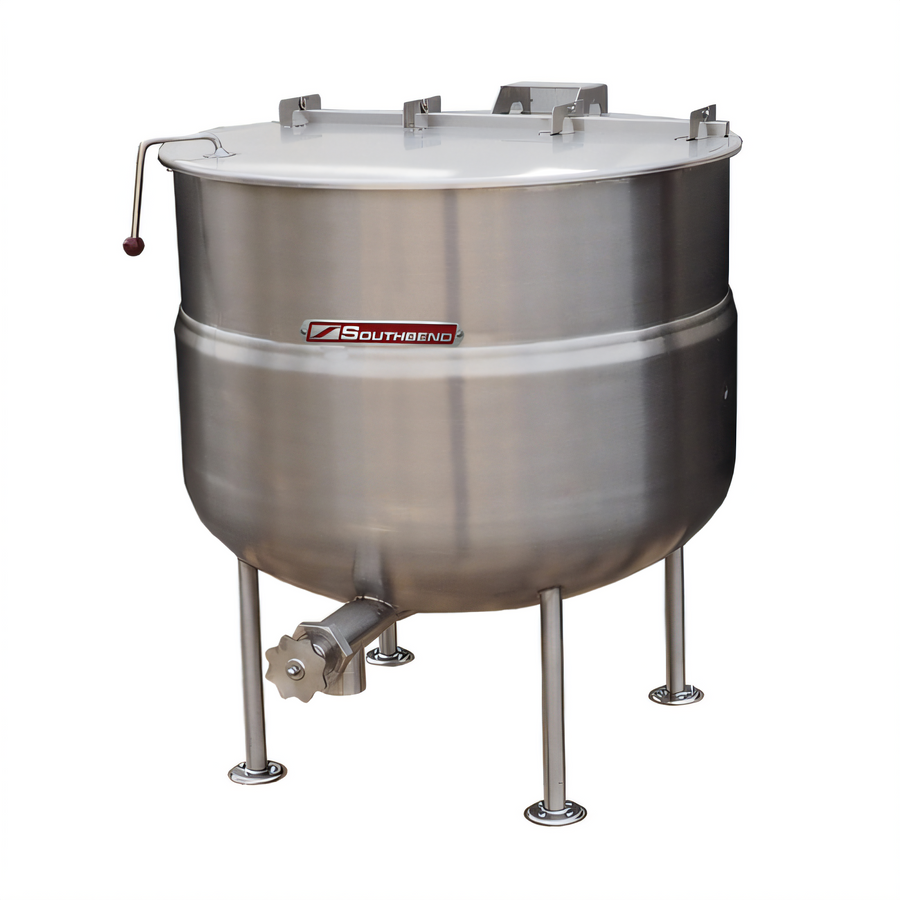

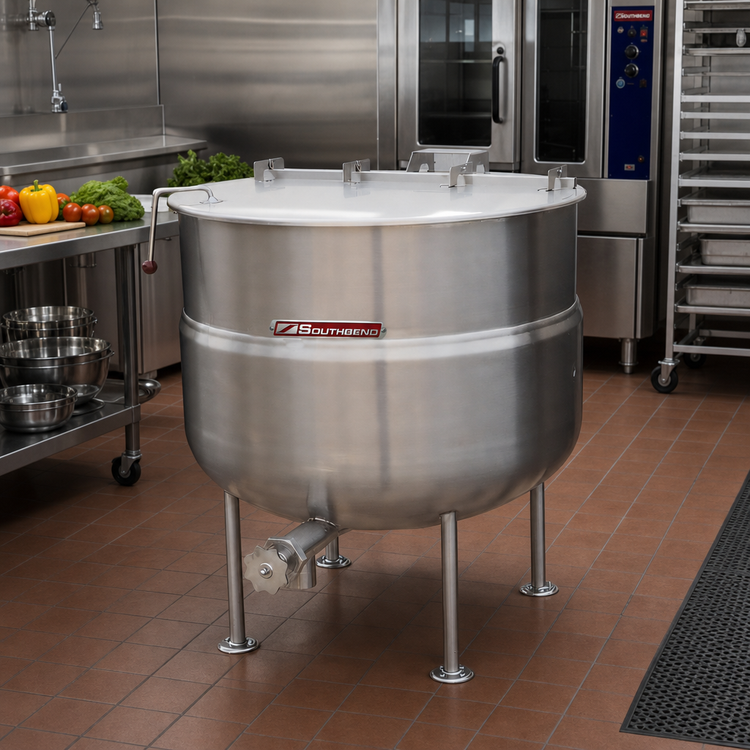

Southbend Steam KDLS-125 125-Gallon Direct Steam Quad-Leg Stationary Kettle

SKU: KDLS-125
$31,274.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Cooking Equipment Equipment New Arrivals Restaurant Equipment Southbend (Middleby) Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Southbend Steam KDLS-125 125-Gallon Direct Steam Quad-Leg Stationary Kettle

2/3 Jacket, 316 Stainless Steel Interior, 304 Stainless Steel Exterior

Built for high-volume batch cooking, this 125-gallon direct steam kettle combines even heat, durable stainless steel construction, and a convenient draw-off design.

  • 125-gallon capacity is ideal for large batch production in commercial kitchens.
  • Direct steam operation is designed for efficient cooking with a 5 to 20 PSI supply range.
  • 2/3 steam jacket and hemispherical bottom help promote even heat circulation.
  • 316 stainless steel interior liner and 304 stainless steel exterior offer durable construction.
  • Includes a 2" sanitary draw-off valve with perforated strainer and a hinged split stainless steel cover.
  • Quad-leg stationary base mounts securely on four stainless steel tubular legs with adjustable flanged feet.

Overall Dimensions:

44.0"W x 44.0"D x 43.75"H

Product Weight:

425.0 lb

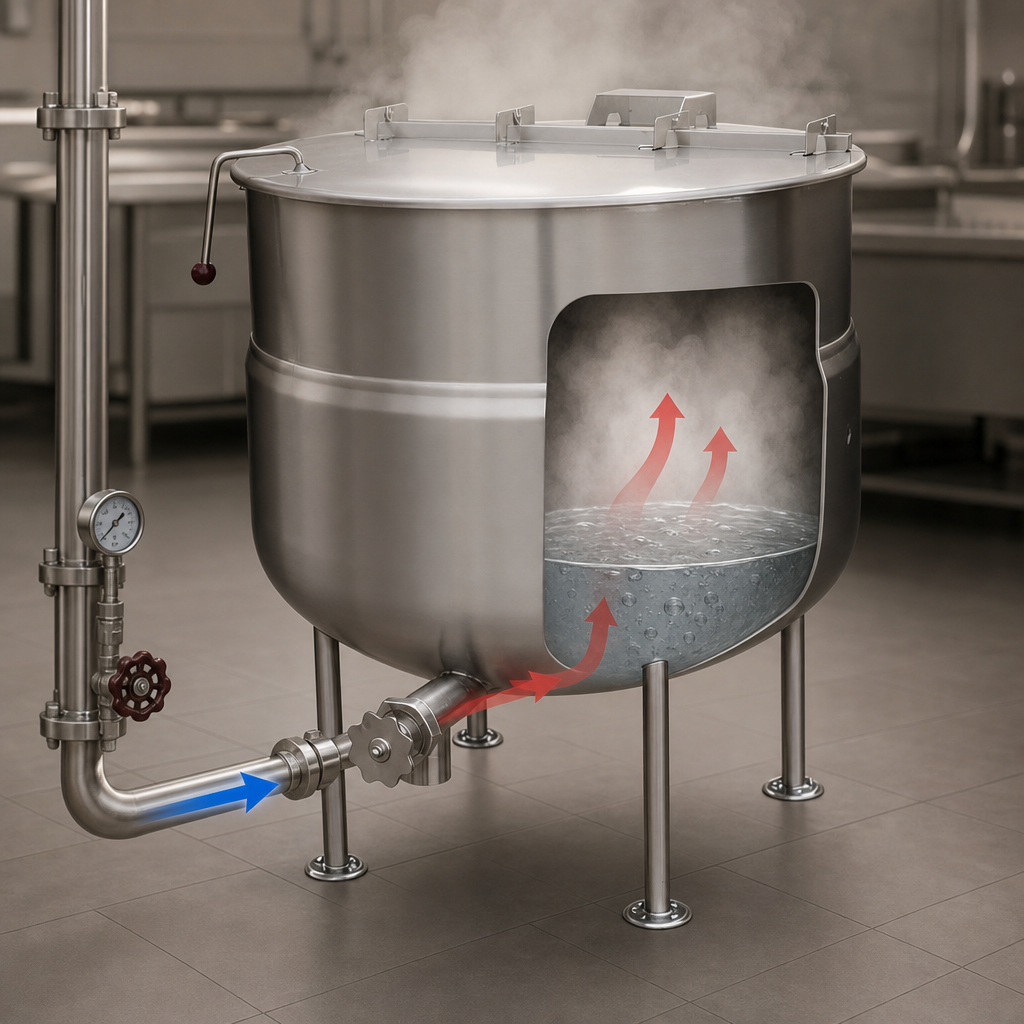

Direct Steam Operation

Designed for direct steam supply with a minimum of 5 PSI and a maximum of 20 PSI.

Direct Steam Operation

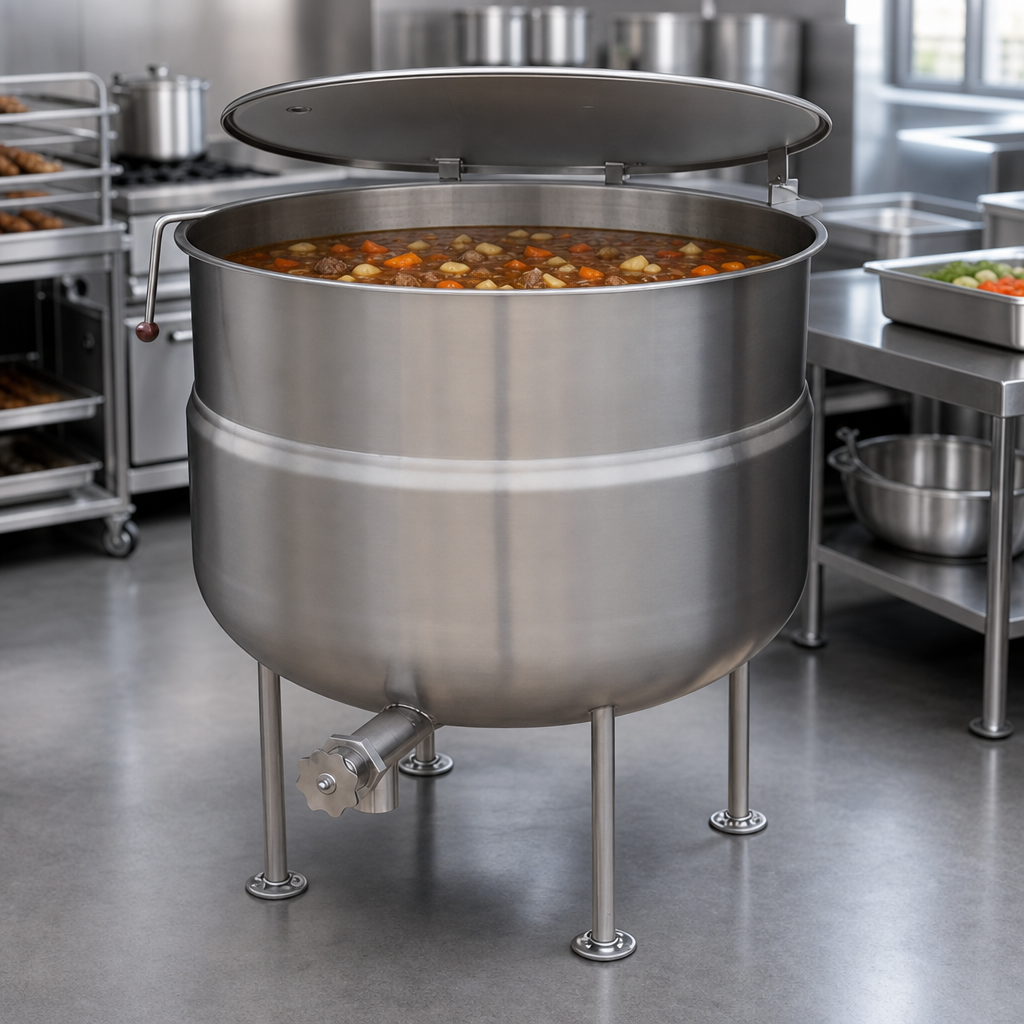

125-Gallon Capacity

Large-capacity kettle suited for high-volume batch cooking and production.

125-Gallon Capacity

2/3 Steam Jacket

Steam jacket surrounds the lower two-thirds of the kettle for efficient heat transfer.

Hemispherical Bottom

Bottom shape helps improve heat circulation for more even cooking performance.

Stainless Steel Construction

Built with a 304 stainless steel exterior and a 316 stainless steel interior liner.

Sanitary Draw-Off Valve

Includes a 2" draw-off valve with perforated strainer for controlled draining.

Split Hinged Cover

Hinged flat split stainless steel cover helps retain heat and keep contents covered.

Quad-Leg Floor Base

Mounted on four stainless steel tubular legs with adjustable flanged feet for secure floor installation.

Type Direct Steam Kettle
Style Quad-Leg
Installation Type Floor Model
Capacity 125 Gallons
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Finish Satin Finish
Steam Pressure Range 5 to 20 PSI
Steam Connection Size 3/4 Inch IPS
Condensate Return Connection Size 1/2 Inch IPS
Selling Unit Each
Units Per Case 1
Shipping Width 44 Inches
Shipping Depth 44 Inches
Shipping Height 44 Inches
Shipping Weight 425 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and 1-year labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The KDLS-125 has a capacity of 125 gallons (473 liters).
It operates on direct steam with a minimum of 5 PSI and a maximum of 20 PSI.
It has a 304 stainless steel exterior and a 316 stainless steel interior liner.
Standard features include a 2" sanitary draw-off valve with perforated strainer, a hinged flat split stainless steel cover, and four stainless steel tubular legs with adjustable flanged feet.
It is a stationary quad-leg kettle designed as a floor model and secured with flanged feet.
Southbend provides a limited warranty of one year parts and one year labor from the date of original purchase, with service performed by an authorized service agency.
