Southbend (Middleby)

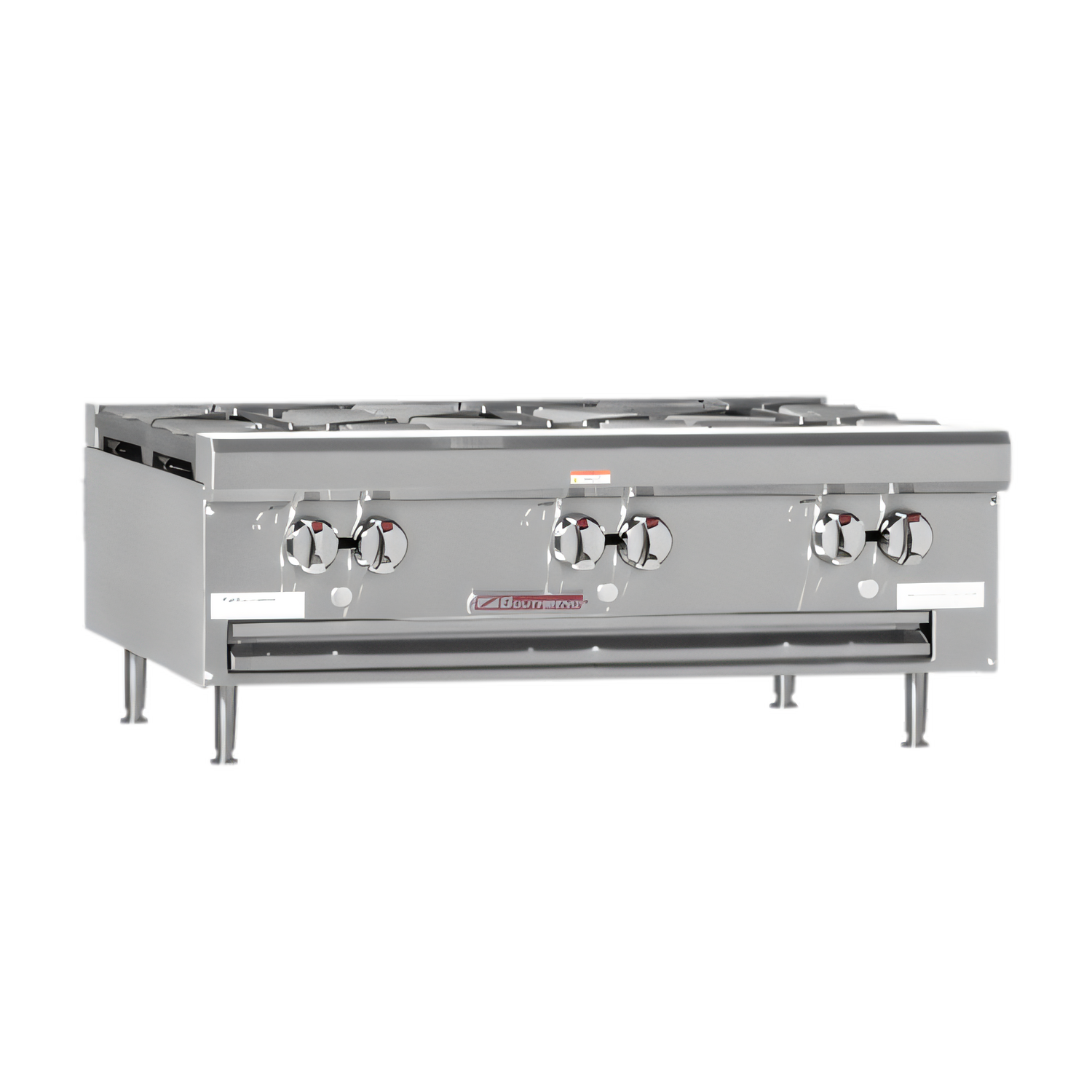

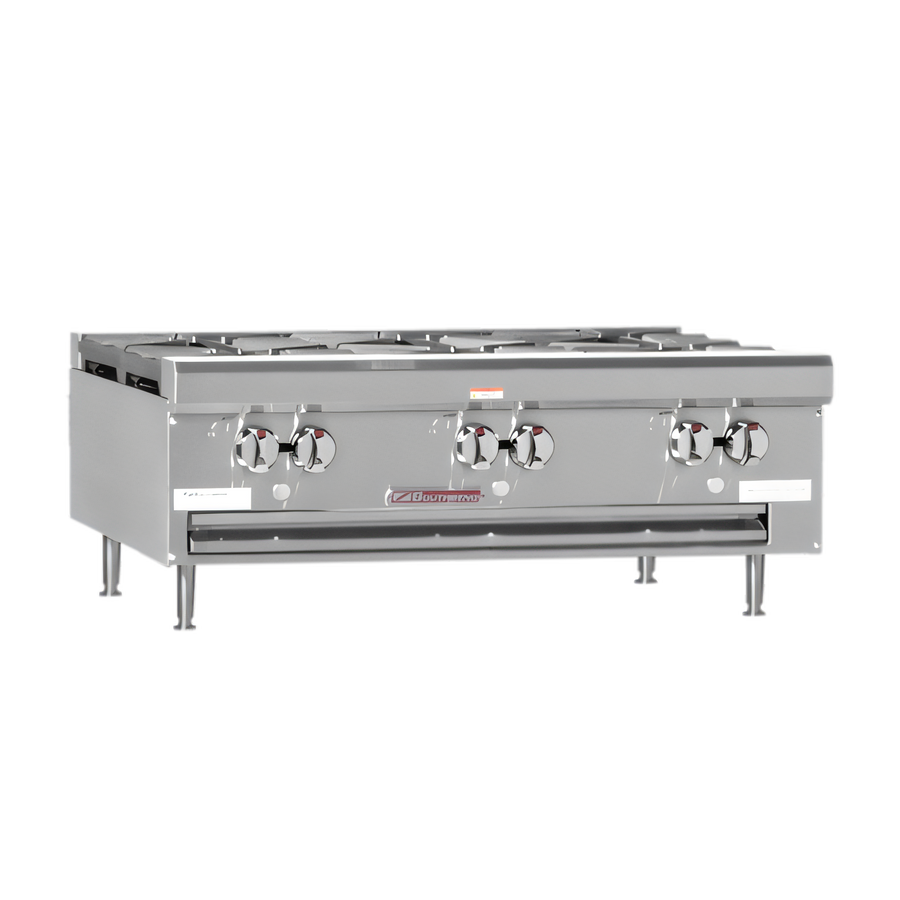

Southbend HDO-48SU 48-Inch Step-Up Gas Countertop Hot Plate with 4 Open Burners and 4 Step-Up Burners

SKU: HDO-48SU
$5,602.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Hot Plates Commercial Ranges Hot Plates New Arrivals Restaurant Equipment Southbend (Middleby)

Southbend HDO-48SU 48-Inch Step-Up Gas Countertop Hot Plate with 4 Open Burners and 4 Step-Up Burners

264,000 BTU, Stainless Steel Front and Sides, Manual Controls

Built for high-volume cooking, this 48-inch step-up hot plate combines eight powerful burners with a rugged stainless-steel build and easy-clean design.

  • Eight total burners: 4 open burners and 4 step-up open burners
  • 33,000 BTU per burner delivers 264,000 BTU total output
  • Manual hi/low controls provide independent flame adjustment
  • Stainless steel front and sides with removable cast iron grates
  • Full-width crumb tray and 4-inch adjustable stainless steel legs
  • 3/4-inch rear gas connection with pressure regulator included

Overall Dimensions:

48.0"W x 33.75"D x 11.0"H

Product Weight:

299.0 lb

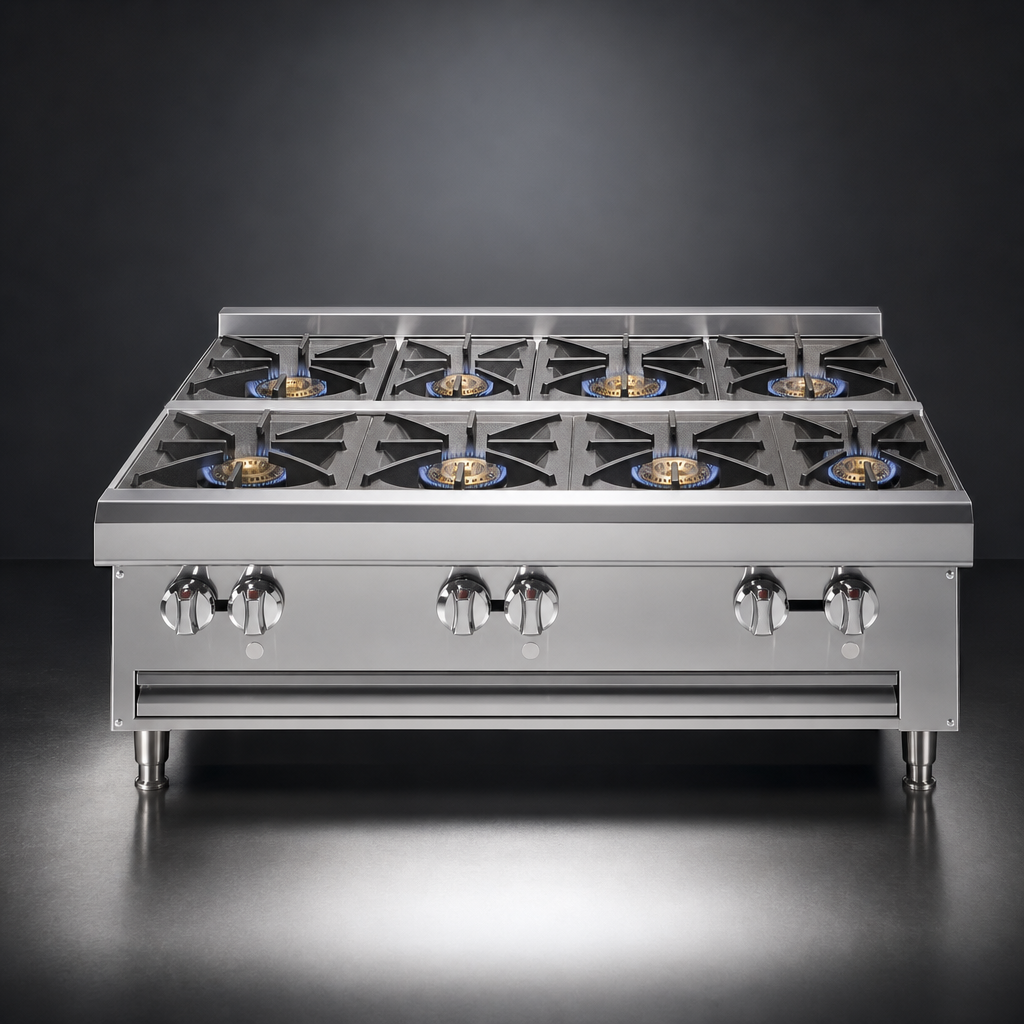

Step-Up Burner Layout

Four open burners and four step-up open burners provide flexible heat zones across the 48-inch top.

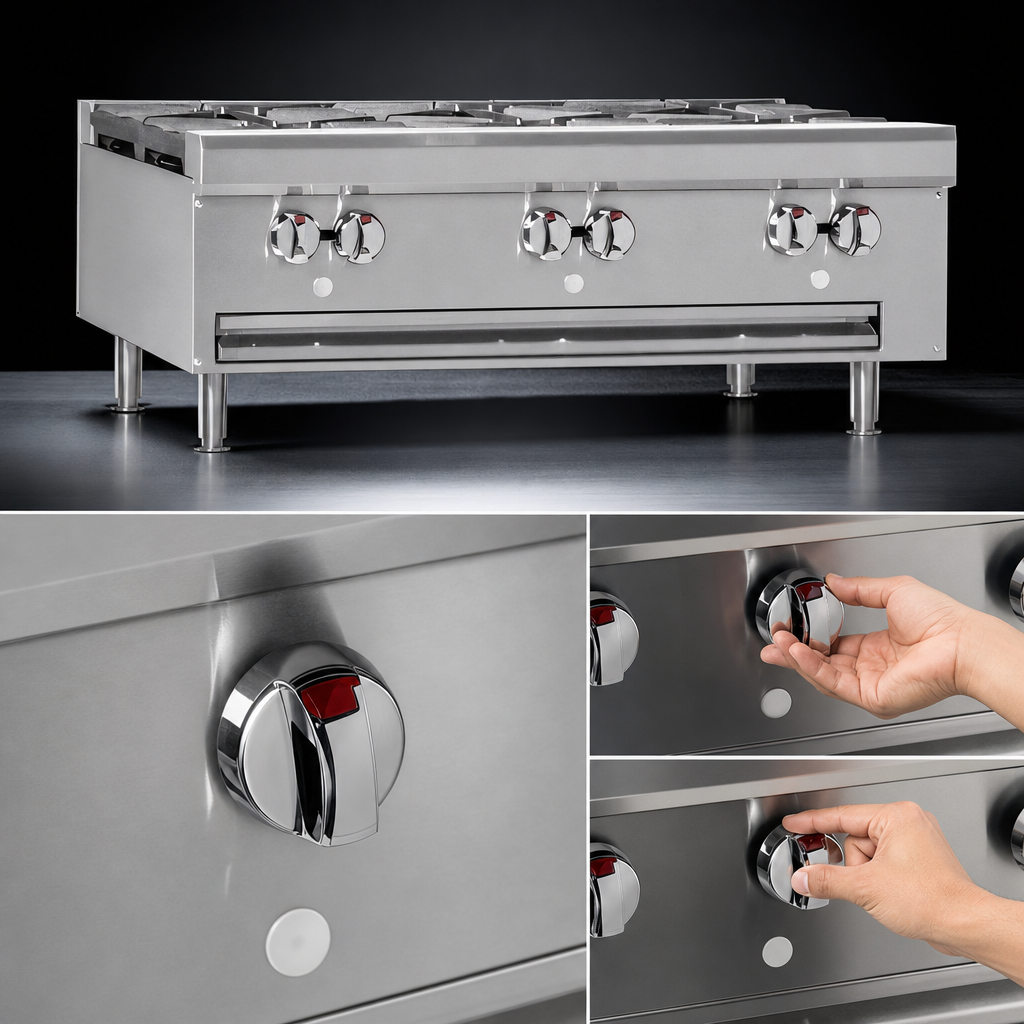

Manual Hi/Low Controls

Independent manual burner controls let operators fine-tune flame output for each burner.

Non-Clogging Cast Iron Burners

33,000 BTU cast iron burners are designed for dependable high-volume cooking performance.

Standing Pilot System

A standing pilot services each burner for reliable ignition and consistent operation.

Stainless Steel Construction

Stainless steel front and sides help resist wear and simplify cleanup in busy kitchens.

Removable Grates And Crumb Tray

Removable flush-top cast iron grates and the full-width stainless steel crumb tray make maintenance easier.

Adjustable 4-Inch Legs

Stainless steel adjustable legs help level the unit on a countertop and provide clearance underneath.

Rear Gas Connection

A 3/4-inch rear gas connection and pressure regulator support installation.

Type Hot Plate
Style Step-Up
Installation Type Countertop
Controls Manual Hi/Low
Burner Quantity 8
BTU 264,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch Rear NPT
Gas Inlet Pressure 7 Inches W.C.
Material Stainless Steel
Finish Stainless Steel
Country of Origin USA
Shipping Width 48 Inches
Shipping Depth 34 Inches
Shipping Height 11 Inches
Shipping Weight 299 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

One-year limited parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Hdo parts manual (post 7/6/2010) PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 8 total burners: 4 open burners and 4 step-up open burners.
The unit uses a 3/4-inch rear gas connection and includes a pressure regulator.
It uses manual hi/low burner controls for independent flame adjustment.
Minimum clearance from noncombustible construction is zero. For combustible construction, allow 10 inches on the sides and 6 inches on the rear. It should be installed under a vented hood.
The cut sheet lists a one-year limited parts and labor warranty from the date of original purchase.
