Southbend (Middleby)

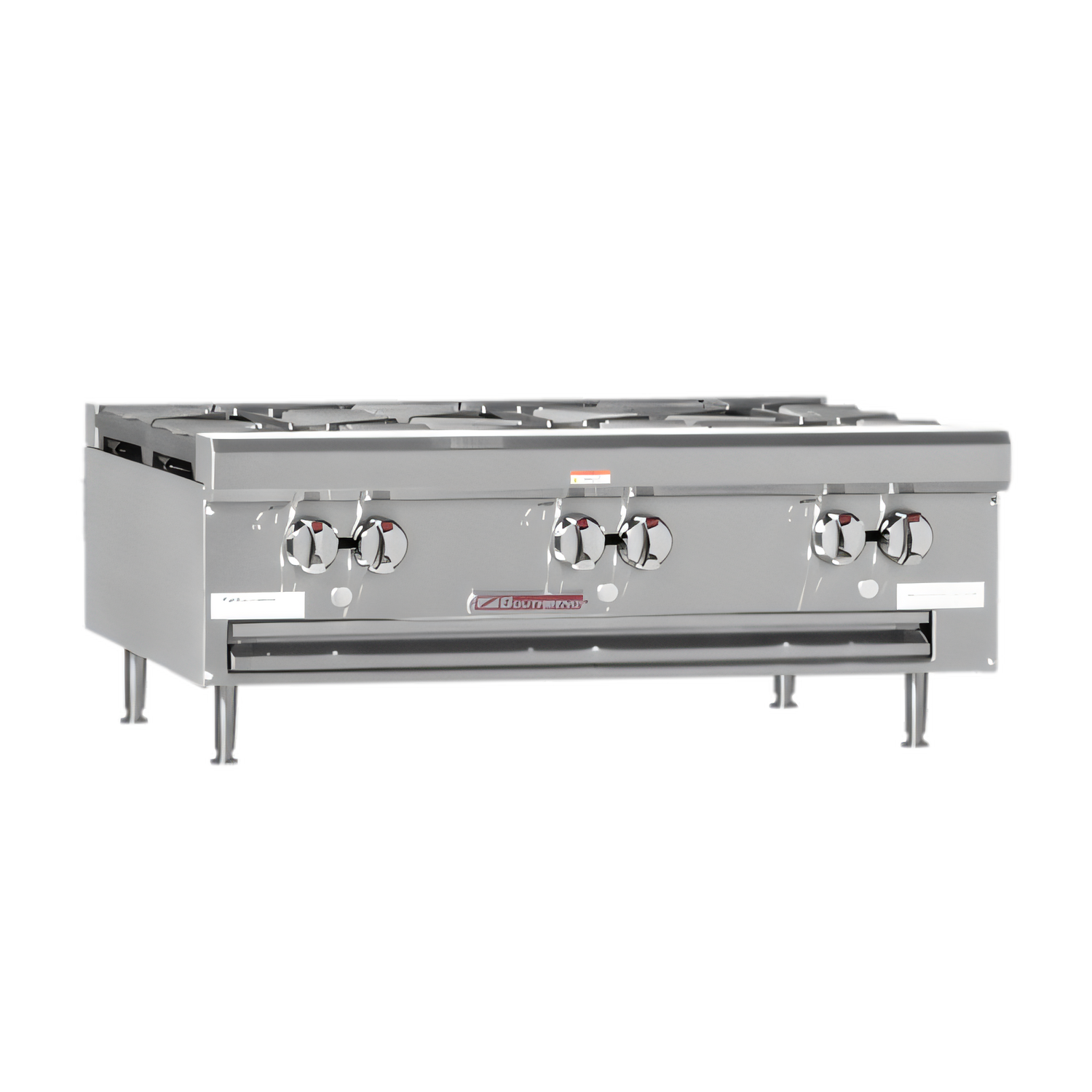

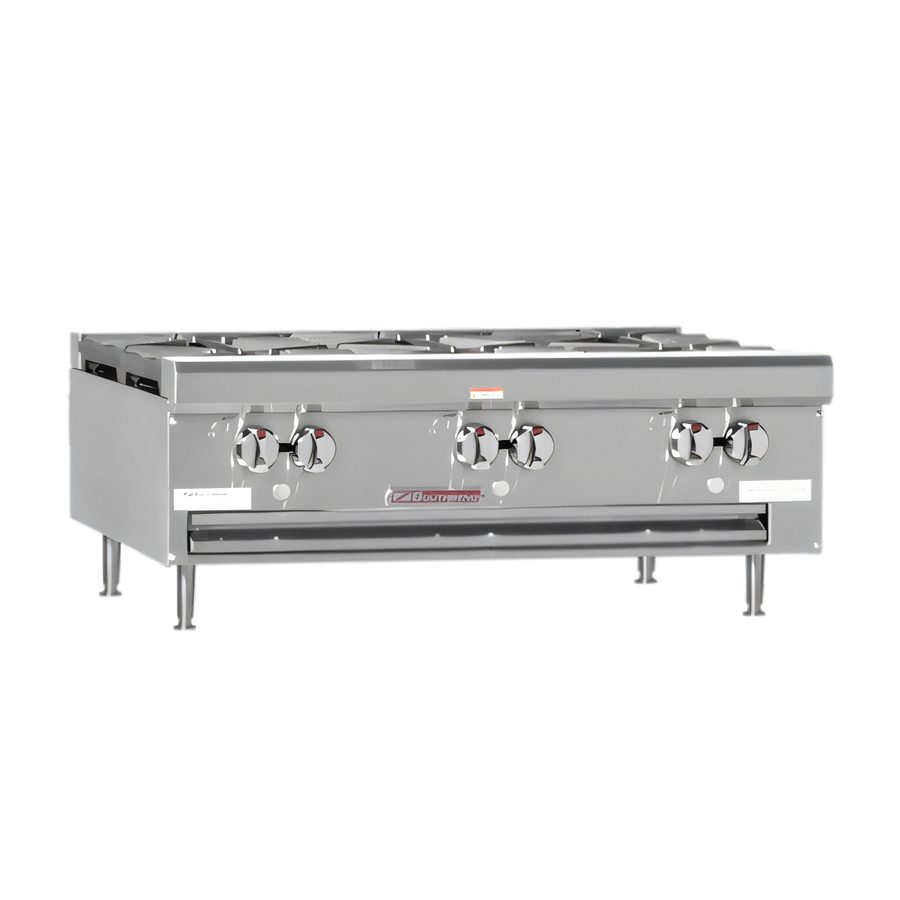

Southbend HDO-48 48-Inch Gas Countertop Hot Plate with 8 Open Burners

SKU: HDO-48
$4,140.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Hot Plates Commercial Ranges Hot Plates New Arrivals Restaurant Equipment Southbend (Middleby)

Southbend HDO-48 48-Inch Gas Countertop Hot Plate with 8 Open Burners

Manual controls, stainless steel front and sides, 4-inch adjustable legs

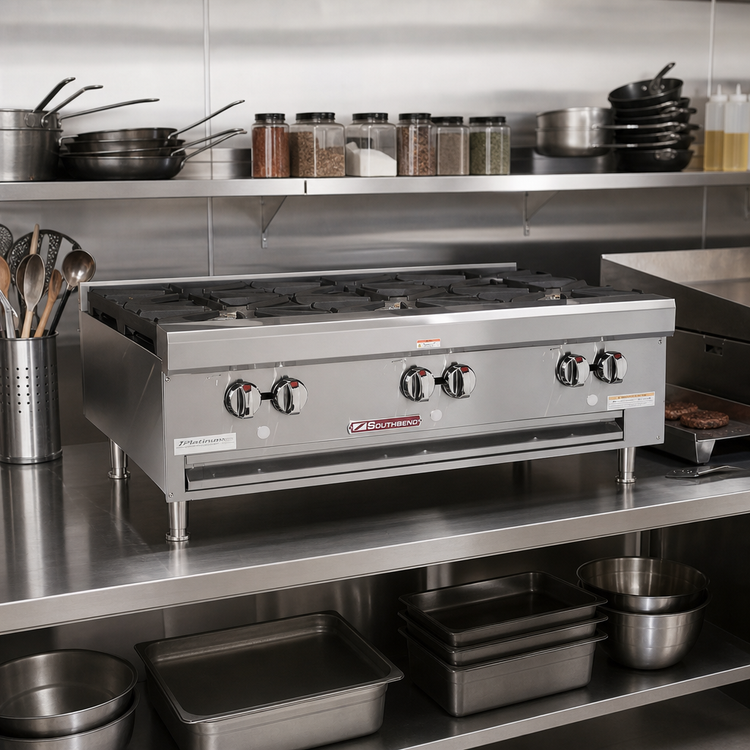

Built for high-volume kitchens, this 48-inch gas hot plate delivers eight high-output open burners in a durable countertop design.

  • 48-inch countertop hot plate with 8 open burners for fast, high-volume production.
  • Each burner provides 33,000 BTU on natural gas for powerful heat output.
  • Manual Hi/Low controls let operators adjust flame intensity at each burner.
  • Stainless steel front and sides, removable cast iron grates, and a full-width crumb tray simplify cleanup.
  • 3/4-inch rear gas connection with pressure regulator supports straightforward installation under a vented hood.

Overall Dimensions:

48.0"W x 33.75"D x 11.0"H

Product Weight:

299.0 lb

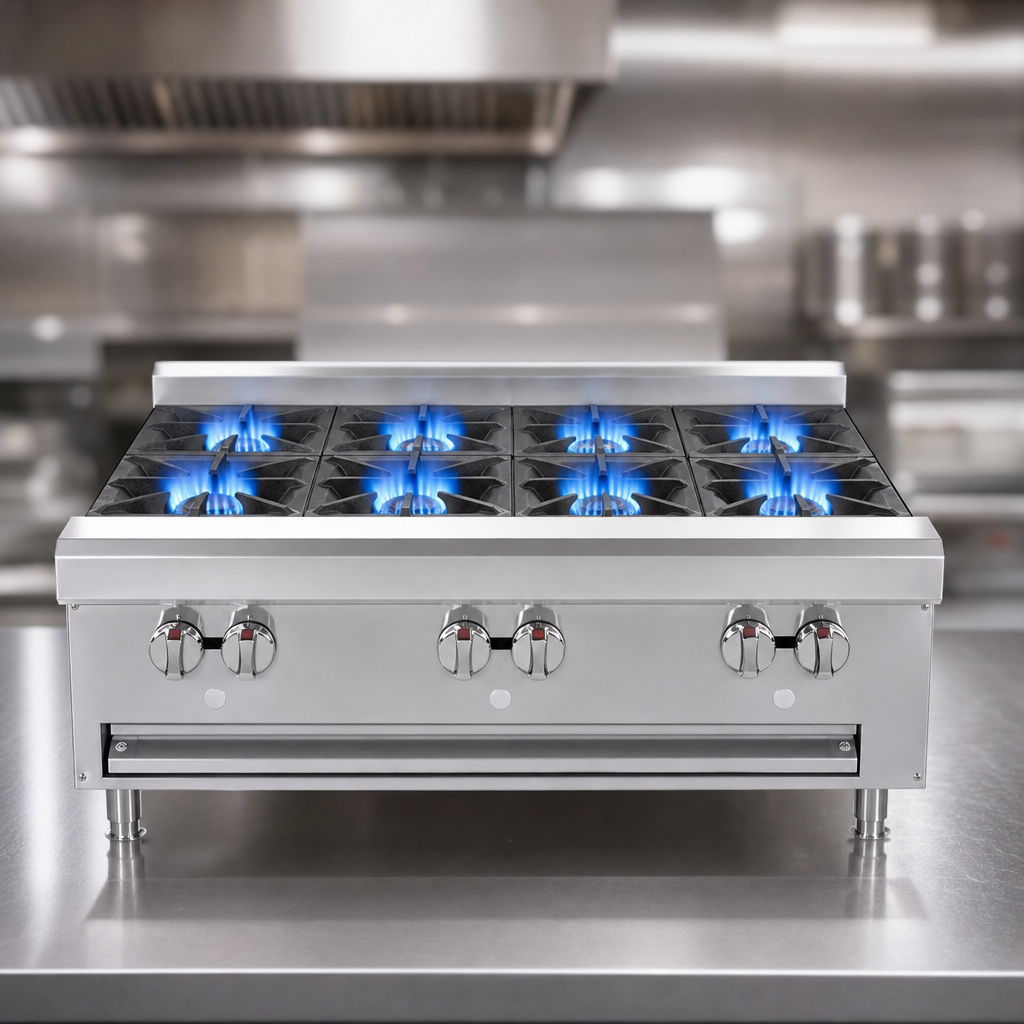

Eight Open Burners

Eight 33,000 BTU open burners provide strong, evenly distributed heat across the cooking surface.

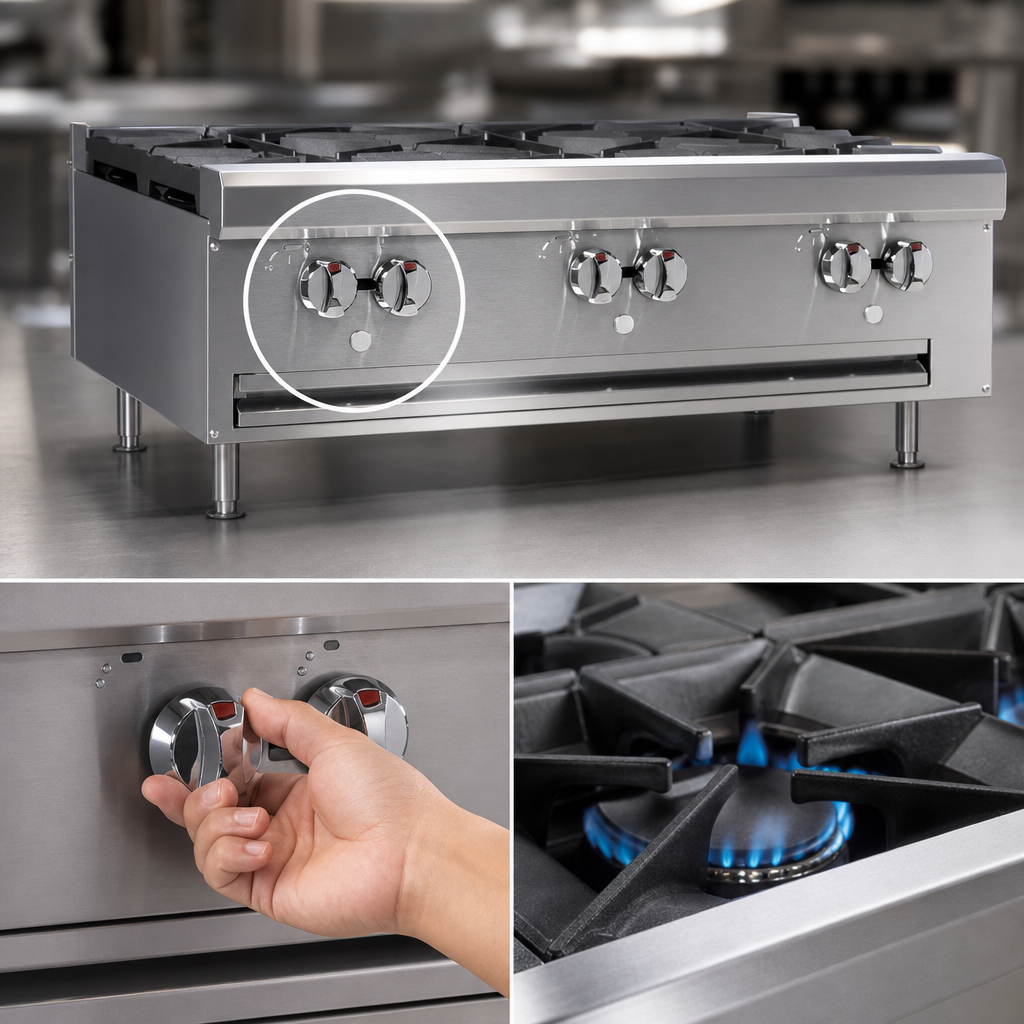

Manual Hi/Low Controls

Independent burner controls allow quick flame adjustments for better heat management.

Removable Cast Iron Grates

Flush-top cast iron grates lift out for easier cleaning and cookware movement.

Full-Width Crumb Tray

A stainless steel crumb tray catches debris beneath the burners to simplify cleanup.

Stainless Steel Front and Sides

Durable stainless steel exterior panels help the unit stand up to daily commercial use.

3/4-Inch Rear Gas Connection

The standard rear gas connection includes a pressure regulator for installation.

4-Inch Adjustable Legs

Adjustable stainless steel legs provide stable countertop placement.

Vented Hood Installation

The unit is intended to be installed under a vented hood.

Type Hot Plate
Style Open Burner
Installation Type Countertop
Burner Qty 8
BTU 264,000 BTU
Controls Manual Hi/Low
Material Stainless Steel
Finish Stainless Steel
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 7 Inches W.C. Natural Gas / 11 Inches W.C. Propane
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 34 Inches
Shipping Height 11 Inches
Shipping Weight 299 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Hdo parts manual (post 7/6/2010) PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 8 open burners.
Each burner is rated at 33,000 BTU on natural gas and 24,000 BTU on propane.
The unit uses a 3/4-inch rear gas connection with a pressure regulator.
Yes, it includes removable cast iron grates and a full-width crumb tray.
Yes, the documentation states that it should be installed under a vented hood.
The product includes a one-year limited parts and labor warranty.
