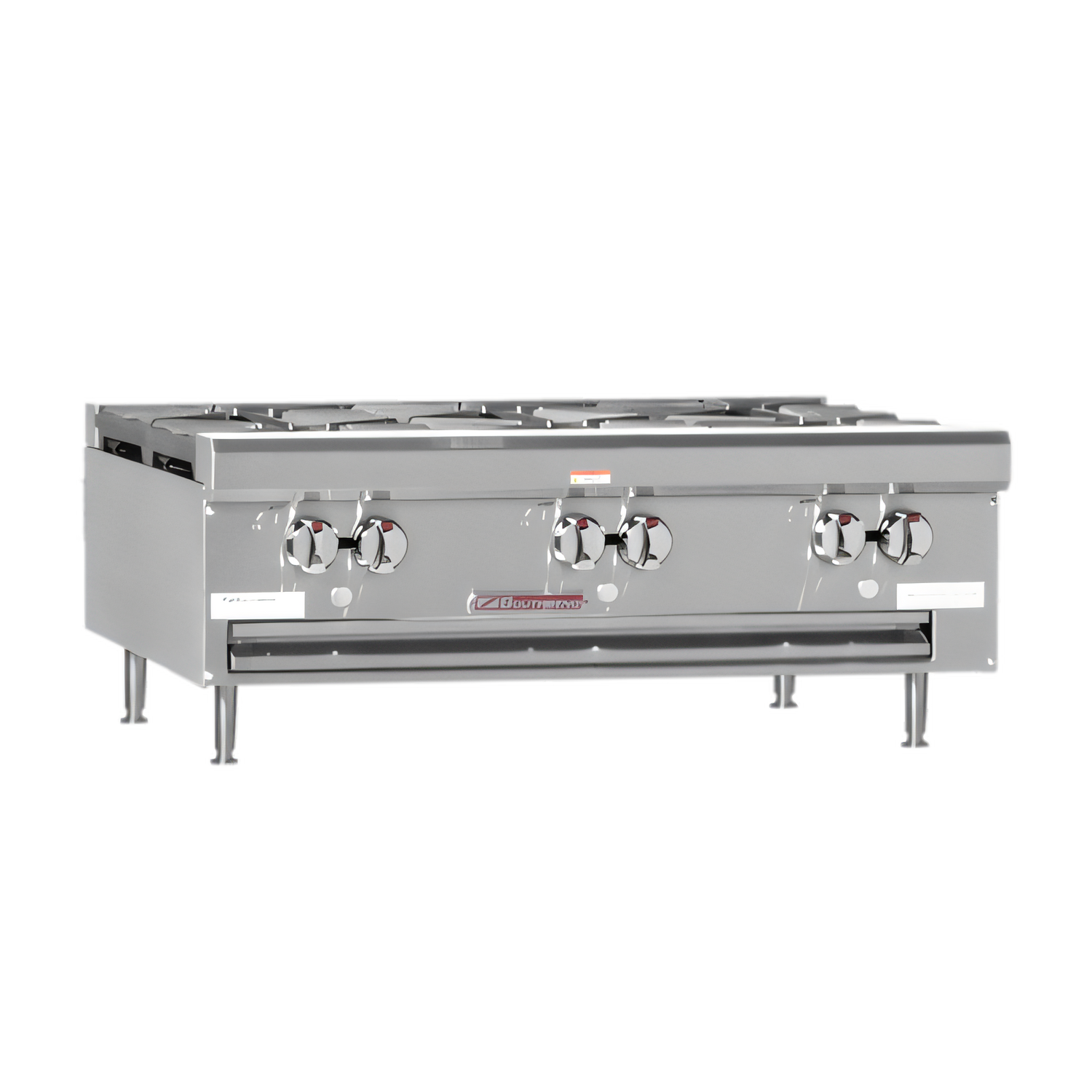

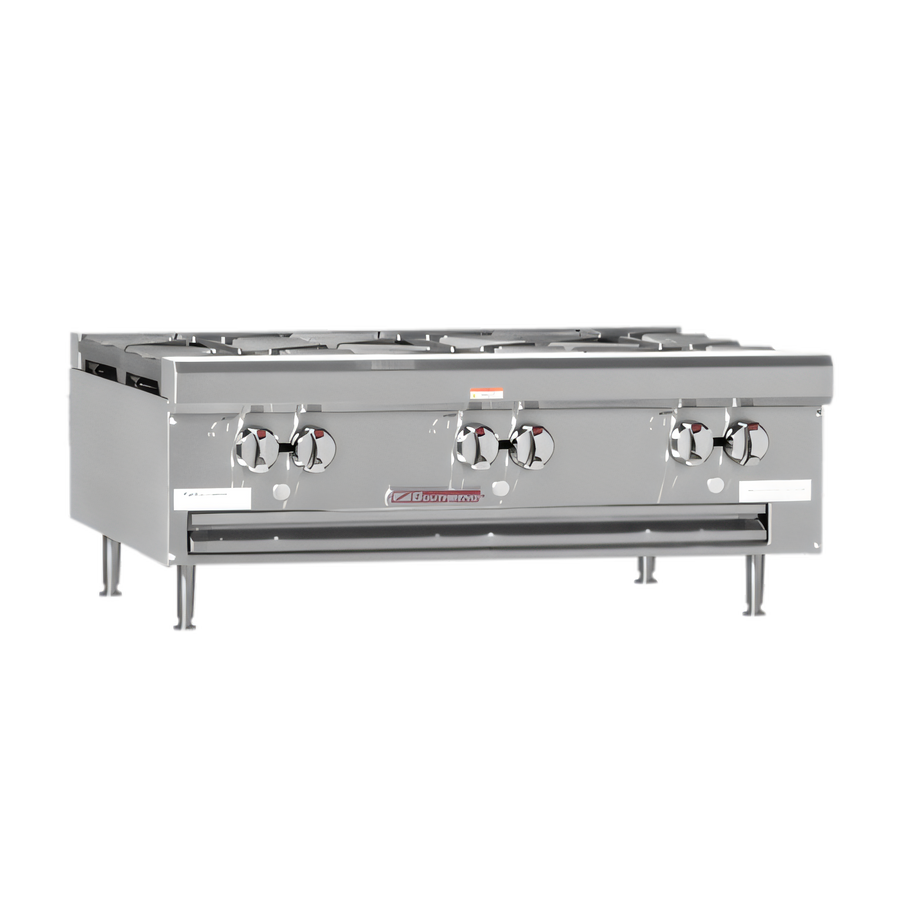

Southbend HDO-36SU 36-Inch 6-Burner Gas Step-Up Countertop Hotplate

3 Open Burners, 3 Step-Up Burners, Stainless Steel Front & Sides

Built for high-output cooking on a compact footprint, this 36-inch countertop hotplate pairs six 33,000 BTU burners with durable stainless steel construction and easy-clean components.

  • Six 33,000 BTU burners provide a versatile, high-output cooking surface across the 36-inch top.
  • Step-up burner layout gives cooks more flexibility for different pan sizes and cooking tasks.
  • Manual hi/low controls allow independent flame adjustment burner by burner.
  • Removable cast iron grates and a full-width crumb tray help speed cleanup.
  • Stainless steel front and sides with 4-inch adjustable legs are built for busy commercial kitchens.
  • Standard rear gas connection and pressure regulator support straightforward installation.

Overall Dimensions:

36.0"W x 33.75"D x 11.0"H

Product Weight:

253.0 lb

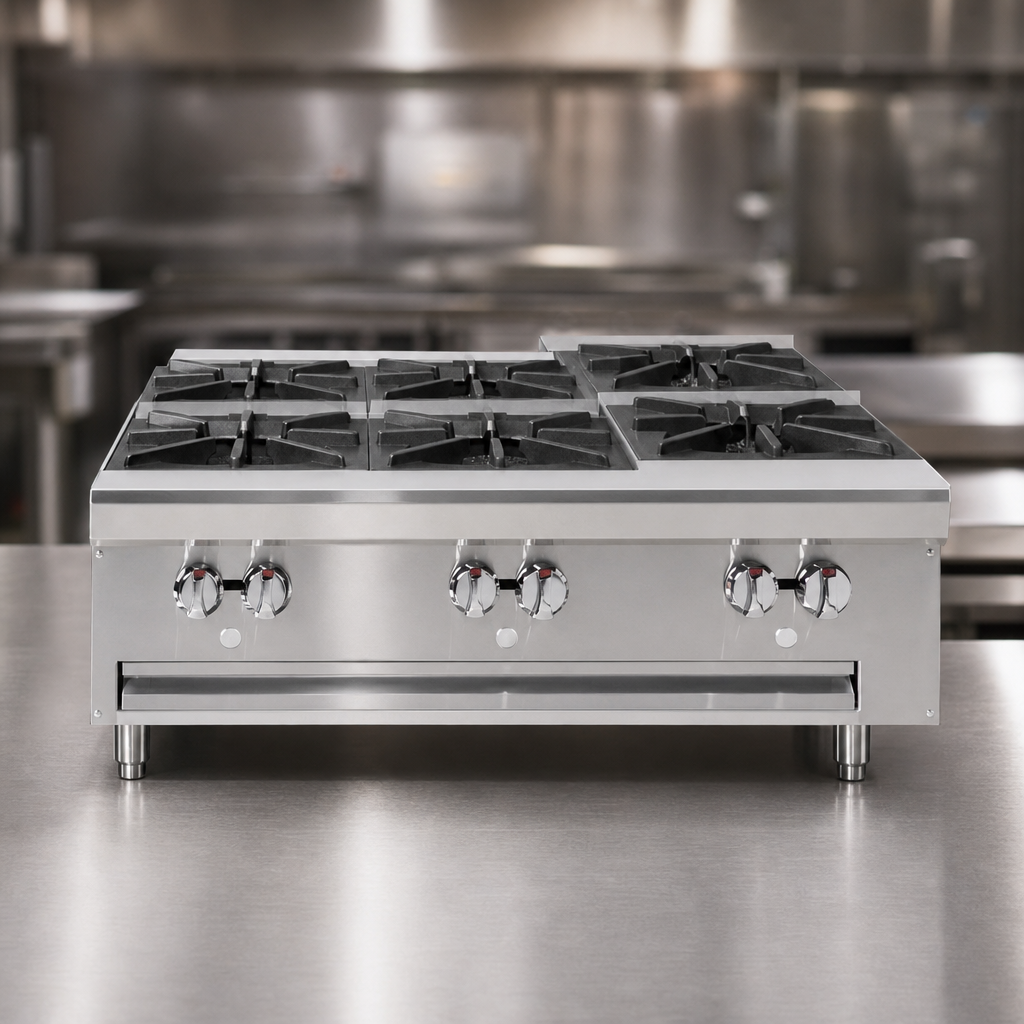

Six-Burner Layout

Includes three open burners and three step-up open burners for added cooking flexibility.

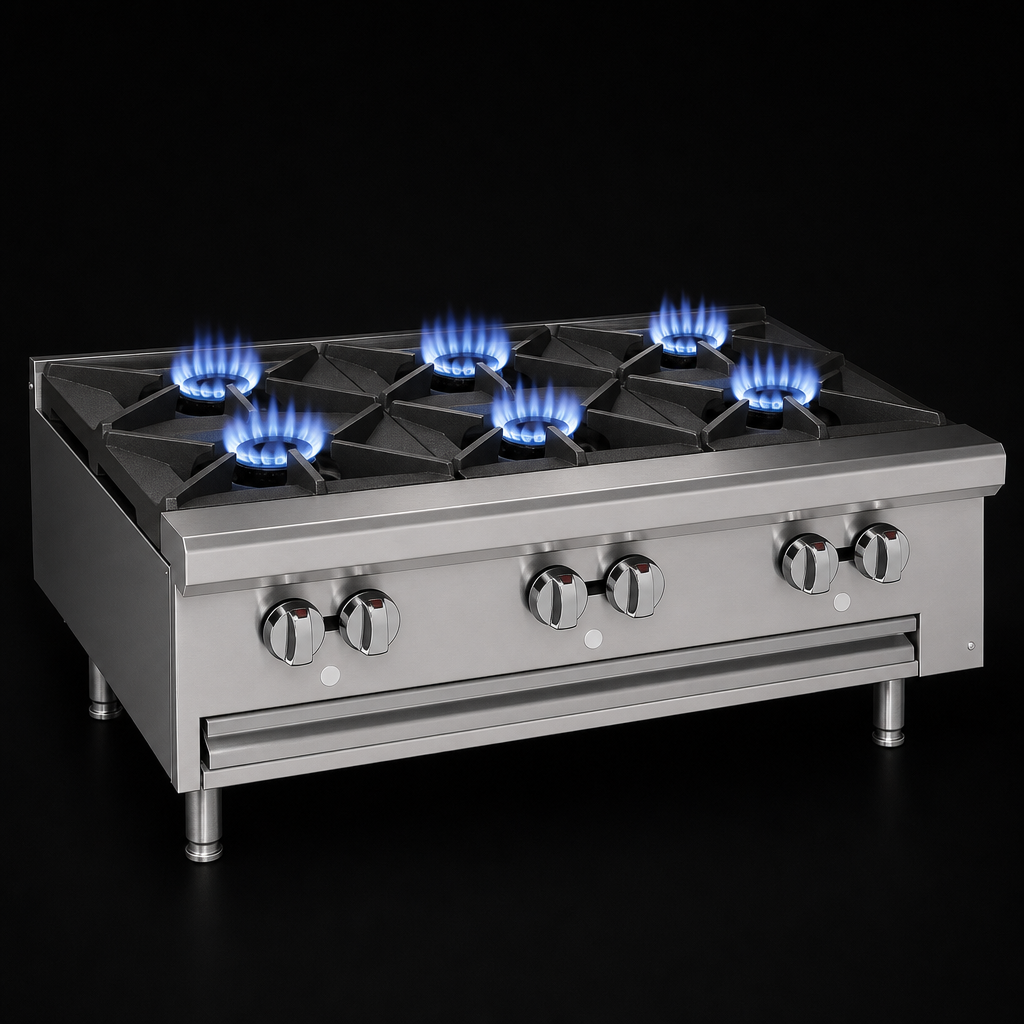

33,000 BTU Open Burners

Each burner is rated at 33,000 BTU on natural gas and 24,000 BTU on propane.

Manual Hi/Low Controls

Independent burner controls let operators adjust flame output as needed.

Removable Cast Iron Grates

Flush-top cast iron grates remove for easier cleaning and cookware access.

Full-Width Crumb Tray

A stainless steel crumb tray spans the width of the unit to catch debris beneath the burners.

Stainless Steel Construction

Stainless steel front and sides with aluminized steel rear and bottom panels provide durability.

Gas Connection

Standard 3/4-inch rear gas connection with pressure regulator included.

Adjustable Legs

4-inch stainless steel adjustable legs support countertop installation and leveling.

Installation Note

Designed for installation under a vented hood.

Warranty

Backed by a one-year limited parts and labor warranty.

Type Hotplate
Style Step-Up
Installation Type Countertop
Controls Manual
BTU 198,000 BTU
Gas Connection Size 3/4 Inch Rear Male NPT
Gas Inlet Pressure 7 Inches W.C. Natural Gas / 11 Inches W.C. Propane
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 11 Inches
Shipping Weight 253 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Hdo parts manual (post 7/6/2010) PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has six total burners: three open burners and three step-up open burners.
The unit is rated at 198,000 BTU total on natural gas.
It uses a standard 3/4-inch rear gas connection with a pressure regulator included.
Yes. The unit includes removable cast iron flush-top grates and a full-width stainless steel crumb tray.
Yes. The cutsheet states it should be installed under a vented hood.
The product is backed by a one-year limited parts and labor warranty.
