Southbend (Middleby)

Southbend HDO-24SU 24-Inch 4-Burner Gas Countertop Hotplate with Step-Up Open Burners

SKU: HDO-24SU
$3,288.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Hot Plates Commercial Ranges Hot Plates New Arrivals Restaurant Equipment Southbend (Middleby)

Southbend HDO-24SU 24-Inch 4-Burner Gas Countertop Hotplate with Step-Up Open Burners

Manual Hi/Low Controls, Stainless Steel Front and Sides, 132,000 BTU

Bring high-output, flexible burner power to your line with a rugged 24-inch gas hotplate built for demanding commercial kitchens.

  • 24-inch countertop hotplate designed for high-volume commercial cooking.
  • Four-burner layout includes two open burners and two step-up open burners.
  • 33,000 BTU per burner delivers 132,000 BTU of total cooking power.
  • Manual hi/low controls and standing pilots provide dependable flame control.
  • Stainless steel front and sides, cast iron grates, and a crumb tray support durability and cleanup.
  • 4-inch adjustable legs and a 3/4-inch rear gas connection simplify installation.

Overall Dimensions:

24.0"W x 33.75"D x 11.0"H

Product Weight:

209.0 lb

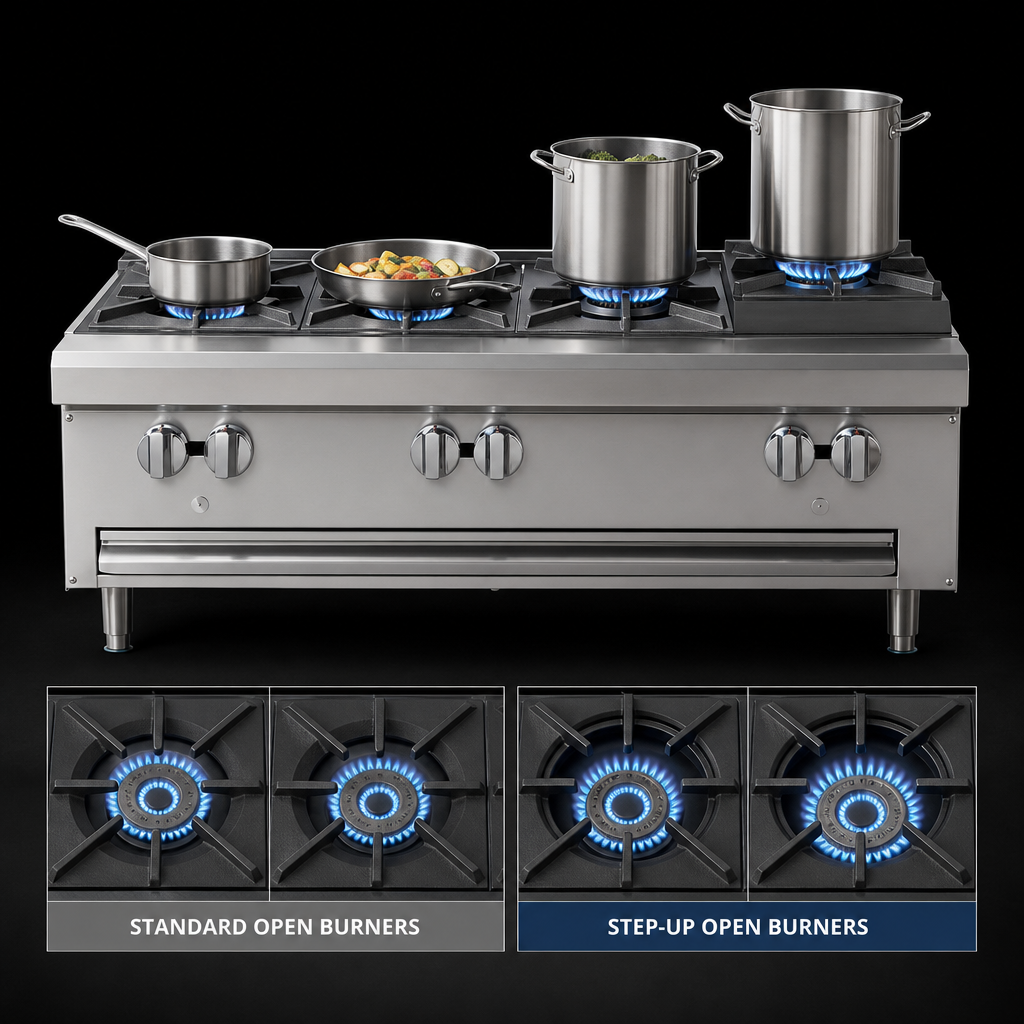

Step-Up Burner Configuration

Includes two standard open burners and two step-up open burners for versatile cooking placement.

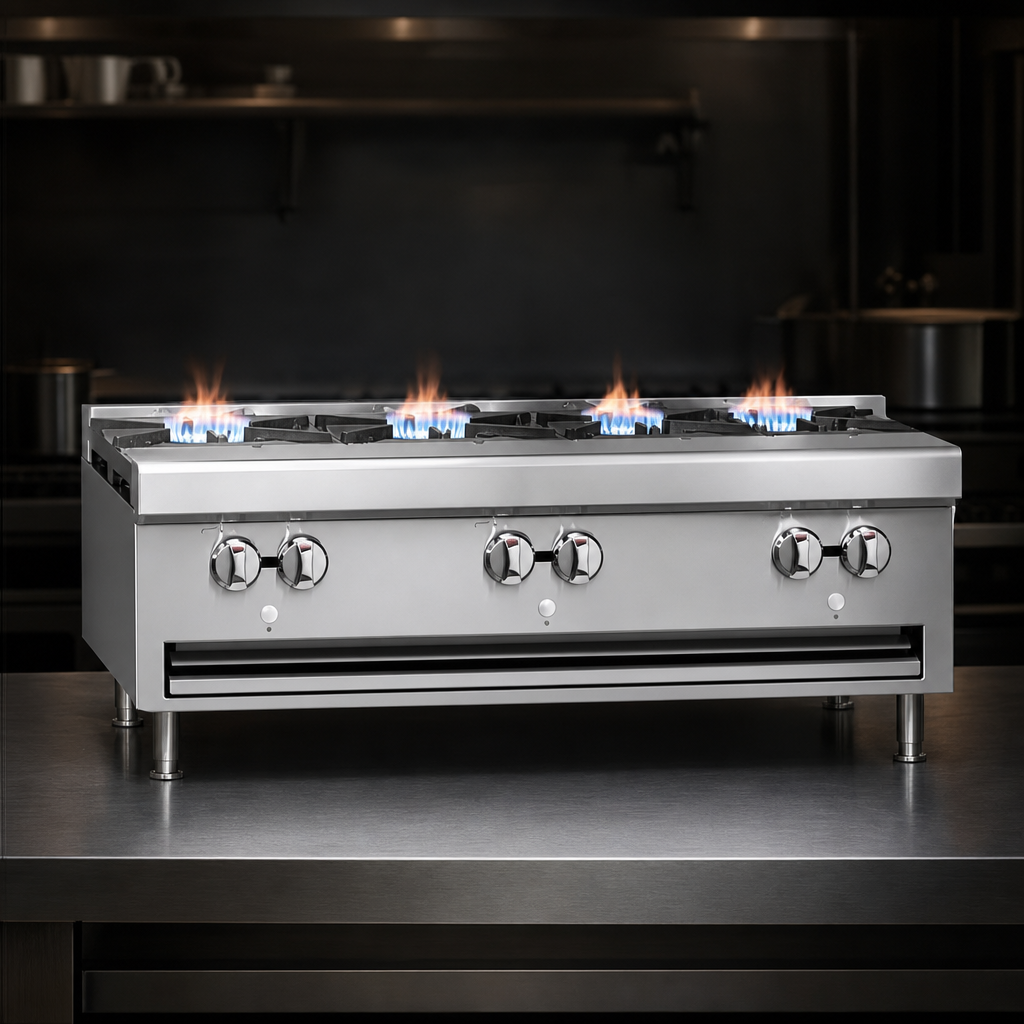

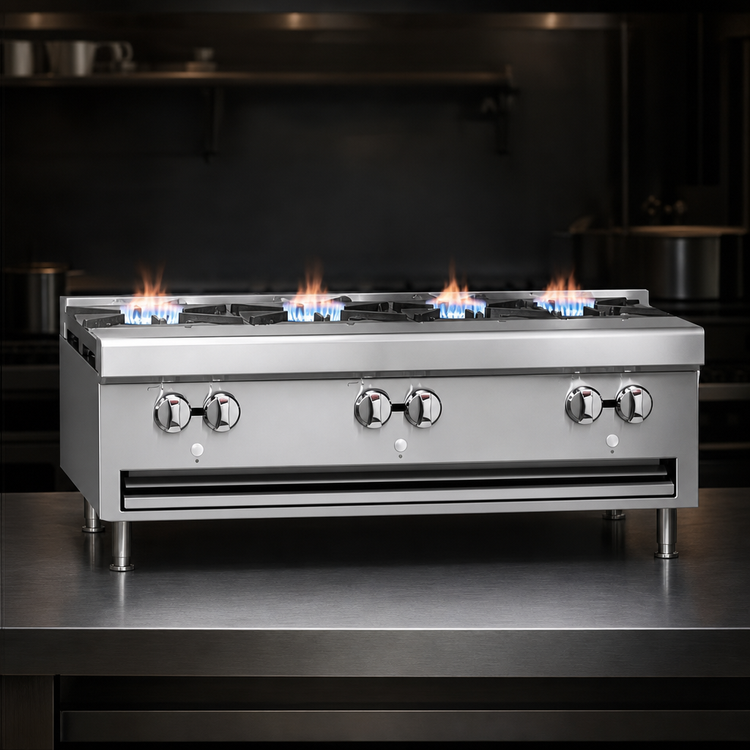

High Heat Output

Each burner is rated at 33,000 BTU, delivering 132,000 BTU total on natural gas.

Manual Hi/Low Controls

Independent gas valve control provides simple flame adjustment and dependable operation.

Removable Cast Iron Grates

Flush-top grates lift out for easier cleaning and pot handling.

Full-Width Crumb Tray

A stainless steel crumb tray catches debris and helps speed cleanup at the end of service.

Stainless Steel Construction

Stainless steel front and sides provide a durable, professional finish.

Adjustable Legs

4-inch stainless steel legs help level the unit on the countertop.

Rear Gas Connection

Features a 3/4-inch rear gas connection with pressure regulator included.

Type Hotplate
Style Step-Up
Installation Type Countertop
Controls Manual Hi/Low
Burner Quantity 4
Step-Up Burners 2
Burner BTU 33,000 BTU Each
BTU 132,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch Rear Male NPT
Gas Inlet Pressure 7 Inches W.C.
Material Stainless Steel
Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 34 Inches
Shipping Height 11 Inches
Shipping Weight 209 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor limited warranty.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Hdo parts manual (post 7/6/2010) PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four burners total: two open burners and two step-up open burners.
The unit is rated at 132,000 BTU total.
It uses a 3/4-inch rear gas connection, and a pressure regulator is included.
Yes. The unit includes removable cast iron grates and a full-width crumb tray for easier cleanup.
The unit should be installed under a vented hood, with zero clearance to noncombustible construction and 10 inches on the sides and 6 inches on the rear to combustible construction.
