Southbend (Middleby) HDO-12 Hot Plates
Southbend (Middleby) HDO-12 Hot Plates is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) HDO-12 Hot Plates
Description
Southbend HDO-12 Heavy-Duty Countertop Gas Hotplate
12" wide • 66,000 BTU • (2) open burners • CSA & NSF certifiedBuilt for demanding commercial kitchens, the Southbend HDO-12 delivers the raw heating power of a full-size range in a compact 12-inch footprint. Two 33,000 BTU cast-iron, non-clog burners give you instant, even heat for sautéing, pan-frying, boiling or finishing sauces right on the line.
Why You’ll Love It
- Heavy-duty power, tiny footprint – 66,000 BTU total output in just 12 inches of counter space.
- All-day durability – stainless-steel front & sides, 4" adjustable legs, and removable CI top grates built to handle constant high-heat use.

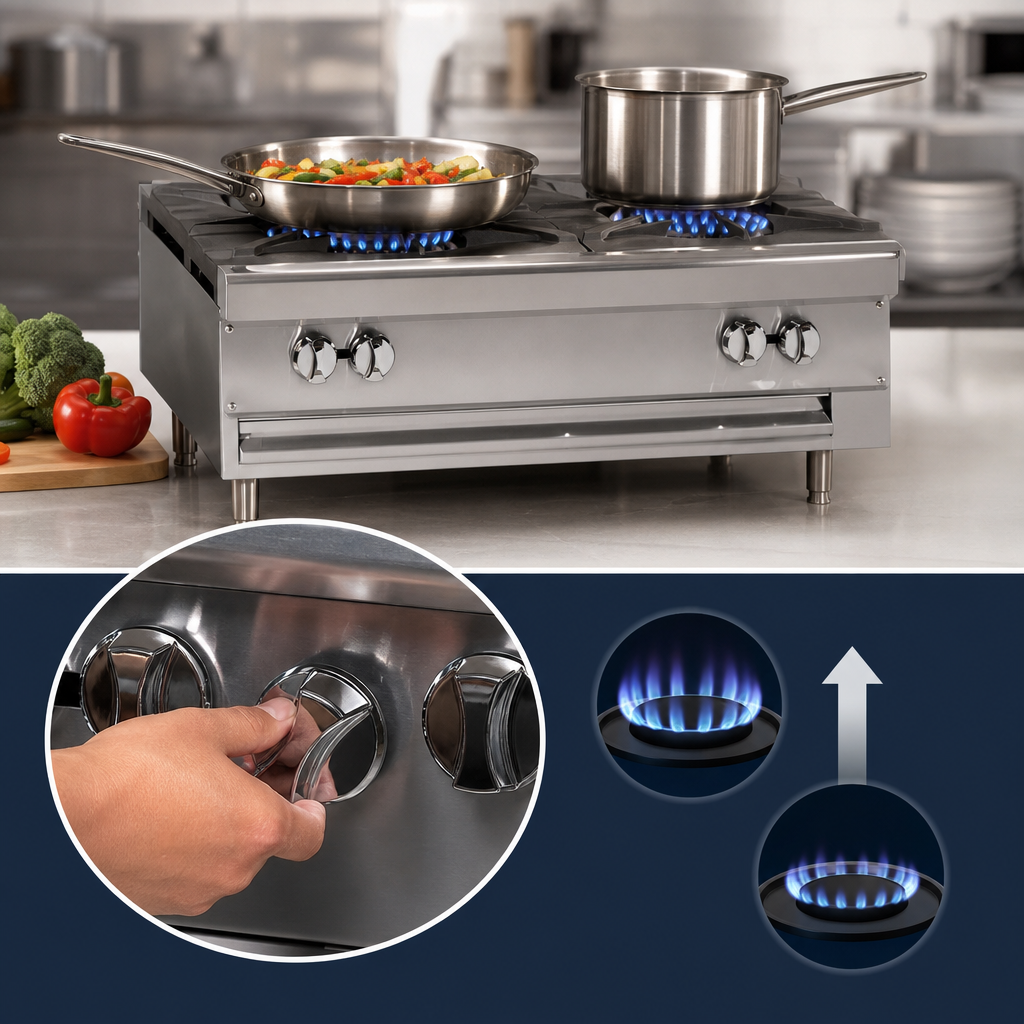

- Manual Hi/Low valves for precise flame control on each burner.
- Speedy clean-up – lift-off grates plus a full-width, slide-out crumb tray.
- Factory-installed ¾" rear gas regulator simplifies hook-up.
- CSA & NSF listed for safe, code-compliant installation.
At-a-Glance Specs
| Model | HDO-12 |
|---|---|
| Type | Countertop gas hotplate, open burners |
| Total BTU | 66,000 BTU/hr (Natural gas) | 48,000 BTU/hr (Propane) |
| Burners | 2 × 33,000 BTU cast-iron, non-clog |
| Controls | Manual Hi/Low valves, standing pilots |
| Cooking Grates | 12" cast-iron, flush-top (removable) |
| Exterior | Stainless steel front & sides; aluminized back & bottom |
| Gas Inlet | ¾" NPT (rear) with factory regulator |
| Overall Dimensions (W×D×H) | 12 1⁄8" W × 31" D × 15" H (including 4" legs) |
| Shipping Weight | 165 lb |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Operator Tips
- Use cookware no larger than 12" in diameter on the front grate to avoid excess radiant heat on the control panel.
- Install beneath a properly sized vent hood and maintain minimum clearances: 0" sides, 6" rear from combustibles.
- Regularly empty the crumb tray and wash grates to maintain peak burner efficiency.
What’s Included
- Southbend HDO-12 hotplate
- Removable cast-iron top grates (2 pieces)
- Full-width stainless crumb tray
- 4" adjustable stainless legs (pre-installed)
- ¾" gas pressure regulator
- Owner’s & installation manual
Southbend equipment is backed by a 1-year limited parts & labor warranty when installed and serviced by an authorized technician.
