Southbend (Middleby) HDO-12-316L Hot Plates
Description
Southbend HDO-12-316L 12" Outdoor Gas Hotplate
Heavy-duty 2-burner countertop range • 66,000 BTU (Natural Gas)Pack maximum fire power into the smallest footprint on your cook line. The Southbend HDO-12-316L dishes out a blazing 66,000 BTU from two non-clogging open burners, all wrapped in corrosion-proof 316L stainless steel built to thrive in demanding outdoor or catering environments.

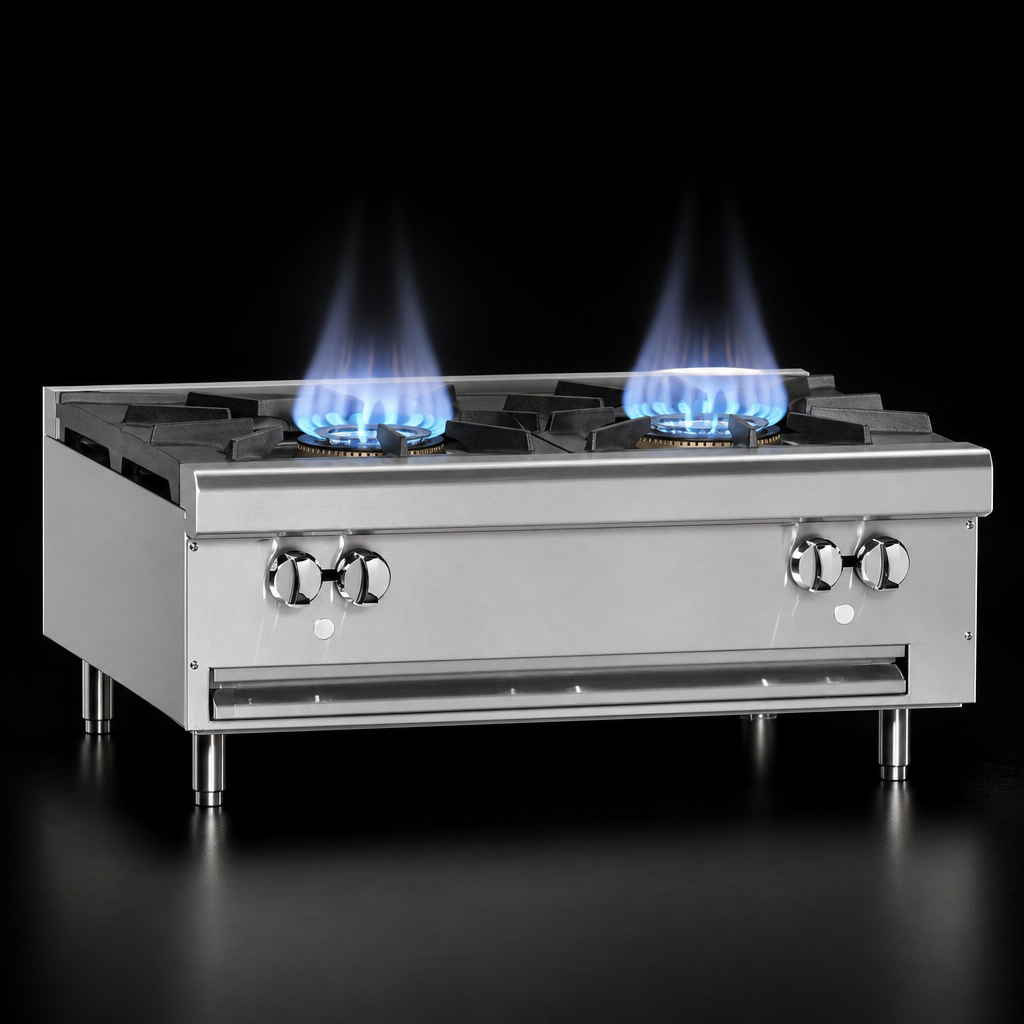

- Two 33,000 BTU NAT / 24,000 BTU LP cast-iron open burners
- Hi/Low manual controls with standing pilots for instant ignition
- Porcelain-coated cast-iron flush top grates—swap pans without snagging
- Full-width 316L stainless crumb tray slides out for fast cleanup
- Rugged 316L stainless front, sides, rear & bottom panels resist rust and corrosion
- 3/4" rear gas connection with factory pressure regulator
- 4" adjustable stainless legs steady the unit on any countertop
- Zero clearance to non-combustible walls—perfect for tight cook stations
- NSF, CSA & cCSAus listed for commercial outdoor use

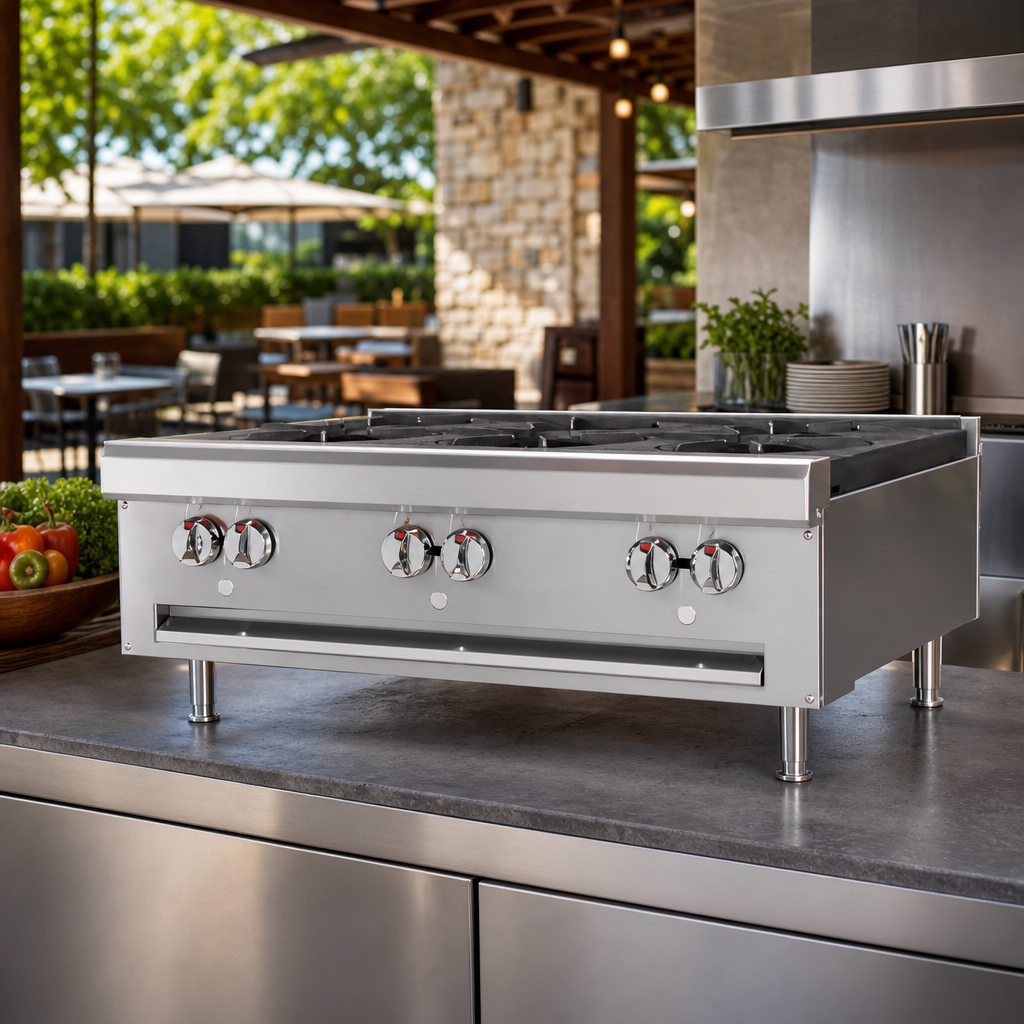

Built for the Elements
Unlike common 304 stainless, marine-grade 316L contains molybdenum for superior pitting and salt-spray resistance. From beachfront resorts to mobile food trailers, your hotplate stays looking sharp shift after shift.
Popular Add-Ons (Sold Separately)
- 316L stainless steel equipment stand
- All-terrain 10" caster kit for mobility
- 2" insulated base for mounting on a refrigerated counter
- Battery spark ignition—ditch the pilots when ventilation is limited
Technical Specifications
| Model | HDO-12-316L |
|---|---|
| Total BTU | 66,000 BTU (Natural) / 48,000 BTU (Propane) |
| Burners | 2 open, cast iron, non-clog |
| BTU per Burner | 33,000 BTU NAT / 24,000 BTU LP |
| Cooking Surface | 12" porcelain-coated cast-iron grate (flush top) |
| Controls | Independent Hi/Low manual gas valves with standing pilots |
| Gas Connection | 3/4" NPT rear (pressure regulator included) |
| Overall Dimensions (W × D × H) | 12.1" × 31.2" × 11" (308 × 792 × 279 mm) — plus 4" adjustable legs |
| Shipping Weight | 165 lb (75 kg) |
| Clearances | 0" to non-combustible surfaces / 10" sides & 6" rear to combustible |
| Warranty | 1-year limited parts & labor |
Intended for commercial use only. Using oversized cookware that overhangs the front rail or blocking burners with sheet pans may cause damage not covered by warranty.
