Southbend (Middleby)  |  SKU: HDG-72

Southbend (Middleby) HDG-72 Gas Griddles

$10,850.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Hdg parts manual (post 7/6/2010) Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

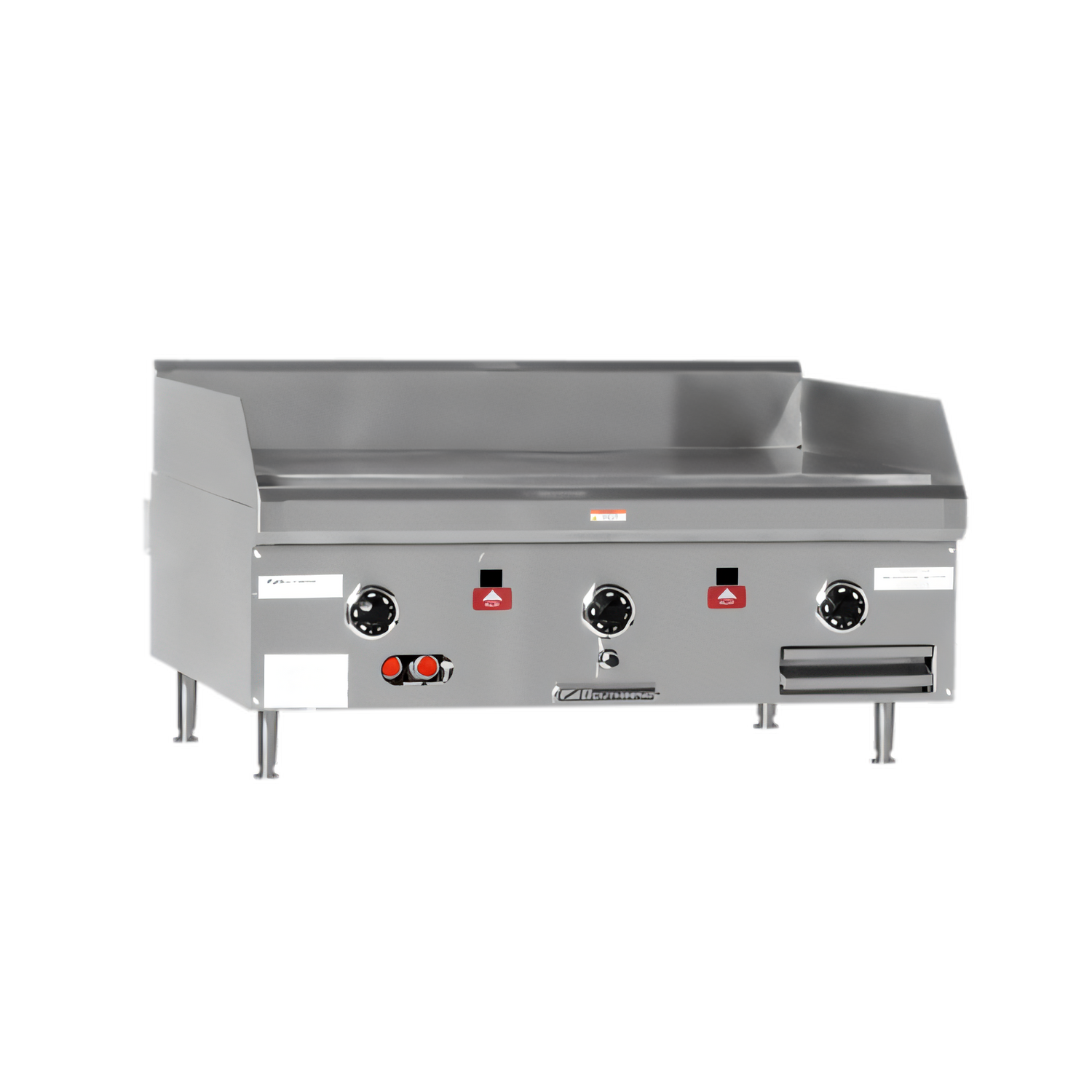

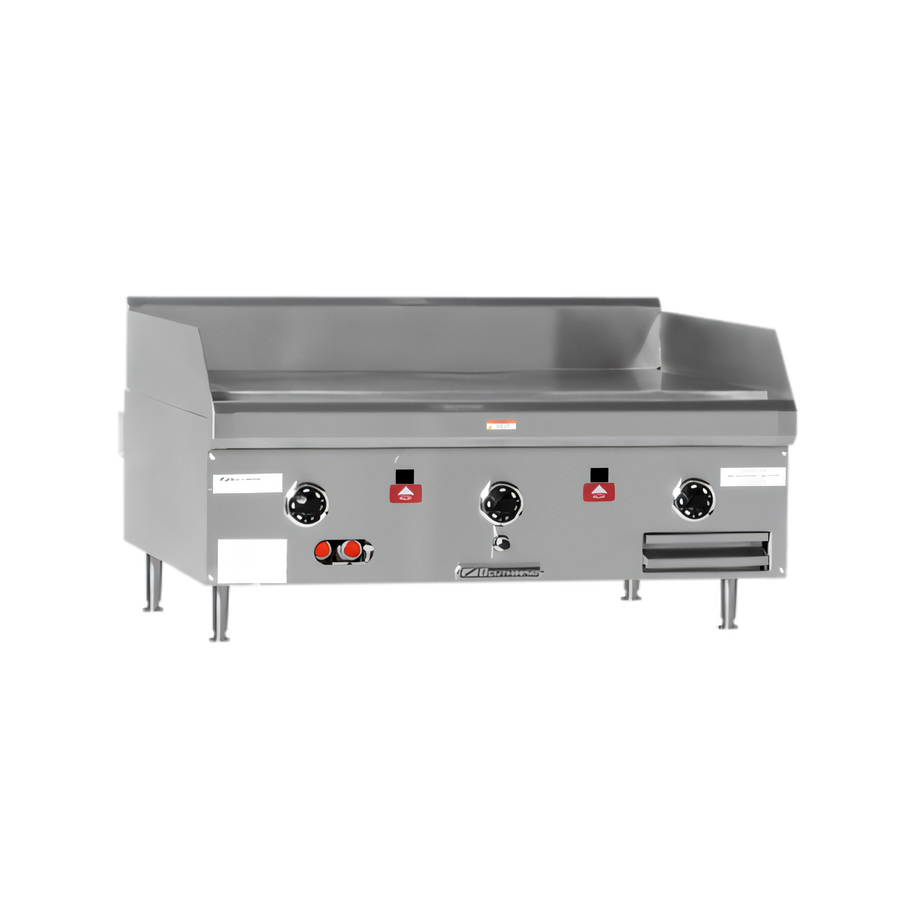

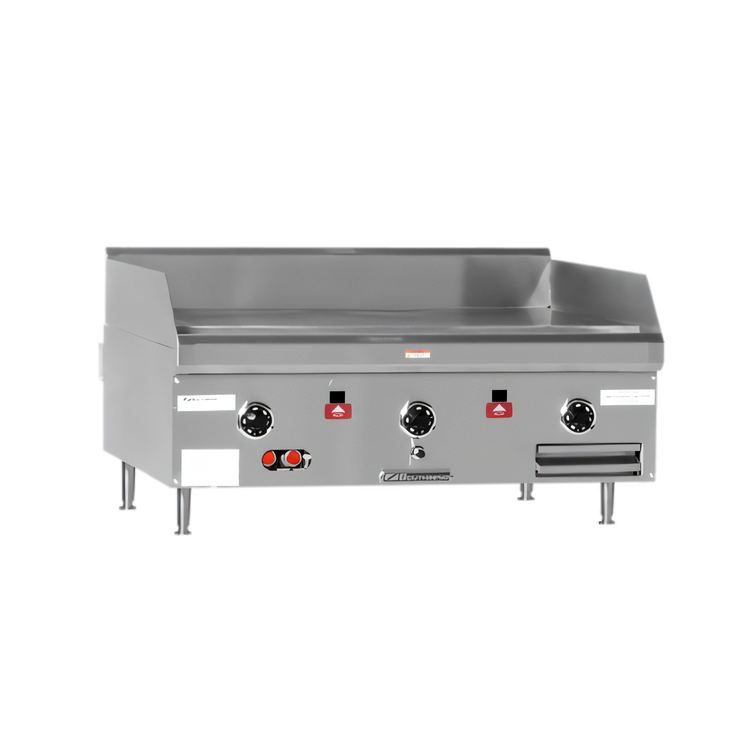

Southbend HDG-72 Counterline Heavy-Duty Thermostatic Gas Griddle

72" wide • 1" polished steel plate • 180,000 BTU

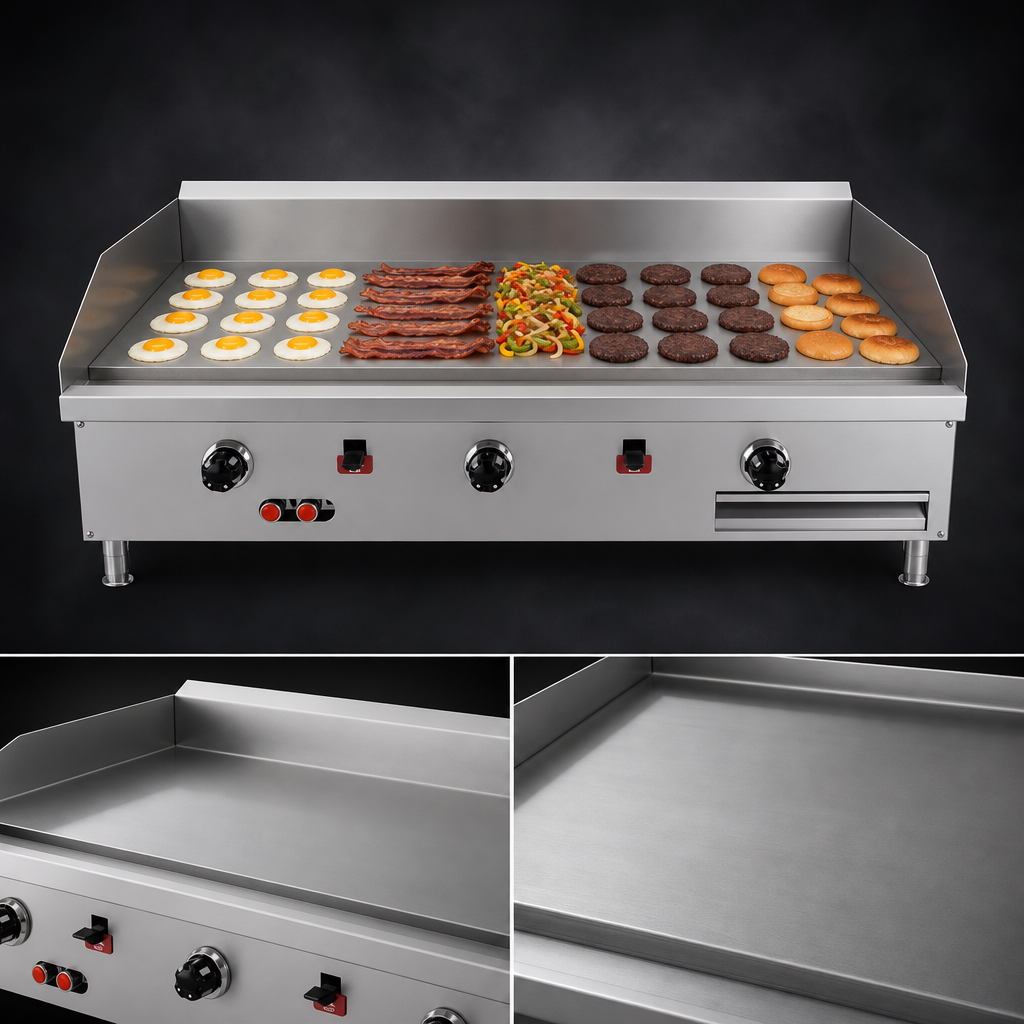

Tackle peak-hour rushes with 6 feet of searing power. The Southbend HDG-72 combines a massive 1,728 in² cook surface with precision thermostatic control, giving chefs rock-steady temps, lightning-fast recovery and legendary Southbend durability.

Key Advantages
  • Six 30,000 BTU U-shaped burners (180,000 BTU total) for rapid preheat & recovery.
  • “Insta-On” thermostatic controls maintain 200 – 550 °F across the entire plate.
  • Exclusive NO-COLD-ZONE design ensures uniform heat distribution—edge to edge.

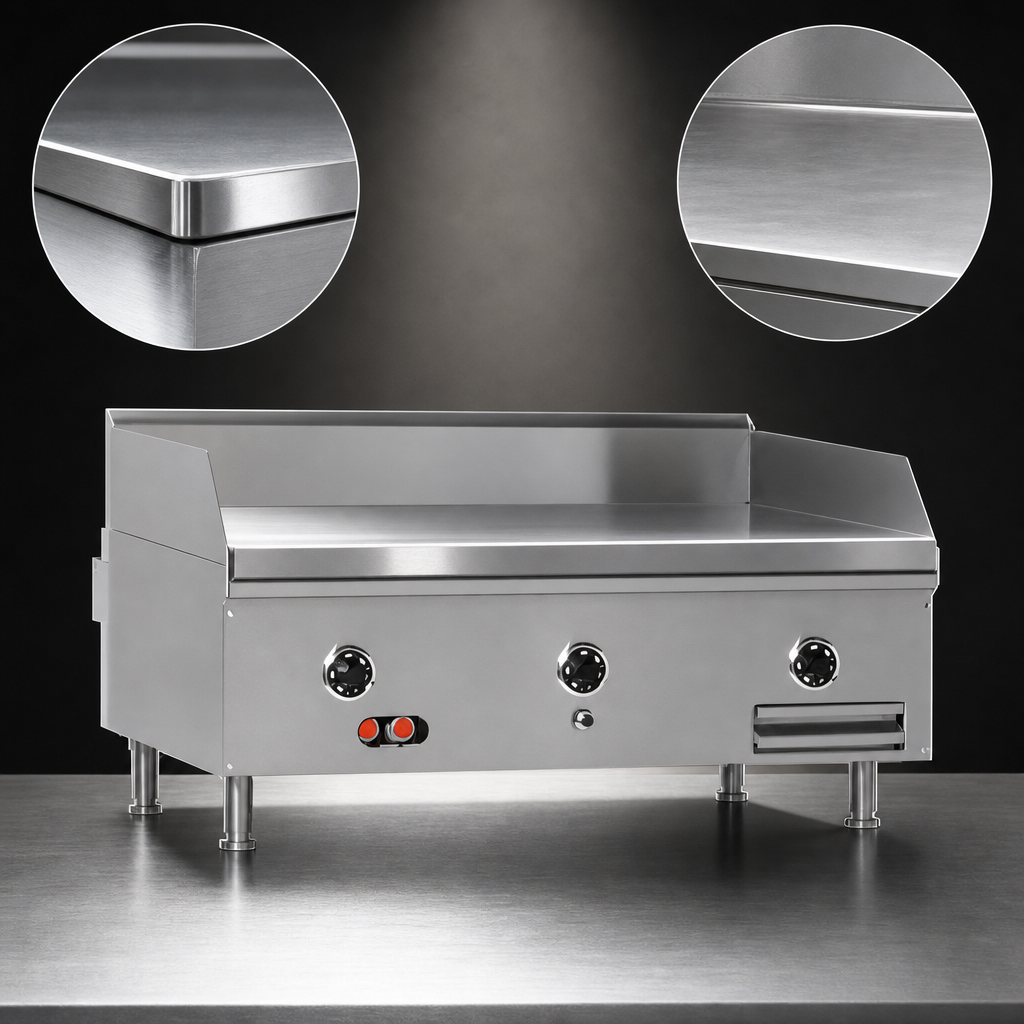

  • 1" thick, fully welded polished steel plate resists warping and temp drop under heavy loads.
  • Battery-powered electronic spark ignition and flame-failure safety on every pilot.
  • Stainless steel front, sides, vent and 4" adjustable legs—built for years of daily abuse.
  • 5" rear & 4" side splash guards plus extra-large front grease drawer keep the line clean.
  • CSA & NSF certified for commercial kitchens.
Specification Snapshot
Model HDG-72 (Thermostatic)
Cooking Surface 72" W × 24" D (1,728 in²)
Plate Thickness 1" polished rolled steel
Burners / Output 6 × 30,000 BTU (180,000 BTU total)
Temperature Range 200 °F – 550 °F
Ignition Battery-powered electronic spark
Safety Flame-failure device on each pilot
Overall Dimensions* 72" W × 31.75" D × 15.25" H
Gas Connection ¾" rear NPT (regulator included)
Construction Stainless steel front/sides/vent; aluminized rear & bottom
Certifications CSA, NSF
Warranty 1-year parts & labor

*Height shown excludes 5" flue.

Optional Accessories (sold separately)
  • Stainless steel equipment stand (with or without cutting board)
  • Heavy-duty casters for stand
  • Grooved or chrome-plated cook plates
  • 2" insulator base for mounting on refrigerated bases
For commercial use only: Install under a vented hood and maintain minimum clearances of 12" (sides) and 8" (rear) from combustible surfaces. Always verify local code requirements before installation.

Need flexible payment options? Ask about Middleby equipment financing.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, CSA

Height

16.13in

Width

72.0in

Depth

33.75in

Shipping Weight

840.0lbs

Cooking Surface Width (side - side)

67" - 72"

Exterior Finish

stainless steel front & sides

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Controls

thermostat / solid state controls

Plate Thickness

1"

Specifications

Griddle, countertop, gas, 72" W x 24" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front, sides & 4" adjustable legs, 180,000 BTU, CSA, NSF
